Insignia NS-SPBTWAVE2 Portable Bluetooth Speaker User Guide

Insignia NS-SPBTWAVE2 Portable Bluetooth Speaker

PACKAGE CONTENTS

• Bluetooth speaker
• USB cable
• Quick Setup Guide

FEATURES

• Wirelessly stream from any Bluetooth device
•  Rechargeable battery lasts up to 12 hours
•  Speakerphone for hands-free calling
• Rubber feet support a horizontal or vertical orientation

IMPORTANT SAFETY INSTRUCTIONS

•  Read these instructions.
•  Keep these instructions.
•  Heed all warnings.
•  Follow all instructions.
•  Do not use this speaker near water.
•  Clean only with a dry cloth.
• Do not block any ventilation openings. Install by the manufacturer’s instructions.
•  Do not install near any heat sources such Insignia NS-SPBTWAVE2 as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
•  Only use attachments/accessories specified by the manufacturer.
•  Unplug this speaker during lightning storms or when unused for long periods of time.
•  Refer all servicing to qualified service personnel. Servicing is required when the speaker has been damaged in any way, such as if the speaker is dropped, exposed to liquids, or does not operate normally.
•  Never expose the product to fire, as this could result in personal injury.
•  Do not store the product in an extremely cold or warm environment.
•  Never dismantle the product.
•  Never let children play with the product.
•  Do not expose the product to dampness or moisture.
•  The product should not be exposed to dripping or splashing.

Note: The battery in this speaker cannot be replaced by the user.

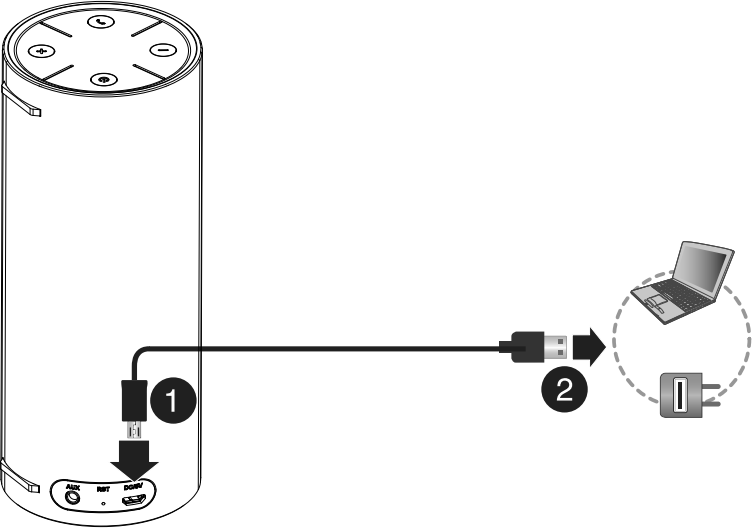

CHARGING YOUR SPEAKER

1. Connect the small end of the charging cable to the micro USB port on the back of your speaker.
2.  Connect the other end to a USB port on your computer or a wall Insignia NS-SPBTWAVE2 adapter (not included). The LED indicator is red while charging, then turns off when the speaker is fully charged.

Note: The speaker beeps continually when the battery is low. About five minutes later, the speaker turns off automatically

CONNECTING AN AUDIO DEVICE

Bluetooth

1.  Press and hold (power) to turn on your speaker. The LED indicator blinks blue quickly, and your speaker automatically enters pairing mode.
2.  Make sure that your Bluetooth device is within 33 ft. (10 m) of your speaker.
3.  Turn on your Bluetooth device, turn on Bluetooth, then enter pairing mode. For more information, see the documentation that came with your Bluetooth device.
4.  On your Bluetooth device, select NS-SPBTWAVE2. Your speaker pairs with your Bluetooth device, and the LED indicator lights solid blue.
5. To disconnect, unpair your Bluetooth device from your speaker. OR Press and hold (call) for three seconds on your speaker. Your Bluetooth devices lose connection automatically.

Audio cable

• Connect a 3.5 mm audio cable (not included) from your speaker’s AUX jack to your audio device’s headphone/audio out jack. The LED indicator blinks blue slowly while connected to an audio cable.

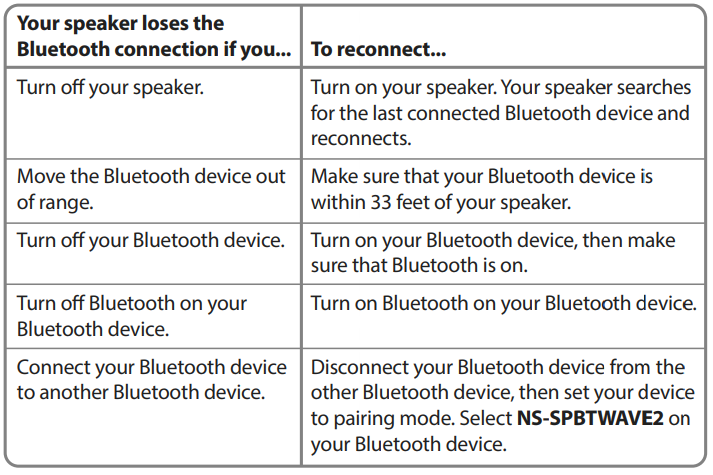

RECONNECTING TO A PAIRED DEVICE

When your speaker is not paired to a device, the LED blinks blue.

Note: The Bluetooth range (33 ft./10 m) may be reduced if the wireless signal has to pass through walls or other obstructions.

USING YOUR SPEAKER

Listening to audio

1.  Connect to your speaker with Bluetooth or an audio cable.
2.  Play audio on your connected device.
3. Press + or – to adjust your speaker’s volume.
   Note: Make sure that your connected device’s volume is set to at least 50%.
4. Use the controls on your connected device to control playback

TAKING A PHONE CALL

Using your speaker

The following functions are available when paired to a phone with Bluetooth:

•  Reject an incoming call: Press and hold (call).
•  Answer an incoming call: Press (call).
•  Switch audio between your speaker and phone: Press and hold (call).
•  End current call: Press (call).
•  Redial the last dialed number: Press (call) twice.

LED indicator

LED FUNCTION

• Blinks blue quickly, Bluetooth pairing mode
• Lights are solid blue, paired to a Bluetooth device
• Blinks blue slowly. Connected to an AUX device
• The lights red Speaker is charging (charging complete when the LED turns off)

SPECIFICATIONS

•  Dimensions (H × W × D): 6.77 × 2.75 × 2.75 in. (17.2 × 7 × 7 cm)
•  Battery size: 2,000 mAh
•  Wattage: 3W
•  USB cable length: 11.8 in. (30 cm)
• Range: 33 ft. (10 m)
• Run time: 12 hours
•  Charge time: 4.5 hours
•  Weight: 1.01 lbs. (0.46 kg)

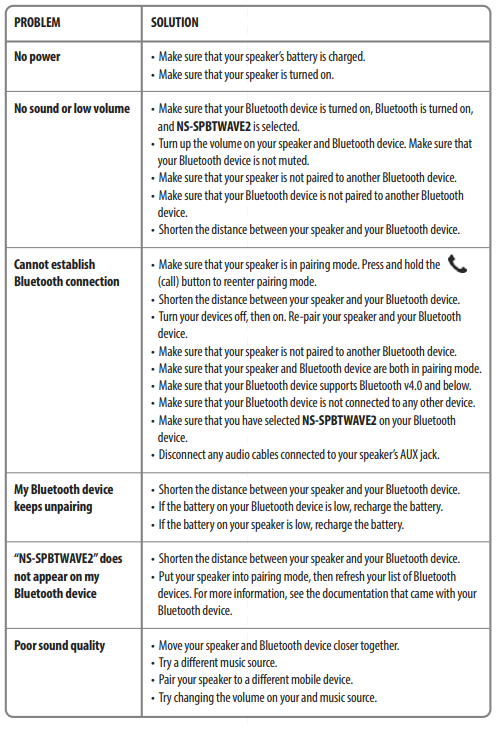

TROUBLESHOOTING

LEGAL NOTICES

FCC

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

1.  This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment Insignia NS-SPBTWAVE2 generates, uses, and can radiate radio frequency energy, and if not installed and used byaccording tohe instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

ONE-YEAR LIMITED WARRANTY

Visit www.insigniaproducts.com for details

CONTACT INSIGNIA

1-877-467-4289 (U.S. and Canada) 01-800-926-3000 (Mexico) www.insigniaproducts.com

INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2018 Best Buy. All rights reserved. Made in China

FAQs

Q: How do I pair the Insignia NS-SPBTWAVE2 with my device?

Make sure your computer, tablet, or phone has Bluetooth enabled before turning on the speaker. To finish pairing, choose “NS-SPBTWAVE2” from the list of compatible Bluetooth devices.

Q: What is the wireless range of this Bluetooth speaker?

In open areas, the speaker’s usual range is up to 30 feet (9 meters). The range may be decreased by furniture, walls, or other wireless devices.

Q: Can I use the speaker while it’s charging?

It is true that the Insignia NS-SPBTWAVE2 can play music while charging and attached to a power source.

Q: How long does the battery last on a full charge?

Depending on the volume and kind of music being played, a completely charged battery can run for up to eight hours.

Q: Does this speaker have a built-in microphone?

Indeed, when linked to a smartphone, the speaker’s integrated microphone enables hands-free phone calls.

Q: Can I connect this speaker to non-Bluetooth devices?

Indeed. You can use an audio wire to connect devices without Bluetooth because the speaker has a 3.5 mm auxiliary (AUX) input.

Q: Is the Insignia NS-SPBTWAVE2 water-resistant?

No, this model isn’t resistant to water. Water, wetness, and humid conditions should be avoided.

Q: How do I know when the speaker is fully charged?

The charging state is displayed by an indicator light. When the battery is fully charged, the light either changes or goes out.
