KLARSTEIN 10033825 LADY MARMALADE Boiler Instruction Manual

KLARSTEIN 10033825 LADY MARMALADE Boiler

Safety Instructions

1. Read these operating instructions carefully before using the appliance for the first time and retain them for future reference. Pass these operating instructions for the appliance on to any future owner(s).
2. Before using the product, familiarise yourself with all operating and safety instructions.
3. Use the product only as described and for the range of applications specified.
4. This Preserving Cooker is suitable for:
   • Preserving
   • Heating and keeping drinks warm, and for their pouring
   • Heating and keeping boiled sausages, or their like, warm
   • Heating and keeping soups warm
5. Do not use any accessories other than those supplied.
6. Never completely immerse the appliance in water or other liquids, as this may damage the electrical parts.
7. Ensure that the base with the electrical connections never comes into contact with water! If it has unintentionally come into contact with water, first allow it to dry out completely before taking it into use.
8. Ensure that the power cable never becomes wet or damp during operation. Lay the cable so that it cannot become trapped or damaged in any way.

Packing Content

The appliance is delivered with the following components as standard:

• Preserving boiler
• Preserving grill
• Lid
• Pouring tap

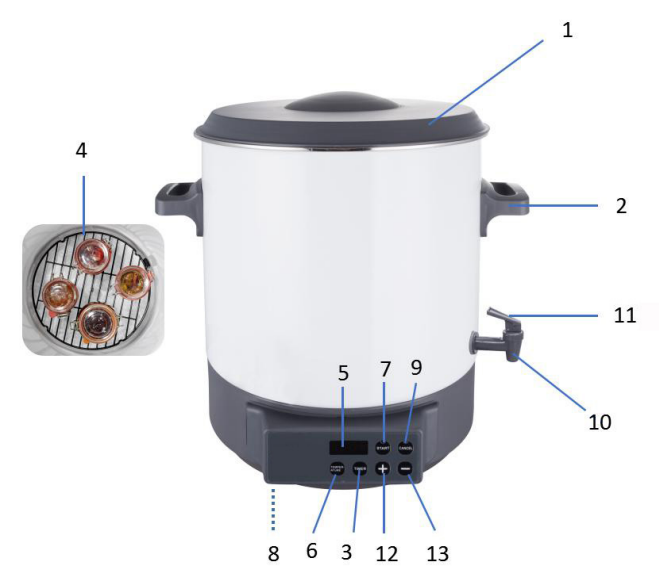

Overview & Functions

1. Lid
2. Heat-insulated handles
3. Control button TIMER for minute setting (MIN)
4. Preserving grill
5. Display indicator (display of minutes (MIN), current temperature (CURRENT TEMP) and temperature setting (SET TEMP))
6. Control button TEMPERATURE (temperature setting in °C)
7. START button
8. Cable storage
9. Cancel button
10. Pouring tap
11. Tap lever
12. button to increase temperature or cooking time during setting
13. button to decrease the temperature or cooking time during setting

Installation

• Remove all parts of the appliance and the operating instructions from the packaging.
• Remove all packing material.

Appliance set up

• Completely unwind the power cable from the cable storage.
• Place the appliance on a level and slip-free surface. Ensure that a mains power socket is easily accessible.
• Clean the appliance as described in the chapter “Cleaning and Care”.

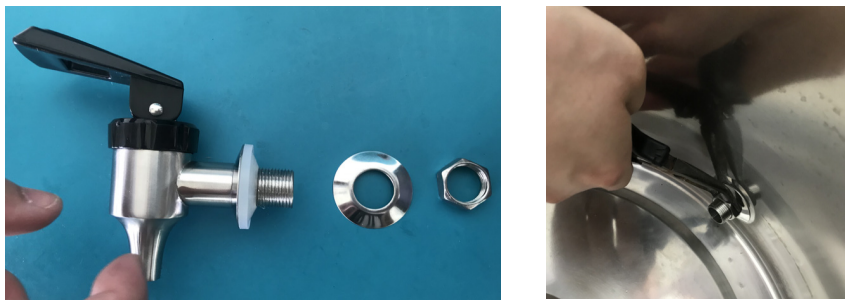

• Fix the pouring tap to the outside of the appliance using a washer and a nut from the inside (as shown in the figures below).
• Insert the plug into a mains power socket. The display lights up, and a signal tone is heard.

Getting Started & Operation

Preparing food/preserving jars. Preferably, use preserving jars with a rubber seal and a lever clamp. The preserving jars must be free of damage.

1. The preserving jars must be free of germs and bacteria; otherwise, the preserve could spoil prematurely. Preferably, boil the preserving jars for 5-7 minutes before adding the food.
2. Use a funnel when filling the preserving jars, if available. The edges of the preserving jars must be clean when the jars are sealed.
3. Seal the jars as quickly as possible after filling:
   • Place the rubber seal on the upper rim of the preserving jar, and place the glass lid on the preserving jar. The rubber seal is between them.
   • Place the rubber seal on the upper rim of the preserving jar, and place the glass lid on the preserving jar. The rubber seal is between them.

Switching the appliance on and off

1. Turn on the appliance, the “cancel” light is flashing and the screen displays “00:00”. During operation, you can adjust the time or temperature first. In this sample, we set up the time first.
2. Press the TIMER button (3), and the appliance displays the default cooking time “02:00” (2 hours).
3. Press the “+” or “-” button to adjust the cooking time. The time is set in 1-minute steps. Press and hold the respective button to reach the target time faster.
4. Press the TEMPERATURE button (6), and the appliance displays the default cooking temperature “100” (100 °C).
5. Press the “+” or “-” button to adjust the temperature. The temperature is set in 1-degree steps. Press and hold the respective key to reach the target temperature more quickly.
6. After successfully adjusting the temperature and cooking time, press the START button (7).
7. The LED display alternately shows the remaining operating time and the current water temperature.
8. When the appliance reaches the target temperature and cooking time, the appliance will turn off by itself and beep for 1 minute, without the warm-keeping function. All operating lights are switched off

Preserving

• To be understood under the term preserving is the conservation of foodstuffs by, amongst others, the effects of heat.
• Depending upon the type and mass of the items to be preserved, a differentiation is made between the processes of sterilisation and pasteurisation.
• In sterilisation, the items to be preserved are heated to a temperature of at least 100 °C. With pasteurisation, the heating temperature lies at around 80 °C.
• For domestic purposes, pasteurisation is sufficient. For this, one needs the appropriate preserving jars, with screw-tops or lids with rubber rings.
• Preserve only fresh foods. Overripe fruits or vegetables are not suitable for preserving.
• Pay heed to the cleanliness of the jars! Ideally, boil the jars for around 5-7 minutes before filling them with foodstuffs. This will ensure all germs and bacteria have been killed.

Assembly

1. Place the preserving grill (4) in the preserving boiler.

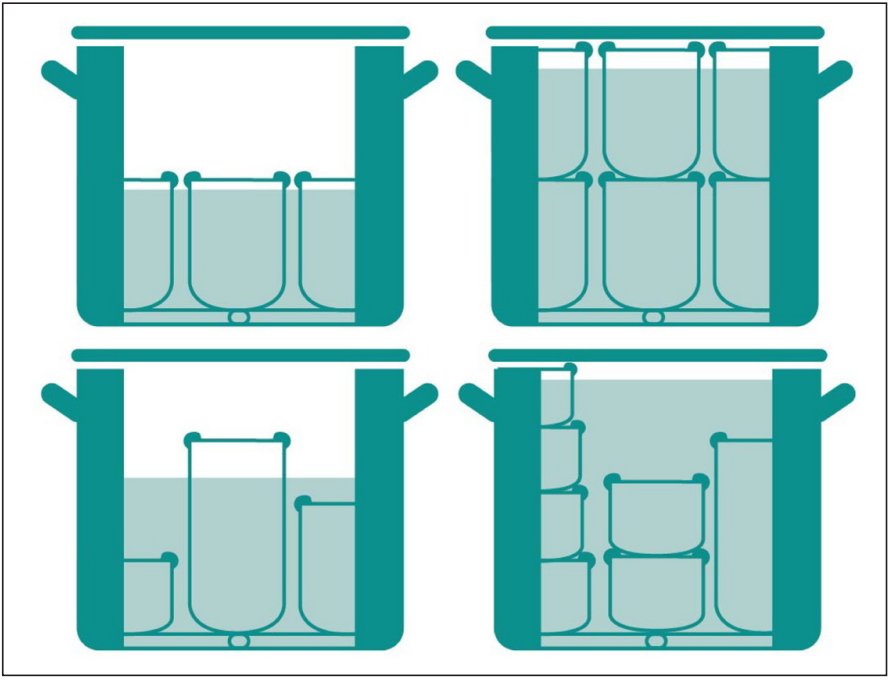

2. Place the filled and tightly sealed jars on the preserving grill (4). Stack the preserving jars on top of each other if required.
3. Add water to the preserve maker until the upper preserving jars are around 3/4 covered.
4. However, do not exceed the MAX marking.
5. Ensure that the preserving jars on the lower level are properly closed so that no water can get in.
6. Close the preserving boiler with the lid (1)
7. Using the TEMPERATURE button (6), set the desired temperature.
8. Observe the following table when selecting a temperature setting.
9. The timetable for cooking is for orientation only

Heating and keeping liquid warm

1. Pour the liquid (for example, mulled wine or cocoa) into the preserving boiler.
2. Place the lid (1) onto the preserving boiler.
3. Using the TEMPERATURE button (6), set the desired temperature.
4. Press the TIMER button (3), “02:00“ appears in the display.
5. It is now not necessary to set a cooking time.
6. The appliance heats up continuously until it is switched off.
7. Regularly stir the liquid so that the heat is evenly distributed.
8. When the desired temperature has been reached, signal tones will sound.
9. You can drain off liquids without solid particles through the tap (10).
10. Hold a cup or similar under the tap (10) and press the dispensing lever (11) downwards.
11. When the desired amount of liquid is in the KLARSTEIN 10033825 LADY MARMALADE Boiler cup, release the dispensing lever (11).

Overheating protection

This appliance is fitted with an overheating protector. Overheating may occur if there is too little or no liquid in the preserving boiler. In this case, the appliance switches itself off immediately. Once you have topped it up with liquid, you can restart the appliance.

Cleaning & Care

• Never submerge the appliance in water or other liquids! The appliance could be irreparably damaged.
• The appliance must not be cleaned using a water jet.
• Do not use abrasive or aggressive cleaning materials. These could attack the upper surfaces and irreparably damage the appliance.
• Clean the appliance with a lightly moist cloth. For stubborn soiling, use a mild detergent on the cloth.
• Clean the display with a soft, lint-free cloth.
• Clean the preserving grill (4) in a mild soapy solution and rinse it well with clear water.

Cleaning the pouring tap

1. Screw the tap lever (11) anticlockwise off the tap (10).
2. Place the pouring lever (11) in a mild soapy solution and swirl it back and forth.
3. Rinse it off with clear water.
4. To clean the pouring tap (10), allow a mild soapy solution to flow through it.
5. Should there be stubborn soiling on the inside of the pouring tap (10), use a pipe cleaner or similar to remove it.
6. Afterwards, rinse the pouring tap (10) thoroughly with clear water.
7. Screw the tap lever (11) clockwise back onto the tap (10).

Scale removal

1. Use a standard commercial descaling product. Proceed as described in the instructions for usage of the descaler.
2. After descaling, rinse the appliance with lots of clean and clear water.

Storage

• Wind the cable around the cable retainer (8) and insert the plug into the plug holder in the middle of the appliance base.
• Store the preserving boiler in a cool and dry location.

Technical Data

• Item number 10033825
• Power supply 220-240 V ~ 50/60 Hz
• Power consumption (watts) 1800 W
• Capacity (Volume) 27 litres (14 x 1 litre preserving jars)

Disposal

By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information KLARSTEIN 10033825 LADY MARMALADE Boiler  about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

Environmental Safety

• During cooking, make sure that there is sufficient  air KLARSTEIN 10035380 ELEONORA Range Hood supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.

Customer Service

Manufacturer & Importer (UK)

• Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
• Importer for Great Britain: Berlin Brands Group KLARSTEIN 10033825 LADY MARMALADE Boiler UK Ltd PO Box 42 272 Kensington High Street, London, W8 6N, D United Kingdom
• Website:  http://www.klarstein.com
• Scan the QR code to get access to the latest user manual  KLARSTEIN 10035380 ELEONORA Range Hood and more product information.

Dear Customer

Congratulations on purchasing this device. Please read KLARSTEIN 10033825 LADY MARMALADE Boiler the following instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use.

FAQs

What is the capacity of the LADY MARMALADE Boiler?

With its 3-liter capacity, the boiler is perfect for making tea, coffee, and other hot beverages for individual usage or small parties.

How do I operate the boiler?

Just add enough water to the boiler to reach the desired level, use the control knob or buttons to adjust the temperature, and then hit start. When the temperature reaches the desired level, the boiler will automatically turn off.

Can I set different temperatures for boiling water?

Yes, you can choose the perfect heat level for tea, coffee, or other hot beverages with the LADY MARMALADE’s changeable temperature settings.

Is the boiler safe to use?

Indeed, it has several safety features, including boil-dry protection, automatic shut-off, and a cool-touch handle to avoid burns.

How long does it take to boil water?

Boiling three litres of water usually takes five to ten minutes, depending on the water volume and temperature.

Can I keep water warm after boiling?

Yes, the boiler has a keep-warm feature that keeps the water at the temperature you want it to be for a predetermined amount of time.

Is the boiler easy to clean?

Of course! Cleaning is made simple by the large opening. Descalcify the boiler regularly to keep it efficient and avoid mineral buildup.

Can I use the boiler to heat liquids other than water?

Only water can be heated with the LADY MARMALADE; using other liquids could harm the device or impair its functionality.
