Labkotec LCJ1-1 Cable Connectors
General Information
This manual is part of the product.
- Read the manual before use.
- Store the manual for further use.
- Please report on any discrepancies in the manual to the manufacturer. Labkotec reserves the right for changes to this manual due to continuous product development
Safety Instructions
The operator of the system is responsible in terms of planning, mounting, commissioning, operating, maintenance, and dismounting. Ignoring these operating instructions will void any warranty and absolve the manufacturer from any liability.
Delivery, Transport, and Storage
Check the packaging and contents for damage. Check that the parts are all present and correct with respect to the order and shipping documents. Note the permitted Labkotec LCJ1-1 Cable Connectors storage temperature in technical specifications.
Products

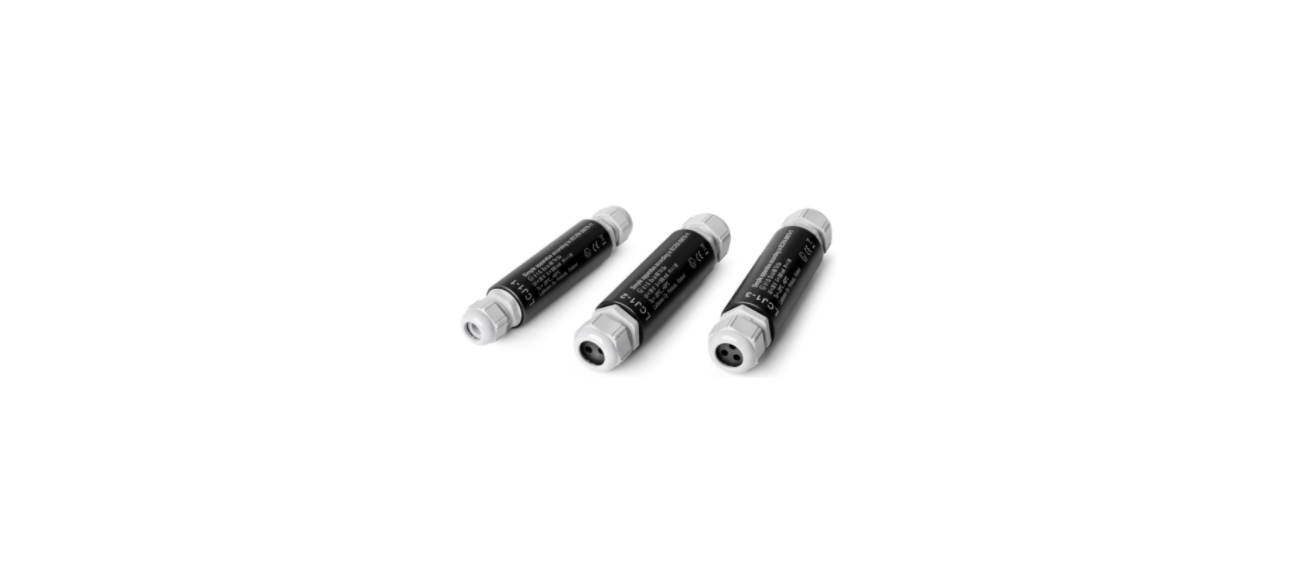

- LCJ1-1 is designed to extend an unshielded two-wire sensor cable to one unshielded two-wire extension cable.
- LCJ1-2 is designed to extend two unshielded two-wire sensor cables to one unshielded two-wire extension cable.
- LCJ1-3 is designed to extend three unshielded two-wire sensor cables to one unshielded two-wire extension cable.
Mounting & Installation
Detailed connection diagrams are available in the operating instructions of sensors and control units.
Technical Data
Rings and seals of cable glands are mineral oil resistant.
EU Declaration of Conformity
Product
- Control unit and conductivity-based sensor Lokaset 20 control unit SET/LV or SET/L sensor
Manufacturer
- Labkotec Oy Myllyhaantie 6 FI-33960 Pirkkala Finland
Directives
- The product is in accordance with the following EU Directives: 2014/30/EU Electromagnetic Compatibility Directive (EMC), 2014/35/EU Low Voltage Directive (LVD), 2011/65/EU Restriction of Hazardous Substances Directive (RoHS)
Standards
- EMC: EN IEC 61000-6-3:2021, EN IEC 61000-6-2:2019, EN IEC 61000-3-2:2019; LVD: EN 61010-1:2010/A1:2019/AC:2019-04; RoHS: EN IEC 63000:2018.
Signature
- Signed for and on behalf of Labkotec Oy. Pirkkala 31.8.2021 Janne Uusinoka, CEO Labkotec Oy
Customer Service
- E-mail: labkonet@labkotec.fi
- Tel: +358 29 006 6066.
- Address: Myllyhaantie 6, FI-33960 Pirkkala, Finland
© 2025 Labkotec.fi.
FAQs
What is the Labkotec LCJ1-1 cable connector used for?
Labkotec sensors (such as level switches or oil/water detectors) and their control units can be safely and waterproofly connected with the LCJ1-1 cable connector. In field installations, it guarantees both environmental protection and electrical continuity.
Which devices are compatible with the LCJ1-1 connector?
The majority of Labkotec liquid level sensors, including the SET, SETOS, and Lokaset series, are compatible with the LCJ1-1. For precise connector compatibility requirements, consult the handbook that came with your device.
Is the LCJ1-1 connector weatherproof or waterproof?
Indeed. When fitted properly, the LCJ1-1 connector is dust-tight and waterproof because it is suitable for outdoor and moist situations and usually has an IP67 protection grade.
Can I reuse the LCJ1-1 connector after disassembly?
Before reusing, always check the cable gland and O-rings.
What wire types or sizes are supported by the LCJ1-1?
For precise wire diameter specifications, consult the handbook.
Is the connector suitable for underground or submerged use?
Use protective housings for these installations, or ask Labkotec for appropriate substitutes.
