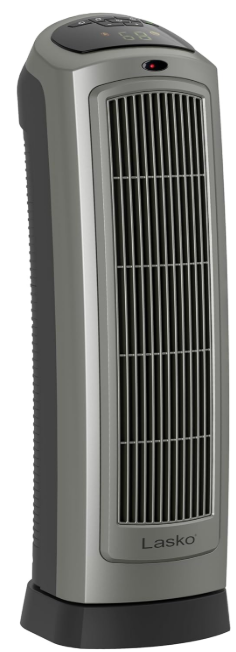

Lasko 5538 Ceramic Tower Heater

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following:

1. DO NOT plug the Heater into any other cord-connected device, such as a power strip, surge protector, multiple outlet adapter, cord reel, or outlet-type air freshener. The use of such devices may create a fire hazard. Plug the unit directly into a 120V wall outlet only.
2. Use this Heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons.
3. Make certain that the room is equipped with a working smoke detector.
4. Please contact Customer Service at 800-233-0268 Monday through Friday from 8 am to 5 pm EST for assistance.
5. To disconnect the Heater, turn the controls to OFF, then remove the plug from the outlet.
6. Always unplug the Heater when not in use. Unplug the power cord before servicing or moving the Heater.
7. Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust opening, as it may cause an electric shock, fire, or damage the Heater. Do not block or tamper with the Heater in any manner while it is in operation.
8. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not place on soft surfaces, like a bed, where openings may become\ blocked.
9. Do not use the Heater outdoors.
10. Remote controls for other appliances or electronic equipment can sometimes interfere with the operation of this Heater. If this occurs, move the Heater to another location.

OPERATION

1. Carefully remove the Heater from the bag and the carton.
2. Place the Heater on a firm, level surface.
   WARNING:  Plastic or rubber tabs, like the feet on this unit, may stick to furniture surfaces and/or hardwood floors. The unit may leave a residue that could darken, stain, or leave permanent blemishes on the finish of certain furniture surfaces, including wood surfaces, and/or hardwood floors.
3. Plug the cord set into a 120-volt outlet.
4. When the Heater is initially plugged in, there will be a “beep,” and the Power Light will come on, indicating that there is power to the unit. The Power Light will remain lit until the Heater is unplugged from the electrical outlet.
5. Turn the Heater ON by pressing the Power Button.
6. Upon turning the Heater on, the unit will be in HIGH heat (1500 Watts). (Figure 1)
7. Press the ( ) button for LOW heat.
8. Press the ( ) and ( ) buttons at the same time to change the display to ° Celsius. Press the same two buttons together again to change the display back to ° Fahrenheit.
9. To turn the Heater OFF, press the Power Button ( ) and unplug the Heater from the electrical outlet.

Save-Smart

Press to activate the Save-Smart™ Function.

1. Set the thermostat to desired temperature using the +/- buttons (Note: The default Save-Smart™ temperature is 72 º F)
2. When you reach the temperature at which you want to set the unit, the set temperature will flash several times, and then the display will return to indicate the current room temperature and will gradually change as the room temperature changes.
3. When the air temperature is less than the set temperature, the heater will run in HIGH heat.
4. Once the thermostat reaches the set temperature, the heater will automatically switch to LOW heat to save energy.
5. When the air temperature reaches 3º above the set temperature, the heater will turn off. The Heater will cycle off and on in the LOW mode to maintain the set temperature.

OSCILLATION

Pressing the Oscillation Button ( ) will allow the Heater to oscillate back and forth. To stop the oscillation, press the Oscillation Button ( ) again. When the Heater is in Automatic Temperature Control, the oscillation function will stop when the set temperature is reached and resume when the Heater turns back on.

TIMER FUNCTION

The timer function may be activated when the Heater display is in any function or speed. (Figure 3) This function allows you to set the length of time the Heater will run before turning itself off, from 1 hour to 8 hours. Pressing the Timer Button ( ) will increase the length of time by 1 hour each time this button is pressed.

After the display reflects 8 hours, pressing the Timer Button ( ) once more will reset the Heater to run continuously. The Heater will turn off when the set time has elapsed. The unit can be turned back on by pressing the Power Button.

AUTOMATIC TEMPERATURE CONTROL

The automatic temperature function will only operate on “High” heat. You cannot set the temperature automatically when the unit is in the low heat mode.

1. To set the room at a specific temperature, press the buttons to the desired temperature. The display will now reflect the and the temperature will be flashing. The Heater is now in Auto Temperature Mode.
2. When you reach the temperature at which you want to set the unit, the set temperature will flash several times, and then the display will return to indicate the current room temperature and will gradually change as the room temperature changes. NOTE: The temperature display does not indicate the temperature of the heated air being emitted by the heater.
3. Once the room temperature reaches 2 degrees above the set temperature, the Heater will shut off. Once the room temperature reaches 1 degree below the set temperature, the Heater will turn back on and continue to cycle off and on to maintain the set temperature.
4. This function will cancel if the ( ) button is pressed. The Heater will now be in High heat and run continuously.

NOTE: It is normal for the Heater “fan” to run for approximately 15 seconds when the Heater shuts off after reaching the set temperature.

REMOTE CONTROL

All the functions performed with the Remote Control work identically to the manual controls, except for the ability to change from °F to °C and the shutdown.

1. Install two “AAA” batteries.
2. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.

If you lose your remote control, please call Customer Service to order a replacement at 1-800-233-0268, Monday through Friday, between the hours of 8:00 a.m. and 5:00 p.m. EST.

SAFETY FEATURE

1. A thermal overload protector is built in to prevent overheating.
2. If a no-overheated temperature is reached, the Heater will automatically shut off. It can only resume operation when the user resets the unit.

RESET INSTRUCTION

1. Unplug the Heater and wait 10 minutes for the Heater to cool down.
2. After the Heater has cooled down, plug the unit into a 120V~ electrical outlet and follow the operation instructions described in this manual.

TROUBLESHOOTING TIPS

If your heater shuts off unexpectedly or fails to operate, the previously mentioned safety feature may have been activated to prevent overheating.

1. Be sure the power cord is plugged into a working electrical outlet.
2. Check your Temperature setting. The Heater may be off because it has reached the desired temperature setting.
3. If your Heater runs for several minutes and shuts off repeatedly, your Heater may require cleaning. See Maintenance section below.

If you have a problem that can not be resolved by the steps listed above, contact Technical Assistance at 1-800-233-0268, Monday through Friday, between the hours of 8 a.m. and 5 p.m. EST.

MAINTENANCE

• Always unplug the cord before moving, servicing, or cleaning.
• NEVER place the Heater in or near water. DO NOT IMMERSE THE EATER IN WATER.
• Clean the Heater only with a vacuum equipped with a brush attachment; the vacuum will remove the lint and dirt from the surface of the Heater.
• Vacuum intake grills every two weeks; this will help to maintain the optimum Heater performance.
• Use a toothbrush or other soft-bristle brush to gently loosen any dirt not removed by the vacuum.
• NEVER attempt to take apart the Heater.
• Clean the body of the Heater with a soft cloth only.
• NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners

SERVICING: For servicing, other than general user maintenance, please contact Customer Service at 800-233-0268, Monday through Friday, from 8 am to 5pmm Eastern.

STORA GE: Store the Heater with these instructions in the original carton in a cool, dry place.

 LIMITED WARRANTY

WHAT THIS WARRANTY COVERS

This product is warranted against defects in workmanship and/or materials.

HOW LONG DOES ONG THIS WARRANTY LAST

This warranty extends only to the original purchaser of the product and lasts for three (3) years from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.

WHAT LASKO WILL DO

During the warranty period, Lasko will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or a comparable model.

WHAT THIS WARRANTY DOES NOT COVER

This warranty does not cover shipping costs for the return of products to Lasko for repair or replacement. Lasko will pay return shipping charges from Lasko following warranty repairs or replacement..

Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province. Proof of purchase is required before a warranty claim will be accepted

CUSTOMER SERVICE

• Toll-Free (800) 233-0268.
• Email: producthelp@laskoproducts.com

They can be reached Monday through Friday, 88 am5 pm Eastern. Please have your model number available, as well as the type and style (located on the underside of your product). Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380 (Please do not send product to this location) www.laskoproducts.com
