Levoit Oasismist 1000S Tower Humidifier

Safety Instructions

These safety instructions apply to the Levoit OasisMist 1000S Tower Humidifier. Read them carefully before use.

• Only use the humidifier as described in this manual.
• Place the humidifier and cord so that it will not be knocked over.
• Do not place near large pieces of furniture or in high-traffic areas.
• Do not use the humidifier in wet environments.
• Keep the humidifier out of reach of children.
• Always make sure the humidifier is placed on a flat, level surface before operation.
• Do not place the humidifier near sources of heat, such as stovetops, ovens, or radiators.
• Do not place the humidifier directly on floors, carpets, or rugs. Only place on water-resistant surfaces.
• Do not place foreign objects into the humidifier’s base or water tank.
• Do not use attachments that are not recommended by Levoit for the humidifier.
• Do not cover the mist outlet while the humidifier is on. Doing so may damage the humidifier.

Power & Cord

The Levoit OasisMist 1000S Tower Humidifier is designed with safety features that protect both the user and the device.

• Electromagnetic Fields (EMF)
• Ensure that the plug fits properly into a polarized socket.
• This is a safety feature to reduce the risk of electric shock.
• If the plug does not fit, reverse the plug. If it still does not fit, do not use the plug in that outlet.
• Do not bypass this safety feature. Do not handle the power cord or
• plug with wet hands. Keep the plug and power cord away from liquids.
• Unplugging the power cord will disable remote control of the humidifier and temporarily disconnect the humidifier from VeSync and other third-party apps.

Electromagnetic Fields (EMF)

The Levoit OasisMist 1000S Tower Humidifier complies with all current standards regarding electromagnetic fields (EMF). When handled properly and used according to the instructions in this manual, the device is considered safe based on available scientific evidence.

• Only add essential oils to the aroma pad.
• Do not add essential oils, supplemental water treatment liquids, or water filters into the water inlet tank, base chamber, or water tank.

This product contains a coin/button battery. WARNING: CHEMICAL BURN HAZARD. KEEP OUT OF REACH OF CHILDREN. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

• Place sticky tape around both sides of the battery and dispose of it immediately in an outdoor garbage can or recycle safely.
• Store spare batteries securely.
• Empty recycling units regularly.
• Use non-transparent containers to keep the batteries out of view.

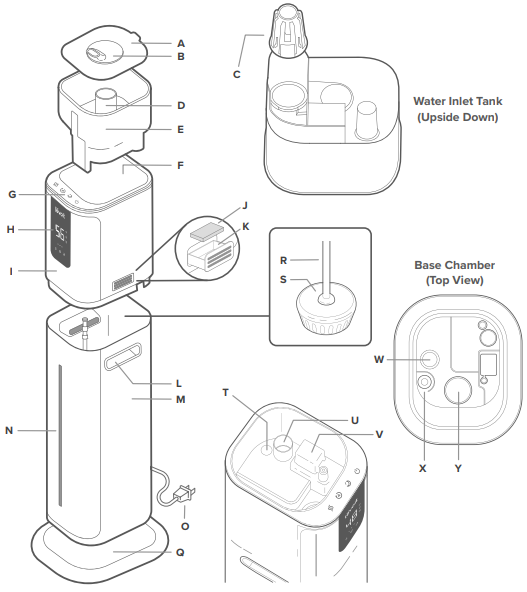

Know Your Product

• Top Cover
• Nozzle
• Muffler
• Mist Tube
• Water Inlet Tank
• Base Chamber
• Control Panel
• LED Display
• Humidifier Base
• Aroma Pad
• Aroma Box / Air Inlet
• Handles
• Water Tank
• Water Level Window
• Power Cord
• Cable Winder (Behind)
• Stand Inside the Water Tank
• Silicone Tube
• Filter
• Inside Base Chamber
• Overflow Valve
• Water Inlet
• Air Outlet
• Pump Cover
• Water Level Sensor
• Transducer

Overview

Controls

On/Off Button

• Tap to turn the Levoit OasisMist 1000S Tower Humidifier on or off.
• Press and hold for 5 seconds to pair with the VeSync app. See the in-app instructions for more information.
• Press and hold for 15 seconds to reset the humidifier. This will restore the humidifier’s default settings and disconnect it from Wi-Fi® and the VeSync app (see page 11)

Similar to smart devices that use app-based configuration, pairing your Levoit OasisMist 1000S Tower Humidifier ensures proper remote control, seamless monitoring, and optimal performance.

Mist Level Button

• Tap repeatedly to cycle through mist level settings: low, medium, and high mist.
• Press and hold for 3 seconds to turn the display off. Tap any button (except ) to turn the display back on.

Auto Mode Button

• Tap to turn Auto Mode on (see page 12).
• Tap / to turn Auto Mode off and resume manual controls, or tap for Sleep Mode

Sleep Mode Button

• Tap to turn Sleep Mode on/off (see page 13).

Wi-Fi Indicator

• Turns on, off, or blinks to indicate pairing status. See the VeSync in-app instructions for more information.

No Water Indicator

• Blinks when there is no water in the tank. After this indicator blinks 10 times, the humidifier will turn off. Refill the tank to resume using your humidifier.
• Lights up when the humidifier base is removed. Remains on until the humidifier base is replaced.

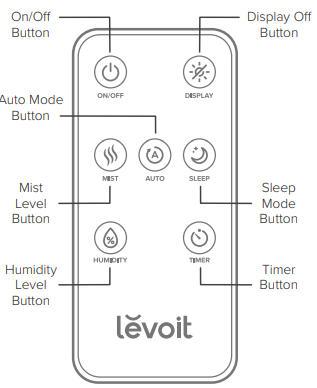

Remote Control

The remote control can be used to operate any function of the Levoit OasisMist 1000S Tower Humidifier from a distance. The remote must be within 16 ft (5 m) of the humidifier for reliable operation.

Display Off Button

• Press to turn the humidifier display off.
• Press any button to turn the display back on.

Humidity Level Button

• Press to set a target humidity level from 40–80% that’s used with Auto Mode.
• Continue pressing to cycle through target humidity options in increments of 10%.

Timer Button

• Press to cycle through timer options from 1–12 hours.
• Press and hold to quickly cycle through options in increments of 1 hour

Getting Started

Before getting started, note that proper placement and assembly are important for safe operation of the Levoit OasisMist 1000S Tower Humidifier, similar to the careful installation practices recommended for other devices.

1. Remove all packaging.
2. Flip the water tank over. Use the screwdriver to attach the stand to the water tank with the 4 included screws.
3. Take out the filter from inside the water tank. Remove the foam around the filter.
4. Place the humidifier base on the water tank.
5. Optionally, peel off the sticker cover on the cable winder and attach the cable winder to the back of the humidifier base.

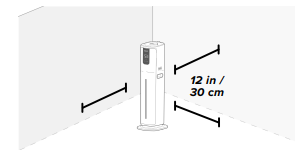

6. Choose a hard, flat location for the humidifier at least 12 inches / 30 cm away from any walls. The surface must be water-resistant.

7. Mist should be directed away from walls, furniture, bedding, and appliances. Avoid letting too much mist fall on the side of the humidifier with the aroma box, as this may interfere with the sensor inside the aroma box

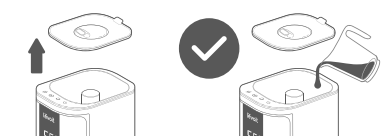

Filling & Refilling

Use a pitcher or bottle to fill the water inlet tank with room-temperature water. You can also add water directly to the water tank.

• • We recommend using purified or distilled water to fill the tank.
  • Do not fill with hot water.
  • Using tap water may result in a white dust (dried minerals) on surfaces



Use the water level window to see how much of the tank is filled. Do not fill past the max line, or water may overflow out of the vents in the handles. Replace the top cover.

VESYNC APP Setup

Note: Due to ongoing updates and improvements, the VeSync app may be slightly different than shown in the manual. In case of any differences, follow the in-app instructions.

1. To download the VeSync app, scan the QR code or search “VeSync” in the Apple App Store® or Google Play Store

2. Open the VeSync app. If you already have an account, tap Log In. To create a new account, tap Sign Up.
3. Follow the in-app instructions to set up your smart humidifier.

Wi-Fi Connection

• To disconnect Wi-Fi, press and hold for 15 seconds until the Wi-Fi indicator turns off. This will restore the smart humidifier’s default settings and disconnect it from the VeSync app.
• To reconnect, please follow the instructions in the VeSync app for adding a device.

Using the device

1.  Plug in the humidifier. The indicators on the display will light up for 1 second, then turn off.
2.  Tap to turn your humidifier on. The humidifier will start misting.
3. Tap repeatedly to cycle through mist settings: Low, Medium, and High. [Figure 2.1

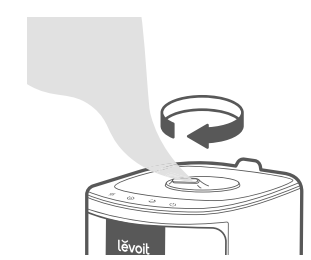

4. Rotate the nozzle to adjust the direction of the mist. [Figure 2.2]
5. Optionally, use the controls or the VeSync app to turn on Auto Mode, activate Sleep Mode, and more (see Controls, page 8).
6. When your room has reached your preferred humidity level, turn the humidifier to a lower setting or turn it off. A comfortable humidity level is between 40–60%
7. Tap to turn your humidifier off.

Auto Mode

Auto Mode uses the humidifier’s sensor to automatically adjust the mist level to maintain a target humidity level. The default target humidity level is 60%.

1.  Tap to turn Auto Mode on.
   Note: The humidifier will automatically mist for 15 seconds after being turned on, even if the room has reached the target humidity level.
2. By default, Auto Mode uses AutomaticStop. The humidifier will stop misting when the highest target humidity level is reached (default 60%)
3. The humidifier will continue to detect
   The humidity level in the room. It will start and stop misting again according to the following table:

Room Relative Humidity *	Automatic Mist Level
Under 50%	High
50–55%	Medium
55–60%	Low
Over 60%	Automatic Stop

If you change the target humidity from 60%, the humidity percentages will change accordingly

Setting Target Humidity

You can set a target humidity level from 40–80%, in increments of 10%. There are several ways to change the target humidity.. Change the target humidity in the VeSync app.

• Press the remote control. Continue pressing to cycle through target humidity options.
• Press and hold on the control panel until the display flashes and shows the target humidity. Continue tapping to cycle through target humidity options.

Sleep Mode

Turning off the Display Sleep Mode changes the humidifier’s mist setting to low and

• Tap to turn Sleep Mode on/off.
• When Sleep Mode is on, you can tap any button to wake up the display. If you stop touching the display, the display will turn off again after 6 seconds.
• Once you wake up the display, tap any button again to exit Sleep Mode and resume manual controls.

Turning Off the Display

Sleep Mode changes the humidifier’s mist setting to low and turns off the display lights. The display will automatically dim after 3 seconds of inactivity.

• To turn off the display, press and hold for 3 seconds, or press on the remote control.
• To turn the display back on, tap any button.

Using the Aroma Box

Your humidifier can be used for aromatherapy.

1. Push the aroma box at the back of the base and pull it out. [Figure 3.1]
2. Put 8–10 drops of essential oils on the aroma pad. [Figure 3.2]
3. Insert the aroma box back into the humidifier.
4. Turn on the humidifier. The humidifier will automatically diffuse aroma when used.

• The aroma pads can be cleaned and reused after diffusing essential oils (see Cleaning the Aroma Pad, page 19).
• The aroma is intended to be light.
• For information on replacement aroma pads, see page 19.

Memory Function

• If turned off and unplugged, the humidifier will remember your settings for Sleep Mode, Mist Level, and Wi-Fi, and will resume those settings when turned back on.
• If turned off and plugged in, the humidifier will remember your settings for Auto Mode, Sleep Mode, Mist Level, and Wi-Fi, and will resume those settings when turned back on.

Automatic Shutoff

The humidifier will automatically turn off when all of the water in the tank has been diffuseddWillll show on the display and blink 10 times before the humidifier turns off. Fill the water tank. If the humidifier base has been removed from the water tank, the humidifier will automatically stop misting. It will show on the display and will turn off once the base is placed properly back on the water tank.

Functions

Remote Control From Your Phone

• Turn the humidifier on/off.
• Cycle through mist levels.
• Turn Auto Mode on/off.
• Set a target humidity level.
• Turn Sleep Mode on/off.
• Turn the display lights on/off.

Monitor Humidity Levels

• Check current humidity levels in the humidifier’s environment. Set Timers & Schedules
• Program individual timers or create a schedule for your smart humidifier.

Third-Party Voice Control

• Compatible with Amazon Alexa and Google Assistant™ for voice commands.

Maintainance, Care & Cleaning

• All maintenance should be done on a water-resistant surface.
• Change the water daily to avoid bacterial growth.
• Use a tissue or cloth to clean the nozzle regularly.
• If not using the humidifier for 1 week or longer, do not leave water inside.
• Clean and dry the humidifier instead

You should clean your humidifier water inlet tank, base chamber, and water tank every 3 days, and when you’re ready to store it.

1. Unplug the humidifier.
2. Remove and rinse the water tank cover.
3. Remove the water inlet tank from the humidifier base.
4. Pull the mist tube from the narrow end to remove it.
5. Flip the water inlet tank over and remove the muffler.
6. Rinse the water inlet tank, mist tube, and muffler.
7. Remove the humidifier base and pour out any water. Pour from the corner of the base chamber to prevent water from damaging the humidifier.
8. Use a small brush to clean the base chamber. Rinse with room-temperature water.
   Note: Do not allow water to contact the air outlet, aroma box, or underside of the humidifier base.
9. Pour out any water in the water tank. Use a brush to clean the inside of the tank, then rinse with room-temperature water.
10. Pull to remove the filter from the silicone tube. Wash the filter with water and a soft cloth.

11. Dry all parts with a cloth. Make sure all parts are completely dry before reassembling or storing.

Troubleshooting

Problem	The humidifier
doesn’t turn on or turns off unexpectedly.	Plug the humidifier into a working outlet and turn it on.
	Add purified or distilled water to the water tank.
Little or no mist comes out.	Turn the mist level to a higher setting.
	Fill the water tank.
	Wait 30 seconds after turning the humidifier on. During first use, and after cleaning or storage, the humidifier may take 10–25 seconds to start misting.
	Make sure the air inlets on the bottom of the humidifier base and in the aroma box are not blocked.
	Clean the humidifier (see Care & Maintenance, page 16). Make sure the nozzles are not blocked or clogged.
	Make sure the humidifier is on a flat, level surface.
	If the water tank or humidifier base was washed with detergent, rinse thoroughly with clean water to remove any detergent. Do not use detergents to clean the humidifier.
	Clean or replace the pump cover. For information on replacements, contact Customer Support (see page 27).
	In Auto Mode, the humidifier will stop misting when the target humidity level is reached. Increase the target humidity or manually select a mist level (see Auto Mode, page 12).
	Make sure the humidifier base is properly placed on the water tank.
The humidifier uses water too quickly.	The humidifier uses up water based on the environmental temperature and humidity. If your environment is cold and/or dry, the humidifier will run out of water faster.
The humidifier produces an unusual smell.	If the humidifier is new, unplug and rinse all parts, then place it in a cool, dry place for 12 hours.
	If essential oils were placed on the aroma pad, rinse the pad under clean water and allow it to dry.
	Clean the humidifier (see Care & Maintenance, page 16).

Attriburtions

Apple App Store is a trademark of Apple Inc. Google, Android, and Google Play are trademarks of Google LLC. Wi-Fi® is a registered trademark of Wi-Fi Alliance®. Amazon, Alex, and all related logos are trademarks of Amazon.com, Inc. or its affiliates. iOS is a registered trademark of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Arovast Corporation is under license. Other trademarks and trade names are those of their respective owners.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions to satisfy RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow the operation instructions as documented in this manual. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. The availability of some specific channels and/or operational frequency bands is country-dependent and is firmware-programmed at the factory to match the intended destination. The firmware setting is not accessible to the end user.

Declaration of Conformity

Arovast Corporation hereby declares that this equipment is in compliance with the FCC rules. The declaration of conformity  may be consulted in the support section of our website, accessible from www.levoit.com

Limited Warranty

Product	Levoit OasisMist1000S Smart Ultrasonic Cool Mist Tower Humidifier
Model	LUH-M101S-WUS
For your own reference, we strongly recommend that you record your order ID and date of purchase.
Order ID
Date of Purchase

Levoit Limited Product Warranty

Register your products at https://warranty.levoitComom/warranty to stay up to date with important product information such as product updates, limited warranties, usage and maintenance recommendations, and notifications concerning safety warnings or product recalls.

Two (2) Year Limited Consumer Product Warranty

Arovast Corporation (“Arovast”) warrants that the product shall be free from defects in material and workmanship for a period of 2 years from the date of original purchase (“Limited Warranty Period”), provided the product was used in accordance with its use and care instructions (e.g., in the intended environment and under normal circumstances).

Your Limited Warranty Benefits

During the Limited Warranty Period and subject to this limited Warranty Policy, Arovast will, in its sole and exclusive discretion, either (i) refund the purchase price if the purchase was made directly from the online Levoit store, (ii) repair any defects in material or workmanship, (iii) replace the product with another product of equal or greater value, or (iv) provide store credit in the amount of the purchase price.

Who is Covered?

This limited warranty extends only to the original consumer purchaser of the product and is not transferable to any subsequent owner of the product, regardless of whether the product transferred ownership during the specified term of the limited warranty. The original consumer purchaser must verify the defect or malfunction and provide proof of the date of purchase to claim Limited Warranty Benefits.

What’s Not Covered?

• Damages caused by connecting peripherals, additional equipment, or accessories other than those recommended in the user manual.
• Damages or defects caused by accident, abuse, Levoit LTF-F361-WUS Convenient Tower Fan misuse, or improper or inadequate maintenance.
• Damages or defects caused by service or repair of the product performed by an unauthorized service provider or by anyone other than Arovast.
• Incidental and consequential damages.
• Damages or defects exceeding the cost of the product.

Claiming Your Warranty Service in 5 Steps

1. Make sure you have a copy of the invoice and order ID or proof-of-purchase.
2. Make sure you have your product. DO NOT dispose of your product before contacting us.
3. Contact our Customer Support Team.
4. Once our Customer Support Team has approved your request, please return the product with a copy of the invoice and order ID.

Customer Support

• Support Hours: Mon–Fri, 9:00 am–5:00 pm PST/PDT
• Email: support@levoit.com
• Toll-Free: (888) 726-8520
