Levoit Vital 100S Smart True HEPA Air Purifier User Guide

Levoit Vital 100S Smart True HEPA Air Purifier

Safety Instructions

• Only use your air purifier as described in this manual.
• Do not use without removing the plastic wrap from the filter.
• The air purifier will not filter air and may overheat, causing a fire hazard.
• Do not use your air purifier outdoors.
• Do not use in excessively humid areas.
• Keep your air purifier away from heat sources.
• Keep 5 ft / 1.5 m away from where oxygen is being administered.
• Children should be supervised to ensure that they do not play with the air purifier.
• Do not place anything into any opening on the air purifier.
• Do not sit or place heavy objects on the air purifier.
• Always unplug your air purifier before servicing (such as changing the filter).
• Children should not clean or perform maintenance on the air purifier without supervision.
• Not for commercial use. Household use only.

Power Adapter & Cord

• Keep the air purifier near the outlet it is plugged into.
• Never place the cord near any heat source.
• Do not cover the cord with a rug, carpet, or other covering.
• Do not place the cord under furniture or appliances.
• Keep the cord out of areas where people walk often.
• Place the cord where it will not be tripped over.
• This air purifier is only to be used with the power supply adapter provided with the air purifier.
• Please contact Customer Support (see page 26).
• This air purifier’s power adapter uses standard North American 120V, 60Hz outlets.
• If using outside the US or Canada, check for compatibility.

Electromagnetic Fields (EMF)

Your Levoit air purifier complies with all standards regarding electromagnetic fields(EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Know your Product

• Check Filter Indicator
• Fan Speed Indicators
• Auto Mode Button
• On/Off Button
• Wi-Fi® Indicator
• Display Lock Indicator
• Timer Indicators
• Light Sensor
• Sleep Mode Button
• Fan Speed Button
• Air Quality Indicator
• Display Lock Button
• Timer Button
• Display Off Button
• Front Cover
• Washable Pre-Filter
• True HEPA / Activated Carbon Filter
• AirSight™ Infrared Dust Sensor
• Dust Sensor Cover
• Power Adapter Input
• Power Adapter

Controls & Display

Auto Mode Button

• Turns Auto Mode on (see page 10).

Sleep Mode Button

• Turns Sleep Mode on (see page 10).
• Press and hold for 3 seconds to reset the Check Filter Indicator.

Check Filter Indicator

• Lights up red when the filter should be checked (see  Check Filter Indicator, page 177).
• To reset the Check Filter Indicator, press and hold for 3 seconds.
• The Check Filter Indicator will flash 3 times and turn off.

Fan Speed Button & Indicators

• Cycles through fan speed s: low (1 indicator will light up), medium (2 indicators), high (3 indicators), and turbo (4 indicators).
• Tapping while the air purifier is in Auto Mode, Sleep Mode, or Pet Mode (when the display is lit up) will exit that mode.

Air Quality Indicator

• These indicator rings use an automatic infrared dust sensor to display the air quality: Blue (Very Good), Green (Good), Orange (Moderate), Red (Bad).

On/Off Button

• Turns the air purifier on/off.
• Press and hold for 3 seconds to connect the air purifier to the VeSync app. See the in-app instructions for more information (see page 9).
• Press and hold for 3 seconds to reset the air purifier and disconnect from Wi-Fi® (see page 9). Wi-Fi

Indicator

• Blinks when connecting to the VeSync app, lights up when connected to VeSync, and is off when disconnected from VeSync. See the VeSync in-app instructions for more information (see page 9).

Timer Button & Indicators

• Cycles through time options: 2 hours, 4 hours, and 8 hours (see page 11). lights up when the timer function is used through the VeSync app

Display Lock Button & Indicator

• Prevents current settings from being changed (see page 12). Press and hold for 3 seconds to lock and unlock the display.
• The Display Lock Indicator will light up when the display is locked and blink when any other button is tapped to indicate the display is locked.

Display Off Button

• Turns the display off (see page 11).
• Tap any button to turn the display back on.

Light Sensor

• The Light Sensor detects the amount of light in the room to automatically adjust the air purifier settings (see LightDetection, page 11).
• Light Detection can be turned on/off in the VeSync app (see page 11).

Getting Started

1.  Place the air purifier on a flat, stable surface such as the floor.
2.  Pull both sides of the front cover to remove it.

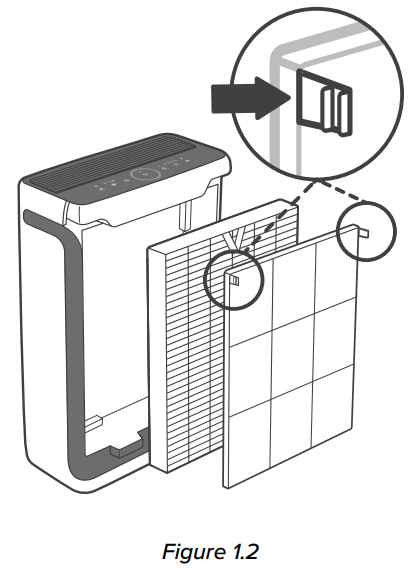

3. Push the pre-filter’s tabs inward and pull to remove the pre-filter from the air purifier.
4. Remove the True HEPA / Activated Carbon Filter from inside the air purifier.

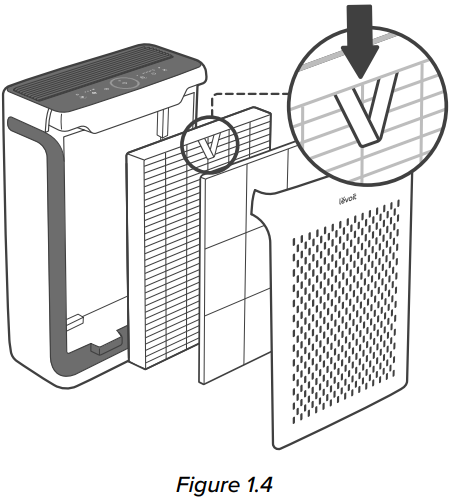

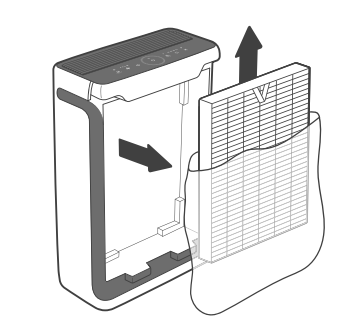

5. Remove the plastic packaging from the filter and place the filter and the pre-filter back into the air purifier.

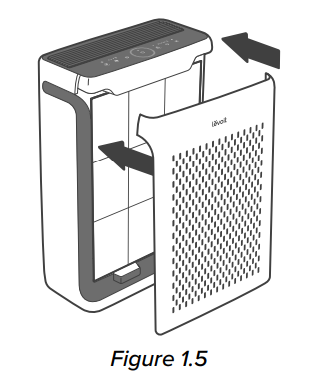

6. Place the front cover on the air purifier. Make sure to align the tabs on the cover with the slots on the bottom of the air purifier. [Figure 1.5]

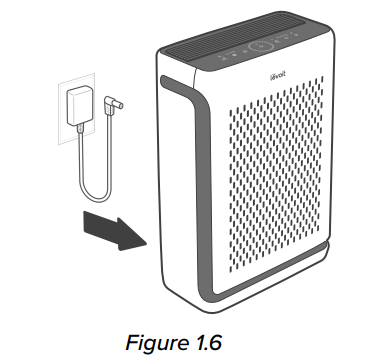

7. Insert the power adapter plug into the back of the air purifier.

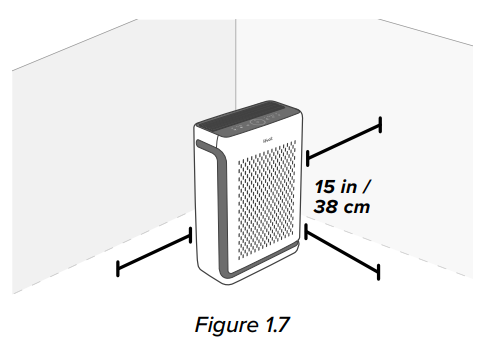

8. When using the air purifier, allow at least 15 inches / 38 cm of clearance from the front of the air purifier. Keep away from anything that would block air flow, such as curtains.

VeSync App Setup

1. To download the VeSync app, scan the QR code or search “VeSync” in the Apple App Store® or Google Play Store.Open the VeSync app. Log In or Sign Up.
2. Follow the in-app instructions to set up your smart air purifier.

Wi-Fi Connection

• To disconnect Wi-Fi, press and hold for 15 seconds until the Wi-Fi indicator turns off.
• This will restore the smart air purifier’s default settings and disconnect it from the VeSync app.
• To reconnect, please follow the instructions in the VeSync app for adding a device.

Connect with Amazon Alexa or Google Assistant™

You can use the VeSync app to connect your smart air purifier to Amazon Alexa or Google Assistant™. Please follow the in-app instructions to set up your voice assistant.

Using the Device

1. Plug in and tap to turn on the air purifier. The fan will start on low.
2. Tap to change fan speed between low, medium, high, and turbo.

Sleep Mode

Sleep Mode operates quietly by using a fan speed lower than low speed.

1.  Tap to turn Sleep Mode on.
2.  Sleep Mode will turn off the display after 6 seconds if no other buttons are tapped.
3.  To switch from Sleep Mode, tap Auto Mode or select a fan speed on the air purifier’s display or in the VeSync app.

Auto Mode

Auto Mode uses AirSight™, an infrared dust sensor inside the air purifier, to adjust the fan speed automatically based on air quality. For example, if the air quality is bad, the fan will automatically be set to high speed.

1. Tap to turn Auto Mode It will light up while Auto Mode is on.
2.  To switch from Auto Mode, tap Sleep Mode or select a fan speed on the air purifier’s display or in the VeSync app.

Air Quality Indicator Chart
Indicator Color	Air Quality	Auto Mode Fan Speed
Blue	Very Good	Sleep Mode
Green	Good	Low
Orange	Moderate	Medium
Red	Bad	High

Light Detection

You can turn on/off Light Detection in the VeSynccc app. When this mode is turned on, the light sensor will automatically adjust air purifier settings based on the amount of light in the room.

• The display will automatically turn off when the room gets dark.
• If the air purifier is in Auto Mode or Pet Mode, it will not use the high or turbo fan speeds, even if the air quality is poor, to avoid making too much noise.
• When the room becomes light again, the IR purifier will return to its previous settings.
• The display will automatically turn back on,  and Auto Mode will no longer be limited.

Timer

You can manually set the timer for 2, 4, or 8 hours using the button. You can also set the timer for 1–24 hours through the VeSync app.

1. Tap repeatedly to select a time. The timer will start automatically.
2.  The indicators are not and cannot be used to select a time.
3. The timer indicators will light up blue when active.
4. When the timer is set through the VeSync app, the indicator will light up instead.
5. Once the timer has finished, the air purifier will turn off
6. To cancel the timer, tap until all timer indicators are off.
7. You can also turn the timer off in the VeSync app.

Display Off

This turns off the display lights on the air  purifier, including button lights and indicator lights (except the Check Filter Indicator)

1. Tap to turn off the display.
2. Tap any button to temporarily turn the display back on.
3. If you don’t tap another button, the display will turn back off after 6 seconds.
4. Tap to turn the display back on. The display will stay on.

Display Lock

When the air purifier is on, you can lock the display Levoit Vital 100S Smart True HEPA Air Purifier to prevent settings from being accidentally changed. Buttons will not respond to being tapped.

1. Press and hold for 3 seconds to lock the display. The Display Lock Indicator will light up above the button.
2. The Display Lock Indicator will blink when any other button is tapped to indicate that Display Lock is on.
3. Press and hold again for 3 seconds to unlock the display. The Display Lock Indicator will turn off.

Standby Mode

The air purifier is in Standby Mode when it is turned off, but plugged in.

• In Standby Mode, the infrared dust sensor will still detect the surrounding air quality and give you updates in the VeSync app.
• Display Lock (available in the VeSync app) can be used while the air purifier is in Standby Mode to keep the air purifier from being turned back on.

Memory Function

When the air purifier is in standby or turned off and unplugged, it will remember its previous fan speed, Sleep Mode, Auto Mode, Pet Mode, and in-app Display and Light Detection settings.

VeSync App Functions

The VeSync app allows you to access additional smart air purifier functions, including those listed below. As the app develops, more features may become available.

Air Quality Updates

• View real-time air quality updates in the app.
• See your air quality history for the previous 4 weeks.

Pet Mode

• Pet Mode is efficient at filtering allergens from the air while conserving energy.
• The corresponding fan speed indicators and the air purifier’s display will light up.
• When Pet Mode is on, and the light sensor detects that the room is dark, the display will turn off and limit Pet Mode to medium fan speed (2 indicators), to avoid making too much noise.
• After this, the normal Pet Mode cycle will start (15 minutes at high speed, then 60minutes at medium speed).
• To turn off Pet Mode, tap Auto Mode, Sleep Mode, or select a fan speed on the air purifier’s display or in the VeSync app.

Auto Mode

Access additional auto modes: Quiet Auto Mode and Efficient Auto Mode.

• Quiet Auto Mode uses the medium fan speed (2 indicator lights) instead of the high or turbo fan speeds, even when the air quality is poor, to avoid making too much noise.
• Efficient Auto Mode lets you choose the size of the area you want to purify.
• The air purifier will use the turbo fan speed to clean the air for a designated amount of time.
• This time is based on 1 ACH and the size of the room, meaning how long it takes for the air purifier to clean all the air in your room one time, regardless Levoit Vital 100S Smart True HEPA Air Purifier of the air quality.
• After this, the mode will adjust the fan speed according to the actual detected air quality in the room.

Display Lock

• Turn the Display Lock on/off.
• Display Lock prevents current settings from being changed on the air purifier.
• Will flash to indicate that the display is locked.

Schedules

• Create and customize schedules for your air purifier to match your routines.

Timer Function

• Set a timer between 1–24 hours.
• Easily view the exact time remaining on a timer.

Filter Replacement Info

• Keep tabs on the remaining filter life by checking the filter life percentage in the app.
• Shop for replacement filters.

About the Filter

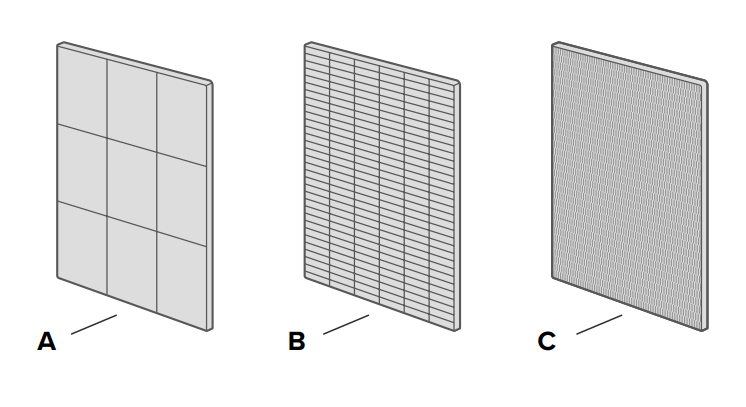

The air purifier uses a 3-stage filtration system to purify the air.

Washable Pre-Filter

• Captures large particles such as dust, lint, fibers, hair, and pet fur.
• Maximizes the filter’s life by protecting it.
• Removable and washable to increase filtering efficiency (see Cleaning the Pre-Filter, page 18).

H13 True HEPA Filter

• HEPASmart™ Technology uses statically charged fibers to capture viruses and bacteria with greater efficiency.
• Traps at least 99.97% of airborne particles 0.3 microns in size.
• Filters small particles such as fine dust, smoke particles, and allergens such as pollen and pet dander.

High-Efficiency Activated Carbon Filter

• Physically adsorbs smoke, odors, and fumes.
• Filters compounds such as formaldehyde, benzene, ammonia, hydrogen sulfide, and volatile organic compounds (VOCs).

Maintenance, Care & Cleaning

Cleaning the Smart Air Purifier

• Unplug before cleaning.
• Wipe the outside of the air purifier with a soft, dry cloth. If necessary, wipe the housing with a damp cloth, then immediately dry.

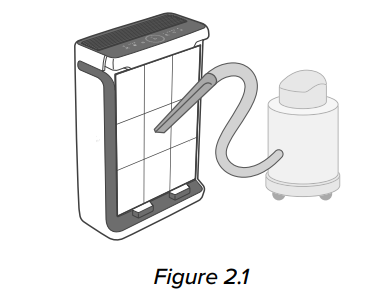

• Vacuum the inside of the air purifier.
• Do not clean with abrasive chemicals or flammable cleaning agents.

Check Filter Indicator

will light up as a reminder to check the filter. Depending on how often you use the air purifier, the indicator should turn on after about 9 months. You may not need to change your filter yet, but you should check it when it lights up. When your air purifier is set up with the VeSync app, you can also check the app to see the remaining filter life. You will also receive a notification from VeSync when it’s time to check your filter.

This is the Check Filter Indicator light.

• Replace the filter (see page 19).
• Turn on the air purifier.
• To reset the Check Filter Indicator, press and hold for 3 seconds.
• The Check Filter Indicator light will flash and turn off when successfully reset. The filter life will show as 100% in the VeSync app.

The filter was changed before lighting it up.

•  After replacing the filter, turn on the air purifier.
• To reset the Check Filter Indicator, press and hold for 3 seconds.
• The Check Filter Indicator will flash and turn off when successfully reset. The filter life will show as 100% in the VeSync app.

Clean Air Delivery Rate

This air purifier has a Clean Air Delivery Rate of 141 cubic feet per minute (CFM), or 240 m³/h. Clean Air Delivery Rate (CADR) measures the efficiency of an air purifier by indicating the volume of clean air that an air purifier produces per minute. This is based on the removal of dust, pollen, and smoke, which are the 3 most common indoor air pollutants. The higher the CADR, the more particles the air purifier will remove and the larger the area it can clean. The rating is measured at the air purifier’s highest speed.

Air Change Per Hour

The air change rate is how many times all the air in a room can be purified (or “changed”) by the air purifier in 1 hour. Air changes per hour are calculated on the recommended room size, ze assuming 8 ft / 2.4 m ceilings. For smaller rooms, the air change per hour will increase. This air purifier can change the air 5 times per hour at the maximum speed in a single, closed room up to 219 ft² / 20 m². This is measured at ACH 5. The air purifier is effective for larger rooms, but air purification will take longer, with fewer air changes per hour. For example, the air purifier’s effective range is 548 ft² / 50 m² based on 2 ACH, or purifying the air in the room 2 times per hour.

Humidity

Moisture may damage the filter. This air purifier should be used in an area with a humidity level of 85% RH or below. If you use the air purifier in excessively humid areas, the surface of the filter may become moldy.

Essential Oils

Do not add essential oils to the air purifier or filter. The filter will become damaged by the oil and will eventually release an unpleasant smell. Do not use diffusers near the air purifier.

Cleaning the Pre-Filter

The Washable Pre-Filter should be cleaned every 2–4 weeks to increase efficiency and extend the life of your filter. You can set a reminder in the VeSync app to clean the pre-filter every 2, 3, or 4 weeks. Clean the pre-filter using a soft brush or vacuum hose to remove hair, dust, and large particles. Optionally, you can wash the pre-filter with water and a mild detergent to remove dirt and dust.

1. Turn off the air purifier.
2.  Open the front door. ver
3.  Push the pre-filter’s tabs inward and pull to remove the pre-filter.
4.  Clean the surface of the pre-filter with a vacuum.
5. Rinse the pre-filter with water under a faucet.

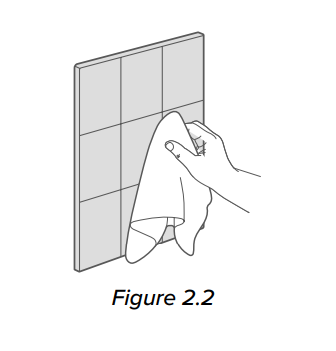

6. Wash the pre-filter with mild detergent and a soft cloth.

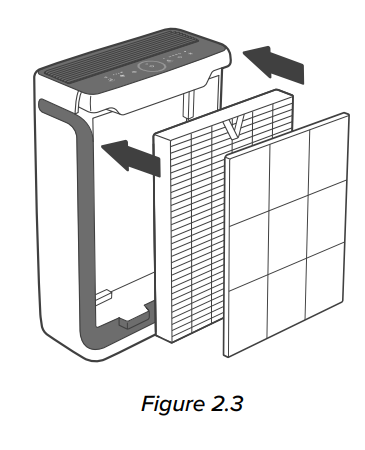

7. Allow the pre-filter to air-dry. Once completely dry, place the pre-filter back into the air purifier.

Filter	When to Clean	How to Clean	When to Replace
Washable Pre-Filter	Every 2–4 weeks	Use a soft cloth or  vacuum hose	Does not need to be replaced
		Wash with water and mild detergent
True HEPA / Activated Carbon Filter	Do not clean		9–12 months

When Should I Replace the Filter?

The True HEPA / Activated Carbon Filters should be replaced every 9 months. You may need to replace your filter earlier or later, depending on how often you use your air purifier. Using your air purifier in an environment with relatively high pollution may mean you will need to replace the filter more often, even if the Check Filter Indicator is off.

You may need to replace your filter if you notice:

• The air purifier does not effectively filter certain odors anymore
• Increased noise when the air purifier is on
• Decreased airflow from the top of the air purifier
• Unusual odors
• The HEPA filter is visibly dusty or discolored after removing the pre-filter

Replacing the Filter

1. Unplug the air purifier, then pull the front cover to remove it (see Getting Started, page 7).
2.  Push the pre-filter’s tabs inward and pull to remove the pre-filter.
3. Remove the old filter from the air purifier.
4.  Clean out any remaining dust or hair inside the air purifier using a vacuum hose.
5.  Plug in and turn on the air purifier. Reset the CheckFilter Indicator.

Cleaning the Dust Sensor

It is recommended to clean the AirSight™Infrared Dust Sensor lens every 2 months to help maintain the efficiency of the sensor. If the Air Quality Indicator is red (indicating “Bad” air quality) more than usual, you may need to clean your dust sensor.

1. Unplug the air purifier.

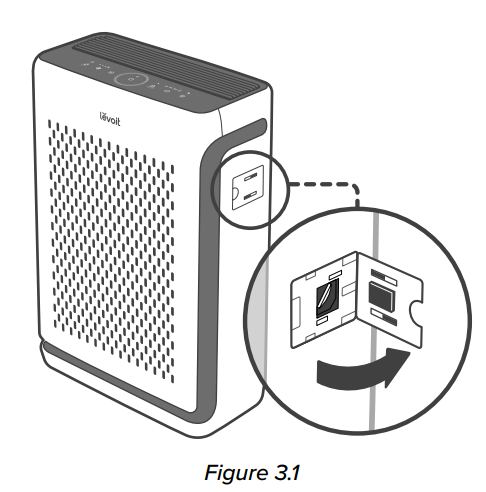

2. Open the dust sensor cover.
3. Use a cotton swab dipped in water to clean the dust sensor lens. [Figure 3.2]
4. Wipe the lens dry with a dry cotton swab.
5. Replace the dust sensor cover.

Storage

If not using the air purifier for an extended period Levoit Vital 100S Smart True HEPA Air Purifier of time, wrap both the air purifier and the filter in plastic packaging and store them in a dry place to avoid moisture damage.

Specifications

Model	LAP-V102S-WUS
Power Supply	24V      1.5A
Rated Power	35W
Ideal Room Size	219 ft² / 20 m² This Ideal Room Size is based on 5 air changes per hour (ACH). 548 ft² / 50 m²  This Ideal Room Size is based on 2 air changes per hour (ACH).
CADR (CFM)	141 CFM / 240 m3/h
Operating Conditions	Temperature: 14°–104°F / -10°–40°C
	Humidity: ≤ 85% RH
Noise Level	23–52dB
Dimensions	12.8 x 6.4 x 16.1 in / 32.5 x 16.3 x 41 cm
Weight	7 lb / 3.4 kg
Power Adapter	Input: 100–240V ~ 50/60Hz Output: 24V- 1.5A

Troubleshooting

Problem	Possible Solution
The air purifier will not turn on or respond to button controls.	Plug in the air purifier.
	Check to see if the power cord is damaged.
	Plug the air purifier into a different outlet.
Airflow is significantly reduced.	Make sure the filter is removed from its packaging and properly in place.
	Tap to increase the fan speed.
	Leave 15 inches / 38 cm of clearance from the front of the air purifier.
The air purifier makes an unusual noise while the fan is on.	Make sure the filter is properly in place with plastic packaging removed.
	Make sure the air purifier is operating on a hard, flat, level surface.
	Replace the filter
Poor air purification quality.	Tap to increase the fan speed.
	Make sure no objects are blocking the front, sides, or top of the air purifier (the inlet or outlet).
	Close doors and windows while using the air purifier.
	If the room is larger than 219 ft² / 20 m², air purification will take longer.
	Replace the filter (see page 19).

VESYNC App Troubleshooting

• During the setup process, you must be on a secure 2.4GHz Wi-Fi® network.
• Confirm that the network is working correctly.
• Make sure the Wi-Fi password you entered is correct.
• There should be no spaces at the beginning or end of the password.
• Test the password by connecting a different electronic device to the router.
• Try moving your air purifier closer to Levoit Vital 100S Smart True HEPA Air Purifier the router.
• Your phone should be as close as possible to your air purifier.
• Your router may need to be at a higher location, away from obstructions.
• Make sure your air purifier and router are away from appliances (such as microwave ovens, refrigerators, electronic devices, etc.) to avoid signal interference.
• Disable portal authentication for your Wi-Fi network.

Federal Communications Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced Levoit Vital 100S Smart True HEPA Air Purifier radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions to satisfy RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow the operation instructions as documented in this manual.

This transmitter must not be located or operate in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands is country-dependent and firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.

Limited Warranty

Product Name	Vital 100S Smart True HEPA Air Purifier
Model	LAP-V102S-WUS
Date of Purchase
Order ID

Terms & Policy

Arovast Corporation (“Arovast”) warrants this product to the original purchaser to be free from defects in material and workmanship, under normal use and conditions, for a period of 2 years from the date of original purchase.

Arovast agrees, at our option during  Levoit Vital 100S Smart True HEPA Air Purifier the warranty period, to repair any defect in material or workmanship or furnish an equal product in exchange without charge, subject to verification of the defect or malfunction and proof of the date of purchase.

There is no other express warranty. This warranty does not apply

• To damages or defects caused by accident, abuse, misuse, or improper or inadequate maintenance;
• To damages or defects exceeding the cost of the product.

Arovast will not be liable for indirect, incidental, or consequential connection with the use of the product covered by this warranty.

This warranty does not extend pto roducts purchased from unauthorized sellers. Arovast’s warranty extends only to products purchased from authorized sellers that are subject to Arovast’s quality controls and have agreed to follow its quality controls.

This warranty gives you specific legal rightsand you may also have other rights which vary from state to state. Some states do not allow Levoit Vital 100S Smart True HEPA Air Purifierthe exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Once our Customer Support Team has approved your request, please return the product with a copy of the invoice and order ID. Miller St., Suite A, Anaheim, CA 92806

Customer Support

• Distributed by Arovast Corporation 1202 N. Miller St., Suite A Anaheim, CA 92806
• Email: support@levoit.com
• Tel: (888) 726-8520
• Support Hours: Mon–Fri, 9:00 am–5:00 pm PST/PDT.
• Website: LEVOIT.COM
