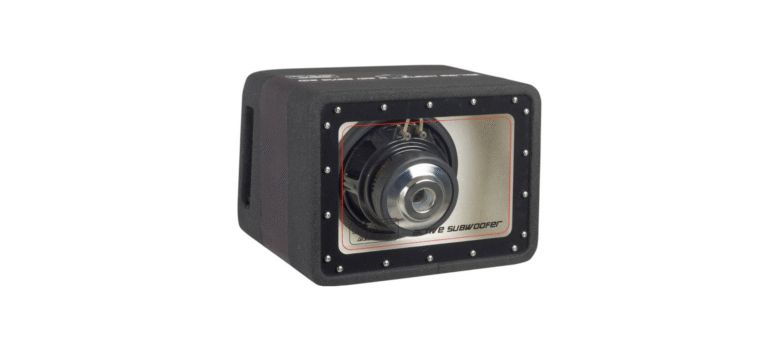

Mac Audio 108 Series A ICE CUBE
Installation
- This device is only suitable for connection to a 12-volt system with negative earth.
- Ensure that the input/output cables are far enough away from the power supply cables, as this can otherwise lead to interference.
- Make sure that the fuse and controls are accessible after installation.
- The performance and reliability of the system depend on the quality of the installation.
- The system should therefore be installed by a professional where several speakers or a complex multi-channel system are involved.
Positioning Subwoofer
Place the subwoofer in a position where adequate ventilation of the amplifier module is guaranteed. Make sure it rests on an even surface. Use the securing device supplied for this purpose.
Power Supply
Before installation
- Remove the positive terminal from the car battery first to avoid short-circuiting. Standard car wiring is normally not sufficient for the power requirement of the integrated amplifier.
- Make sure that the wiring to the earth and +12V is of the correct gauge.
- First, make the connection between the amplifier’s earth terminal (1) and the negative terminal on the
battery. - A loose connection can result in malfunction or interference, noise, and distortions.
- Now connect the car radio’s +12v remote control cable (P-con, Power Antenna, or similar) to the REM (2) control socket on the amplifier. A 0.75 mm² gauge cable is sufficient for this REMOTE connection.
NF CABLE
It is better to install these far apart from each other, i.e., the power cable in the left cable duct and the audio cable in the right cable duct or vice versa. This reduces the feed-through of interferences to the audio signal.
HIGH-LEVEL OPERATION OF THE ACTIVE SUBWOOFER
- Please observe the correct polarity! The active Mac Audio 108 Series A ICE CUBE subwoofer can be connected to an amplifier or the speaker outputs of a car radio. The low-level inputs (8) are not used.

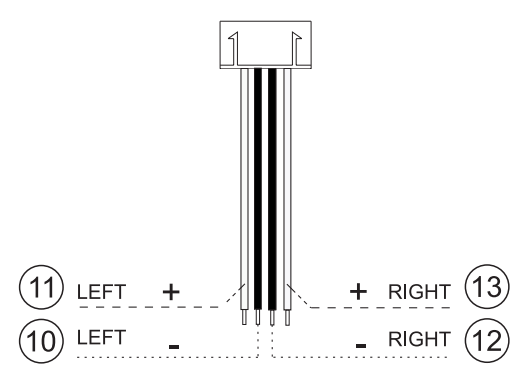

Cable Connection
- Negative terminal, left
- Positive terminal, left
- Negative terminal, right
- Positive terminal, right
Setting
- Turn the volume control of your radio to the medium setting and then set the input level control (6) in such a way as to produce a medium, average volume. This setting normally ensures sufficient power reserves at an optimum noise voltage interval.
Low-Pass Filter
- Set the desired transfer frequency on the low-pass filter control (4). The filter’s edge steepness ensures the precise lowering of medium and high-frequency ranges.
DEAR CUSTOMER
We congratulate you on acquiring this MAC AUDIO Car HiFi Product. Please read these instructions carefully so as to ensure optimum and disturbance-free functioning of the appliance. Technical modifications reserved.
Customer Service
- Website: https://www.mac-audio.de/
- Ph:Â 02234 / 807 – 0
