    Safety Instructions

    Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.

    1. Keep the work area clean and well-lit. Cluttered or dark areas invite accidents.
    2. Keep children and bystanders away while operating a power tool.
    3. Distractions can cause you to lose control.
    4. Power tool plugs must match the outlet. Never modify the plug in any way.
    5. Do not use any adapter plugs with earthed (grounded) power tools.
    6. Unmodified plugs and matching outlets will reduce the risk of electric shock.
    7. There is an increased risk of electric shock if your body is earthed or grounded.
    8. Do not expose power tools to rain or wet conditions.
    9. Water entering a power tool will increase the risk of electric shock.
    10. Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool.
    11. Keep the cord away from heat, oil, sharp edges, or moving parts.
    12. Damaged or entangled cords increase the risk of electric shock.k
    13. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
    14. Use of a cord suitable for outdoor use reduces the risk of electric shock.
    15. Power tools can produce electromagnetic fields (EMF) that are not harmful to the user.
    16. Stay alert, watch what you are doing, and use common sense when operating a power tool.
    17. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication.
    18. A moment of inattention while operating power tools may result in serious personal injury.
    19. Use personal protective equipment. Always wear eye protection.

    Use & Care

    1. Do not force the power tool. Use the correct power tool for your application.
    2. The correct power tool will do the job better and safer at the rate for which it was designed.
    3. Do not use the power tool if the switch does not turn it on and off.
    4. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
    5. Such preventive safety measures reduce the risk of accidentally starting the power tool.
    6. Power tools are dangerous in the hands of untrained users.
    7. If damaged, have the power tool repaired before use.
    8. Many accidents are caused by poorly maintained power tools.
    9. Keep cutting tools sharp and clean.
    10. Keep handles and grasping surfaces dry, clean, a nd free from oil and grease.
    11. When using the tool, do not wear cloth work gloves, which may get entangled.
    12. The entanglement of cloth work gloves in the moving parts may result in personal injury.

    Service

    1. Have your power tool serviced by a qualified repair person using only identical replacement parts.
    2. This will ensure that the safety of the power tool is maintained.
    3. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
    4. Follow the instructions for lubricating and changing accessories.
    5. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.

    Specifications

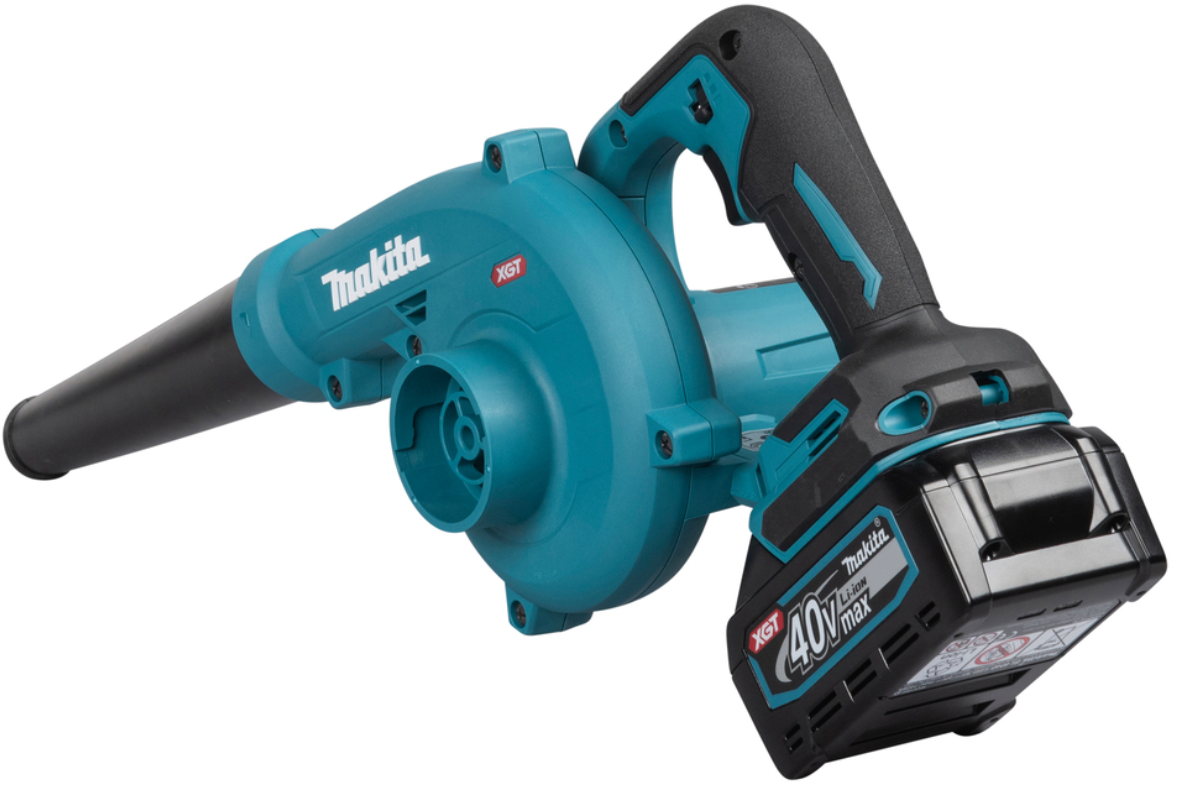

    Model: UB002G
    Capacities Air volume *1 0 – 3.6 m3/min (0 – 127 cu.ft./min)
    Air speed (average) *2 0 – 81 m/s (0 – 181 MPH)
    Air speed (max.) *2 0 – 99 m/s (0 – 221 MPH)
    Overall length *3 516 mm (20-1/4″)
    Rated voltage D.C. 36 V – 40 V max
    Net weight *4 1.3 kg (2.9 lbs)
    *5 2.0 – 3.5 kg (4.4 – 7.7 lbs)
    1. Without nozzles
    2. With nozzle
    3. With a nozzle and a battery cartridge BL4040, and without a dust bag
    4. Weight without any optional accessories and battery cartridge(s)
    5. The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heaviest combinations are shown in the table.
    6. Due to our continuing program of research and development, the specifications herein are subject to change without notice.
    7. Specifications may differ from country to country

    Applicable Battery Cartridge and Charger

    • Battery cartridge BL4020* / BL4025* / BL4040* / BL4040F* / BL4050F / BL4080F Recommended battery
    • Charger DC40RA / DC40RB / DC40RC / DC40WA
    • Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

    Parts Description

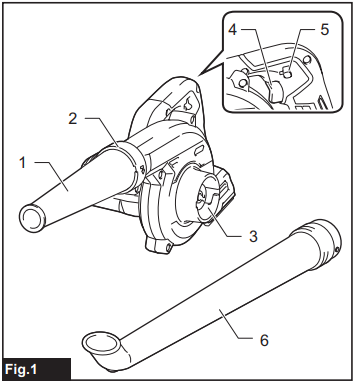

    Blowing componentsMakita-UB002G-Cordless-XGT-Compact-Blower-figure-1

    1. Nozzle
    2. Blower outlet
    3. Suction inlet
    4. Switch trigger
    5. Speed adjusting lever
    6. Garden nozzle

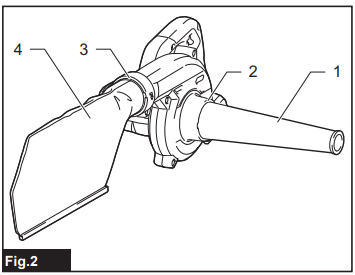

    Vacuuming componentsMakita-UB002G-Cordless-XGT-Compact-Blower-figure-2
    1. Nozzle
    2. Suction inlet
    3. Blower outlet
    4. Dust bag

    Assembly

    Blower Assembly

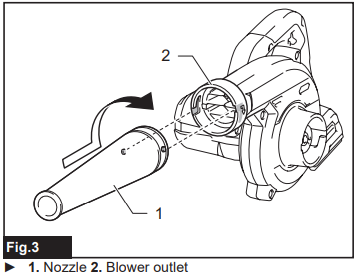

    Installing and removing the nozzle: Align the protrusions on the nozzle with the grooves on the blowing outlet. Insert the nozzle into the outlet opening. Then turn the nozzle to lock it into place.Makita-UB002G-Cordless-XGT-Compact-Blower-figure-3

    To remove the nozzle, perform the installation procedure in reverse.

    Installing and Removing Nozzle

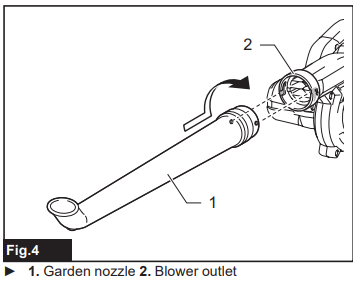

    Optional accessory: Align the protrusions on the garden nozzle with the grooves on the blowing outlet. Insert the garden nozzle into the outlet opening. Then turn the garden nozzle to lock it into place.Makita-UB002G-Cordless-XGT-Compact-Blower-figure-4

    To remove the garden nozzle, perform the installation procedure in reverse.

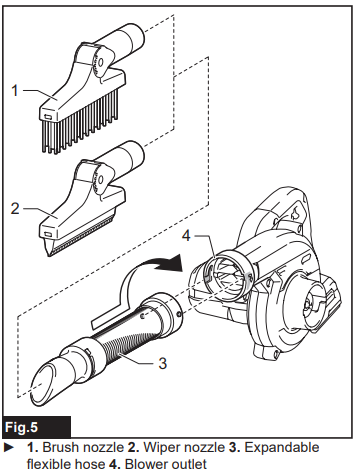

    Brush/Wiper Nozzles

    Optional accessory: Attach the brush nozzle or wiper nozzle to an expandable flexible hose. Insert the end joint of the expandable hose into the blower outlet, and then turn the joint to lock the hose into place. To remove the set of nozzle and hose, perform the installation procedure in reverse.Makita-UB002G-Cordless-XGT-Compact-Blower-figure-5Long Nozzle

    Optional accessory: Install the long nozzle in the same way as the nozzle. To remove the long nozzle, perform the installation procedure in reverse.

    Tapered Nozzle

    Optional accessory: Attach the tapered nozzle to the nozzle first, and then install the nozzle to the blower. To remove the tapered nozzle, perform the installation procedure in reverse.

    Vacuum assembly

    Installing and Removing the Nozzle

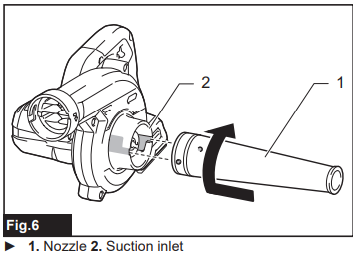

    Align the protrusions on the nozzle with the grooves on the suction inlet. Insert the nozzle into the inlet opening. Then turn the nozzle to lock it into place.Makita-UB002G-Cordless-XGT-Compact-Blower-figure-6

    To remove the nozzle, perform the installation procedure in reverse.

    Dust Bag

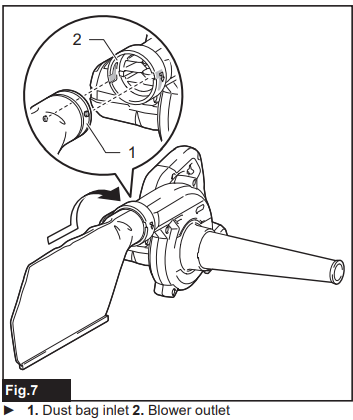

    Optional accessory: Align the protrusions on the dust bag inlet with the grooves on the blower outlet. Insert the inlet of the dust bag into the blower outlet opening. Then turn the dust bag inlet to lock the dust bag into place.Makita-UB002G-Cordless-XGT-Compact-Blower-figure-7

    To remove the dust bag, perform the installation procedure in reverse.

    Flexible Hose Sets

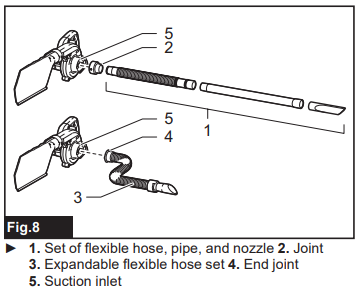

    Optional accessory: Select a flexible hose set suitable for your application. Assemble a set of flexible hoses, pipes, and nozzles, then attach it to the suction inlet of the blower using the joint in the same way as the nozzle assembly. For an expandable flexible hose set, insert the end joint of the hose into the suction inlet of the blower, and then turn the joint to lock the hose into place.Makita-UB002G-Cordless-XGT-Compact-Blower-figure-8

    To remove the flexible hose sets, perform the installation procedure in reverse.

    Functional Description

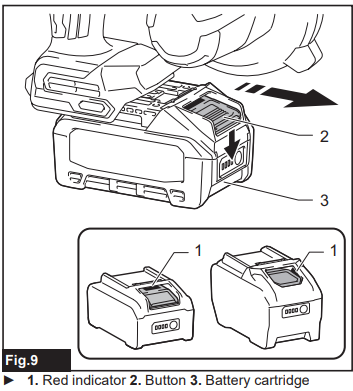

    To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator as shown in the figure, it is not locked completely. To remove the battery cartridge, slide it from the machine while pressing the button on the front of the cartridge.

    Makita-UB002G-Cordless-XGT-Compact-Blower-figure-9

    Indicating the Remaining Battery Capacity

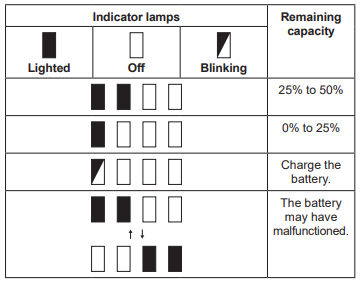

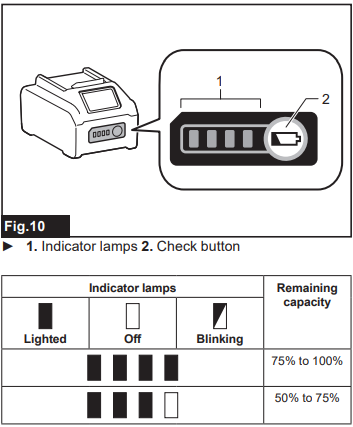

    Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up for a few seconds.Makita-UB002G-Cordless-XGT-Compact-Blower-figure-10 Makita-UB002G-Cordless-XGT-Compact-Blower-figure-11

    Machine/Battery Protection System

    The machine is equipped with a machine/battery protection system. This system automatically cuts off power to the motor to extend the engine and battery life. The machine will automatically stop during operation if the machine or battery is placed under one of the following conditions:

    Overload Protection

    When the machine or battery is operated in a manner that causes it to draw an abnormally high current, the machine automatically stops. In this situation, switch Makita UB002G Cordless XGT Compact Blower off the machine and stop the application that caused the machine to become overloaded. Then switch on the machine to restart.

    Overheat Protection

    When the machine or battery is overheated, the machine stops automatically. In this case, let the machine and battery cool before turning the machine on again.

    Overdischarge Protection

    When the battery capacity is not enough, the machine stops automatically. In this case, remove the battery from the machine and charge the battery.

    Protections Against Other Causes

    The protection system is also designed for other causes that could damage the machine, and allows the machine to stop automatically. Take all the following steps to clear the causes when the machine has been brought to a temporary halt or stops in operation.

    1. Turn the machine off, and then turn it on again to restart.
    2. Charge the battery(ies) or replace it/them with a recharged battery(ies).
    3. Let the machine and battery(ies) cool down. If no improvement can be found by restoring the protection system, then contact your local Makita Service Center.

    Switch Action

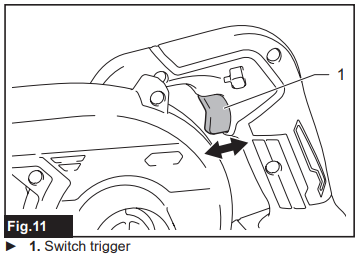

    Pull the switch trigger to start the machine. The speed increases as you squeeze the switch trigger harder. Release the switch trigger to stop.Makita-UB002G-Cordless-XGT-Compact-Blower-figure-12

    Speed Adjusting Lever

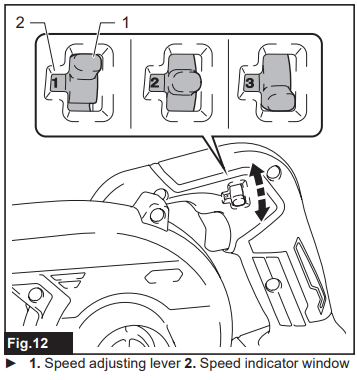

    The speed can be changed by moving the speed adjusting lever to a given number setting from 1 to 3. Higher speed is obtained when you lower the lever to display the number “3” on the speed indicator window. Push the lever up to display the number “1” for low speed. Refer to the speed settings table as follows. Be sure that the speed adjusting lever is set to the correct position before operation.Makita-UB002G-Cordless-XGT-Compact-Blower-figure-13

    Speed Settings Table

    Number Speed

    • 3 High
    • 2 Medium
    • 1 Low

    Accidental Restart Preventive Function

    Even if you install the battery cartridge while pulling the switch trigger, the machine does not start. To start the machine, first release the switch trigger, and then pull the switch trigger again.

    Operation

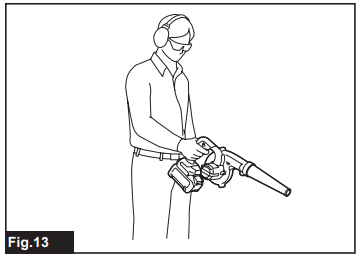

    Hold the machine firmly with one hand and perform the blowing operation by moving it around slowly. When blowing around a building, a big stone, or an object, direct the nozzle away from them. When operating in a corner, start from the corner and then move to a wider area.

    Blowing with a Nozzle

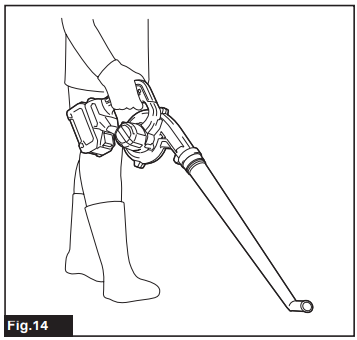

    Blowing with a garden nozzle (optional accessory)

    Vacuuming Operation

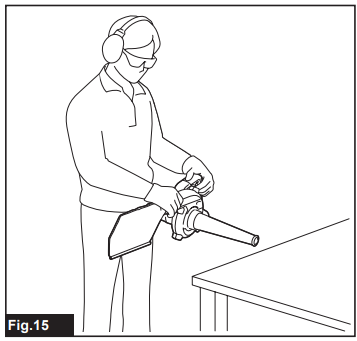

    Dust bag and garden nozzle are available as optional accessories. Hold the machine with both hands. While operating the machine, adjust the switch trigger so that the suction force is appropriate for the work location and conditions.

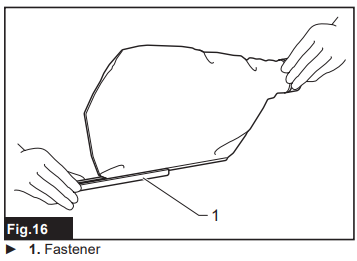

    Empty the dust bag before it becomes full by removing the dust bag from the machine, and then removing the fastener.

    Cleaning the Machine

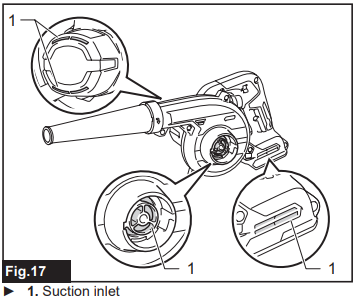

    Clean the machine by wiping off dust with a dry cloth or one dipped in soapy water and wrung out. Remove dust or dirt from the suction inlets.

    Maintainance

    Always be sure that the machine is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.

    To maintain product SAFETY and RELIABILITY, repairs, any other maintenance, or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

    Troubleshooting

    Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the machine. Instead, ask Makita Authorized Service Centers, always using Makita replacement parts for repairs.

    State of abnormality Probable cause (malfunction) RemedyThe motor
    R does not run. The battery cartridge is not installed. Install the battery cartridge.
    Battery problem (under voltage) Recharge the Makita UB002G Cordless XGT Compact Blower battery. If recharging is not effective, replace the battery.
    The drive system does not work correctly. Ask your local authorized service center for repair.
    The motor stops running after a little use. The battery’s charge level is low. Recharge the battery. If recharging is not effective, replace the battery.
    Overheating. Stop using the machine to allow it to cool down.
    The machine does not reach the maximum speed. The battery is installed improperly. Install the battery cartridge as described in this manual.
    Battery power is dropping. Recharge the battery. If recharging is not effective, replace the battery.
    The drive system does not work correctly. Ask your local authorized service center for repair.
    Abnormal vibration:

    Stop the machine immediately!

    		 The drive system does not work correctly. Ask your local authorized service center for repair.
    Motor cannot stop:

    Remove the battery immediately!

    		 Electric or electronic malfunction. Remove the battery and ask your local authorized service center for repair.

    Optional Accessories

    If you need any assistance for more details regarding these accessories, ask your local Makita Service.
    Center.

    • Nozzle
    • Garden nozzle
    • Dust bag
    • Long nozzle
    • Brush nozzle
    • Wiper nozzle
    • Tapered nozzle set
    • Flexible hose set
    • Makita genuine battery and charger

    Limited Warranty

    Please refer to the annexed warranty sheet for Makita UB002G Cordless XGT Compact Blower the most current warranty terms applicable to this product. If the annexed warranty sheet is not available, refer to the warranty details set forth on the website below for your respective country.
