Miyota Cal. FS10/FS11/FS13 Chronograph Movements User Manual

Miyota Cal. FS10/FS11/FS13 Chronograph Movements

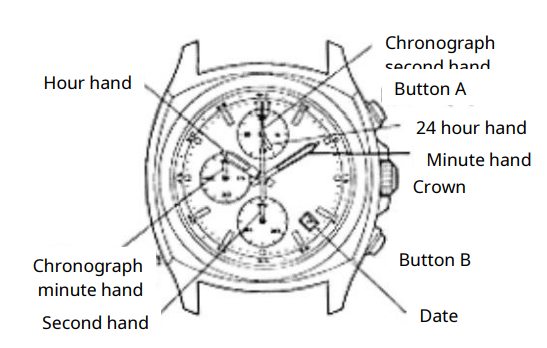

Display & Buttons

Setting The Time

1.  Pull the crown out to the 2nd position.
2.  Turn the crown to set the hour and minute hands.
3.  When the crown is pushed back to the normal position, the small second hand begins to run.

Setting the Date

1.  Pull the crown out to the 1st position.
2.  Turn the crown counterclockwise to set the date. *If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change on the following day.
3.  After the date has been set, push the crown back to the normal position.

Using the Alarm

• Pull button “C”. The Alarm sounds when the hour hand aligns with the alarm time indicator.

Setting the Alarm Time

1.  Pull the crown out to the 1st position.
2.  Turn the crown clockwise to set the alarm time indicator to the desired set time.
3.  Return the crown to its normal position.
4.  Pull out the button “C” to turn the alarm on.
5.  The alarm will sound when the hour hand aligns with the alarm time indicator.

Using the Cronograph

• This chronograph can measure and display time in 1/20 second timing up to a maximum of 11 hours, 59 minutes, 59 seconds, 95.

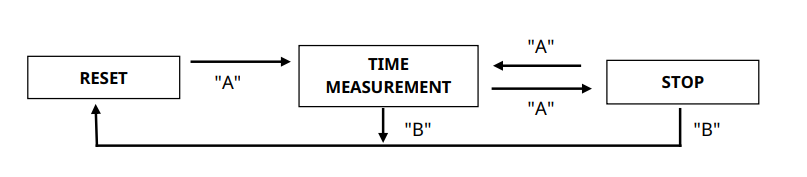

Measuring time with the chronograph

1.  Press button “B” to change the watch to the chronograph mode.
2. The small second hand stops at the zero position, and changes to the chronograph 1/20 second hand.
3. The chronograph 1/20 second hand stops at the zero position 30 seconds after starting.
4.  Pressing button “B” resets the chronograph, and all chronograph hands return to the zero position.t

Chronograph Reset

1. Pull the crown out to the 2nd position.
2. Press button “A” to set the chronograph second hand to zero position.
3. Press button “B” to set the chronograph 1/20 second hand to zero position..
4. Do not push the crown to the normal position while the chronograph second hand and the chronograph 1/20 second hand return to the zero position.

Customer Service

• Website: https://miyotamovement.com/
• Tel: +1 303-774-2221

FAQs

Q: How do I adjust the 24-hour sub-dial?

Ans: When you set the time, the 24-hour sub-dial automatically adjusts and is synchronised with the main hour hand. It cannot be adjusted on its own.

Q: What type of battery does the FS10/FS11/FS13 use?

Ans: The SR920SW (or 371) silver oxide battery that these movements normally use has an expected lifespan of two to three years, depending on how often the chronograph is used.

Q: Does the chronograph count hours?

Ans: No, the chronograph usually records these movements for up to 60 minutes. An hour counter for longer timing is not included.

Q: How accurate is the Miyota FS series movement?

Ans: With an average accuracy of ±20 seconds per month at room temperature, these quartz movements are incredibly dependable.

Q: Can I use the chronograph continuously without harming the movement?

Ans: Although leaving the chronograph running is safe, doing so could reduce battery life. When not in use, stop and reset the chronograph for maximum power efficiency.

Q: Are these movements suitable for sports watches or dress watches?

Ans: Indeed. The small profile and adaptable dial design of the FS10, FS11, and FS13 make them popular in both sport-inspired timepieces and fashion chronographs.

Q: Is the Miyota FS movement shock-resistant or water-resistant?

Ans: The architecture of the watch case determines whether the movement is water-resistant or not. For daily usage, the movement is made with a respectable amount of shock resistance.
