Miyota Cal. JP11/JP15/JP25 Multi Function User Guide

Miyota Cal. JP11/JP15/JP25 Multi Function

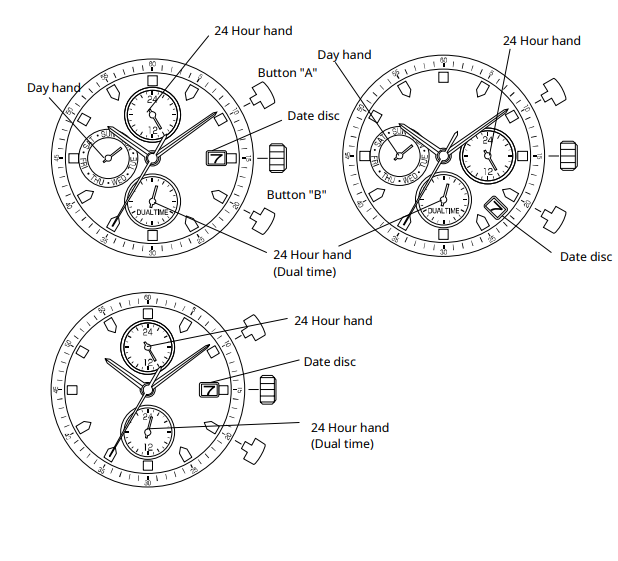

Display & Button

Setting The Time

1.  Pull the crown out to the 2nd position.
2.  Turn the crown to set the hour and minute hands.
3.  When the crown is pushed back to the normal position, the small second hand begins to run.

Setting the Date

1.  Pull the crown out to the 1st position.
2.  Turn the crown counterclockwise to set the date. *If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change on the following day.
3.  After the date has been set, push the crown back to the normal position.

Using the Alarm

• Pull button “C”. The Alarm sounds when the hour hand aligns with the alarm time indicator.

Setting the Alarm Time

1.  Pull the crown out to the 1st position.
2.  Turn the crown clockwise to set the alarm time indicator to the desired set time.
3.  Return the crown to its normal position.
4.  Pull out the button “C” to turn the alarm on.
5.  The alarm will sound when the hour hand aligns with the alarm time indicator.

Using the Cronograph

• This chronograph can measure and display time in 1/20 second timing up to a maximum of 11 hours, 59 minutes, 59 seconds, 95.

Measuring time with the chronograph

1.  Press button “B” to change the watch to the chronograph mode.
2. The small second hand stops at the zero position, and changes to the chronograph 1/20 second hand.
3. The chronograph 1/20 second hand stops at the zero position 30 seconds after starting.
4.  Pressing button “B” resets the chronograph, and all chronograph hands return to the zero position.t

Chronograph Reset

1. Pull the crown out to the 2nd position.
2. Press button “A” to set the chronograph second hand to zero position.
3. Press button “B” to set the chronograph 1/20 second hand to zero position..
4. Do not push the crown to the normal position while the chronograph second hand and the chronograph 1/20 second hand return to the zero position.

Customer Service

• Website: https://miyotamovement.com/
• Tel: +1 303-774-2221

FAQs

Q: What does the 24-hour subdial do?

Ans: The hour hand in 24-hour format is reflected in the 24-hour subdial. It is not an indicator of the second time zone or GMT. It aids with AM/PM time differentiation, which is particularly helpful when using a calendar or alarm clock.

Q: My watch shows the wrong day or date after setting—what went wrong?

Ans: To check, use the 24-hour subdial. You are in PM if it displays “13” even though your primary hour hand reads 1.

Q: Does the JP series support a chronograph (stopwatch) function?

Ans: No, the JP11, JP15, and JP25 multi-function movements are not chronographs, and the subdials are not utilised for timing but for calendar and 24-hour time functions.

Q: How long does the battery last in these movements?

Ans: Depending on usage, a new battery (SR621SW or comparable) usually lasts two to three years. Excessive use of any such features could marginally shorten battery life.

Q: Is my watch water-resistant with a JP movement?

Ans: The watch case, not the movement, determines whether the watch is water resistant. Verify the manufacturer’s specifications (such as “50M” or “5ATM”) or the case back.

Q: I see a small hand stuck at 6 or 9 o’clock—what is it for?

Ans: Try resetting your watch using the correct crown placements if it appears strange or stuck. A service might be necessary if it doesn’t move after a while.

Q: Can I replace the JP movement myself?

Ans: Yes, if you feel at ease using the instruments and methods for watch repair.
