N-GEAR LGP JUKE 101 Bluetooth Speaker Instructions Manual

N-GEAR LGP JUKE 101 Bluetooth Speaker

Safety Instructions

1. Do not use this apparatus near water.
2. Clean only with a dry cloth.
3. Do not block any ventilation openings.
4. Install according to the manufacturer’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
6. Do not defeat the safety of the polarized or grounding-type plug.
7. A polarized plug has two blades with one wider than the other.
8. A grounding type plug has two blades and a third grounding prong.
9. The wide blade or the third prong is provided for your safety. If
10. The provided plug does not fit into your outlet. Consult an electrician for the replacement of the obsolete outlet.
11. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
12.  Only use attachments/accessories specified by the manufacturer.
13.  Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
14. The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the apparatus.
15. The battery shall not be exposed to excessive heat, such as sunshine, fire, or the like.
16. The MAINS plugs are used as the disconnect device, which shall remain readily operable.

Features

1. Wireless connection
2. Memory function, support resuming playing from the break point
3. Support U disk/TF card/ AUX playback mode
4. Rechargeable built-in lithium-ion battery
5. Support MP3 music format decoding
6. Using high-fidelity speakers, the sound is more natural and delicate
7. Level 5 waterproof
8. TWS function supports two speakers’ connection
9. With RGB lights

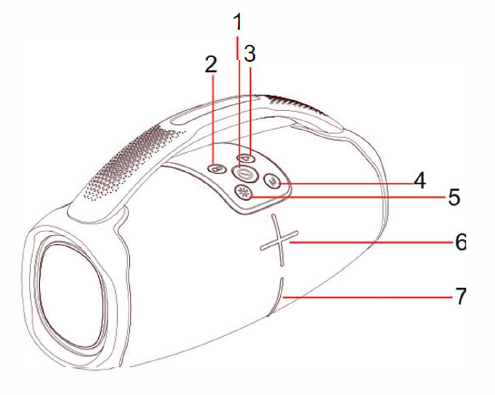

Button Instruction

1. Button “-Single Click: Back to previous song
2. BASS BOOST” button Single Click: switch music mode (Bass Normal/Karaoke mode)
3. Power on /Power off Long press: to power on /power off the device Single click: to pause /play music
4. Knob (Control the volume): Rotate left to reduce the volume, rotate right to enlarge the volume
5. Charging Indicator light: It will flash when the speaker is charged; the light will be on when the battery is fully charged. The light will always be on under normal working states to display the battery capacity.
6. TWS button Single Click: Single click to enter /exit from TWS connection
7. Prepare two speakers, single click this button for either of them, will hear a voice prompt. (PS: Please make sure the speaker is disconnected from any wireless device before using the TWS function )
8. Then wait for a few seconds, will hear a voice prompt after the two speakers connect successfully. Search for the Bluetooth ID to connect with the Bluetooth device.
9. After connecting with the Bluetooth device, operate either speaker,  and the other one will be synced.
10. A single click TWS button of either of them will exit TWS mode.
11. Long Press: To switch the music playing mode
12. Light button Single click: To switch the light mode Long press: To turn on/off the light Double click: Exit/Re-connect Bluetooth connection
13. Button “+” Single click Enter into next song
14. AUX jack Standard 3.5mm headphone jack
15.  USB jack. When you insert a U-disk, the default playing N-GEAR LGP JUKE 101 Bluetooth Speaker mode is the U-disk playing mode.
    U-disk supports 32GB maximum.m
16. TF jack\ When inserting a TF card, the default playing is TF card playing mode. TF card supports 32GB maximum
17. Type-C jack. Insert the Type-C charging cable to charge the speaker

Operation

Wireless pairing

• When the device is turned on, wireless mode is the default.
• Turn on the wireless device, search for HOPESTAR- Party Box to connect and pair Bluetooth
• Suitable for various mobile phone accessories, wireless technology, wireless adapters, and wireless players.

Voice prompt

• There is a voice prompt when turning on/off.
• When the volume is up to maximum, there will be a voice prompt; at the minimum
  volume, there is no voice prompt.
• There will be a voice prompt about three times, “di-di-di” after detecting the device is low power, then turn off.

Mode switching

• It defaults to the wireless mode when turning on the speaker
• Mode switching: When the TF car, U-disk, and AUX modes N-GEAR LGP JUKE 101 Bluetooth Speaker are all inserted into the speaker at the same time, long-press the TWS button to switch the playing mode.
• The device will select the mode preferentially that you insert last for the TF card, U-disk, or A UX mode.

TWS operation instruction

• Open any two speakers at the same time, click either TWS button,  and when you hear the” beep” to enter the TWS searching; when the TWS connection is successful, when you hear the voice prompt, the host indicator flashes, and the other one will light up.

Play indicator

• White light flashes quickly, about 0.5 seconds/time under Bluetooth searching status; The white light is always on when Bluetooth is connected successfully with the Bluetooth device; the white light flashes slowly, about 1 second/time under playing status.

Charging indicator

• The three white lights are flashing orderly from left to right while charging.
• The other lights are flashing.
• The rest lights are flashing.
• The indicator will display the battery capacity under normal working status.

Charging and using

• This machine has a built-in overcharge protection circuit, which can be connected to a computer or charger for a long time, about four hours. Charging is complete.
• The play time of each battery will vary depending on the volume used, rather differently.

Volume

• The default volume is at 70% when the speaker turns on.
• If there is no operation, the device will shut down automatically after 15 minutes.

Technical Specifications

• Wireless standard: 5.0
• Transmission distance: 10 meters
• Output power:50W*1+15W*2+10W*2
• Playing time: 6 -8 hours
• Frequency effect 80Hz-20KHz
• Speaker unit size:: 4Ω 119mm 50W*1 ,4Ω 78mm15W*2, 4Ω 10W*2 Input power: 5V- 2A
• Maximum current consumption: 2A
• Battery type: 18650 lithium-ion battery 18000mAh
• Audio signal input interface: standard Φ3.5mm headphone jack (stereo)

Troubleshooting

1. Automatic shutdown: When the battery power is low, the battery protection will be turned on automatically. Please charge it for 4 hours before use.
2.  Unable to play music: The music file storage path cannot be recognized by the player. Please store the music file in the root directory of the removable device.
3.  There is no sound when connected to the computer: the computer interface is connected incorrectly. Please select the correct audio output port.
4.  There is no response to the keys or the function is disordered: try again after shutting down.
5. If the device is abnormal, please short-press the reset button to reboot the speaker.

Customer Support

• Website: https://ngearsafe.com/

FAQs

Q: What devices are compatible with the LGP JUKE 101 Bluetooth Speaker?

Ans: Bluetooth-enabled gadgets including MP3 players, computers, tablets, and smartphones are compatible with the LGP JUKE 101. Both the iOS and Android operating systems can use it.

Q: What is the Bluetooth range of the JUKE 101?

Ans: In an open space free of obstructions, the Bluetooth range is roughly 10 meters (33 ft).

Q: Can I use the speaker while it’s charging?

Ans: You can listen to music on the JUKE 101 while it’s charging, so you don’t have to pause it.

Q: How long does the battery last on a full charge?

Ans: Up to 8–10 hours of playback duration is possible with the integrated rechargeable battery, depending on usage and volume.

Q: How do I charge the speaker?

Ans: Connect it to a USB power source (computer, adapter, or power bank) using the included USB charging cable. When the battery is fully charged, the charging LED will illuminate and then switch off.

Q: Does the JUKE 101 support wired connections?

Ans: Yes, you can use a 3.5mm audio cable to connect non-Bluetooth items to its AUX input port.

Q: Can I answer calls using the speaker?

Ans: Indeed. When linked via Bluetooth, the JUKE 101’s built-in microphone enables hands-free phone management and answering.

Q: How do I reset the speaker to factory settings?

Ans: To turn off and restart the speaker, press and hold the power and volume up buttons at the same time for five seconds. Bluetooth pairing data will be cleared as a result.
