NGEAR NRG 500 WirelessSound And Party System User Manual

NGEAR NRG 500 Wireless Sound And Party System

Safety Instructions

1. Do not use this apparatus near water.
2. Clean only with a dry cloth.
3. Do not block any ventilation openings.
4. Install according to the manufacturer’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
6. Do not defeat the safety of the polarized or grounding-type plug.
7. A polarized plug has two blades with one wider than the other.
8. A grounding type plug has two blades and a third grounding prong.
9. The wide blade or the third prong is provided for your safety. If
10. The provided plug does not fit into your outlet. Consult an electrician for the replacement of the obsolete outlet.
11. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
12.  Only use attachments/accessories specified by the manufacturer.
13.  Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
14. The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the apparatus.
15. The battery shall not be exposed to excessive heat, such as sunshine, fire, or the like.
16. The MAINS plugs are used as the disconnect device, which shall remain readily operable

Features

1. Wireless connection
2.  Memory function, support resuming playing from the break point
3. Support U disk/TF card / AUX playback mode
4. Rechargeable built-in lithium-ion battery
5. Support MP3 music format decoding
6. Using high-fidelity speakers, the sound is more natural and delicate
7. Level 5 waterproof
8. TWS function supports two speakers’ connection
9. With one wireless microphone

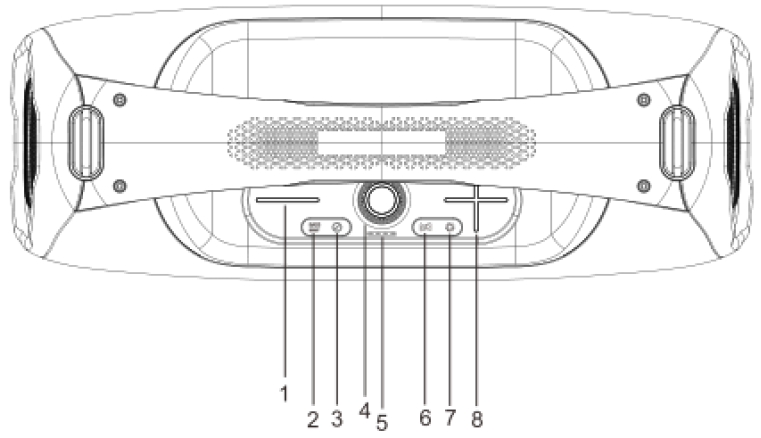

Button Instruction

1. Button “-Single Click: Back to previous song
2. BASS BOOST” button Single Click: switch music mode (Bass Normal/Karaoke mode)
3. Power on /Power off Long press: to power on /power off the device Single click: to pause /play music
4. Knob (Control the volume): Rotate left to reduce the volume, rotate right to enlarge the volume
5. Charging Indicator light: It will flash when the speaker is charged; the light will be on when the battery is fully charged. The light will always be on under normal working states to display the battery capacity.
6. TWS button Single Click: Single click to enter /exit from TWS connection
7. Prepare two speakers, single click this button for either of them, will hear a voice prompt. (PS: Please make sure the speaker is disconnected from any wireless device before using the TWS function )
8. Then wait for a few seconds, will hear a voice prompt after the two speakers connect successfully. Search for the Bluetooth ID to connect with the Bluetooth device.
9. After connecting with the Bluetooth device, operate either speaker,  and the other one will be synced.
10. A single click TWS button of either of them will exit TWS mode.
11. Long Press: To switch the music playing mode
12. Light button Single click: To switch the light mode Long press: To turn on/off the light Double click: Exit/Re-connect Bluetooth connection
13. Button “+” Single click Enter into next song
14. AUX jack Standard 3.5mm headphone jack
15.  USB jack. When you insert a U-disk, the default playing is the -U-disk playing mode
    U-disk supports 32GB maximum
16. TF jack\ When inserting a TF card, the default playing is TF card playing mode. TF card supports 32GB maximum
17. Type-C jack. Insert the Type-C charging cable NGEAR NRG 500 Wireless Sound And Party System to charge the speaker

Operation

Wireless pairing

• When the device is turned on, wireless mode is the default.
• Turn on the wireless device, search for HOPESTAR- Party Box to connect and pair Bluetooth
• Suitable for various mobile phone accessories, wireless technology, wireless adapters, and wireless players.

Voice prompt

• There is a voice prompt when turning on/off.
• When the volume is up to maximum, there will be a voice prompt; at the minimum
  volume, there is no voice prompt.
• There will be a voice prompt about three times, “di-di-di” after detecting the device is low power, then turn off.

Mode switching

• It defaults to the wireless mode when turning on the speaker
• Mode switching: When the TF car, U-disk, and AUX modes are all inserted into the speaker at the same time, long-press the TWS button to switch the playing mode.
• The device will select the mode preferentially that you insert last for the TF card, U-disk, or A UX mode.

TWS operation instruction

• Open any two speakers at the same time, click either TWS button, when you hear the” beep” to enter the TWS searching; when the TWS connection NGEAR NRG 500 Wireless Sound And Party System is successful, when you hear the voice prompt, the host indicator flashes, and the other one will light up.

Play indicator

• White light flashes quickly, about 0.5 seconds/time under Bluetooth searching status; The white light is always on when Bluetooth is connected successfully with the Bluetooth device; the white light flashes slowly, about 1 second/time under playing status.

Charging indicator

• The three white lights are flashing orderly from left to right while charging
• The other lights are flashing.
• The rest lights are flashing.
• The indicator will display the battery capacity under normal working status.

Charging and using

• This machine has a built-in overcharge protection circuit, which can be connected to a computer or charger for a long time, about four hours. Charging is complete.
• The play time of each battery will vary depending on the volume used, rather differently.

Volume

• The default volume is at 70% when the NGEAR NRG 500 Wireless Sound And Party System speaker turns on.
• If there is no operation, the device will shut down automatically after 15 minutes.

Technical Specifications

• Wireless standard: 5.0
• Transmission distance: 10 meters
• Output power:50W*1+15W*2+10W*2
• Playing time: 6 -8 hours
• Frequency effect 80Hz-20KHz
• Speaker unit size:: 4Ω 119mm 50W*1 ,4Ω 78mm15W*2, 4Ω 10W*2 Input power: 5V- 2A
• Maximum current consumption: 2A
• Battery type: 18650 lithium-ion battery 18000mAh
• Audio signal input interface: standard Φ3.5mm headphone jack (stereo)

Troubleshooting

1. Automatic shutdown: When the battery power is low, the battery protection will be turned on automatically. Please charge it for 4 hours before use.
2.  Unable to play music: The music file storage path cannot be recognized by the player. Please store the music file in the root directory of the removable device.
3.  There is no sound when connected to the computer: the computer interface is connected incorrectly. Please select the correct audio output port.
4.  There is no response to the keys or the function is disordered: try again after shutting down.
5. If the device is abnormal, please short-press the reset button to reboot the speaker.

Customer Support

• Website: https://ngearsafe.com/

FAQs

Q: What is the NGEAR NRG 500 Party System?

Ans: Ideal for parties, get-togethers, and events, the NRG 500 is a robust wireless sound and party system that produces vivid lighting effects and excellent audio clarity.

Q: How do I connect my device wirelessly to the NRG 500?

Ans: The system makes advantage of Bluetooth 5.0. To begin wirelessly streaming music, just pair your smartphone, tablet, or other compatible device with Bluetooth, search for “NGEAR NRG 500,” and turn it on.

Q: Can I use wired connections with the NRG 500?

Indeed! For more flexible use, you can connect devices via the microphone inputs, USB port, or AUX (3.5mm) input.

Q: What lighting features does the NRG 500 offer?

Ans: The system has multi-color LED lights that pulse in time with your music in a variety of dynamic modes, such as strobe, colour fade, and music-sync effects.

Q: Is there a remote control for the system?

Ans: Yes, a remote control is included with the NRG 500 to conveniently control playback, lighting effects, volume, and input selection.

Q: What is the wireless range for Bluetooth connection?

Ans: With no obstructions or interference, the Bluetooth range is roughly 10 meters (33 feet) in open areas.

Q: Can I connect multiple NRG 500 units together?

Ans: To find out if the NRG 500 supports the capability of joining several units for increased sound coverage, consult the user manual.

Q: Does the system support microphone input?

Ans: Yes, the NRG 500 offers a microphone input with a dedicated volume control for karaoke, announcements, and other voice demands.
