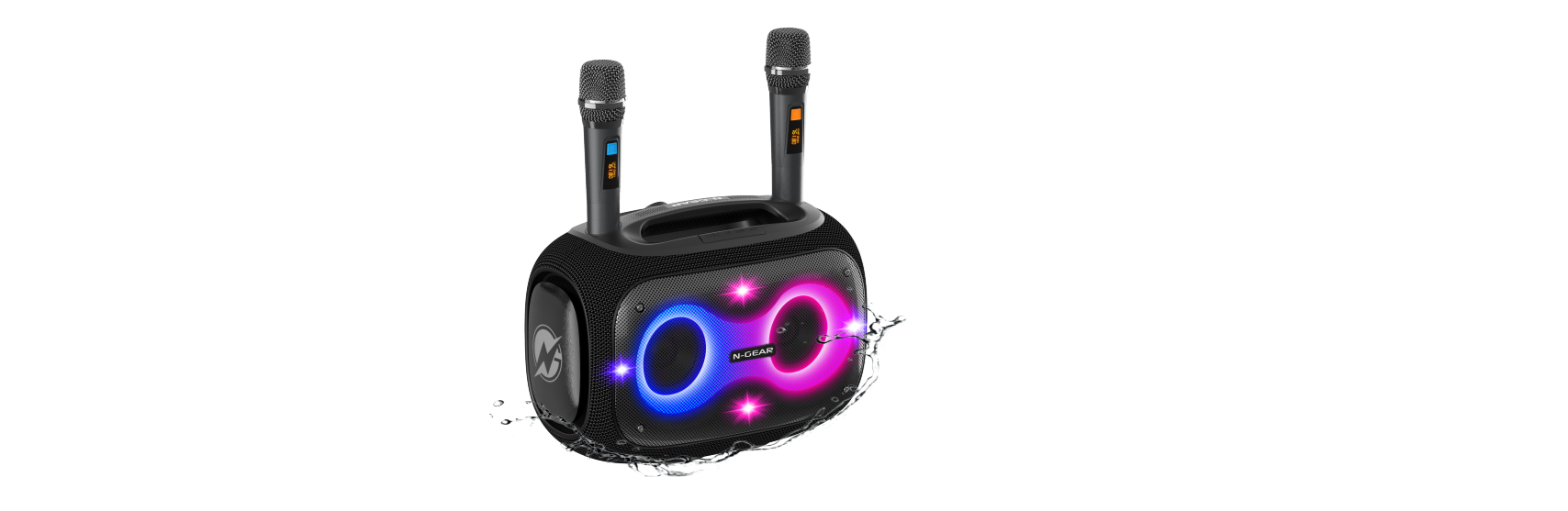

NGEAR NRG 600 Wireless Sound And Light System
Safety Instructions
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Do not block any ventilation openings.
- Install according to the manufacturer’s instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Do not defeat the safety of the polarized or grounding-type plug.
- A polarized plug has two blades with one wider than the other.
- A grounding type plug has two blades and a third grounding prong.
- The wide blade or the third prong is provided for your safety. If
- The provided plug does not fit into your outlet. Consult an electrician for the replacement of the obsolete outlet.
- Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
- The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the apparatus.
- The battery shall not be exposed to excessive heat, such as sunshine, fire, or the like.
- The MAINS plugs are used as the disconnect device, which shall remain readily operable
Features
- Wireless connection
- Memory function, support resuming playing from a break point
- Support U disk/TF card / AUX playback mode
- Rechargeable built-in lithium-ion battery
- Support MP3 music format decoding
- Using high-fidelity speakers, the sound is more natural and delicate
- Level 5 waterproof
- TWS function supports two speakers’ connection
- With two wirelesmicrophonesne
- Support 20W fast charger
Operation
Wireless pairing
- When the device is turned on, wireless mode is the default.
- Turn on the wireless device, search for HOPESTAR- Party Box to connect and pair Bluetooth
- Suitable for various mobile phone accessories, wireless technology, wireless adapters, and wireless players.
Voice prompt
- There is a voice prompt when turning on/off.
- When the volume is up to maximum, there will be a voice prompt; at the minimum
volume, there is no voice prompt. - There will be a voice prompt about three times, “di-di-di” after detecting the device is low power, then turn off.
Mode switching
- It defaults to the wireless mode when turning on the speaker
- Mode switching: When the TF car, U-disk, and AUX modes are all inserted into the speaker at the same time, long-press the TWS button to switch the playing mode.
- The device will select the mode preferentially that you insert last for the TF card, U-disk, or A UX mode.
TWS operation instruction
- Open any two speakers at the same time, click either TWS button, when you hear the” beep” to enter the TWS searching; when the TWS connection is successful, when you hear the voice prompt, the host indicator flashes, and the other one will light up.
Play indicator
- White light flashes quickly, about 0.5 seconds/time under Bluetooth searching status; The white light is always on when Bluetooth is connected successfully with the Bluetooth device; the white light flashes slowly, about 1 second/time under playing status.
Charging indicator
- The three white lights are flashing orderly from left to right while charging
- The other lights are flashing.
- The rest lights are flashing.
- The indicator will display the battery capacity under normal working status.
Charging and using
- This machine has a built-in overcharge protection circuit, which can be connected to a computer or charger for a long time, about four hours. Charging is complete.
- The play time of each battery will vary NGEAR NRG 600 Wireless Sound And Light System depending on the volume used, rather differently.
Volume
- The default volume is at 70% when the speaker turns on.
- If there is no operation, the device will shut down automatically after 15 minutes.
Technical Specifications
- Wireless standard: 5.3
- Transmission distance: 10 meters
- Output power: 120W
- Playing time: 6-8hours
- Frequency effect: 40Hz-20KHz
- Speaker unit size: 4Ω 145mm 80W, 4Ω 93mm 20W*2
- Input power: 9V—-2A
- Maximum current consumption: 2A
- Battery type: 18650 lithium-ion battery 22000mAh
- Audio signal input interface: standard Φ3.5mm headphone jack (stereo)
Troubleshooting
- Unable to play music: The music file storage path cannot be recognized by the player. Please store the music file in the root directory of the removable device.
- If the device is abnormal, please use a slender pole to press the reset button in the AUX hole to reboot the speaker.
Customer Support
- Website: https://ngearsafe.com/
FAQs
Q: What is the NGEAR NRG 600 system?
Ans: Designed for concerts, parties, and performances, the NGEAR NRG 600 is a wireless sound and lighting system that combines dynamic lighting effects that coordinate with your music with a robust audio output.
Q: How do I connect devices to the NRG 600 wirelessly?
Ans: With the system’s compatibility for Bluetooth 5.0, connection with laptops, tablets, or smartphones for wireless music streaming is simple.
Q: Can I control the lighting effects separately from the sound?
Ans: Yes, you can independently adjust the lighting patterns and colours on the NRG 600 using the remote control or, if available, a mobile app.
Q: What is the wireless range for audio streaming?
Ans: In open areas free of obstructions, the Bluetooth connection’s effective range is up to 10 meters (33 ft).
Q: How do I power the NRG 600?
Ans: An AC power adapter provides electricity to the system. Make sure you connect to an appropriate power outlet and utilise the included adaptor.
Q: Can the system be used outdoors?
Ans: The main application for the NRG 600 is inside. Steer clear of precipitation, wetness, and severe weather.
Q: What types of lighting modes are available?
Ans: The system has several dynamic lighting modes that react to the rhythm of your audio, such as colour cycling, strobe effects, and music-synced patterns.
