Nuheat Element Floor Heating Dual Voltage Thermostat
Introduction
The Nuheat Conductor and Signature thermostats are Wi-Fi-enabled, can be controlled remotely via iOS® or Android® apps, and are compatible with several popular smart home and home automation systems. The Conductor thermostat works with Apple Home. Custom integrations are supported via Open API integration technology, making both connected Nuheat thermostats a future-proof addition to any connected home ecosystem. Nuheat, Signature, and Conductor are trademarks of Chemelex Electric plc and/or its subsidiaries. All other trademarks are the property of their respective owners and are used under license if applicable.
Conductor
The Nuheat Conductor Thermostat is the all-new control platform that builds upon the legacy of the Nuheat Signature. Dressed in a subtle and sophisticated white tuxedo, Conductor features a vanishing, touch-sensitive display, enabling core functions on-device and presenting a sleek, all-white exterior when not in use.
Conductor’s Benefits
- Wifi-enabled with iOS® and Android® apps
- Bluetooth-enabled for easy setup without wifi
- Vanishing, touch-sensitive display
- Fully programmable
- Basic functions on the device, all functions in the app
- Works with popular smart home systems. Visit nuheat.com/connected-home for more information
- 3-year warranty
Specifications
| Model: | Conductor |
| Supply: | 120 V / 208 V / 240 Vac 50/60 Hz |
| Load: | 15 A max. (resistive load) |
| Power: | 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V |
| GFCI: | Class A ( 5 mA trip level) |
| Approvals: | UL C/US |
Signature
The Nuheat Signature thermostat is the world’s first wifi electric floor heating thermostat and has continued to evolve, adding more smart home Nuheat floor heating thermostat guide integrations over time. All functions are available right on the device and within the app. The color touchscreen can be configured to display live, local weather.
Signature’s Benefit
- Wifi-enabled with iOS® and Android® apps
- 3.5″ color touchscreen
- Fully programmable
- All functions on the device & in the app
- Live, local weather report
- Works with popular smart home systems. Visit nuheat.com/connected-home for more information
- 3-year warranty
Specifications
| Model: | Signature |
| Supply: | 120 V / 208 V / 240 Vac 50/60 Hz |
| Load: | 15 A max. (resistive load) |
| Power: | 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V |
| GFCI: | Class A ( 5 mA trip level) |
| Approvals: | UL C/US |
Home
The Nuheat Home thermostat Nuheat floor heating thermostat guide is a 7-day programmable electric floor heating control. Home features a 3.5-inch color touchscreen, which homeowners can use to access the intuitive user interface and energy usage information.
Home’s Benefit
- 3.5″ color touchscreen
- Fully programmable
- 3-year warranty
Specifications
| Model: | Home |
| Supply: | 120 V / 208 V / 240 Vac 50/60 Hz |
| Load: | 15 A max. (resistive load) |
| Power: | 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V |
| GFCI: | Class A ( 5 mA trip level) |
| Approvals: | UL C/US |

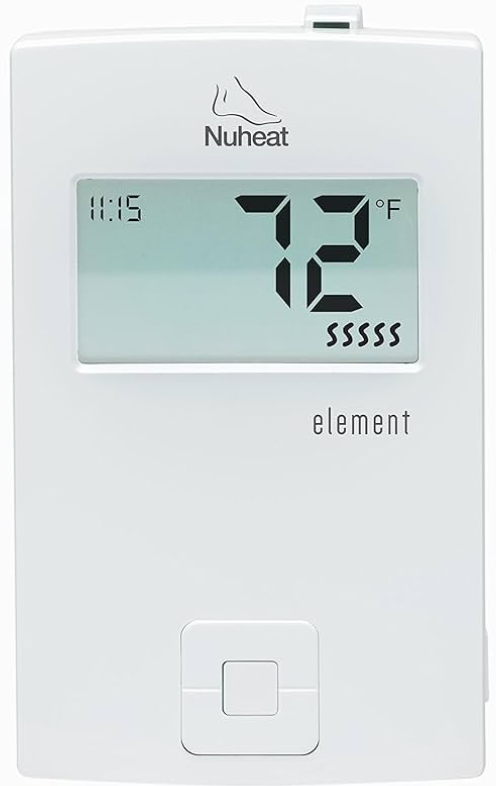

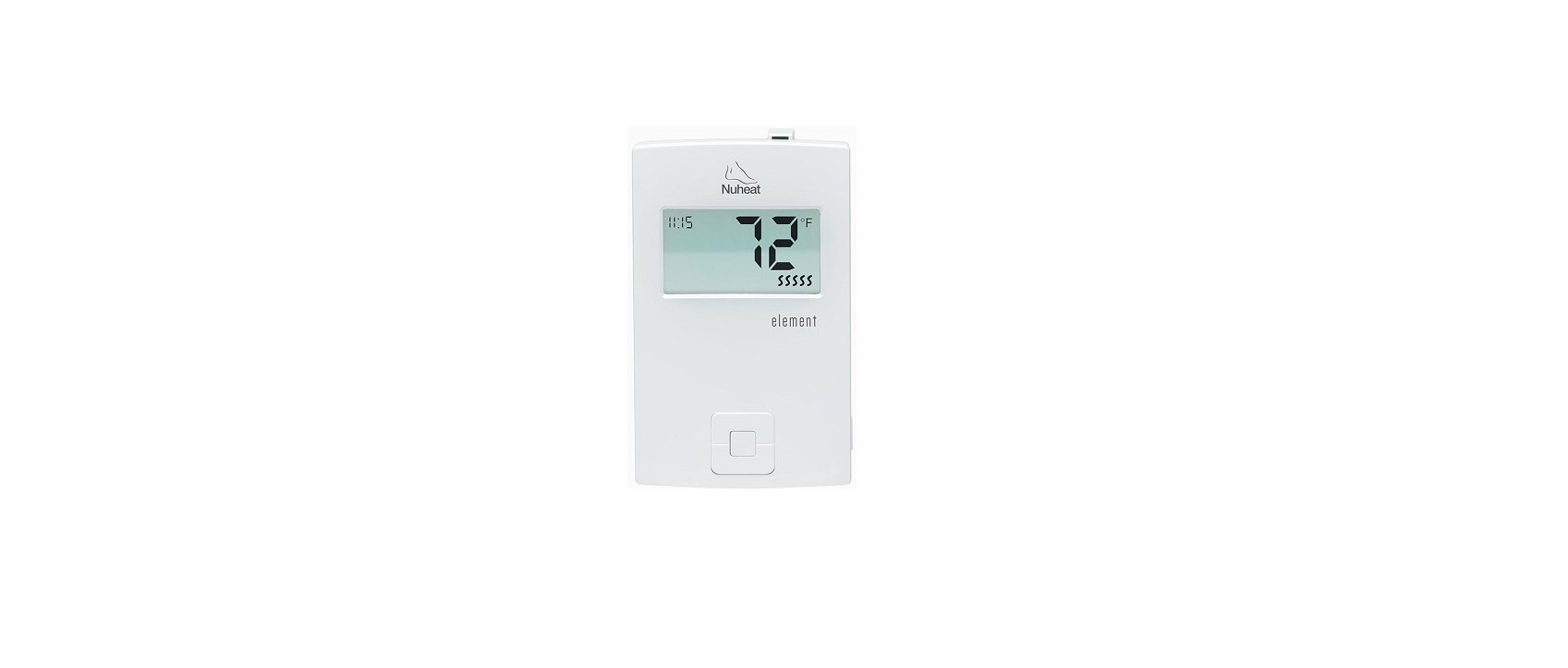

Elements
The Nuheat Element thermostat is a non-programmable control that offers simple on/off
and up/down capability.
Element’s Benefit
- Simple, easy-to-use controls
- Manual operation (non-programmable)
- 3-year warranty
Specifications
| Model: | Element |
| Supply: | 120 V / 208 V / 240 Vac 50/60 Hz |
| Load: | 15 A max. (resistive load) |
| Power: | 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V |
| GFCI: | Class A ( 5 mA TRIP LEVEL) |
| Approvals: | UL C/US |
Customer Support
All thermostats come with the manufacturer’s limited three-year warranty (valid from the date of purchase) and built-in GFCI protection.
- Tel: +1.800.778.9276
- Website: nuheat.com/connected-home
