    Parmco FR86WUBFF 86L Under Bench Freezer Instruction Manual

    By Updated:No Comments11 Mins Read

    Parmco-logo

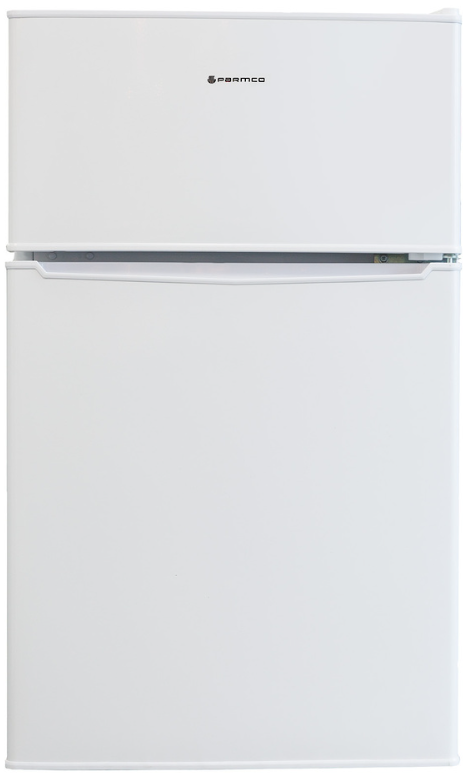

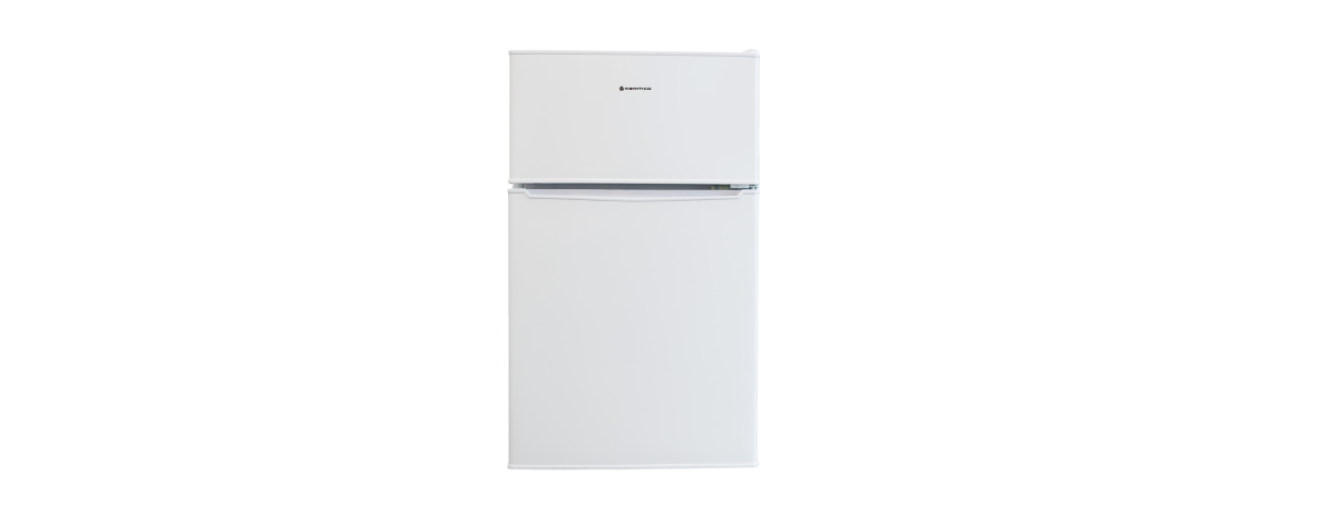

    Parmco FR86WUBFF 86L Under-Bench Freezer

    Parmco-FR86WUBFF-86L-Under-Bench-Freezer-product

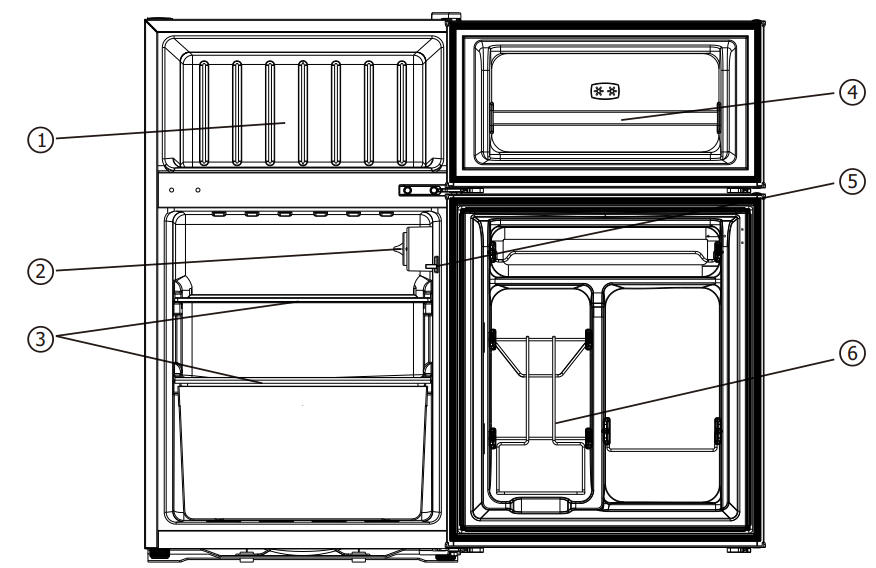

    NAMES OF THE PARTS

    Parmco-FR86WUBFF-86L-Under-Bench-Freezer-figure-1

    1. Freezer compartment
    2. Lamp and temperature control knob
    3. Glass shelf
    4. Rod
    5. Lamp switch
    6. Steel tube
    • The under-counter fridge freezer you purchased may be an improved model, which may not be completely consistent with this manual. However, the functions and operating methods will not have changed.
    • When using this fridge freezer for the first time, please leave it upright for 24 hours before plugging in, remove the adhesive tapes from the drawers, shelves, egg tray, and the drain tube plug.
    • Do not pull or push the drawers and shelves forcefully during use in case of damage.
    • Adjust the temperature control as high as you can accept. This will save energy consumption.
    • Don’t open the refrigerator door continually as it will prevent it from working efficiently.
    • Please keep the combination of drawers and shelves of the fridge freezer consistent with its original design.

    SAFETY WARNINGS

    To ensure your personal safety, please follow the points below:

    1. The circuitry for the refrigerator must be isolated. The area of cross-section of the wire must be larger than 0.75 mm². The power plug should have its own socket; the socket must be grounded, as an adapter may cause the socket to overheat.
    2. The voltage and frequency of this product should be 220-240V;50Hz. Please contact the retailer if the wire is damaged, and do not plug it in.
    3. Do stop the power only by pulling the power plug out of the socket directly, but not by the wire.
    4. Do not damage the refrigerant circuit.
    5. This appliance is not intended for use by personsincluding children) with reduced physical, sens, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
    6. Children should be supervised to ensure that they do not play with the appliance
    7. The EP ventilation open, in the appliance enclosure or thebuilt-in structuree, clear of obstruction.
    8. Before you throw away your old refrigerator or freezer.
      • Take off the do.rs;
      • Leave the shelves in place so that children may not easily climb inside.
    9. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. This appliance is intended to be used in household and similar applicati,ons such as
      • staff kitchen areas in shops, offi,ces and other working environments;
      • farm houses and by clients in hotels, motels, and other residential-type environments;
      • bed and breakfast type environments;
      • catering and similar non-retail applications.
    10. Do not use electric appliances inside the food storage compartments of the appliance unless they are of the type recommended by mthe manufacturer
    11. This appliance can be used by children from 8 years and above and persons with reduced physical, sens, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning ng use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

    WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

    NOTICE

    1. When gas leaks from its container, don’t pull the plug out or in, for it may cause sparks and start a fire.
    2. Don’t splash water on the rear of the appliance, for it may cause a malfunction or electric shock.
    3. Don’t store flammable materials such, benzene, LP g, as and g, etc in the fridge freezer.
    4. Don’t place bottled beverages in the freezer to prevent breaking.
    5. It is better not to place objects on top of the appliances that are heavy,yav, or filled with water. Electronic components may not work steadily if water inside.NSIi Do not stoject which is costly sensitive to temperature and, e,.g. serum, bacteria,r rinandd so on.
    6. The refrigerant of this product is R600a, which is non-flammable.  So,make sure not to damage the cooling system during transportation and installation.
    7. DISPOSAL: Appliances contain insulation gases and refrigerants that must be disposed of correctly and in line with current legislation. If you have any doubts, please contact your local authority for instructions.

    INSTALLATION INSTRUCTIONS

    Parmco-FR86WUBFF-86L-Under-Bench-Freezer-figure-2

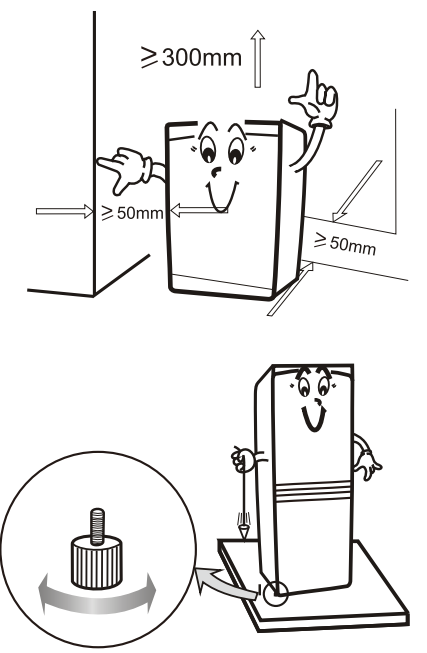

    1. The Fridge freezer should be located on a completely flat surface. Face, leave 5~10 cm between each side of the appliance and the wall, and leave 30 cm between the top of the appliance and the work surface.
    2. Choose a location that is not exposed to sunlight, high temperature, hor humidity, as humidity may cause staining.
    3. Pull out the bottom panel before installation.
    4. The appliance can be adjusted by rolling its two legs in
      front of the bottom when it is unstable. Rolling in a clockwise direction can raise the machine.
    5. The location should be firm and flat. An insecure position may cause noise and vibration: (a)The noise may be increased if the floor is not firm. (b) Put a sheet under the appliance to solve the heat emission if you need to position it on carpet.
    6. Make sure the adjustable legs are clung to the floor, and set the appliance to slope backwards slightly to keep the doors tightly closed.

    OPERATION INSTRUCTIONS

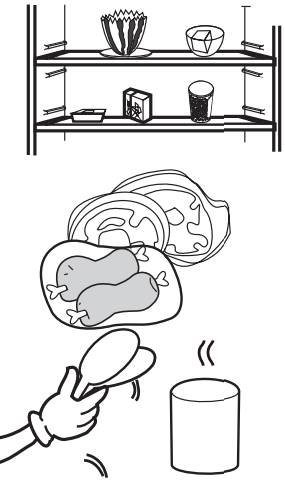

    PLACEMENT OF FOOD

    Parmco-FR86WUBFF-86L-Under-Bench-Freezer-figure-3

    1. 1. There should always be some space between items inside for air circulation.
    2. Food should be kept in sealed packages to avoid becoming dry or with an odour.
    3. Hot food should be cooled down before placing it into the appliance. Otherwise, interior temperature and electronic consumption will increase.
    4. Reducing the frequency of the door opening can efficiently slow down the electronic consumption.
      Warning: Do not use any electronic equipment inside the appliance.
    INSTRUCTION FOR USAGE

    Parmco-FR86WUBFF-86L-Under-Bench-Freezer-figure-4

    The temperature of the refrigerator can be manually adjusted by the thermostat control. The number shown on the dial does not represent the temperature. The larger the number, the lower the interior temperature will be. 0 stands for off. Turn the dial to 4 when in normal use. Adjust the dial to 7 for a lower interior temperature and 1 for a higher one.

    PACKING AND MOVING

    Parmco-FR86WUBFF-86L-Under-Bench-Freezer-figure-5

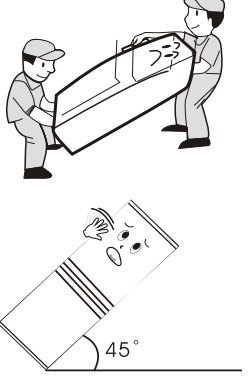

    1. Unpack, repack, and carry
      Please memorize the position of each accessory of the appliance when unpacked, repack the product, and check it carefully before transportation.
    2. Do not lift or pull the door or the door handle during transportation.
    3. When moving, the appliance can not be sloped over 45 degrees (the angle to the vertical direction). Please avoid strong vibration and hit.

    MAINTENANCE

    The appliance should be maintained and cleaned frequently. For your Parmco FR86WUBFF 86L Under-Bench Freezer safety, please pull the plug out of the socket before the cleaning.

    1. Interior maintenance
      Clean the interior of the appliance with clean warm water, wipe and dry with a clean cloth. Do not use detergents, abrasive powders, or highly perfumed cleaning products.
    2. Door storage
      It is easy to damage the door storage area. Please clean it carefully.
    3. Outer maintenance
      Wipe when dusty with a piece of dry cloth. Do not use abrasive products.
    4. The appliance is equipped with a screwing lamp or a long-life LED interior light. (Screwing lamp can be replaced by professionals. Long-life LED is non-replaceable.)

    DEFROST

    You will need to defrost the freezer when the ice exceeds 3-5mm. Take all the foods out of the compartment unplug the appliance. Open the doors and allow the ice to melt, then wipe with a dry cloth.

    DISCONNECTING THE APPLIANCE

    After a power failure, even in summer, the refrigerator can store food normally for several hours.

    1. Discontinuation during a power failure
      After a power failure, do not put additional food in the appliance and reduce the frequency of door opening. Make several ice cubes and put them in a container. If you know about the power failure beforehand, put them on top of the fridge.
    2. Discontinuation during vacation
      Please remove all perishable food from the fridge before the short vacation and shut the door firmly. If you have a long vacation, remove all food and turn off the power. After defrosting, clean the appliance, wipe it dry, and leave the doors open.
    3. Stop using
      If the appliance has stopped working for a long period of time, please unplug and clean the appliance. The door should be kept open to prevent unpleasant smells caused by food.
    USER NOTIFICATIONS
    1. Do not splash water on the refrigerator, as it will cause oxidation Parmco FR86WUBFF 86L Under-Bench Freezer and malfunction. Electronic components, such as an on/off buttonshould be wiped dry.
    2. Cleaners such as soap powder, abrasive cleaning powder, alkali cleansers, chemical cloth, thinner, alcohol, acid, petroleum productand hot water should not be used to clean the refrigerator as they may damage the painted cover and plastics.
    3. Smear can damage the interior plastic component, so wipe it as soon as possible.
    4. Please check the points below after maintenance:
      1. Is there any damage or loss to the electronic wire?
      2. Can the plug be put in the socket reliably and smoothly?
      3. Is the plug heating unconventionally?

    TROUBLESHOOTING TIPS

    1. The refrigerator does not work.
      It may not be connected to the power supply(plug, power cut, or fuse); the Voltage is too low.
    2. The refrigerator does not work efficiently as expected
      It may be caused by heavy frost, or by warm temperature settings, or by frequently opening the door.
    3. It is making an unusual noise.
      It may be caused by an imbalaPlease check that all feet are of equal size and the ground surface is flat.
    4. The compressor keeps working for a long period.
      The environmental temperature may be too high. The doors may be opened frequently or even they are left open. The temperature control knob setting in the (4-7) state may increase the working time of the compressor.
    5. Disgusting odour happens
      Food with a strong odour should be packed tightly before being put inside the appliance. Please check whether there is any deteriorated item or whether the liners are left dirty for a long time.
    6. Water leaks from the bottom of the refrigerator
      The drain tube is jammed. Please use a proper tool to solve it.
    7. Heavy frost occurs on the rear of the appliance.
      Putting humid or hot food into the appliance may Parmco FR86WUBFF 86L Under-Bench Freezer cause this problem. Or it may be caused by heavy environmental moisture.

    The following cases are not malfunctioning.

    1. Moisture may form dew on the outside of the product during the humid season, so just get it.
    2. The flow of refrigerant through the pipeline coil can cause a noise.
    3. It is normal that the sides of the product get warm as a result of the cooling pipeline working.
    4. The frame of the appliance will be warm while working due to the defrost pipeline inside it.

    Please check the points above first.
    If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

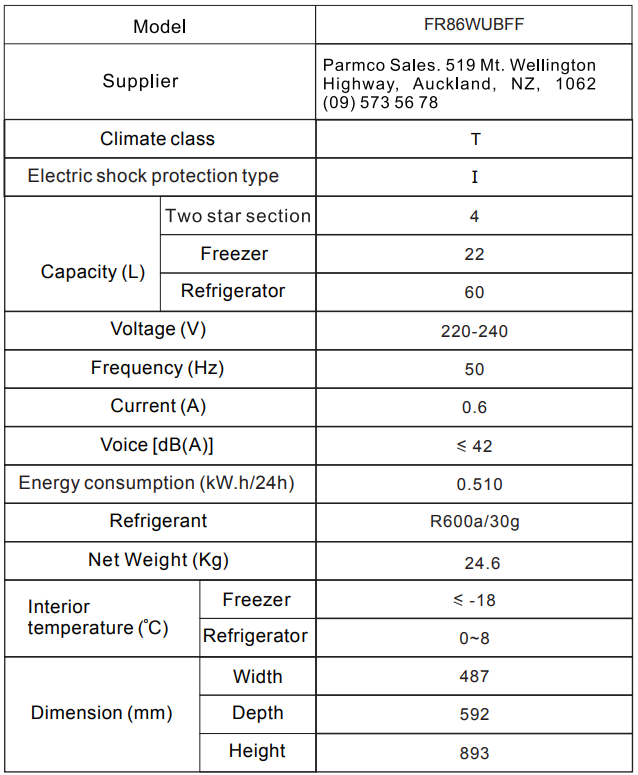

    SPECIFICATIONSAND PARAMETERS

    HOW TO REVERSE THE DOOR

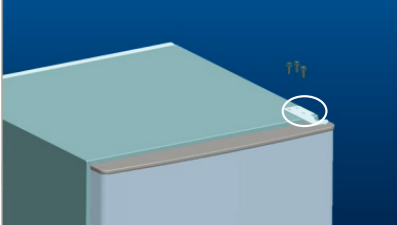

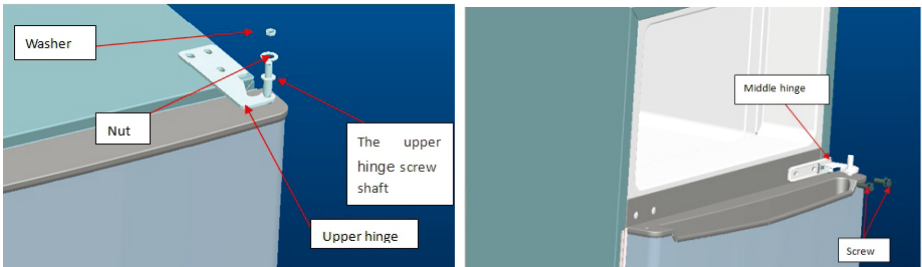

    1. Starting with the freezer door, remove the hinge Parmco FR86WUBFF 86L Under-Bench Freezer cover at the top of the fridge, followed by the 3 screws from the hinge.
    2. Remove the nut, washer, upper hinge, and screw one by one, then remove the freezer door.
    3. Once the freezer door has been taken out, continue with the fridge’s door by removing the middle hinge and screw. Then, completely remove the fridge door.

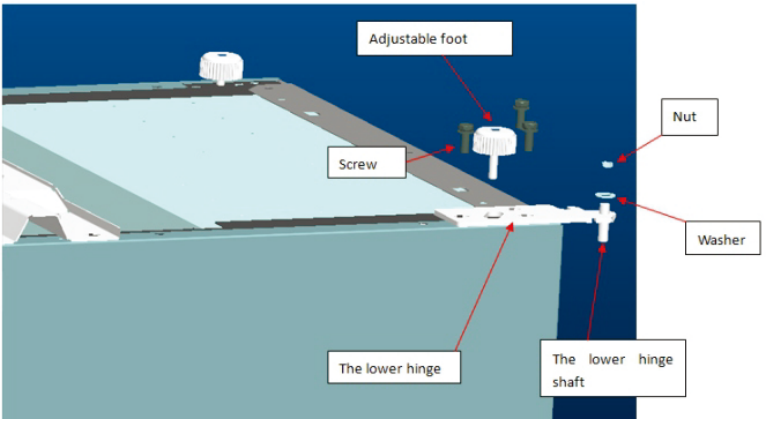

    4. Next, at the bottom of the refrigerator, remove the adjustable foot, screw, nut, washer, the lower hinge, and the shaft from the bottom of the cabinet.

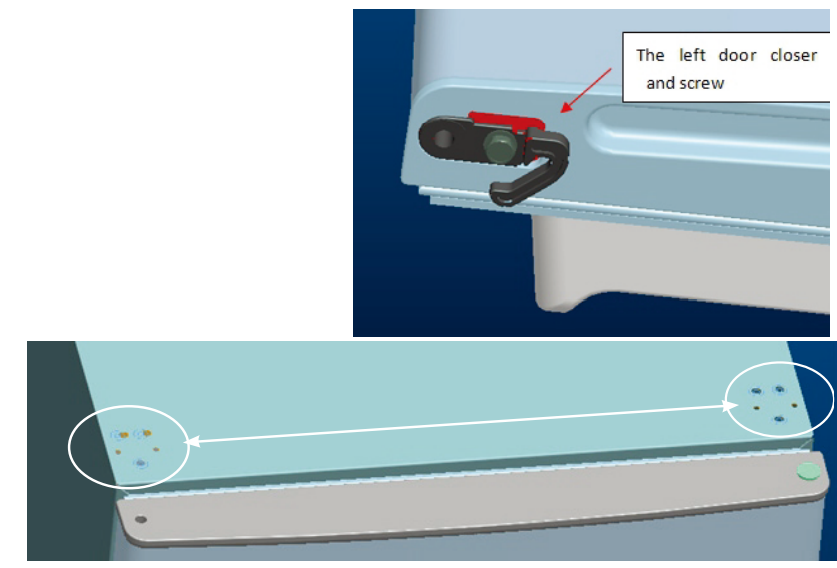

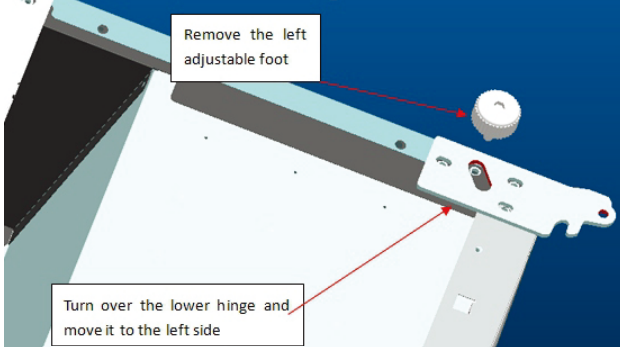

    5. Remove the left side adjustable foot, turn over the lower hinge, and move it to the left side. Next, install the screw, adjustable foot, lower hinge screw, washer, and nut step by step, and install the fridge door. Fit the door closer to the bottom of the fridge door using 1 of the 2 door closer clips provided (see step 7)

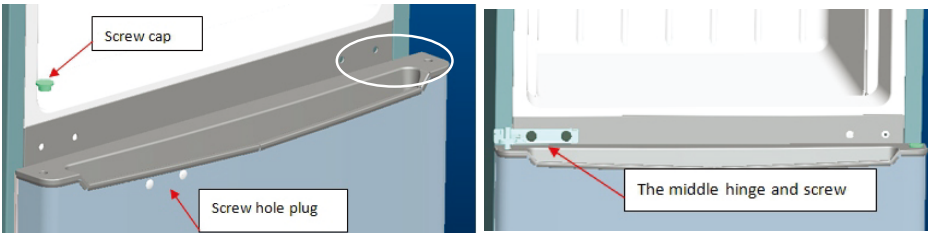

    6. Remove the left screw hole plug and screw cap, and move it all to the right, then install the middle hinge and screw.
    7. Install the freezer door by screwing in first the bottom of the freezer’s lt ….side. Install the top of the freezer, and move the screw cap from left to the right side.
    8. Install the upper hinge, shaft, washer, nut, and screw, then put the cover back on.
