POWERTEC ZM9124 Blanket Solar Panel Instruction Manual

POWERTEC ZM9124 Blanket Solar Panel

Safety Instructions

Please ensure that you have read the product manual and instructions in full before using the POWERTEC ZM9124 Blanket Solar Panel. Failure to do so may result in incorrect operation and potentially impact the performance of the POWERTEC ZM9124 Blanket Solar Panel. This product converts natural sunlight into DC electricity and is designed to charge a 12V battery. For optimum performance, protect the solar cell from dust, dirt, and other debris.

• Use and store the POWERTEC ZM9124 Blanket Solar Panel in a dry and ventilated location.
• Do not use in flammable or explosive areas.
• Stop use immediately if any wires become loose or electronic components are exposed.

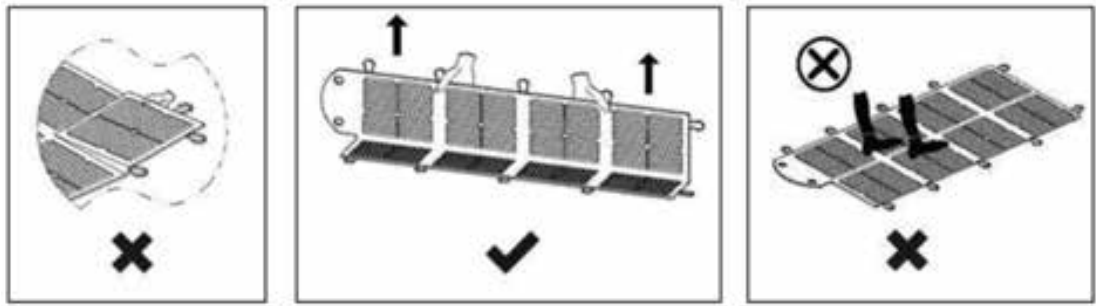

• Do not pick the panel up directly by the solar cells.
• Use the gap between solar cells to pick up the panel.
• Do not stand or walk on the POWERTEC ZM9124 Blanket Solar Panel.

• Ensure the battery has enough voltage for the solar charge controller to recognise the battery type before first installation.
• The battery cable should be as short as possible to minimise loss.
• A charge regulator is only suitable for regulating solar modules.
• Never connect another charging source to the charge regulator.
• The MPPT solar charge controller will be hot when working.
• Please install in a flat, well-ventilated area.

Before First use

Prior to using your POWERTEC ZM9124 Blanket Solar Panel, please read all the safety and operating instructions thoroughly. Ensure you follow the steps below before using the POWERTEC ZM9124 Blanket Solar Panel. We recommend keeping the original packaging for storing the POWERTEC ZM9124 Blanket Solar Panel when not in use. Please pay close attention to the section entitled Warnings & Safety Information. Find a safe and convenient place to keep this instruction manual for future reference. Unpack the POWERTEC ZM9124 Blanket Solar Panel, but keep all packaging materials until you have made sure your new product is undamaged and in good working order. Ensure you have all accessories listed in this manual.

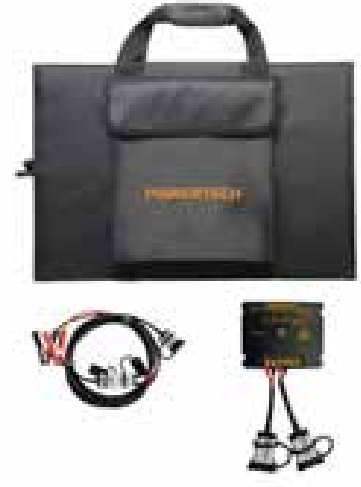

Box Content

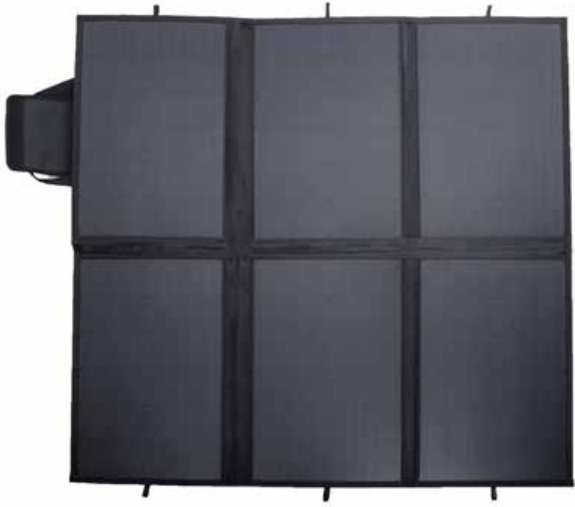

• 1 x 200W Blanket Solar Panel
• 1 x 20A MPPT Solar Controller
• 2 x 50A Connector 10CM Lead with Rubber Cap
• 1 x 50A Connector 4.5M Extension Lead
• 1 x 50A Connector to Alligator Clips 0.5M Lead

Operation

• Unfold the solar panel
• Place the unfolded solar panel in a position that receives direct sunlight, facing the sun. Ensure that no shadows are covering the solar cells.
• Tilt the solar panel at a suitable angle. This can be the same as your latitude (additional support may be necessary, not supplied).

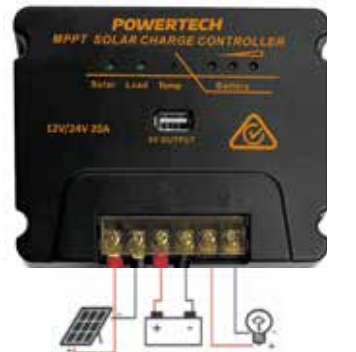

• Connect the solar panel to the MPPT solar charge controller before connecting the battery clamp lead to the solar controller.

Charging a 12 V Battery

• Connect the battery to the solar charge controller.
• The ect load to the MPPT solar charge controller.
• Conthe nect solar panel to the MPPT solar charge controller.
• Reverse this order when disconnecting.

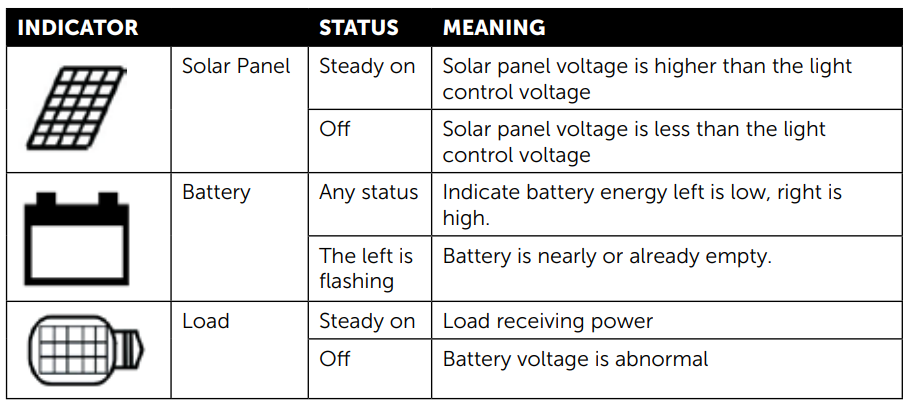

MPPT Solar Charger indicator

Specifications

The following are the key specifications of the POWERTEC ZM9124 Blanket Solar Panel, designed to provide efficient solar power for charging 12V batteries and portable devices.

Solar Panel

• Solar Cell Type Monocrystalline 166 x 166mm
• Power Output 200W
• Open Circuit Voltage 24.7V
• Short Circuit Current 9.06A
• Working Voltage 20.1V
• Working Current 8.5A
• Weight 5.8KG
• Dimensions Folded: 560(W) x 390(H)mm
• Unfolded: 1170(W) x 1120(H)mm

MPPT Solar Charge Controller

• Rated Charge Current 20A
• Rated Discharge Current 20A
• Rated Voltage 12V
• MPPT Efficiency Max:99%
• Overload, Short Circuit Protection ≥1.5 rated current
• No Load Current <10mA
• Over Voltage Protection 16V
• Cut off Voltage 14.7V
• Discharge Recovery Voltage 12.0V
• Low Voltage Cut Off 10.8V
• USB Output 5V 1A
• Working Temperature -35 C~+55°C
• Dimension Of Controller 131 × 99.5 × 29.5 mm
• Weight 300g

Troubleshooting

Warranty

If your product becomes defective during this period, Electus Distribution will repair, replace, or refund it a product is faulty or not fit for its intended purpose. This warranty will not cover a modified product, misuse or abuse of the product contrary to user instructions or packaging label, change of mind, or normal wear and tear.

To claim warranty, please contact the place of purchase. You will need to show a receipt or other proof of purchase. The benefits to the customer given by this warranty are in addition to other rights and remedies of the Australian Consumer Law in relation to the goods or services to which this warranty relates.

This warranty is provided by

• Electus Distribution
• Address 46 Eastern Creek Drive, Eastern Creek NSW 2766
• Ph. 1300 738 555

Customer Service

• Distributed by: Electus Distribution Pty Ltd 46 Eastern Creek Dr, Eastern Creek NSW 2766 Australia
• Ph: 1300 738 555
• Website: www.electusdistribution.com.au
