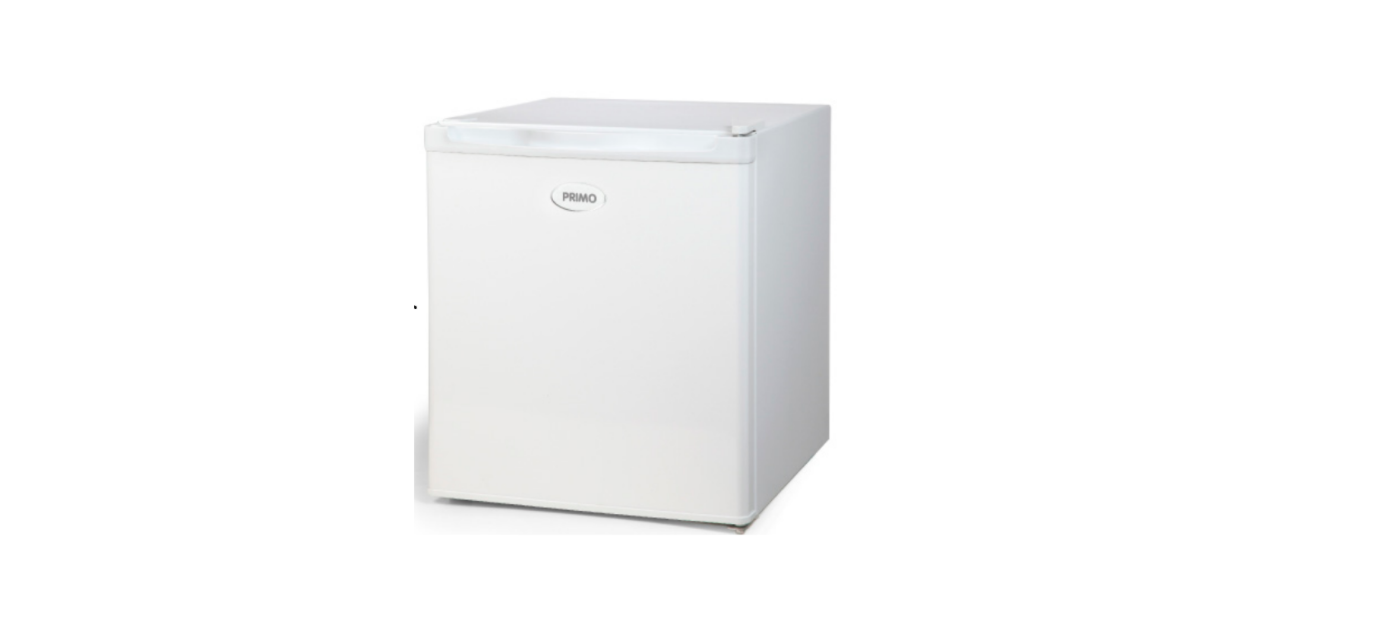

Primo PR114FR 40 L Mini Refrigerator
Safety Instructions
- Maintenance and cleaning of the appliance must not be done by children, unless they are older than 8 years of age and are supervised.
- Keep the appliance and cord out of the reach of children under the age of 8.
- If the electrical cord is damaged, it must be replaced by the manufacturer, its after-sales service, or a similarly qualified person to avoid any accident.
- An empty refrigerator can be very dangerous for children. Remove the refrigerator door when not in use. Or take other measures that will make the appliance harmless.
- Be careful not to damage the refrigeration system.
- After installation, let the appliance stand for 3 hours before turning it on. This will allow the refrigerant to settle.
- Pay attention to the “fire hazard – flammable material” symbol located on the back of the appliance.
Follow the instructions below to prevent contamination of food: - Opening the door for long periods can significantly increase the temperature in the appliance compartments.
- Clean surfaces that may come in contact with food regularly. Keep the condensation channel and drain hole at the back of the unit clean.
- Store raw meat and fish in appropriate containers in the refrigerator so that it does not come in contact with or drip on other food.
- If the appliance is left empty for a long time, you should turn it off, defrost and clean it. Let it dry and leave the door open to prevent mold from growing inside the appliance.
- This freestanding appliance should not be built-in.
Installation
Install the appliance in a dry and well-ventilated area. The appliance is intended for use in an area where the ambient temperature falls within the following class, depending on the climate class found on the rating label on the back of the appliance.
PARTS
- Freezer compartment
- Door shelves
- Levelling feet
- Vegetable container
- Glass shelves
- Temperature control knob
Installation
- Remove all packing material, both inside and outside.
- Clean the outside of the unit with a dry cloth. You can clean the inside with a soft, damp cloth.
- Do not place the appliance in a narrow passage, in direct sunlight, or in a moist environment.
- Make sure that air can circulate freely around the refrigerator.
- The back of the refrigerator should be at least 5 cm away from the wall.
- Place the refrigerator on a solid, level surface.
- If your surface is not flat, you can straighten the appliance using the feet.
- You can raise or lower these by turning them.
- Avoid direct sunlight and heat. Sunlight can damage the outside of the refrigerator.
- Heat will cause higher consumption.
- Avoid excessive humidity. Too much moisture in the air will cause frost to form too quickly in your refrigerator.
- The thermostat is located on the inside of the appliance.
- When you open the door, you can set the thermostat at the top.
- Set the thermostat to “MAX” for maximum cooling.
- The higher the setting, the harder the appliance will cool.
Use
Remove all packaging materials and any promotional stickers before use. Clean the inside of the unit with lukewarm water and some bicarbonate of soda (5ml for 0.5l of water). Do not use soap or detergent, as the smell may linger. Dry the appliance thoroughly.
Temperature Control
The thermostat can be set to MIN (cold), NORMAL (colder), and MAX (coldest).
| Thermostat | Temperature (ambient temperature between +16°C and +38°C) |
| MIN | -16 °C |
| NORMAL | -20 °C |
| MAX | -25 °C |
The temperature is affected by
- The room temperature
- How often is the door opened
- How much is in the freezer
- The position of the appliance
Start-up
- Wait 3 hours after installation to start up the freezer.
- Plug in the power cord.
- Turn the thermostat to the desired temperature setting.
- Wait about 4 hours until the desired temperature is reached before putting food in the freezer.
Packing Frozen Food
To prevent food from losing its flavour or drying out, place food in an airtight container.
- Place food in packaging.
- Remove air.
- Seal the wrapping.
- Label packaging with contents and dates of freezing. Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.
Storage
These times vary depending on the type of food. The food that you freeze can be preserved for 1 to 12 months (minimum at -18°C).
| Food | Storage time |
| Bacon, casseroles, milk | 1 month |
| Bread, ice cream, sausages, pies, prepared shellfish, oily fish | 2 months |
| Non-oily fish, shellfish, pizza, scones, and muffins | 3 months |
| Ham, cakes, biscuits, beef and lamb chops, poultry pieces | 4 months |
| Butter, vegetables (blanched), eggs, whole and yolks, cooked crayfish, minced meat (raw), pork (raw) | 6 months |
| Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes | 12 months |
Never forget
- When you freeze fresh foods with a ‘use by /best before/best by/’ date, you must freeze them before the expiry of this date.
- Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
- Once defrosted, food should be consumed quickly
For the best storage, set up your refrigerating appliance as follows.
| Freezer compartment | Type of food |
| Top drawer | Ice cream, frozen fruit, frozen baked goods |
| Middle drawer | Frozen vegetables and fries |
| Bottom drawer | Raw meat, poultry, fish |
Door Conversion
- Remove the hinge cover from the screws. Remove the screws and then the top hinge that holds the door in place. Lift the door and place it on a soft surface to avoid scratches.
- On the left side, remove the three cover caps. Two are located on the refrigerator, and one is located on the door.
- Remove the bottom screws, hinge bracket, and the levelling foot at the bottom left of the appliance.
- Fix the screws, hinge bracket, and the adjusting foot on the other side of the base.
- Carefully put the door in place. Make sure the door is both horizontally and vertically aligned so that the seals are closed on all sides before fully tightening the top hinge.
- Return the hinge and screw tightly to the top of the Primo PR114FR 40 L Mini Refrigerator appliance. Replace the cover plate.
- Level the appliance using the adjustable foot.
Maintainance & Cleaning
Inside
- Clean the inside and accessories with warm water and bicarbonate of soda. Rinse and dry thoroughly.
- Do not use detergents, caustic powders, perfumed PRIMO PR130DV PR131DV PR132DV Freezer cleaning products, floor polish, or cleaning products containing bleach or alcohol.
Exterior
- Wash the exterior with warm, soapy water.
- Do not use caustic or abrasive products.
- Be careful of the sharp edges on the bottom of the unit.
- Once or twice a year, remove dust from the compressor with a brush or vacuum cleaner, as the accumulation of dust can affect the performance Primo PR114FR 40 L Mini Refrigerator and energy consumption of the unit.
Defrosting
- Empty the freezer.
- Unplug it from the electrical outlet.
- Open the door.
- Place a suitable container to collect the thawing water.
- After defrosting, clean the inside and dry thoroughly.
- Plug in the power cord
Long-term non-use
When the appliance is not in use for a long period of time, unplug the outlet, empty the freezer, defrost, and leave the door ajar to avoid odors.
Move the Device
- Turn off the appliance and unplug it. Remove all food products. Also, remove or secure all mobile parts (drawers, etc.) in the freezer to prevent shock.
- Move the appliance and install. If the appliance was held on its side while being moved, even if very briefly, leave the appliance in the upright position for at least 10 minutes before turning it on.
- Your appliance uses isobutane (R600a) as a refrigerant. Notwithstanding that R600a is an environmentally friendly and natural gas, it is explosive.
- Therefore, be very careful while moving or installing your device to avoid damage to the cooling elements. In case of a leak caused by damage to the cooling elements, move your freezer away from open flames or heat sources and air the room PRIMO PR130DV PR131DV PR132DV Freezer. The appliance is in for a few minutes.
Warranty
Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request that you contact our customer service. Our staff will gladly assist you.
This appliance has a two-year warranty period. During this period, the manufacturer is responsible for any failures that are the direct result of construction failure. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear and tear is only 6 months.
The guarantee and responsibility of the supplier PRIMO PR130DV PR131DV PR132DV Freezer and the manufacturer lapse automatically in the following cases:
- In case of incorrect connection, e.g., electrical voltage that is too high.
- In case of incorrect, rough, or abnormal use.
- In case of insufficient or incorrect maintenance.
- In case of repairs or alterations to the device by Primo PR114FR 40 L Mini Refrigerator the consumer or non-authorised third parties.
Environmental Instructions
For more detailed information about the recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.
Customer Support
- Tel: 800-728-5508
- Website: www.primo-elektro.be
- Timings: Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00, Friday: 8.30 – 12.00 and 13.00 – 16.30
FAQs
Q: What is the capacity of the Primo PR114FR Mini Refrigerator?
Ans: With a 40-liter (1.4 cubic foot) capacity, the PR114FR is perfect for keeping small food containers, drinks, snacks, and lunchware in limited areas.
Q: What are the best use cases for this mini fridge?
Ans: This little refrigerator is ideal for use in offices, hotels, RVs, dorm rooms, bedrooms, and as a personal refrigerator for snacks and beverages at home.
Q: Does the PR114FR have a freezer compartment?
Ans: It does have a little freezer section that can hold ice trays or other tiny frozen goods, but it isn’t meant for long-term frozen food preservation.
Q: Is this refrigerator frost-free?
Ans: No. Because the PR114FR has a manual defrost system, you will need to do so regularly to avoid ice accumulation.
Q: Can I adjust the temperature?
Ans: No. Because the PR114FR has a manual defrost system, you will need to do so regularly to avoid ice accumulation.
Q: How long does it take to cool after plugging in?
Ans: Before putting things in the refrigerator, let it cool for two to three hours. Allow up to 6 hours for it to reach the ideal temperature when fully loaded for the best results.
Q: Can I place this mini fridge under a desk or in a cabinet?
Ans: Yes, but to avoid overheating and guarantee enough airflow, leave at least 4 inches (10 cm) of ventilation room at the sides and rear.
Q: Is the door reversible?
Ans: Indeed! You may adjust the swing orientation (left or right) of the PR114FR door to better suit your space, thanks to its reversible design. Consult the handbook for detailed instructions.
