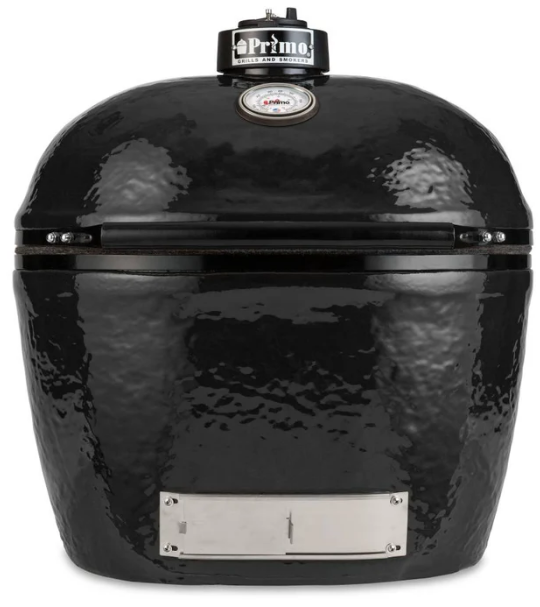

PRIMO XX-Large Unpacking Oval Grill Instructions
PRIMO GRILL ASSEMBLY: TWO ADULTS ARE NEEDED TO ASSEMBLE THE GRILL
TOOLS NEEDED:
1/2″ Wrench and 5mm Hex Key
Installation
Do Not Lift The Grill By The Hinge Assembly.

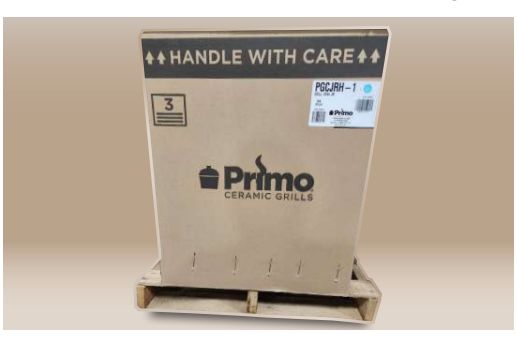

- Select a smooth level area for unpacking, assembly, and insertion into a cradle, cart, or table. See Figure 1.

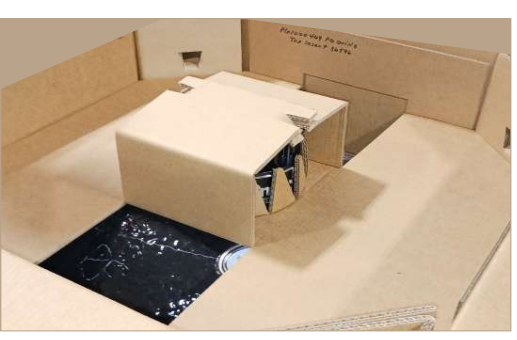

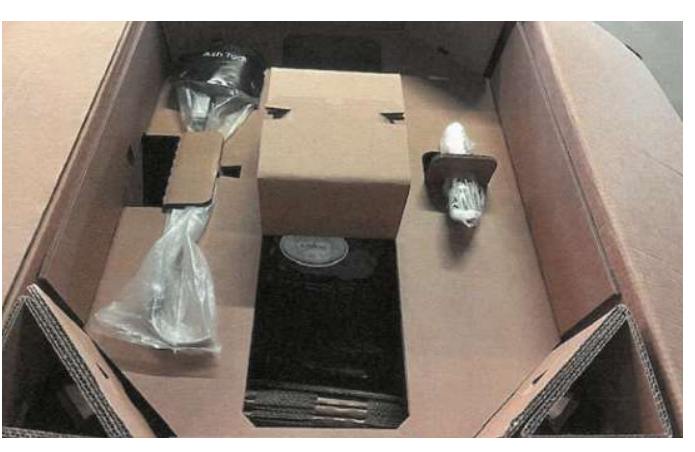

- Open the top of the box and fold the flaps down to reveal the grill. Remove the cardboard surrounding the top vent. See Figures 2a and 2b.

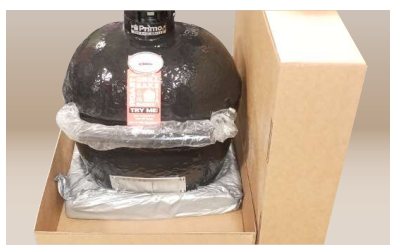

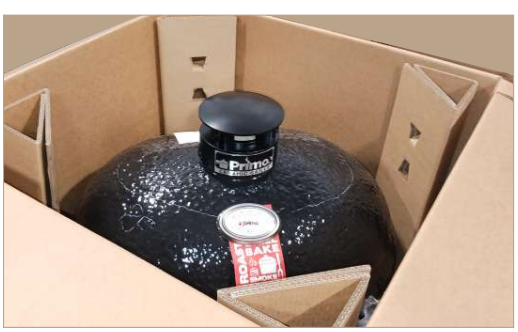

- Remove the corner cardboard posts around the grill. See Figures 3a and 3b

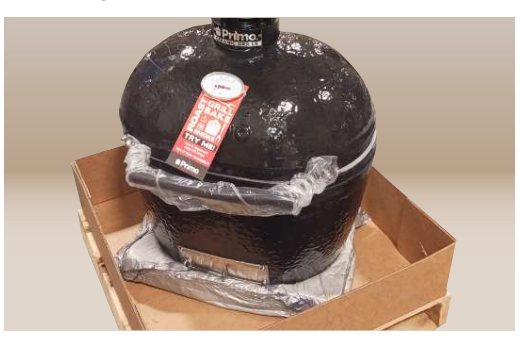

- Remove the outer cardboard. Open the grill carefully. See Figures 4a and 4b.

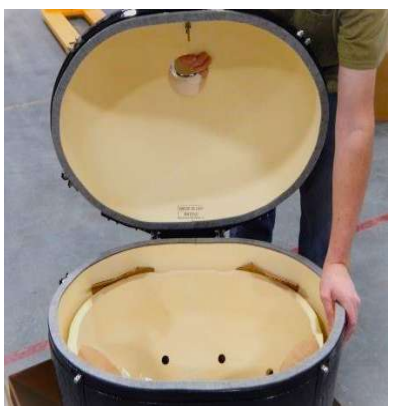

- Have an adult stand behind the grill and hold it securely to prevent tipping. Remove the internal components, including the ceramic firebox. See Figure 5.
Figure 4a (Head Only)

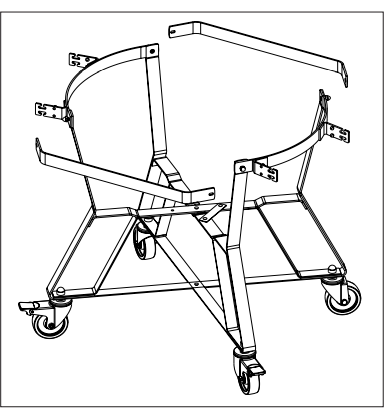

- Place the cradle, cart, or table nearby and lock the PRIMO XX-Large Unpacking Oval Grill Instructions casters. The top front bar on metal carts can be removed for easier installation. See Figure 6.
PRIMO – OVAL XXL GRILL UNPACKING

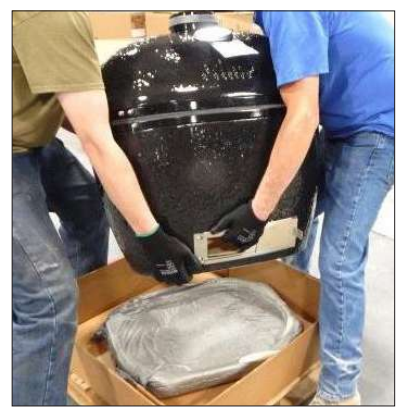

- Two adults are required to lift the grill. Both should be
positioned on each end of the grill with one hand under the grill and the other behind the grill. The open ash door can also be used as a lifting point. DO NOT LIFT USING THE OPENED ASH DOOR WITHOUT WEARING HEAVY GLOVES. See Figure 7

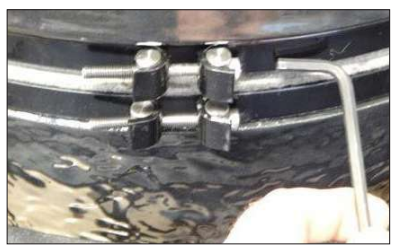

- Before and after first use, use a 5mm hex key to ensure that both bands are tight. Do not over-tighten. Check tightness periodically. See Figure 8.
Customer Support
- Tel: 800-728-5508
- Timings: Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00, Friday: 8.30 – 12.00 and 13.00 – 16.30
- Website: primogrill.com
FAQs
Q: Do I need special tools to assemble the grill after unpacking?
Ans: The majority of the required equipment are included, although certain bolts may require a screwdriver or wrench. For information on required tools, consult the assembly section of the handbook..
Q: How much space do I need to unpack and assemble the grill?
Ans: To ensure safe operation, comfortable unpacking, and assembly, leave a minimum of 6 to 8 feet of space around the grill.
Q: Can I assemble the grill by myself, or do I need help?
Even though assembly is meant to be done by one person, it can be safer and simpler with a second person, particularly when handling heavier pieces.
Q: How do I dispose of the packaging materials responsibly?
Ans: Cardboard boxes, plastic wrap, and foam inserts should be processed in accordance with your local recycling regulations, however the majority of packaging is recyclable.
Q: Are there any initial cleaning steps before first use?
Ans: Indeed. Clean the grill grates with warm soapy water, rinse well, and pat dry before cooking. Additionally, clean the outside and inside surfaces to get rid of any manufacturing residue.
Q: How do I know if any parts are missing or damaged?
Ans: As soon as you unpack, check every part against the parts list in the instructions. If any parts are missing or broken, get in touch with PRIMO customer support.
Q: How long does the assembly typically take?
Ans: Depending on skill and the equipment available, the entire setup should take approximately one to two hours, though assembly time can vary.
Q: Can I use the grill indoors during assembly or cooking?
Ans: No, the PRIMO Oval Grill is only meant to be used outdoors. Put it together and use it outdoors in a well-ventilated area.
