PROTECH TH1069 2000W Adjustable Heat Gun User Manual

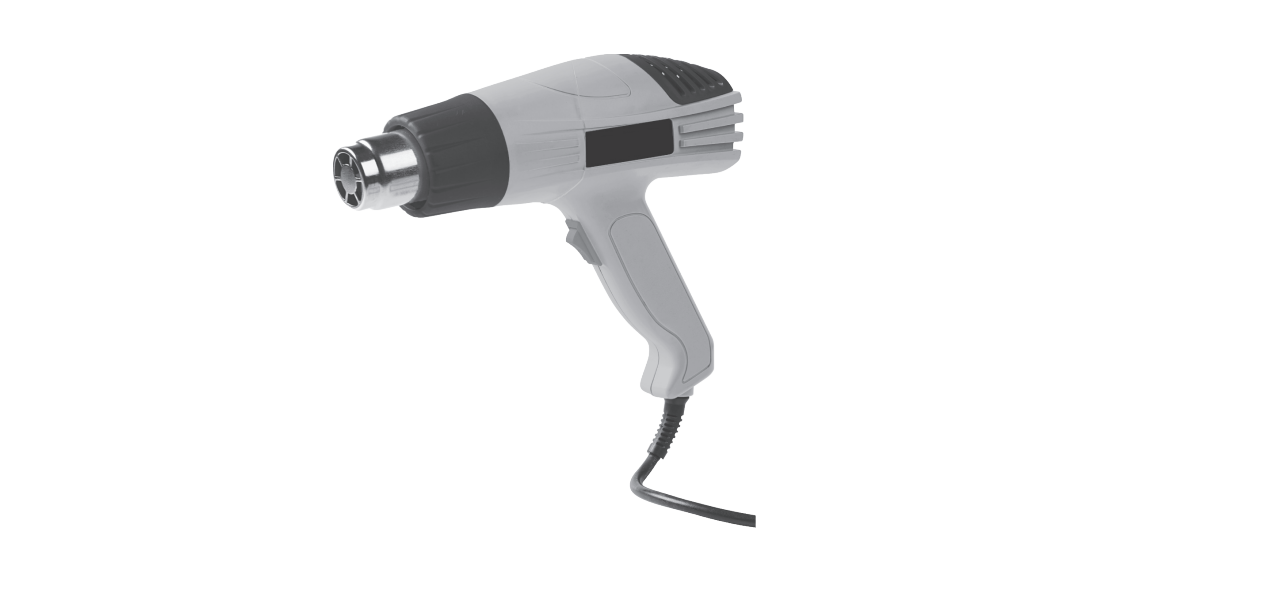

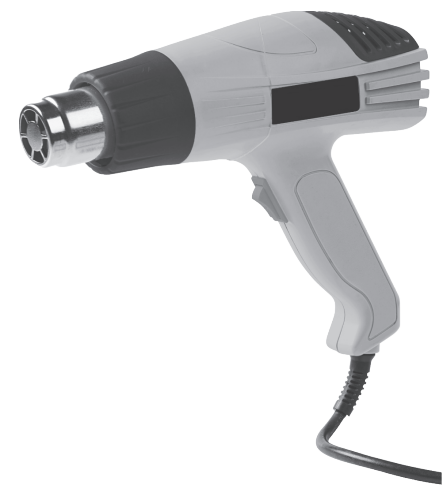

PROTECH TH1069 2000W Adjustable Heat Gun

The PROTECH TH1069 2000W Adjustable Heat Gun is a versatile tool perfect for paint removal, plastic welding, shrink wrapping, and other DIY or industrial projects.

For smaller soldering or precision work, you can also check out the PROTECH TS1470 40W LED Soldering Iron for an easy and reliable option.

Safety Instructions

• Keep the work area clean and well-lit. Cluttered and dark areas invite accidents.
• A heat gun can create sparks, which may ignite the dust or fumes.
• Keep children and bystanders away while operating a heat gun.
• Distractions can cause you to lose control.
• Heat gun plugs must match the outlet. Never modify the plug in any way.
• Do not use any adapter plugs with an earthed (grounded) heat gun.
• Unmodified plugs and matching outlets will reduce the risk of electric shock.
• Do not expose the heat gun to rain or wet conditions.
• Water entering a heat gun will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the heat gun.
• Keep the cord away from heat, oil, sharp edges or moving parts.
• Damaged or entangled cords increase the risk of electric shock.
• When operating a heat gun outdoors, use an extension cord suitable for outdoor use.
• Use of a cord suitable for outdoor use reduces the risk of electric shock.
• Stay alert, watch what you are doing and use common sense when operating a heat gun.
• A moment of inattention while operating a heat gun may result in serious personal injury.
• Do not overreach. Keep proper footing and balance at all times.
• This enables better control of the heat gun in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery.
• Keep your hair, clothing, gloves, loose clothes, or anything that can burn and cause fire.
• Do not use the heat gun for incorrect applications, and use the nozzle attachments as per application.
• Heat guns are dangerous in the hands of untrained users.

SPECIFICATIONS

The PROTECH TH1069 2000W Adjustable Heat Gun is strong and easy to use. You can heat things safely for DIY or work projects.

• Maver: 2000v
• 240VAC-50/60Hz
• Temperature/Air flow: I: 400 °C
• 250L/M
• II: 600C
• 500L/M

Tool Operation

• The ON-OFF Switch has 3 positions
• Do we sustain? Ensure the switch is in this position before connecting to the
• 1: Low Setting. Temperature 400C, at 250 L/M
• Il: High Setting. Temperature : 600C, at 500L/M
• Water pipes are often difficult to distinguish from gas pipes.
• Take extra care with the heat gun element.
• Once the element is hot, it can become fragile and break if dropped or knocked.

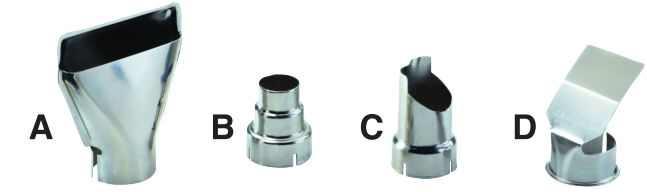

Nozzles

• Wide Nozzle – Particularly useful where a concentrated spot of heat is required.
• Reduction Nozzle – Suitable for directing heat onto selected areas without damaging materials nearby.
• Protector Nozzle – For window frames where heat is required to be directed to the wooden frame while protecting the glass.
• Reflector Nozzle – Curved to enable the heat to be directed around difficult obstructions.

Customer Support

• Email: support@whynter.com
• Website: WWW.WHYNTER.COM
• Tel:  800-443-6153

Product contents and specifications may change without notice. Copyright © 2024
