Ronix 2115 10mm Keyless Chuck Electric Drill User Manual

Ronix 2115 10mm Keyless Chuck Electric Drill

Safety Instructions

1. Save all warnings and instructions for future reference.
2. Keep the ork area clean and well-lit. Cluttered or dark areas invite accidents.
3. Power tools create sparks, which may ignite the dust or fumes.
4. Keep children and bystanders away while operating a power tool.
5. Power tool plugs must match the outlet. Never modify the plug in any way.
6. Do not use any adapter plugs with earthed (grounded) power tools.
7. Unmodified plugs and matching outlets will reduce the risk of electric shock.
8. There is an increased risk of electric shock if your body is earthed or grounded.
9. Do not expose power tools to rain or wet conditions.
10. Water entering a power tool will increase the risk of electric shock.
11. Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool.
12. Keep the cord away from heat, oil, sharp edges, or moving parts.
13. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
14. Use of a cord suitable for outdoor use reduces the risk of electric shock.
15. If operating a power tool in a damp location is unavoidable, use a ground fault circuit.
16. Interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
17. Stay alert, watch what you are doing, and use common sense when operating a power tool.
18. A moment of inattention while operating power tools may result in serious personal injury.
19. Use personal protective equipment. Always wear eye protection.

Use & Care

• Recharge only with the charger specified by the manufacturer.  A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water.
• If liquid contacts the eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts.
• This will ensure that the safety of the power tool is maintained.
• Follow the instructions for lubricating and changing accessories.
• Keep handles dry, clean, and free from oil and grease.

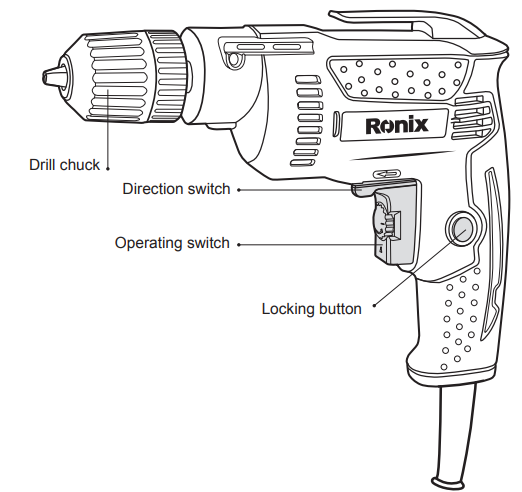

Part List

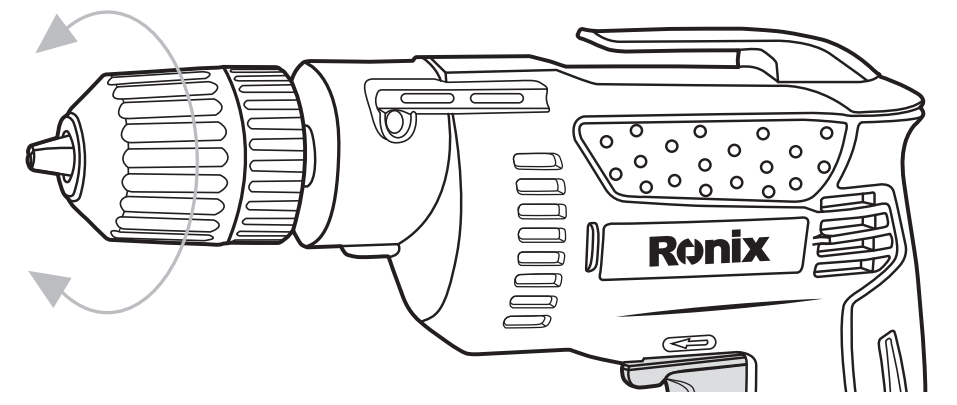

Inserting the Drill

• First, remove the mains supply from the socket. Turn the ring of the drill chuck until the clamping jaws are open wide enough. Insert the drill into the clamping jaws of the drill chuck.

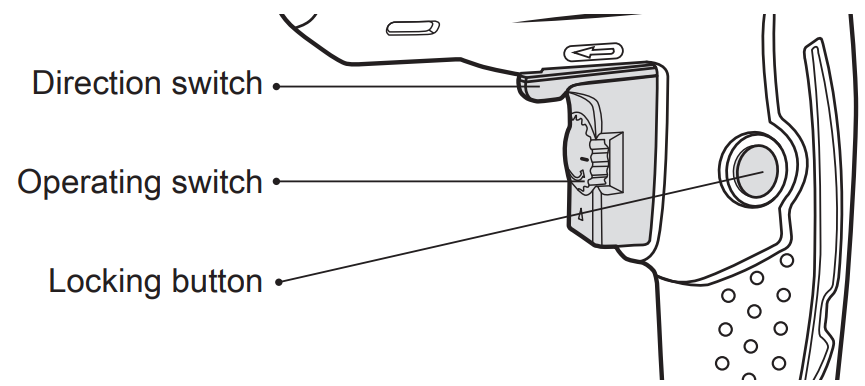

Operation Switch

• The machine is switched on by pressing the operating switch. When the operating switch is released, the machine stops. If you would like to use continuous operation, press the locking button while the operating switch is pressed. In order to switch off the machine during continuous operation, press the operating switch again and then let it go.

Working With Drill

• Ensure that the mains power supply voltage is the same as the operating voltage of your machine.
• For details, please see the type plate. Insert the correct drill for the type of job to be performed.
• The more the operating switch is pressed in, the faster the drill rotates.
• Set the direction switch to the desired direction of motion.
• The machine is switched on by pressing the operating switch.
• When the operating switch is released, the machine stops.
• Do not touch the drill chuck while the machine is switched on.
• Always insert the correct size and type of drill or screwdriver.
• Set the direction switch to the correct direction.
• Never change the direction of motion when the machine is switched on.

Ensure you use the correct drill for your task. For heavier jobs requiring more power, the Ronix 2211P 600 W 13mm Impact Drill is a suitable alternative.

Care

• Never use excessive force when drilling.
• This may result in overload, which can damage the motor of the drilling machine.
• When the drilling machine becomes too hot, allow it to run for two minutes without a load and then interrupt working for a short time.
• Clean the drilling machine with a clean cloth and a brush.
• Ensure that the ventilation slits are not blocked.

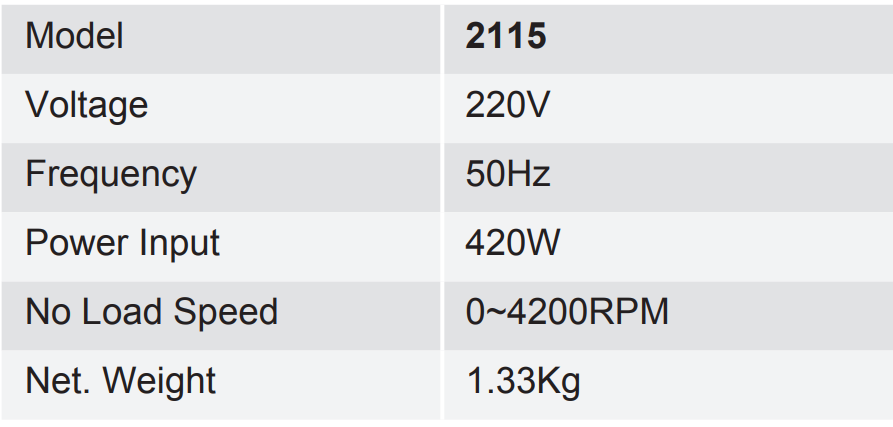

Specifications

Environmental Instructions

• Dispose of cardboard packaging and polyethylene (PE) bags in the appropriate containers for separate collection of municipal waste according to their description.
• If there are batteries in the device, remove them and separately return them to the collection and storage facility. Return the used device to a suitable collection and storage facility, as the hazardous substances in it may pose a threat to health and the environment.
• Waste electrical equipment is waste that contains substances harmful to humans, animals, and the environment.
• These substances can lead to contamination of the soil, water, or air, and through this they can get into the human body and lead to numerous health ailments, such a vision, hearing, and speech disorders; they can also lead to kidney, liver, and heart damage, and cause skin diseases.
• Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on the contaminated soils, and products made from them, may risk the above-mentioned health effects.
• Do not dispose of the device in the municipal waste container!!! Service: If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt directly.

Customer Support

• Address: Lyoner Str. 36 60528 Frankfurt am Main
• Tel:+49 69 310 900 66
• Website: www.ronixtools.com
