Ronix 4446 300W Gasoline Lawn Mover Instruction Manual

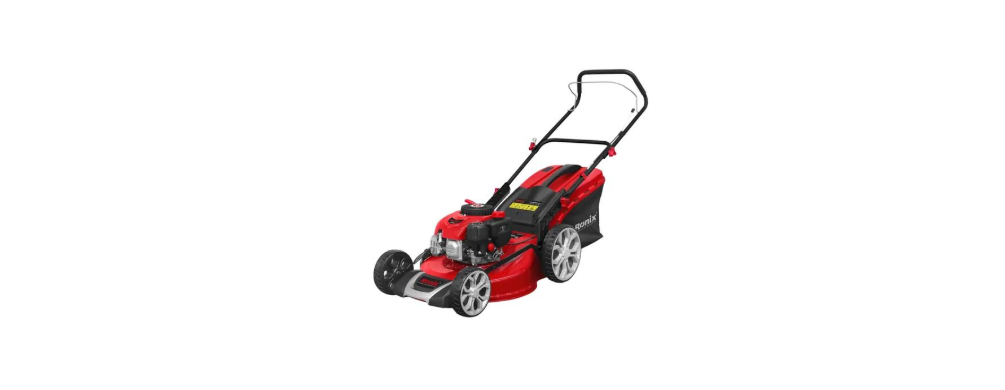

Ronix 4446 300W Gasoline Lawn Mower

Safety Instructions

• Read the instructions carefully. Be familiar with the controls and the proper use of the equipment.
• Never allow children or people unfamiliar with the instructions to use the lawnmower.
• Never mow while people, especially children, or pets are nearby.
• While mowing, always wear substantial footwear and long trousers.
• Do not operate the equipment when barefoot or wearing open sandals.
• Petrol is highly flammable.
• Store fuel in containers specifically designed for this purpose.
• Refuel outdoors only and do not smoke while refueling.
• Add fuel before starting the engine.
• Never remove the cap of the fuel tank or add petrol while the engine is running.
• Add fuel only when the engine is cold.
• Replace all fuel tanks and container caps securely.
• Replace worn or damaged blades and bolts in sets to preserve balance.

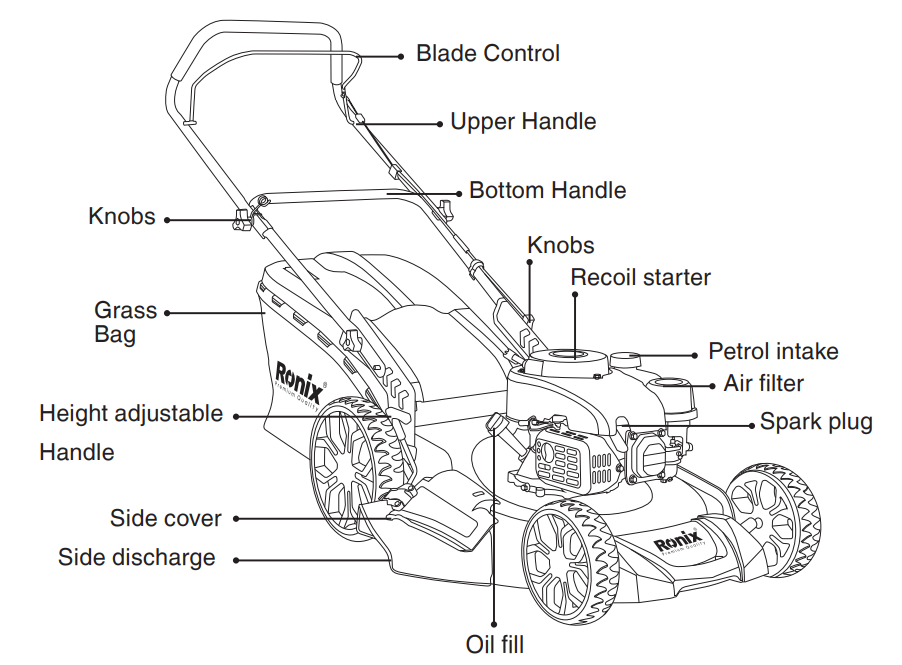

Part List

Operation

• Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.
• Mow only in daylight or in good artificial light.
• Avoid operating the equipment in wet grass, where feasible.
• Always be sure of your footing on slopes.
• Walk, never run. For wheeled rotary machines, mow the face of slopes, never up and down.
• Exercise extreme caution when changing direction on slopes.
• Do not mow excessively steep slopes.
• Use extreme caution when reversing or pulling the lawnmower towards you.
• Do not change the engine governor settings or overspeed the engine.
• Operating the engine at excessive speed may increase the hazard of personal injury.
• Start the engine carefully according to instructions and with feet well away from the blade.
• In this case, do not tilt more than necessary and lift only the part that is away from the operator.
• Do not start the engine when standing in front of the discharge chute.
• Do not put hands or feet near or under rotating parts.
• Keep clear of the discharge opening at all times.
• Never pick up or carry the lawnmower while the engine is running.
• Before checking, cleaning, or working on the lawnmower, after striking a foreign object.
• Inspect the lawnmower for damage and make repairs before restarting and operating the lawnmower.
• If the lawnmower starts to vibrate abnormally (check immediately).
• Reduce the throttle setting during engine shutdown and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of mowing.

Assembly

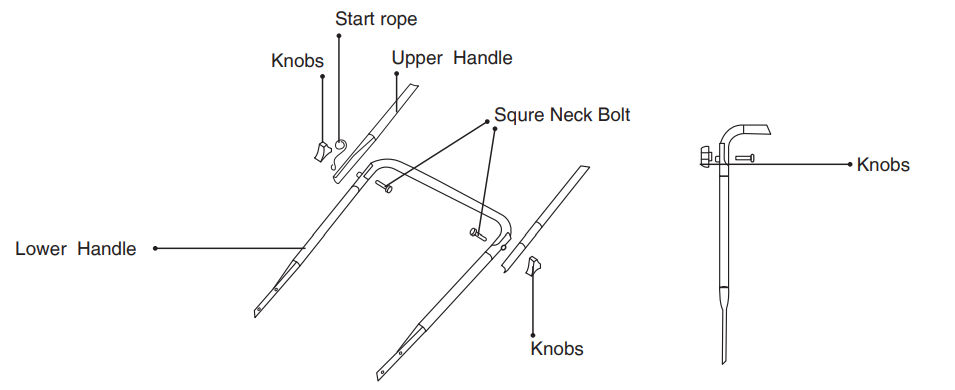

1.  Lower handle assembly.  Insert the pin into the round hole of the lower handle from both left and right sides.  Insert square neck bolt (M8×20) into the bracket and lower handle, then tighten with knob nut.

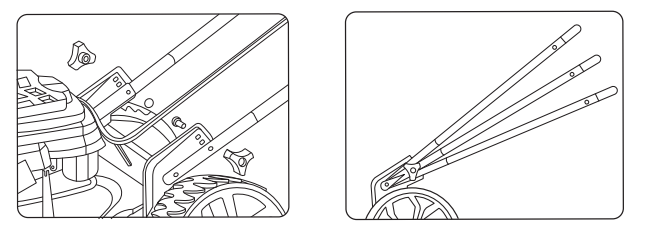

2. Upper handle assembling: Insert the bolt (M8×45) into the left handle holder, lower handle, and upper handle assembly in turn, then tighten with the nut.  Insert bolt (M8×45) into right handle holder, lower handle, upper handle assembly, and start rope hook in turn, then tighten with knob nut.  Fasten cables with the clips on the handle rod.

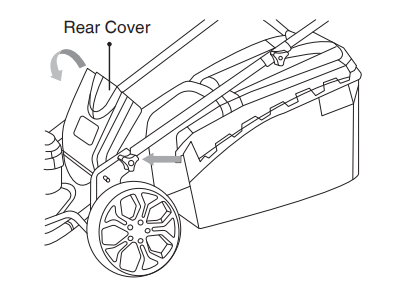

3.  Grass catcher assembly.  Hold up the rear cover and fit the grass catcher.
4. Grass collection setting:
   1. For rear bagging Grass catcher box is installed.

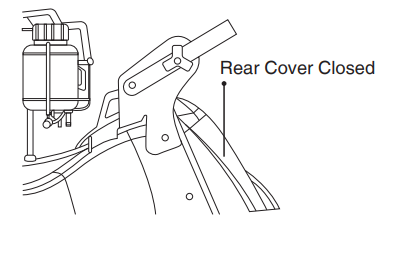

   2. For rear-discharging stall grass catcher. Close the rear cover.

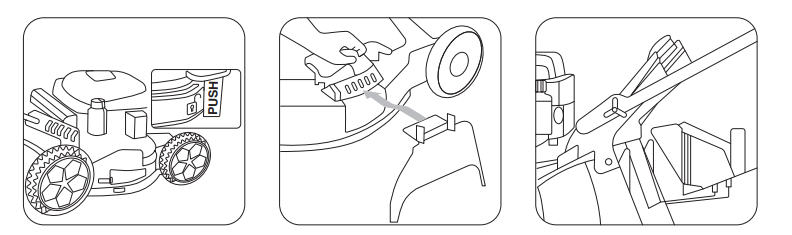

   3. For side discharging(If equipped) Rear cover is closed. Keep pushing down the “PUSH”, then open the side cover side discharge guard installed.
   4.  For mulching, lift the rear cover and hold it up, insert the mulching. Rear cover closed.

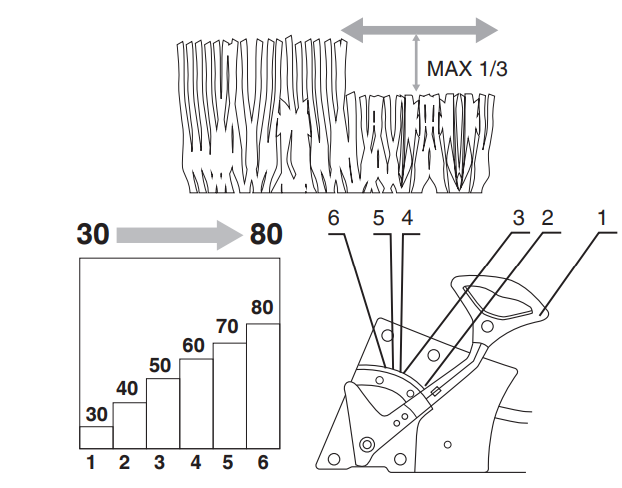

   5.  Working depth setting: Only when the mower is stationary and the rotating blade has come to a complete standstill. Mow the lawn twice weekly during the most active periods of growth. Never cut more than 1/3 of the length of the grass, especially during dry periods.
   6. Mow with a high cutting height setting the first time. Examine the result and lower the mower to the desired setting. Mow slowly or mow the grass twice if it is very long. 1=30mm 2=40mm 3=50mm 4=60mm 5=70mm 6=80mm

Start & Stop

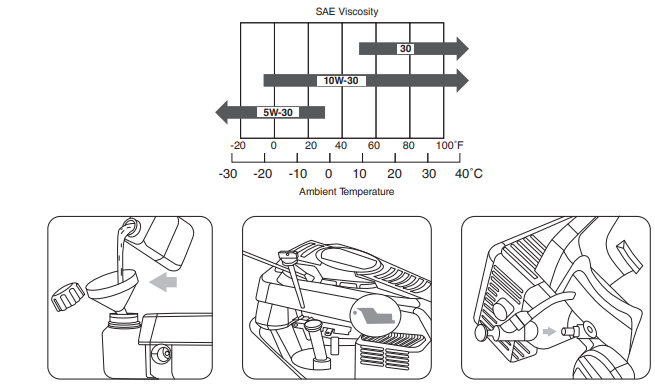

1.  Add fuel: Add fuel only when the engine is cold.  Place the lawnmower level.
2. Clean around the filter cap. Remove the filter cap.
3. Using a clean funnel, fill the tank to approximately 5 mm below the inner edge of the filter neck, being careful not to spill fuel. Tighten the filter cap back and clean any spilled fuel.
4. Add oil: See the Technical data table for the oil to be used. Place engine level.
5. Clean around the oil fill. Remove the filter cap, clean the tip of the dipstick, insert it, and tighten it down.
6. Remove the ipstick again and check the oil level, which must be between the “MIN” and “MAX” marks.
7. If oil is required, add oil of the same kind up to the “MAX” mark, being careful not to spill any outside the oil fill.  Close the filter cap and wipe off any spilled oil.

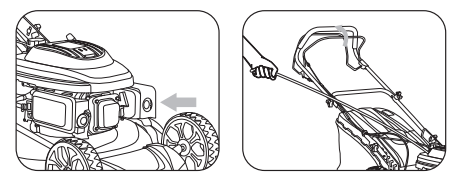

8. Spark plug cap: Connect the cap of the cable to the spark plug, making sure that there is no grass or dirt either inside the cap or on the spark plug terminal.
9. Starting engine: Always start the engine with the lawnmower traction device (if equipped) disengaged.
10. Push down the button three times.
11. Close the blade control handle, as shown in the lawnmower instructions.
12. Then pull the cord rapidly.
13. When the engine starts, release the recoil starter
14. Stopping during operation: Release the blade control handle to stop the engine.
15. Stopping at the end of the operation, release the blade control handle to stop the engine.
16. Once the engine has cooled, disconnect the spark plug cap.
17. Remove any grass build-up from the engine, in particular from the silencer, to reduce fire hazard.

Annually (After End of Season)

Grinding and balancing the cutter blade. Remove the sparkplug lead. Fitting and removing the blade require the use of protective gloves. Tighten the screw properly when reassembling. Drain fuel from the tank to prevent buildups inside the tank. Change oil after each season or after 25 hours of running time. Run the engine warm, remove the spark plug lead. Remove the drain plug from the bottom of the engine and drain oil. Fill with new oil.

Maintainance & Storage

• Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.
• Never store the equipment with petrol in the tank inside a building where fumes may reach an open flame or spark.
• Allow the engine to cool before storing it in any enclosure.
• To reduce the fire hazard, keep the engine, silencer, battery compartment, and petrol storage area free of grass, leaves, or excessive grease.
• Check the grass catcher frequently for wear or deterioration.
• Replace worn or damaged parts for safety.
• If the fuel tank has to be drained, this should be done outdoors.
• Always wear protective equipment. For quick removal of leaves and lawn debris after mowing, you can also use the Ronix 8922 20V Cordless Leaf Blower.
• Switch off the device and disconnect the spark plug before
• carrying out any maintenance, cleaning, or transport work on it
• Guaranteed sound power lever
• Please read the Instruction manual carefully and make sure you understand the instructions before using the machine.
• Danger of cutting yourself
• Blades in movement. Do not put hands or feet near or under
• The opening of the cutting plate.
• The device is powered by gasoline and fuel. Be especially careful
• when operating or moving the device
• No open flames, no inhalation of toxic gases
• This product is in accordance with applicable CE directives

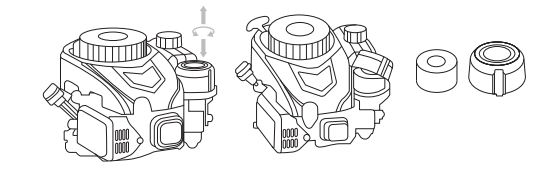

Cleaning the Filter

Keep the filter clean and oil saturated. Replace it if broken, cut, or damaged.s

Never use compressed air to clean the filtering element.

• Clean around the filter cover
• Release the clip; remove the cover and the foam element.
• Wash the foam element in liquid detergent and water. Squeeze dry in a clean cloth.
• Saturate the foam element with tablespoons of clean engine oil and squeeze it a few times to distribute the oil evenly.
• Remove excess oil with a clean cloth.
• Clean the interior of the air cleaner housing from any dust and grass, making sure that they do not enter the intake manifold.
• Install the foam element in its housing and close the cover. If the foam element has been replaced, proceed to oil the new filter as described above in sections.

Technical Specifications

Troubleshooting

Environmental Instructions

• Dispose of cardboard packaging and polyethylene (PE) bags in the appropriate containers for separate collection of municipal waste according to their description.
• If there are batteries in the device, remove them and separately return them to the collection and storage facility. Return the used device to a suitable collection and storage facility, as the hazardous substances in it may pose a threat to health and the environment.
• Waste electrical equipment is waste that contains substances harmful to humans, animals, and the environment.
• These substances can lead to contamination of the soil, water, or air, and through this they can get into the human body and lead to numerous health ailments, such a vision, hearing, and speech disorders; they can also lead to kidney, liver, and heart damage, and cause skin diseases.
• Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on the contaminated soils, and products made from them, may risk the above-mentioned health effects.
• Do not dispose of the device in the municipal waste container!!! Service: If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt directly.
