Ronix 8630 20V Cordless LED Work Light Instruction Manual

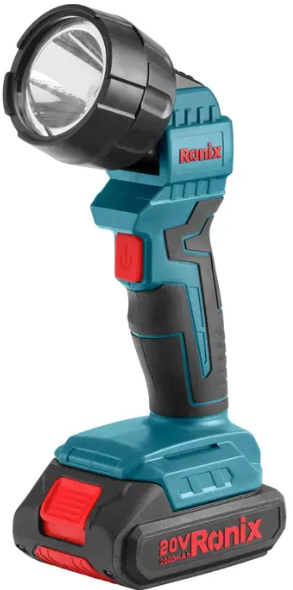

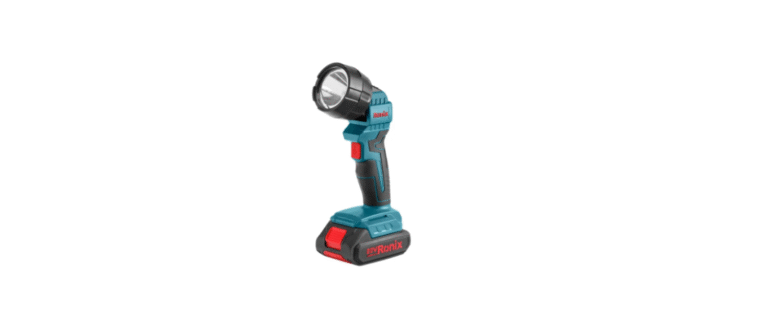

Ronix 8630 20V Cordless LED Work Light

Safety Instructions

1. Read this instruction manual and the charger instruction manual carefully before use.
2. This flashlight is not waterproof. Do not use it in damp locations.
3. Do not expose it to rain or snow. Do not wash it in water.
4. Do not touch the inside of the flashlight head with tweezers, metal tools, etc.
5. Do not touch the battery terminals with any conductive material.
6. Avoid storing the battery cartridge in a container with any metal objects, such as nails, coins, etc.
7. Never expose the battery cartridge to flames, fire, or great heat.
8. Breakage may cause the release of injurious material.
9. If operating time has become excessively shorter, stop operating immediately.
10. It may result in a risk of overheating, possible burns, and even an explosion.
11. Be careful not to drop, shake, or strike the battery.
12. When the tool is not in use, always switch off and remove the battery cartridge from the tool.
13. Do not give the tool a shock by dropping, striking, etc.
14. Do not expose the light to the eyes continuously. It may hurt them.
15. Do not cover or clog the lit tool with cloth or carton, etc. It may create a risk of fire.

Part List

Installation & Removing

• Always switch off the tool before insertion or removal of the battery cartridge.
• Always insert it all the way until it locks in place with a little click.
• If you can see the red part on the upper side of the button, it is not locked completely.
• Insert it fully until the red part cannot be seen.
• If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• Do not use force when inserting the battery cartridge.
• If the cartridge does not slide in easily, it is not being inserted correctly.

Lighting Up the Bulb

• Do not look in the light or see the source of light directly.
• This tool has a function that the bulb light goes out at low voltage.
• At this time, recharge the battery cartridge.
• Push the switch to light up the bulb. To turn off, push the switch again.
• The following tables indicate the operating time on a single charge.

Replacing Bulb

The bulb is very hot immediately after the operation. Wait until the bulb cools off before attempting to replace it. First, turn the ring counterclockwise and remove the reflector. Then replace the bulb.

Specifications

• Model 8630
• Light Type High Brightness LED Lamp
• Power 5W
• Battery 2000mAh/20V
• Flux 250lm
• Illumination Range >100m
• CCT 6500K
• Rotation Angle 90°
• Runtime 6H
• Charging Time 60 min
• Degree Of Protection IP54
• Weight 0.8Kg
• Dimension 207.3×119.32×73.5mm
• Include 1pc 2.0Ah Battery, 1pc 2.0A Charger

For users needing additional precision tools, the Ronix RH-9501G Cross Line Laser Level is another helpful device often used in workshops and construction sites.

Environmental Instructions

• Dispose of cardboard packaging and polyethylene (PE) bags in the appropriate containers for separate collection of municipal waste according to their description.
• If there are batteries in the device, remove them and separately return them to the collection and storage facility. Return the used device to a suitable collection and storage facility, as the hazardous substances in it may pose a threat to health and the environment.
• Waste electrical equipment is waste that contains substances harmful to humans, animals, and the environment.
• These substances can lead to contamination of the soil, water, or air, and through this they can get into the human body and lead to numerous health ailments, such a vision, hearing, and speech disorders; they can also lead to kidney, liver, and heart damage, and cause skin diseases.
• Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on the contaminated soils, and products made from them, may risk the above-mentioned health effects.
• Do not dispose of the device in the municipal waste container!!! Service: If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt directly.

Customer Support

• Address: Lyoner Str. 36 60528 Frankfurt am Main
• Tel:+49 69 310 900 66
• Website: www.ronixtools.com
