Ronix 8651 20 V Cordless Brushless Chainsaw User Manual

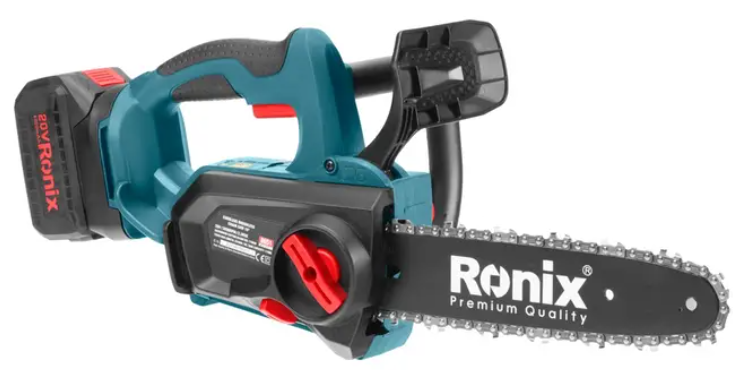

Ronix 8651 20 V Cordless Brushless Chainsaw

Safety Instructions

1. Keep the work area clean and well-lit. Cluttered or dark areas invite accidents.
2. Power tools create sparks, which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool.
4. Distractions can cause you to lose control.
5. Power tool plugs must match the outlet. Never modify the plug in any way.
6. Don’t use any adaptor plugs with earthed (grounded) power tools.
7. Unmodified plugs and matching outlets will reduce the risk of electric shock.
8. Don’t expose power tools to rain or wet conditions.
9. Water entering a power tool will increase the risk of electric shock.
10. Don’t abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool.
11. Keep the cord away from heat, oil, sharp edges, or moving parts.
12. Damaged or entangled cords increased the risk of electric shock.
13. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
14. Using a cord suitable for outdoor use will reduce the risk of electric shock.
15. The use of an RCD reduces the risk of electric shock.
16. Stay alert, watch what you are doing, and use common sense when operating a power tool.
17. A moment of inattention while operating power tools may result in serious personal injury.
18. Remove any adjusting key or wrench before turning the power tool on.
19. Don’t overreach. Keep proper footing and balance at all times.
20. This enables better control of the power tool in unexpected situations.
21. Dress properly. Don’t wear loose clothing or jewelry.
22. Keep your hair, clothing, and gloves away from moving parts.

Intended Use

This section deals with the basic safety regulations for working with the device. A woodcutter is a dangerous device that can cause serious or even fatal injuries if used incorrectly or negligently. Therefore, for your safety and the safety of others, always observe the following safety instructions:

Operation

Various symbols are used in the operating instructions. They refer to potential dangers or point to technical information, the non-observance of which will lead to personal injury, damage to objects, or inefficient operation.

• Danger sign with information about the prevention of personal injury or damage to property.
• Note signs with information on how to better use the device
• Wear cut-resistant gloves.

Use & Care

• Use power tools only with specifically designated battery packs by Ronix.
• Use of any other battery packs may create a risk of injury and fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact.
• Don’t force the power tool. Use the correct power tool for your application.
• The correct power tool will do the job better and safer at the rate for which it was designed.
• Don’t use the power tool if the switch doesn’t turn on and off.
• Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Power tools are dangerous in the hands of untrained users.
• If damaged, have the power tool repaired before use.
• Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean.
• Use the power tool, accessories, and tool bits, etc. to the instructions, taking into account the working conditions and the work to be performed.
• Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts.
• This will ensure that the safety of the power tool is maintained.
• Follow instructions for lubricating and changing accessories.
• Keep handles dry, clean, and free from oil and grease.

Specifications

• Model: 8651
• Voltage: 20V
• Battery Type: Lithium-ion
• Battery Capacity: 4.0Ah
• Maximum Cutting Diameter: 170mm
• Chain Size: 10”
• Chain Bar Length: 254mm
• No-load Speed: 3850RPM
• Chain Speed: 7m/s
• Oil Tank Capacity: 100ml
• Cuts Per Battery Charge: (Cutting Diameter 110mm) 71Pcs
• Charging Time: 60min
• Net Weight: 1.94Kg
• Gross Weight: 3.84Kg

Cordless Chainsaw

• Keep all parts of the body away from the saw chain when the chainsaw is operating. Before you start the chainsaw, make sure the saw chain is not contacting anything. A moment of inattention while operating chainsaws may cause entanglement of your clothing or body with the saw chain.
• Wear safety glasses and hearing protection. Further protective equipment for the head, hands, legs, and feet is recommended. Adequate protective clothing will reduce personal injury from flying debris or accidental contact with the saw chain.
• Do not operate a chainsaw in a tree. Operation of a chainsaw while up in a tree may result in personal injury.
• Carry the chainsaw by the front handle with the chainsaw switched off and away from your body. When transporting or storing the chainsaw saw always fit the guide bar cover.
• Follow instructions for lubricating, chain tensioning, and changing accessories. An improperly tensioned or lubricated chain may either break or increase the chance of kickback.
• Cut wood only. Do not use a chainsaw for purposes not intended. For example, do not use a chainsaw for cutting plastic, masonry, or non-wood building materials.
• Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery, causing loss of control.
• Maintain a firm grip, with thumbs and fingers encircling the chainsaw handles, with both hands on the saw, position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator if proper precautions are taken. Do not let go of the chainsaw.
• Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chainsaw in unexpected situations.
• Follow the manufacturer’s sharpening and maintenance instructions for the saw chain.

Battery Instructions

• The battery needs to be charged before first use and whenever it fails to produce sufficient power on jobs that were easily done before.
• When charging the battery for the first time, or after prolonged storage, it will only accept an 80% charge.
• After several charge and discharge cycles, the battery will attain full capacity.
• The battery may become warm while charging. This is normal and does not indicate a problem.
• Remove it from the tool and insert it into the charge station.
• The battery pack will only fit into the charger in one way.
• Do not force. Be sure that the battery is fully seated in the charger.
• The remaining battery capacity is too low, and the tool will not operate. In this situation, remove and recharge the battery.

Functions

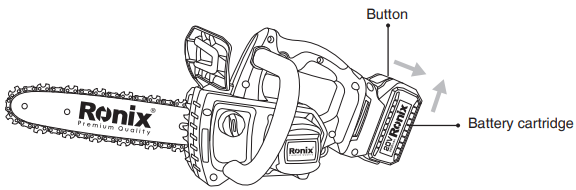

REMOVE THE BATTERY FROM THE CHAINSAW

• To remove the battery cartridge, slide it from the tool while pressing the button on the front of the cartridge. To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it until it locks in place with a little click.

SWITCH ACTION

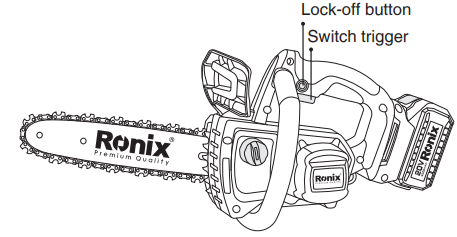

To prevent the switch trigger from being accidentally pulled, a lock-off button is provided. To start the tool, depress the lock-off button and pull the switch trigger. Release the switch trigger to stop the tool.

Assembly

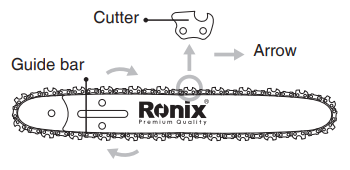

INSTALLING OR REMOVING SAW CHAIN

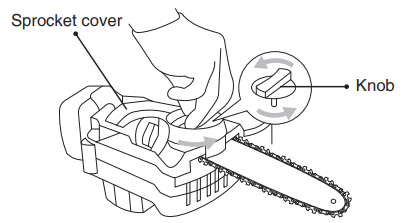

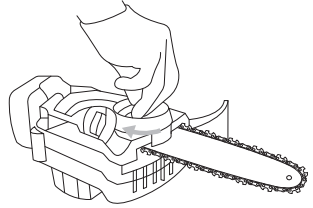

• Loosen the screw by turning counterclockwise the knob until the sprocket cover comes off. Remove the sprocket cover. Remove the saw chain and guide bar from the tool.
• Fit one end of the saw chain on the top of the guide bar. At this time, fit the saw chain as shown in the figure because it rotates in the direction of the arrow.

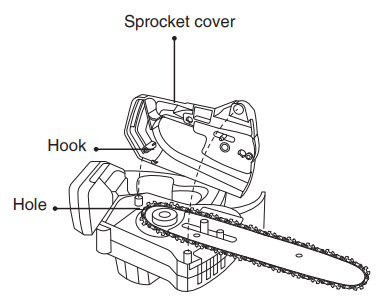

• Insert the hook of the sprocket cover into the hole in the tool, and then place the sprocket cover on the tool.
• Turn the knob clockwise to tighten the screw firmly.

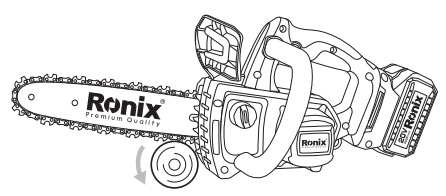

Adjusting Tension

Just a slight loosening of the screw allows the saw chain tension to be adjusted. After adjusting, tighten the screw firmly.

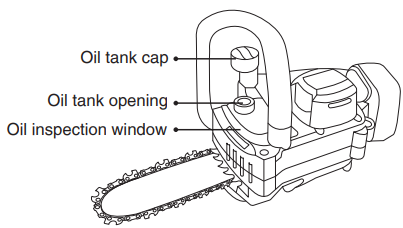

Lubrication

The Saw chain is automatically lubricated when the tool is in operation. Check the amount of remaining oil in the oil tank periodically. Check the amount of remaining oil in the oil tank through the oil inspection window. To refill the tank, remove the cap from the oil tank opening. After refilling the tank, always screw the provided oil tank cap on the chainsaw.

• Never use oil, including dust and particles, or volatile oils.
• Before cutting out, make sure that the provided oil tank cap is screwed in place. Hold the chainsaw away from the tree. Start it and wait until the lubrication on the saw chain is adequate.

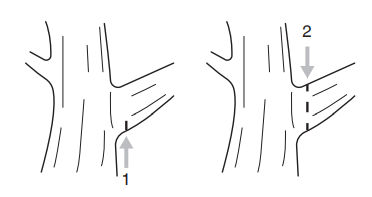

Pruning Trees

• Keep all parts of the body away from the saw chain when the motor is operating.
• Hold the chainsaw firmly with both hands when the motor is running.
• Make sure your footing is firm. Keep feet apart. Divide your weight evenly on both feet.

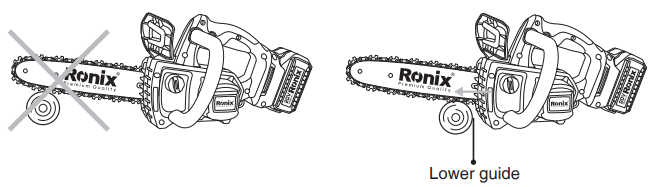

• Bring the lower guide into contact with the branch to be cut before switching it on. Cutting without bringing the lower guide into contact with the branch may cause the guide bar to wobble, resulting in injury to the operator. When cutting thick branches, first make a shallow undercut and then make the finish cut from the top.
• If you try to cut off thick branches from the bottom, the branch may close in and pinch the saw chain in the cut. If you try to cut off thick branches from the top without a shallow undercut, the branch may splinter.
• For better cutting, use the lower guide of the chainsaw.

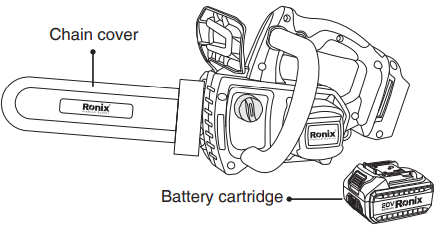

Carrying Tools

Always remove the battery cartridge from the tool and overlap the guide bar with the scabbard before carrying the tool. Also, cover the battery cartridge with the battery cover.

• Remove the battery from the chainsaw before servicing.
• Severe injury or death could occur from body contact with a moving chain.
• Cutting edges on the chain are sharp. Use protective gloves when handling chains.
• When cleaning the saw body
• Do not submerge the saw in any liquids.
• Do not use products that contain ammonia, chlorine, or abrasives
• Do not use chlorinated cleaning solvents, carbon tetrachloride, kerosene, or gasoline

Chainsaw Tension

The saw chain tension is properly set at the factory. A new chain will stretch. Check new chain tension frequently (after disconnecting the battery) during the first 2 hours of operation. Allow the chain to cool down. Follow the steps below to check saw chain tension.)

1. Remove the battery from the chainsaw.
2. Place the chainsaw on a firm surface to check chain tension.
3. Pull the chain with light force away from the Ronix 8651 20 V Cordless Brushless Chainsaw bottom of the guide bar, and release. If the chain lightly snaps back into place, the tension is correct.

Cutting

1. Check that the battery of the chainsaw is fully charged.
2. Attach the battery to the saw.

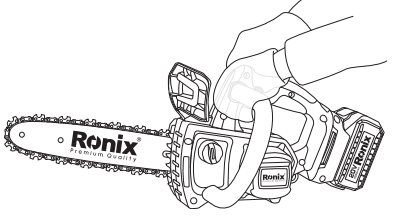

3. Use both hands to grip the chainsaw. Use designated grip areas. Use a firm grip.
4. Make sure your footing is firm. Keep feet apart. Divide your weight evenly on both feet.
5. When ready to make a cut, press in trigger lockout and squeeze the trigger. This will turn the chainsaw on. Releasing the trigger will turn the chainsaw off.
6. Remove the chainsaw from a cut with the saw running. At full speed.

Cleaning & Maintainance

• Keep saw body clean.
• Use a soft cloth dampened with a mild soap and water mixture.
• Wipe saw body to clean.
• Uneven bar wear causes most guide bar problems.
• Incorrect sharpening of the chain cutter and depth gauge settings often causes this.
• When the bar wears unevenly, it widens the guide bar groove.
• This causes chain clatter and rivet popping.
• The saw will not cut straight.
• Replace the guide bar if this occurs. Inspect the guide bar before sharpening the chain.
• A worn or damaged guide bar is unsafe.
• A worn or damaged guide bar will damage the chain. It will also make cutting harder.

Normal Guide Bar Maintenance

1. Remove the guide bar from the chainsaw.
2. Remove dust from the guide bar groove, Ronix 8651 20 V Cordless Brushless Chainsaw, periodically.
3. Use a putty knife or wire.
4. Clean oil slots after each day of use.
5. Remove burrs from the sides of the guide bar.
6. Use a flat file to make the side edges square. Replace the guide bar when.
7. The bar is bent or cracked.
8. The inside groove of the bar is badly worn.

Sharpening the Chainsaw

Always remove the battery cartridge and wear safety Ronix 8651 20 V Cordless Brushless Chainsaw gloves when performing work on the saw chain.

• Mealy sawdust is produced when damp wood is cut.
• The chain penetrates the wood with difficulty, even when heavy pressure is applied.
• The cutting edge is damaged.
• The saw pulls to the left or right in the wood. The reason for this behavior is the uneven sharpening of the saw chain or damage to one side only.

File & File Guiding

Use a special round file for saw chains, with a  Ronix 8651 20 V Cordless Brushless Chainsawdiameter of 4mm, to sharpen the chain. Normal round files are not suitable.

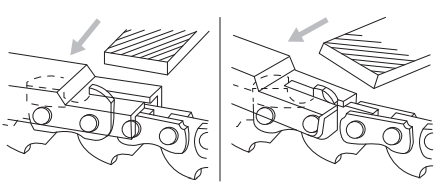

• The file should only engage the material on the forward stroke. Lift the file of the material on the return stroke.
• Sharpen the shortest cutter first. The length of this cutter is then the gauge dimension for all other cutters on the saw chain.

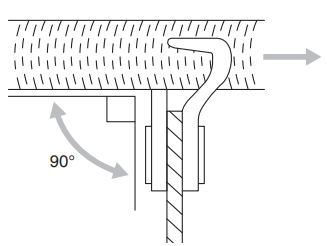

• Guide the file as shown in the figure.
• The file can be guided more easily if a file holder (accessory) is employed. The file holder has markings for the correct sharpening angle of 30.
• Remove any projecting material, however, Ronix 8651 20 V Cordless Brushless Chainsaw small, with a special flat file.

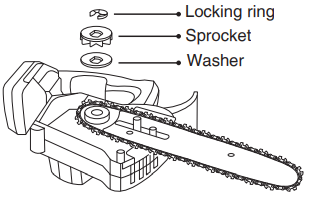

Replacing the Sprocket

• Before fitting a new saw chain, check the condition of the sprocket.
• A worn sprocket will damage a new saw chain. Has the sprocket been replaced in this case? The sprocket needs to be installed so that it always faces as shown in the figure.
• Always fit a new locking ring when replacing the sprocket.

Storage

• Store the device and its accessories in a Ronix 8651 20 V Cordless Brushless Chainsaw dark, dry, and frost-proof place that is inaccessible to children.
• The optimum storage temperature is between 5 and 30˚C.
• Store the electrical tool in its original packaging.
• Cover the electrical tool to protect it from dust and moisture.
• Store the operating manual with the electrical tool.

Customer Support

• Address: Lyoner Str. 36 60528 Frankfurt am Main
• Tel:+49 69 310 900 66
• Website: www.ronixtools.com

FAQs

What are the main advantages of the brushless motor in the Ronix 8651 chainsaw?

Compared to conventional brushed motors, the brushless motor offers greater durability, longer runtime, lower maintenance costs, and more efficiency.

What type of battery does the Ronix 8651 use, and how long does it last?

The 20V lithium-ion battery powers the chainsaw. Runtime varies based on usage; however, under moderate use, it usually lasts 30 to 45 minutes on a full charge.

How long does it take to fully charge the battery?

The battery usually takes one to two hours to fully charge when using a normal charger.

What is the recommended chain tension for optimal performance?

The chain should be flexible enough to be manually moved around without binding, but still tight enough to stay on the guide bar. To guarantee safe operation, check tension frequently.

Can I use the Ronix 8651 for heavy-duty cutting tasks?

The Ronix 8651 might not be appropriate for heavy industrial use, but it is made for light to medium cutting jobs like yard care, clipping branches, and cutting small logs.

How do I safely lubricate the chain and bar?

Use the bar and chain oil that Ronix has suggested. To guarantee adequate lubrication, fill the oil reservoir before each usage and periodically check the oil levels while the machine is in use.

Is the chainsaw equipped with any safety features?

Indeed, it has a low kickback chain for increased user safety, a safety switch to avoid unintentional starts, and a chain brake for kickback prevention.

What maintenance is required to keep the chainsaw in good condition?

Lubricate the chain and bar, check the tension of the chain, sharpen the chain, and clean the chainsaw regularly. Before using, check the charger and battery for damage.
