Ronix RH-9501G Cross Line Laser Level Instruction Manual

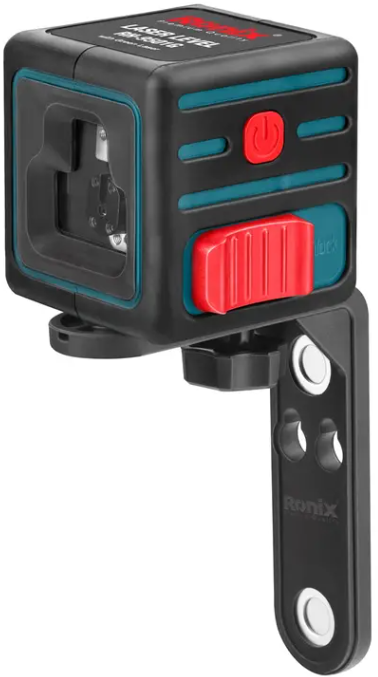

Ronix RH-9501G Cross Line Laser Level

Safety Instructions

1. Save all warnings and instructions for future reference.
2. Power tools create sparks, which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool.
4. Power tool plugs must match the outlet. Never modify the plug in any way.
5. Do not use any adapter plugs with earthed (grounded) power tools.
6. Unmodified plugs and matching outlets will reduce the risk of electric shock.
7. There is an increased risk of electric shock if your body is earthed or grounded.
8. Do not expose power tools to rain or wet conditions.
9. Water entering a power tool will increase the risk of electric shock.
10. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
11. Use of a cord suitable for outdoor use reduces the risk of electric shock.
12. If operating a power tool in a damp location is unavoidable, use a ground fault circuit.
13. Interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
14. Stay alert, watch what you are doing, and use common sense when operating a power tool.  You can also check the Ronix 3250 Angle Grinder Manual for guidance on proper handling of other Ronix tools.
15. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication.
16. A moment of inattention while operating power tools may result in serious personal injury.
17. Use personal protective equipment. Always wear eye protection.

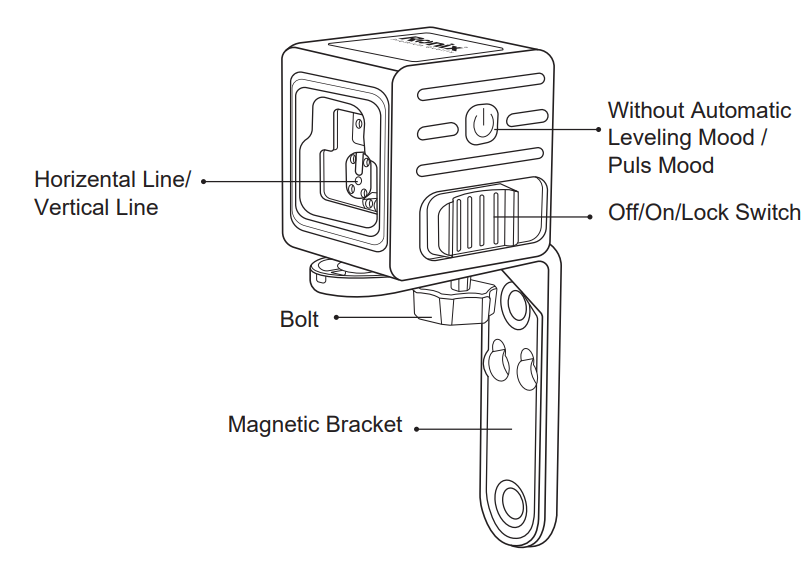

Part List

Operation

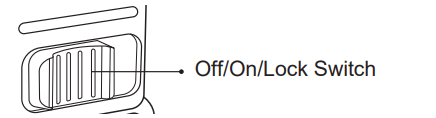

Pendulum Lock

The 1V1H Red beam laser level is a precision instrument and should be treated with care. When not in use, the pendulum should always be in the Off position. Locking the pendulum allows the Cross Line Laser to better withstand vibration and trauma incurred during transportation or if the unit is dropped

Locked Line Angle

In the locked line angel position, the pendulum is in the locked position and will not automatically level. When in the locked line position, both two laser lines will be on and flash slowly. The Red Lock LED will be on as well.

Automatic Angling

When the pendulum is free to automatically level, in order for the Cross Line Laser to automatically level, the base of the unit needs to be within 3˚ of level.

When the pendulum is unlocked and the Cross Line Laser is within 3˚ of level, the unit will be in automatic leveling range; in this situation, no LED light will be on. Should the base of the unit be outside the 3˚ leveling range, the laser beam will flash; sh meanwhile, an audible warning will be sent out from Cross Line Laser.

Low Battery Alarm

The Green battery LED will be on and keep flashing slowly when the working voltage of the laser is below 3V. In this situation, the batteries are required to be replaced.

Specifications

Environmental Instructions

• Dispose of cardboard packaging and polyethylene (PE) bags in the appropriate containers for separate collection of municipal waste according to their description.
• If there are batteries in the device, remove them and separately return them to the collection and storage facility. Return the used device to a suitable collection and storage facility, as the hazardous substances in it may pose a threat to health and the environment.
• Waste electrical equipment is waste that contains substances harmful to humans, animals, and the environment.
• These substances can lead to contamination of the soil, water, or air, and through this they can get into the human body and lead to numerous health ailments, such a vision, hearing, and speech disorders; they can also lead to kidney, liver, and heart damage, and cause skin diseases.
• Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on the contaminated soils, and products made from them, may risk the above-mentioned health effects.
• Do not dispose of the device in the municipal waste container!!! Service: If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt directly.

Customer Support

• Address: Lyoner Str. 36 60528 Frankfurt am Main
• Tel:+49 69 310 900 66
• Website: www.ronixtools.com

FAQs

Q: What is the Ronix RH-9501G Cross Line Laser Level used for?

The Ronix RH-9501G is made for tasks involving precise levelling, alignment, and layout in interior finishing, carpentry, tiling, and building. For precise alignment, it projects vertical and horizontal laser lines that are brilliant green and intersect to form a cross.

Q: What is the advantage of the green laser?

Particularly under bright indoor or moderate outdoor lighting, the green laser beam can be up to four times as apparent to the human eye as a red laser.

Q: What is the working range of the RH-9501G?

When paired with a laser receiver (separately offered), the RH-9501G’s working range can reach up to 40 meters (130 feet) and 20 meters (65 feet) indoors.

Q: Is the Ronix RH-9501G self-leveling?

Indeed. A self-leveling mechanism within ±4° is a feature of the RH-9501G. The laser lines will flash to show that levelling is out of range if the tilt is greater than 4°.

Q: What type of battery does the RH-9501G use?

Depending on brightness settings and beam usage, this model can run continuously for 6 to 8 hours on 4 AA alkaline batteries.

Q: How accurate is the Ronix RH-9501G?

The RH-9501G ensures great precision for professional alignment and layout work with its ±2 mm accuracy at 10 meters.
