Ronix RP-1160 High Pressure Washer Instruction Manual

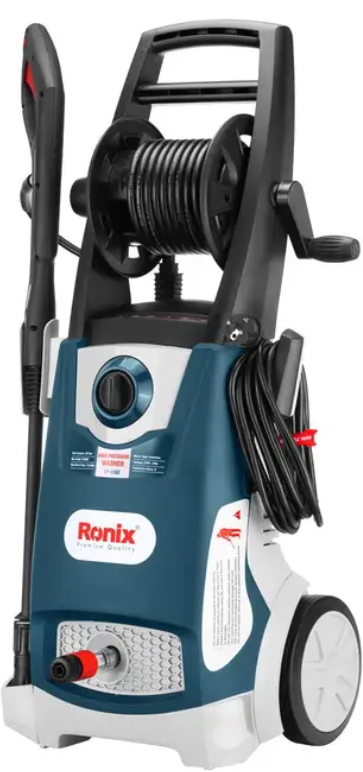

Ronix RP-1160 High-Pressure Washer

Safety Instructions

1. Do not use this appliance without reading these instructions.
2. The use of other cleaning agents or chemicals may adversely affect the safety of the appliance.
3. Do not use the appliance within the range of persons unless they wear protective clothing.
4. High-pressure jets can be dangerous if subject to misuse.
5. The jet must not be directed at persons, live electrical equipment, or the appliance itself.
6. Risk of explosion – Do not spray flammable liquids.
7. Disconnect from the electrical power supply before carrying out user maintenance.
8. Water that has flown through backflow preventers is considered to be non-potable.
9. High-pressure hoses, fittings, and couplings are important for forty percent of the appliance.
10. Use only hoses, fittings, and couplings recommended by the manufacturer.
11. Inadequate extension cords can be dangerous.
12. Inadequate extension cords and be dangerous.

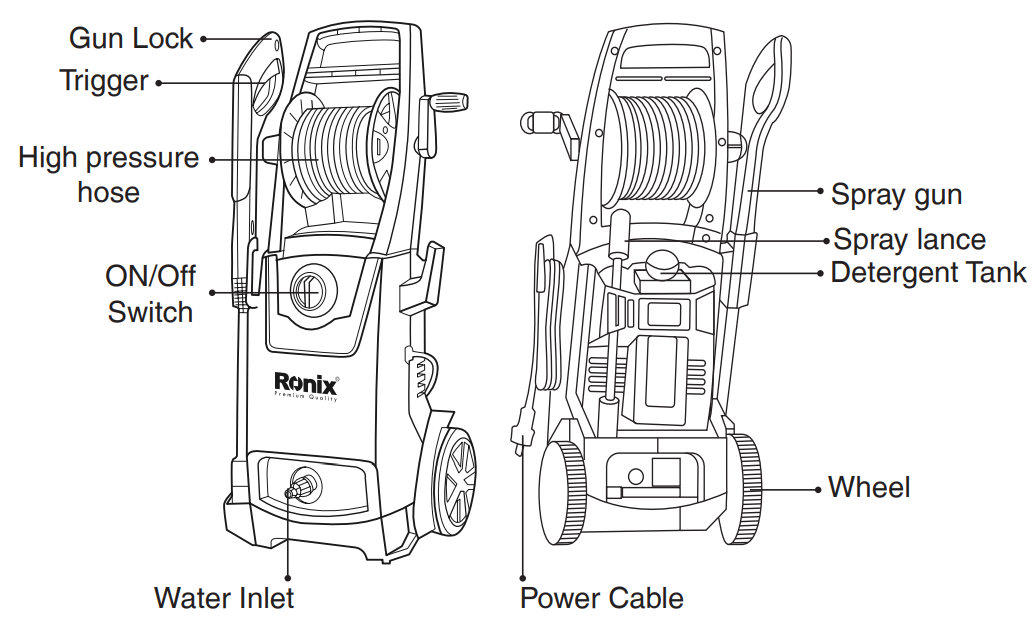

Part List

Product Features

• This machine is not suitable for connection to the potable water mains
• Never use the machine in potentially explosive areas under any circumstances!
• The operating temperature must be between 0 and +40°C.
• For an optimal working position, the machine comes with a lance and a non-slip handle grip, whose shape and configuration comply with the applicable regulations.
• Do not cover or modify the lance or the spray nozzles in any way.
• Do not use water that is dirty, gritty, or contains any chemical products, as these could impair operation and shorten the life of the machine.

Assembly

• The high-pressure cleaner is designed to clean vehicles, machines, buildings, facades, etc., in the private sector. Users looking for more advanced or multi-functional cleaning equipment may also refer to the Ronix RP-4100 Multi-Functional Cleaning Equipment User Manual for additional features and guidance.

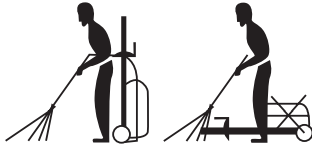

• The washer must be used standing on a secure, stable, and level surface as shown.

• Fit the lance into the gun and rotate it until the two parts are completely locked.
• Connect the gun to high high-pressure hose.
• Connect the high-pressure hose to the water outlet on the washer.
• Connect the water supply hose to the female coupler. Then connect to the water inlet of the washer.
• The water supply must be at least equal to the washer’s delivery capacity.

• Push the motor switch to the “OFF” position.
• Check that the electrical supply voltage and frequency (Volt/Hz) correspond to those specified on the washer rating plate. If the power supply is correct, you may now plug in the washer.

Operation

• Turn on the water supply tap fully.
• Release the safety lock, then press the trigger for a few seconds to allow air to escape and discharge residual pressure in the hose.
• Keeping the trigger pressed, push the switch to start the motor
• When restarting the motor, always keep the trigger pressed.

Accessories

• The washer is equipped with an adjustable nozzle.
• Jet adjustment from pencil to fan.

Maintainance

Before working on the washer, disconnect the lug from the power supply socket.

• To ensure good performance. Check and clean the suction and detergent filters after every 50 hours of operation.

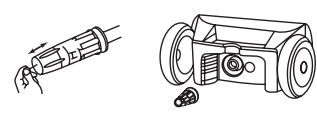

• Clean the nozzle with the tool provided. Remove the lance from the gun; remove any dirt from the nozzle hole.

Cleaning

• Dissolve dirt by applying detergent with the fan jet to the dry surface.
• On vertical surfaces, work from the bottom upwards.
• Leave the detergent to act for 1 to 2 minutes, but do not allow it to dry out.
• Apply the high from the surface, working from the bottom upwards.
• Avoid allowing the rinsing water to run onto unwanted surfaces.

Storage

• Switch off the washer.
• Turn off the water supply tap.
• Discharge residual pressure by pressing the trigger until no more water comes out of the lance nozzle.
• Engage the gun safety lock.
• Remove the plug from the socket.
• Operate the washer with non-corrosive /non-toxic antifreeze before storing for the winter.

Technical Data

Troubleshooting

Environmental Instructions

• Dispose of cardboard packaging and polyethylene (PE) bags in the appropriate containers for separate collection of municipal waste according to their description.
• If there are batteries in the device, remove them and separately return them to the collection and storage facility. Return the used device to a suitable collection and storage facility, as the hazardous substances in it may pose a threat to health and the environment.
• Waste electrical equipment is waste that contains substances harmful to humans, animals, and the environment.
• These substances can lead to contamination of the soil, water, or air, and through this they can get into the human body and lead to numerous health ailments, such a vision, hearing, and speech disorders; they can also lead to kidney, liver, and heart damage, and cause skin diseases.
• Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on the contaminated soils, and products made from them, may risk the above-mentioned health effects.
• Do not dispose of the device in the municipal waste container!!! Service: If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt directly.
