Sunjoe SPX3000 14.5A Electric Pressure Washer User Manual

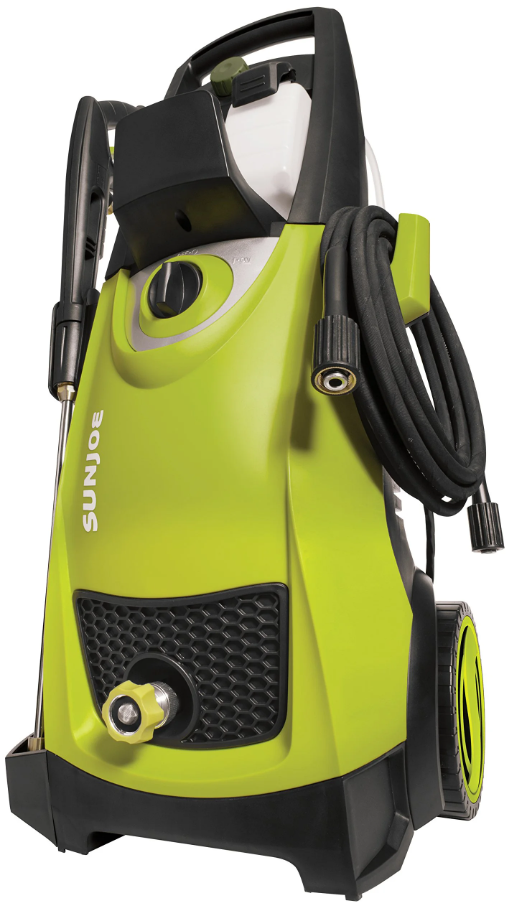

Sunjoe SPX3000 14.5A Electric Pressure Washer

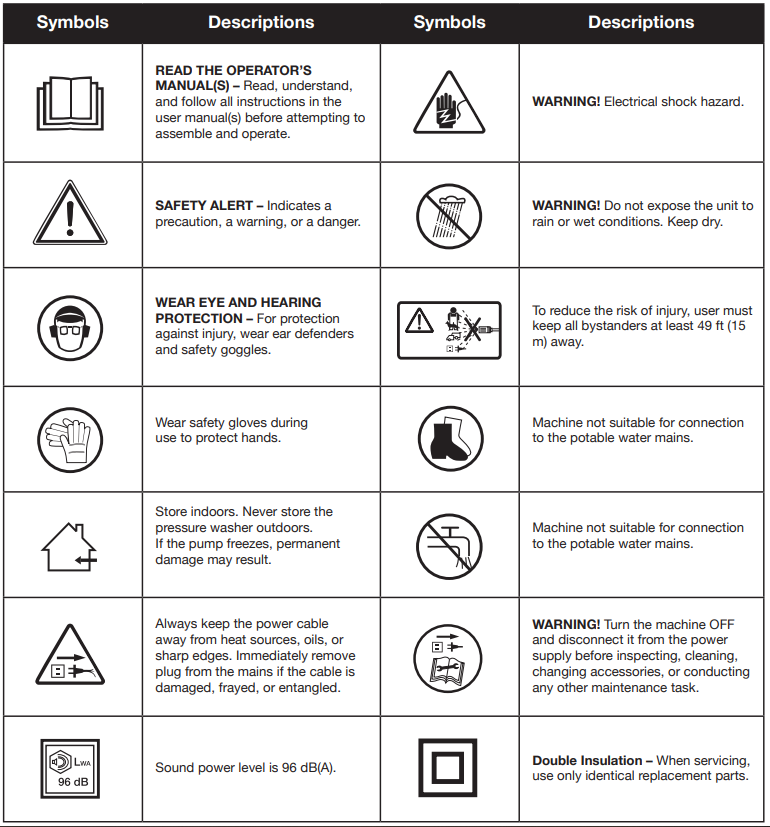

Safety Instructions

When using the pressure washer, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. These include:

1. Know your product – Know how to stop the machine and bleed pressure quickly.
2. Thoroughly familiarize yourself with the controls.
3. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.
4. Stay alert – Watch what you are doing. Use common sense.
5. Do not operate the pressure washer when you are tired or under the influence of alcohol or drugs.
6. Do not overreach – Keep proper footing and balance at all times.
7. Avoid unintentional starting – Do not carry a plugged-in machine with your finger on the trigger.
8. Make sure the switch is off before plugging in the machine.
9. Check the water temperature – This pressure washer is not meant to pump hot water.
10. NEVER connect it to a hot water supply, as it will significantly reduce the life of the pump.
11. Store indoors – NEVER store the pressure washer outdoors or where it could freeze.
12. The pump could be seriously damaged.
13. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.
14. Inspect electrical cables – The insulation of the power cord should be perfectly intact.
15. If the power cord is damaged or shows any signs of wear or tear, do not use the pressure washer.
16. Before starting up your machine, please check it carefully for any defects.
17. If you find any, do not start up your machine and contact your distributor.
18. A qualified person should perform the electric supply connection.

Extension Cord Chart

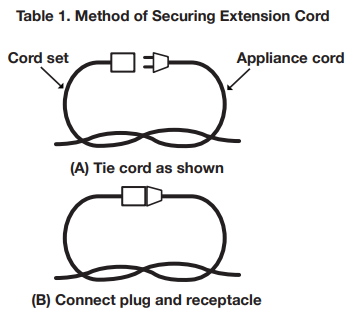

To prevent the appliance cord from disconnecting from the extension cord during operation, make a knot with the two cords as shown in Table 1.

• Inspect the cord before using.
• Do not use if the cord is damaged.
• Keep all connections dry and off the ground.
• Do not touch the plug with wet hands.
• Keep the cord away from heat and sharp edges.
• Do not spray electrical apparatus and wiring.
• Do not spray flammable liquids.
• Do not use acids, bases, solvents, or any flammable material in this product.
• These substances can cause physical injuries to the operator and irreversible damage to the machine.

Product Description

Purpose

This high-pressure electric power washer is intended for residential use to clean vehicles, machines, buildings, facades, etc.

Areas of Application

• Never use the machine in potentially explosive areas under any circumstances!
• The operating temperature must be between 32ºF (0ºC) and 104ºF (40ºC).
• The machine consists of an assembly with a pump, which is encased in a shock-absorbing housing.
• Do not cover or modify the spray wand or the spray nozzles in any way.
• Do not use water that is dirty, gritty, or contains any chemical products, as these could impair operation and shorten the life of the machine.

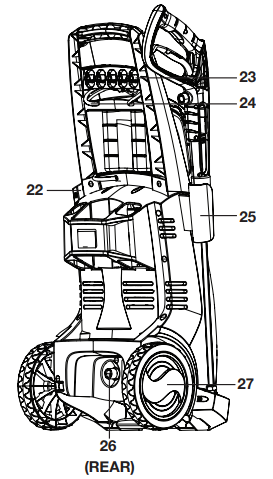

Know Your Product

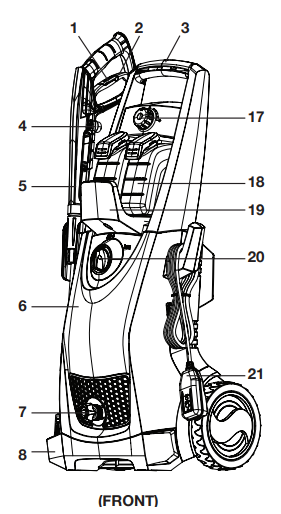

Read the owner’s manual and safety instructions carefully before operating the electric pressure washer. Compare the illustration below to the electric pressure washer to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

1. Safety lock (Locate the lock in the center of the trigger.
2. Pull up and snap in place.
3. Trigger
4. Transport handle
5. High-pressure hose connection
6. Trigger gun
7. Spray wand
8. Water inlet (garden hose connection)
9. Spray wand protector

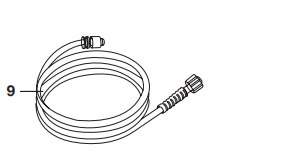

10. High-pressure hose
11. Garden hose adapter (female coupler)
12. Needle clean-out tool
13. 0º Quick-Connect nozzle (red)
14. 15º Quick-Connect nozzle (yellow)
15. 25º Quick-Connect nozzle (green)
16. 40º Quick-Connect nozzle (gray)
17. Soap Quick-Connect nozzle (black)
18. Detergent selection dial
19. Removable detergent tanks
20. Hose holder
21. On/Off switch
22. Power cord with GFCI
23. Cord holder
24. Onboard storage for Quick-Connect nozzles
25. Detergent tube
26. Trigger gun holder
27. Water outlet (high-pressure connection)
28.  Wheels

Unpacking

Carton Contents

• Electric pressure washer
• Handle
• Trigger gun
• Spray wand
• Five (5) Quick-Connect nozzles (0º, 15º, 25º, 40º and Soap)
• Two (2) removable detergent tanks
• Four (4) large screws
• Two (2) small screws
• Spray wand protector
• Trigger gun holder
• Hose holder
• Needle clean-out tool
• High-pressure hose
• Garden hose adapter (female coupler) with two sealing rings
• Manual with registration card

Do not discard the shipping carton and packaging material until you are ready to use your new electric pressure washer. The packaging is made of recyclable materials. Properly dispose of these materials according to local regulations.

Assembly

1. Position the washer as CLOSE as possible to the water supply.

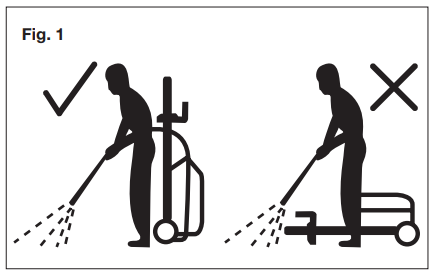

2. The washer must be used on a secure and stable surface in a standing, upright position.

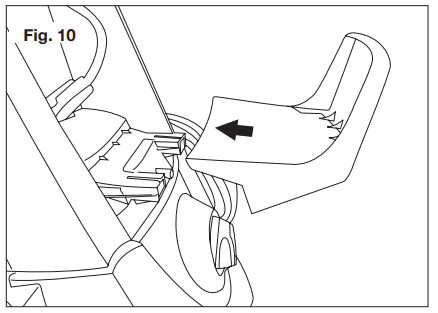

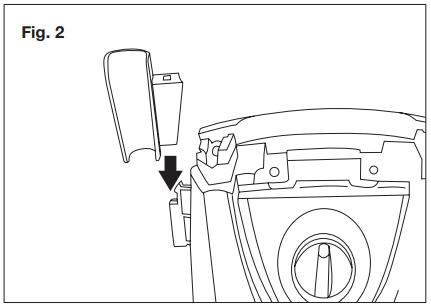

3. Slide the trigger gun holder into position.
4. Slide the handle into position and secure it with 4 large screws.

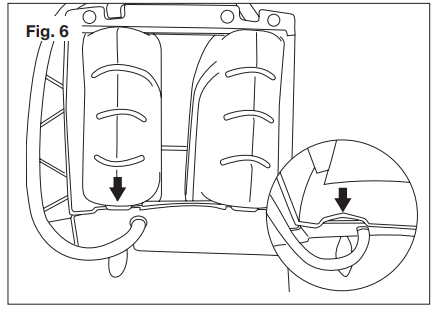

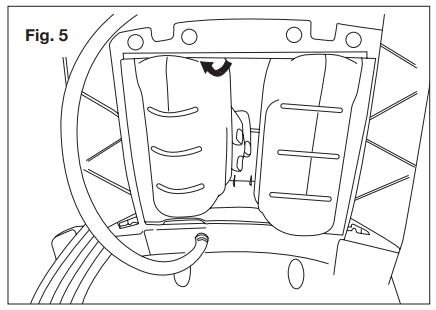

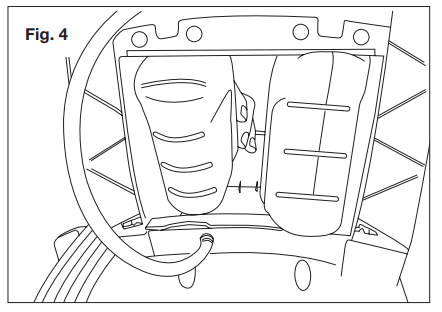

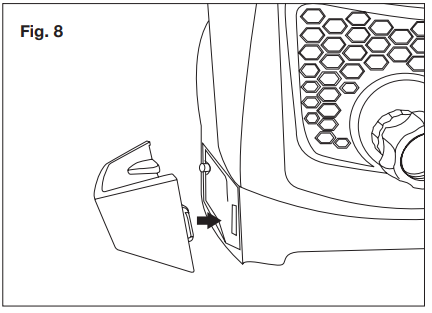

5. Insert the detergent bottles (top end first) under the ridge of their designated storage compartment. Then snap the bottom of the bottles into the V-shaped grooves to secure them in place.

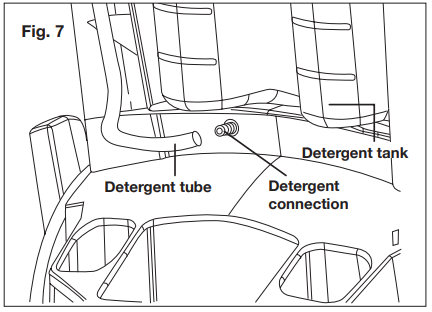

6. Connect the PVC detergent tube to the detergent connection.

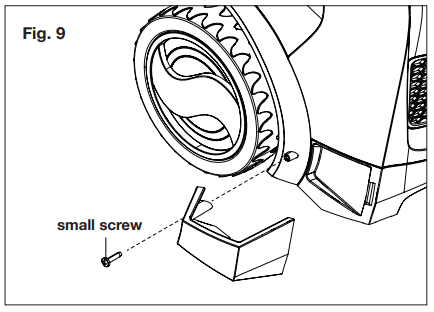

7. To assemble the spray wand protector, first snap the tab into the slot located at the bottom left side of the unit, and then secure it in place with one small screw.

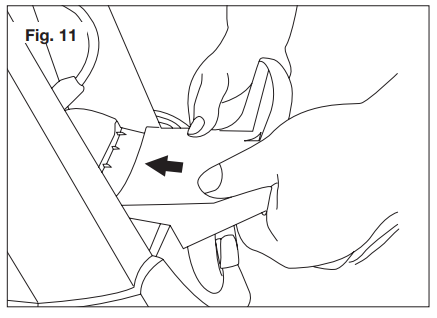

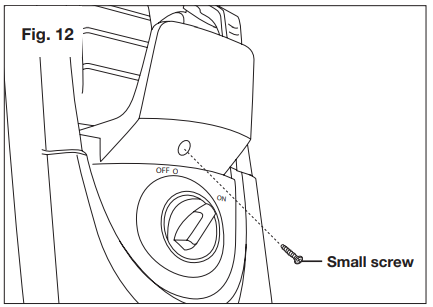

8. To assemble the hose holder, slide the holder into position.
9. Fit the spray wand into the trigger gun and rotate the collar until the two parts are completely locked.
10. Connect the high-pressure hose to the trigger gun.

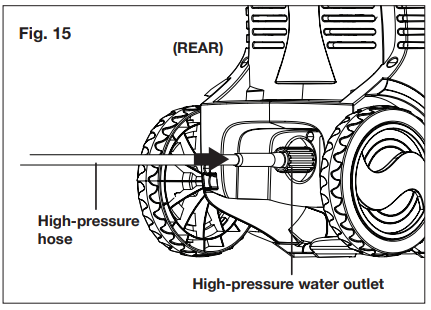

11. Connect the high-pressure hose to the water outlet on the washer.

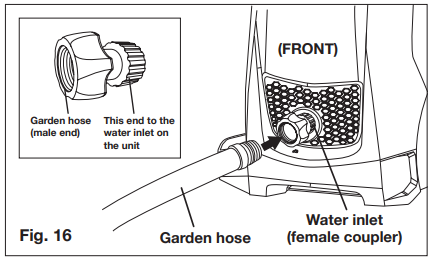

12. Connect the garden hose adapter (female coupler) to the water inlet of the pressure washer, then thread your garden hose (male end) into the garden hose adapter.

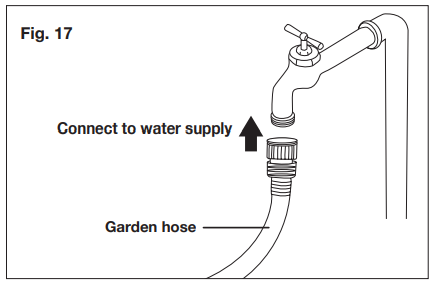

13. Attach the garden hose to the water supply. The intake water temperature must not exceed 104ºF/40ºC. The water supply must not exceed 0.7 MPa.m
14. Make sure the motor switch is pushed to the OFF (0)  Sunjoe SPX3000 14.5A Electric Pressure Washer position before plugging the unit into the power outlet.
15.  Check that the electrical supply voltage and frequency(Volt/Hz) correspond to those specified on the pressure washer rating plate.

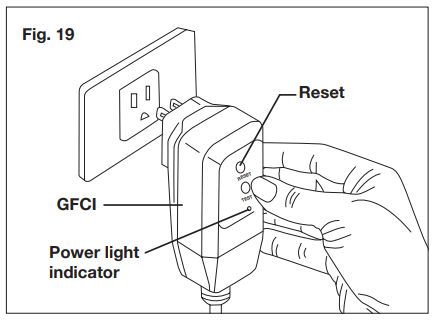

Operation

This pressure washer is equipped with a micro-switch sensitive to water flow. This Total Stop System(TSS) senses water flow in the pump. When the trigger is released, water stops flowing through the pump. The TSS then automatically turns the motor off to protect the pump from overheating, thus saving energy and prolonging pump life.

1. Turn the water supply tap on completely.

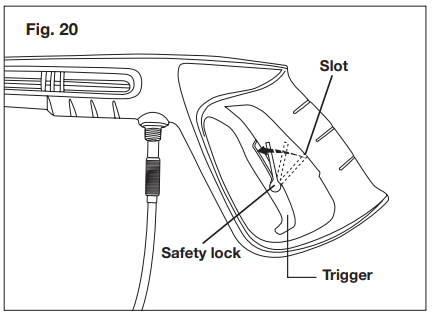

2. Make sure the safety lock is down and in its original position (Fig. 20), then press the trigger for a few seconds until the water flow is steady. This will allow air to escape and discharge any residual pressure in the hose.

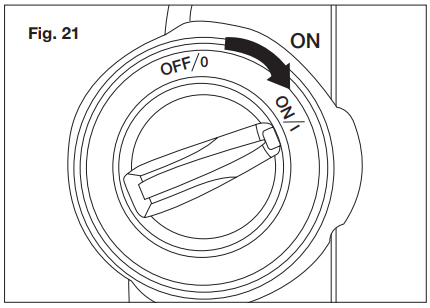

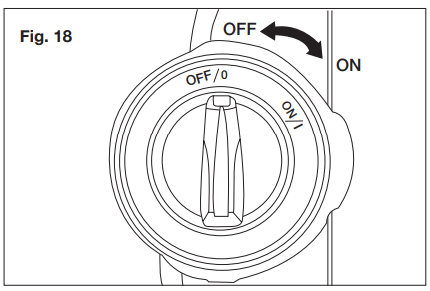

3. Turn the switch to the ON (I) position to start the pressure washer.

Using the Nozzles

Before beginning any cleaning task, determine the best nozzle for the job. Each of the nozzles has a different spray pattern. The nozzle patterns are 40˚ (for gentle cleaning), 25˚ (for all-purpose cleaning), 15˚ (for tough jobs), 0˚ (for spot cleaning or hard-to-reach areas), and the Soap nozzle (for detergent application).

• NEVER change nozzles without locking the safety lock on the trigger handle.
• High-pressure jets can be dangerous if subject to misuse.
• The jet must not be directed at persons, pets, live electrical equipment, or the appliance itself.

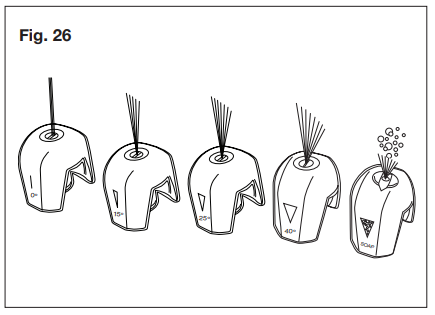

• This electric pressure washer is equipped with five (5) Quick-Connect nozzles that easily snap onto the Quick-Connect collar of the spray wand.

To connect a nozzle to the spray wand

1. . Turn off the pressure washer and shut off the water supply. Pull the trigger to release water pressure.

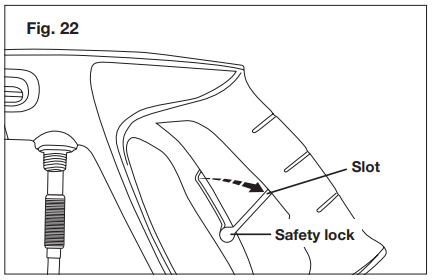

2. Engage the safety lock on the trigger handle by pushing up on the safety lock until it clicks into the slot.

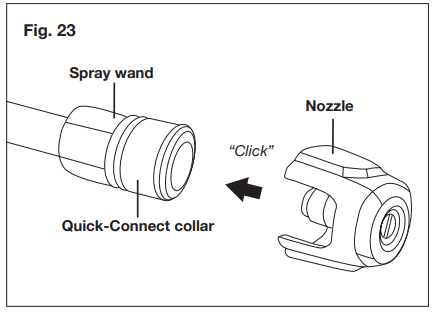

3. Snap the desired nozzle onto the Quick-Connect collar until it clicks into place. To disconnect a nozzle from the spray wand once the cleaning job is complete:
4. Turn off the pressure washer and shut off the water supply. Pull the trigger to release water pressure.
5. Remove the nozzle by placing your hand over the nozzle while pulling back on the Quick-Connect collar.

Do not make changes to the nozzle while the trigger is engaged. Doing so could result in damage to the pressure washer or injury to the user.

Working with Detergents

When cleaning with the pressure washer, some cleaning tasks can be solved with water alone, but for most tasks, cleaning with detergent allows for more effective dirt removal.

1. Remove the cap(s) and detergent suction tube(s) from the detergent bottle(s).

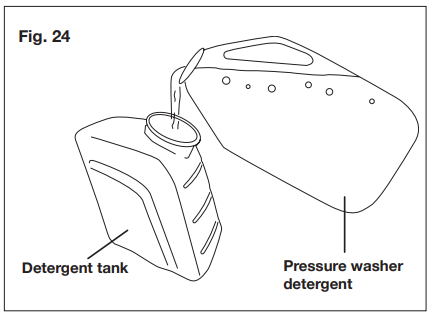

2. Gently pull each of the onboard detergent tanks out of its storage position and fill each tank with detergent.
3. Insert the suction tube(s) back into the tank(s) and cap the tank(s) closed.
4. Push the tank(s) back into storage position on the unit.

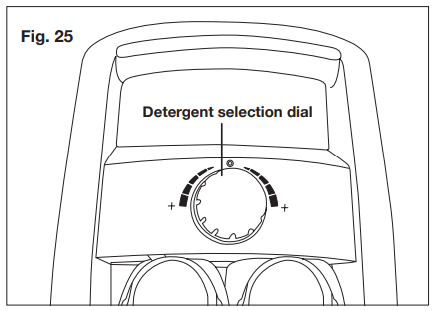

5. Use the detergent dial to select which of the two detergent tanks the unit will draw from and to control the rate of flow.
6. When not working with detergent, such as when using a non-soap nozzle, turn the detergent dial to the center (O).
7. Install the Soap nozzle (black) on the spray wand (Fig. 23).
8. Always test the detergent in an inconspicuous area before use.
9. Turn on the pressure washer. Pull the trigger to operate the unit.
10. The liquid detergent will automatically mix with water and be discharged through the nozzle.
11. Turn the detergent dial to adjust the suction volume of the detergent solution (Fig. 25).
12. Apply detergent from the bottom to the top of the dry surface to be cleaned.
13. Allow the detergent to remain on the surface for a short time before rinsing.
14. Do not allow the detergent to dry on the surface.
15. When you have finished using the detergent injection system, remove the detergent suction tube from the detergent bottle and insert it into 1.3 gal (5 L) of freshwater.
16. Siphon water at low pressure for one minute so that all the detergent is flushed through the system. Remove the detergent bottle and rinse it until it is thoroughly cleaned.

Rinsing with the Pressure Washer

1. Turn off the pressure washer and shut off the water supply.
2. Pull the trigger to release water pressure.
3. Engage the safety lock on the trigger handle by pushing up on the safety lock until it clicks into the slot.
4. Remove the nozzle by placing your hand over the nozzle while pulling back on the Quick-Connect collar. Select the right nozzle for the job.
5. Use the 15º fan-tip nozzle (yellow) for intense cleaning jobs on hard surfaces.
6. When using this nozzle, test a small area first to avoid surface damage.
7. Use the 40º wide-spray tip nozzle (gray) to clean items such as cars, trucks, boats, patio furniture, or lawn equipment.

Shutting Down

1. Turn the switch to the OFF (0) position and unplug the power cord from the outlet.
2. Turn off the water source.
3. Hold the trigger to release water pressure.
4. Disconnect the garden hose from the water inlet on the unit.
5. Disconnect the high-pressure hose connection on the trigger gun handle.
6. Release the trigger and engage the gun safety lock.

Taking a Break

If you are taking a break of five minutes or more between cleaning tasks:

1. Engage the gun safety lock (Fig. 22).
2. Turn the switch to the OFF (0) position.
3. Unplug the power cord from the outlet.

Storage

Always store your pressure washer in a location where the temperature will not fall below 32ºF (0ºC). The pump in this machine is susceptible to permanent damage if it freezes.

• Store the pressure washer indoors in a dry, covered area where it is not subject to adverse weather conditions. It is important to store this product in a frost-free area.
• Always empty water from all hoses, the pump, and the Sunjoe SPX3000 14.5A Electric Pressure Washer detergent bottle(s) before storing.

Winterizing + Long-Term Storage

If you must store your pressure washer in a location where the temperature falls below 32ºF (0ºC), you can minimize the chance of damage to your machine by utilizing the following procedure:

• Disconnect all water connections.
• Turn on the machine for a few seconds until the remaining water in the pump exits.
• Turn off immediately. Do not allow the high-pressure hose to become kinked.
• Store the machine and accessories in a room that does not reach freezing temperatures.
• Do not store near a furnace or other sources of heat that may dry out the pump seals.
• Operate the pressure washer with non-corrosive/non-toxic anti-freeze, a pump saver, or a pump protector before storing for the winter.

Maintenance

Before working on the pressure washer, disconnect the plug from the power supply socket.

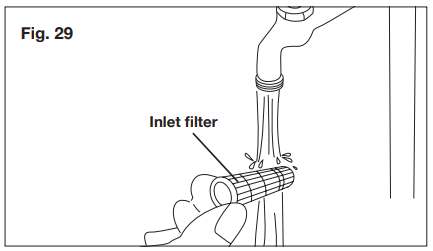

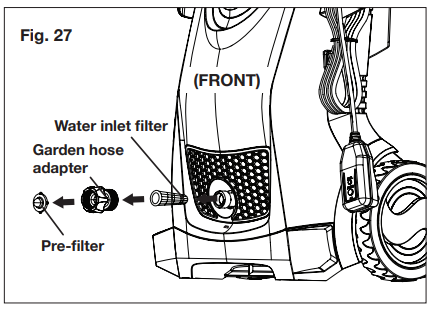

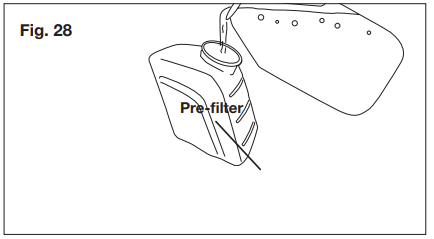

1. To ensure good performance, check and clean the water inlet filter. Remove the pre-filter and water inlet filter and rinse Sunjoe SPX3000 14.5A Electric Pressure Washer with warm water to prevent any foreign matter from clogging the pump.

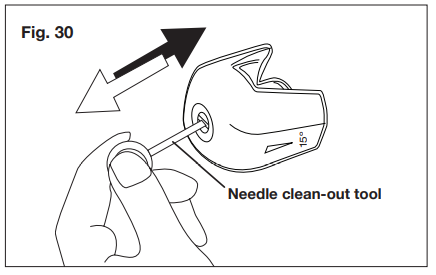

2. Clean the nozzle with the needle clean-out tool provided. Remove the spray wand from the gun; remove any dirt from the nozzle hole and rinse.
3. Remove additional debris by back flushing water through the nozzle and spray wand. To do this, place the end of your garden hose (with water running) to the tip of the nozzle, pushing water and debris out of the back opening of the nozzle and spray wand.

Technical Data

• Rated Voltage: 120V ~ 60 Hz
• Motor: 14.5 amp
• Max Water Inlet Temperature: 104ºF/40ºC
• Max Water Inlet Pressure: 0.7 MPa
• Hose Length: 20 ft (6 m)
• Power Cord Length: 35 ft (10.7 m)
• Rated Pressure: 1450 PSI
• Rated Flow: 1.24 GPM (4.7 l/min)
• Net Weight: 24.3 lbs (11 kg)

Circuit Diagram

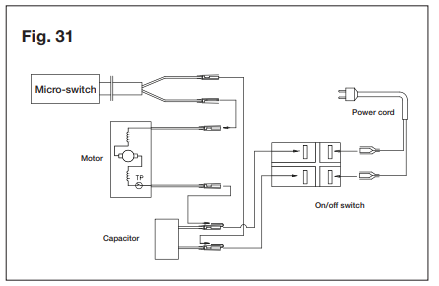

A circuit diagram for the pressure washer is provided below for your reference (Fig. 31).

Disposal

• Do not dispose of electrical appliances as unsorted Sunjoe SPX3000 14.5A Electric Pressure Washer municipal waste. Use separate collection facilities.
• Contact your local government agency for information regarding the collection systems available.

Model & Serial Numbers

When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below.

Troubleshooting

Optional Accessories

ALWAYS use only authorized Snow Joe® + Sun Joe® replacement parts and accessories. NEVER use
replacement parts or accessories that are not intended for use with this electric pressure washer. Contact Snow Joe® + Sun Joe® if you are unsure whether it is safe Sunjoe SPX3000 14.5A Electric Pressure Washer to use a particular replacement part or accessory with your pressure washer. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

Warranty

Snow Joe warrants new, genuine, powered, and non-powered Products to be free from defects in material or workmanship when used for ordinary household use. Sunjoe SPX3000 14.5A Electric Pressure Washer for two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or one of Snow Joe’s authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers.

Registration

Snow Joe strongly encourages you to register your Product. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

Customer Service

• Website: snowjoe.com
• Ph: 1-866-766-9563
