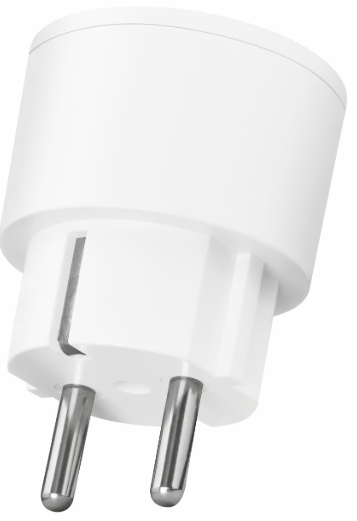

Trust MAGC-2300 Smart Outdoor Socket Switch

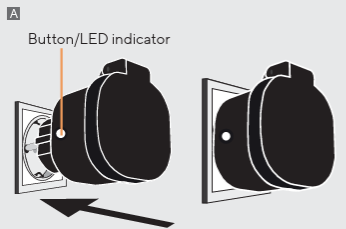

Installation
Place the socket switch in an outlet. To connect the socket switch with a Matter App, proceed to step 2. To connect the socket switch with a Trust Switch-In Start-Line transmitter, proceed to step 3.

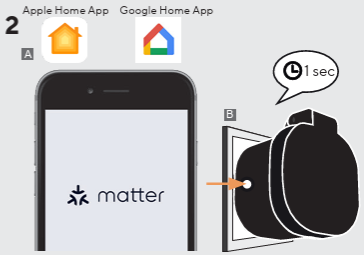

Connection
Make sure your phone or tablet is connected to a 2.4 GHz WiFi network and not to a 5 GHz WiFi network.
- Open the Matter App (e.g., Apple Home or Google Home App) on your phone or tablet.
- Shortly, press the button on the socket switch to start the Matter pairing mode.
- The LED indicator on the socket switch will blink green. (The Matter pairing mode lasts for 5 minutes; connect the socket switch to a Matter App within these 5 minutes.)
- Follow the instructions in the App to connect a new Matter device. If you are unable to connect the socket switch, reset it according to the “Reset Matter Switch” step.

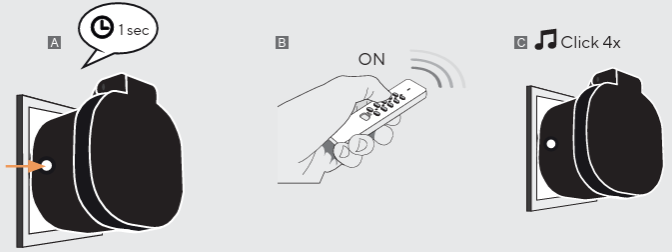

Pairing
- Short-press the button on the switch to start the pairing mode.
- The LED indicator on the switch will blink green. (The Start-Line pairing mode lasts for 12 seconds.)
- During the pairing mode (within 12 seconds), send an ON signal using a Trust Switch-In transmitter.
- The switch will make a clicking sound 4 times to confirm that the pairing was successful.
- The switch can store up to 32 different transmitters in its memory.
- The paired transmitters will remain stored even if the switch is moved to another outlet.

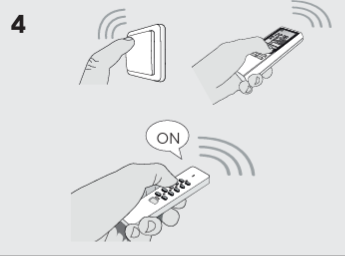

Wireless Control
- Use the paired Start-Line transmitter to send an ON signal to wirelessly turn on the light/device.
- Use the paired Start-Line transmitter to send an OFF signal to wirelessly turn off the light/device.
Reset
- First, disconnect any connected devices from the switch before performing this step.
- Lights may remain connected.

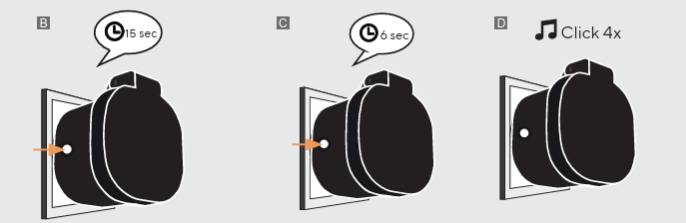

- To reset Matter, press and hold the button on the switch for 15 seconds until the LED blinks red.
- When the LED blinks red, press and hold the button again for 6 seconds.
- The switch will click 4 times to confirm the reset.

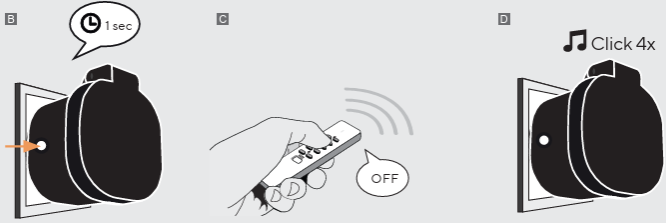

Removing
- First, disconnect any connected devices from the switch before performing this step.
- Lights may remain connected.
- Shortly, press the button on the switch to activate the pairing mode.
- The pairing mode will be active for 12 seconds, and the LED indicator on the switch will blink green.
- While the pairing mode is active (within 12 seconds), send an OFF signal with the connected Trust.
- Switch-In transmitter. (Refer to the transmitter’s manual if needed.
- The switch will click 4 times to confirm that the transmitter has been removed.

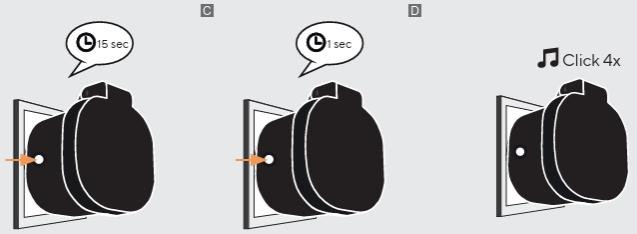

Start Line Memory
- First, disconnect any connected Trust MAGC-2300 Smart Outdoor Socket Switch devices from the switch before performing this step. Lights may remain connected.
- To reset the Start-Line memory, press and hold the button on the switch for 15 seconds until the LED blinks red.
- When the LED blinks red, press the button briefly again.
- The switch will click 4 times to confirm the reset.

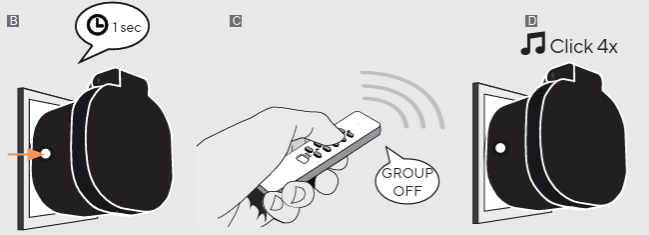

Memory With Remote
- First, disconnect any connected devices from the switch before performing this step.
- Lights may remain connected.
- Shortly, press the button on the switch to activate the pairing mode.
- The pairing mode will be active for 12 seconds, and the LED indicator on the switch will blink green.
- While the pairing mode is active (within 12 seconds), send a GROUP OFF signal with the connected Trust Switch-In transmitter. (Refer to the transmitter’s manual if needed.
- The switch will click 4 times to confirm the reset.
Customer Service
- Website: https://www.trust.com/
- Address: Laan van Barcelona 600, 3317 DD Dordrecht, Netherlands
- Trade Register Number: 23078603
Copyright ©2025 Trust International B.V. All rights reserved.
FAQs
Q: What can I control with the MAGC-2300 Smart Outdoor Socket Switch?
Anything that falls within the power rating of the switch can be controlled remotely, including minor appliances, fountains, yard lights, and holiday decorations.
Q: Do I need a hub or controller for the switch to work?
Depending on the version, the switch can be controlled with a suitable remote or connected to a Trust Smart Home bridge. Look for the necessary control mechanism on your packing.
Q: Can I use the switch with my existing Trust Smart Home system?
The MAGC-2300 may easily be integrated into your existing system because it is usually compatible with Trust Smart Home transmitters, controllers, and apps.
Q: How do I pair the switch with a remote or controller?
Activate the required command from your remote or hub after putting the switch in learning mode (typically by pushing the designated button). The switch should click or blink briefly to confirm coupling.
Q: What is the maximum power load the socket can handle?
The handbook specifies the maximum load that the switch can handle, which is usually sufficient for basic appliances and outdoor lighting. To prevent overloading, always check the wattage of your gadget.
Q: Can I schedule the socket to turn on and off automatically?
You may automate your outdoor gadgets with schedules, timers, or scenes if you combine them with a Trust Smart Home controller or app.
Q: Is the socket safe to leave outside year-round?
Yes, provided that it is water-resistant and mounted correctly. Steer clear of locations where it might get wet or where a lot of snow or debris could obstruct the outlet opening.
