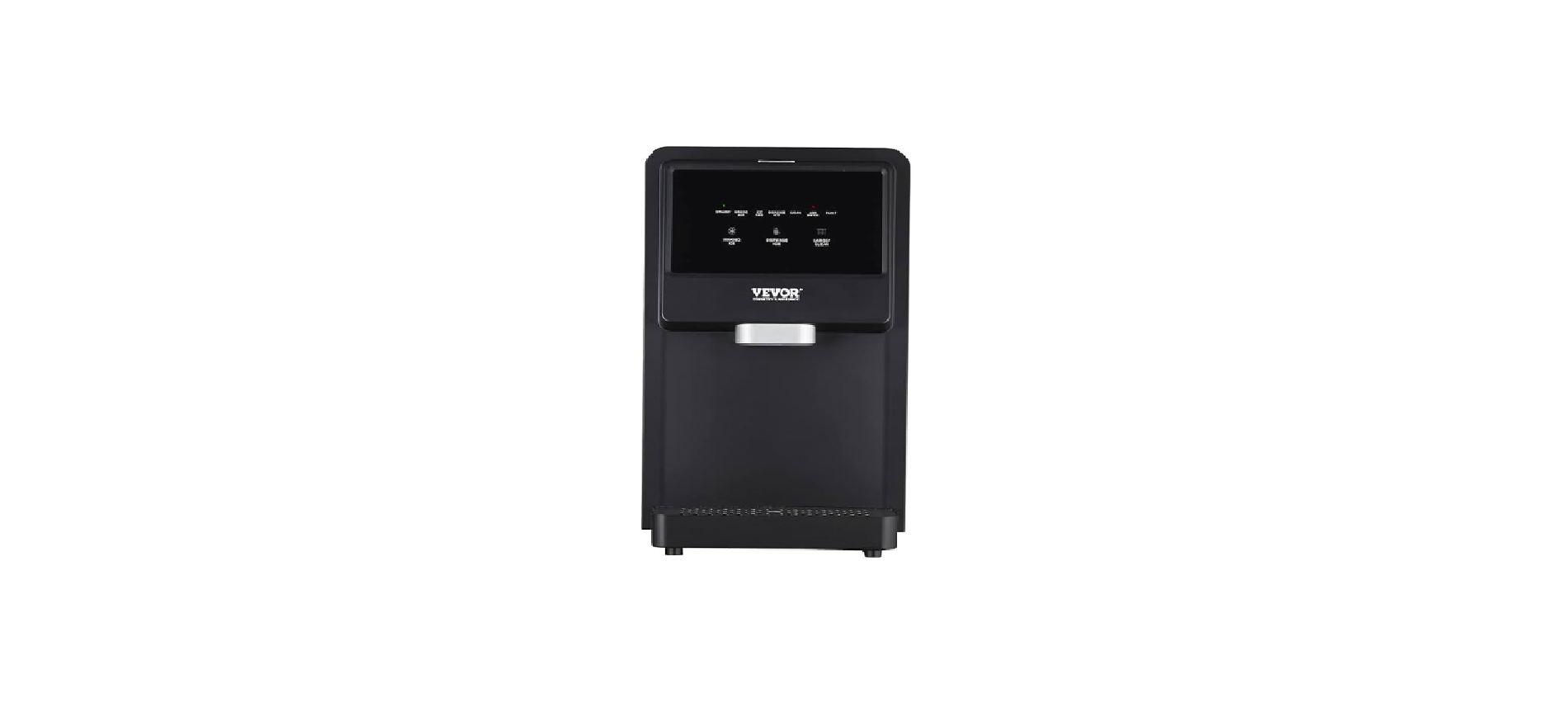

Vevor SKF-S25J Counter Top Cube Ice Maker
Safety Instructions
This manual and the appliance itself provide important safety messages to be read and always observed. This is the warning / caution-safety symbol, regarding safety, warning of potential risks to users and others. All messages relevant to safety specify the potential risk to which they refer and indicate how to reduce the risk of injury, damage, and electric shock due to incorrect use of the appliance. Make sure to comply with the following:
- Do not repair the appliance unless specifically stated in the user manual.
- The power cable must be long enough to connect the appliance, fitted in the cabinet, to the power supply.
- For installation to comply with the current safety regulations, an omnidirectional switch with a minimum contact gap of 3mmisrequired.
- Do not use multi-sockets or extension cords.
- Do not pull the appliance’s power cable.
- The electrical parts must not be accessible to the user after installation.
- The Manufacturer declines any liability for inappropriate use or incorrect setting of the controls.
- The accessible parts can become very hot during use. Children must be kept away from the appliance and watched over to ensure they do not play with it.

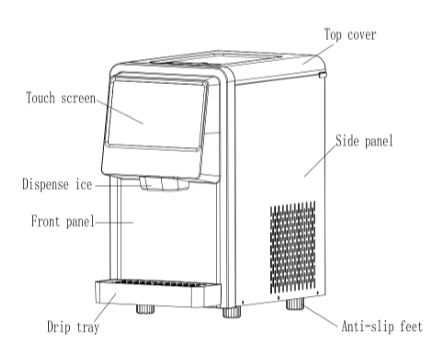

Overview
Installation and Setup
The product is designed to be installed indoors. Do not use your ice maker outdoors.
- The product must be installed upright on a flat, level surface that is able to support the total weight when full of water.
- Ensure a minimum of 50cm clearance around the side and back walls of the ice maker for proper air circulation.
- Install the product in a well-ventilated area with an ambient temperature between 3℃ and 40℃.
- Do not place the product near heat sources such as ovens or cooktops.
- Do not place the product in direct sunlight or rain.
- Do not place any stuff on the top of the machine.
Prepare for Use
- Carefully remove the Vevor SKF‑S25J countertop cube ice maker packing material. Do not use sharp tools that can damage the ice maker.
- Ensure all components are present. (An assembled filter, 1 drainage pipe, silic pluggs, a drip tray, and a nd drip tray cover are standard on the machine.)
- Place the ice maker upright on a flat, level surface and plug it in.
- Clean the ice maker before first use.

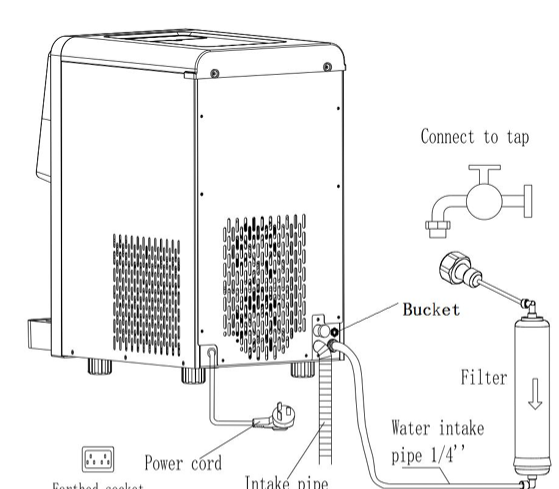

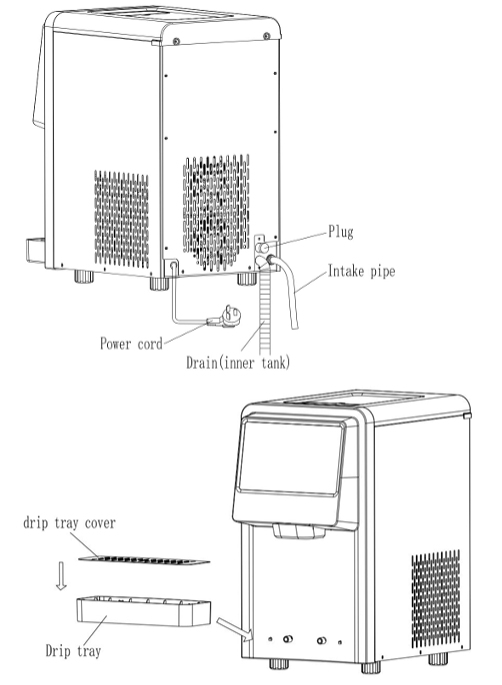

Connect to the Water and Drain Pipe
Plug the water intake pipe firmly into the connector at the back of the machine until you can’t insert it anymore, and the other side connects to the water tap.
Understanding the Display
Please make sure.
- The tap is on, or there is water in the bottle.
- The drain pipe was Vevor SKF‑S25J countertop cube ice maker inserted into the sink or bucket
- The machine is powered on.

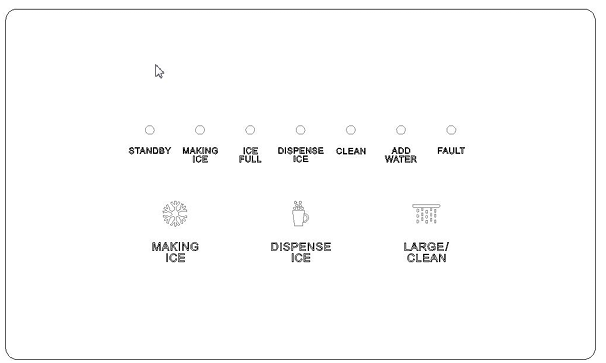

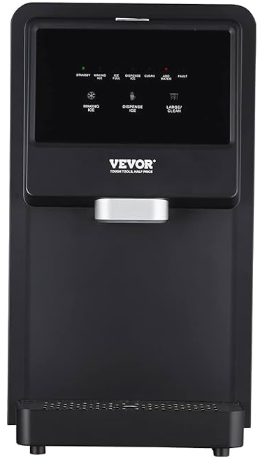

Touch Screen
Control board
- Standby: Plugging the power cord into the socket will make the machine enter standby mode.
- Touch the “making ice”,” dispense ice”, and clean” icons under standby mode, and the selected indicator will blink.
- Making ice: Touch the “Making ice” icon under standby mode or “clean” mode to make the machine start to make ice.

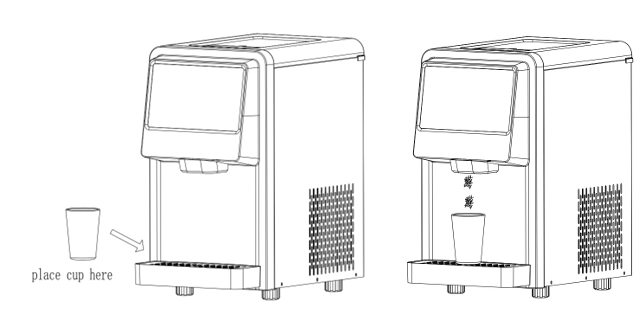

- Dispense ice: Touch this icon under standby or “making ice” mode will make the machine dispense ice; touch it again to stop dispensing.
- Large / Clean: Touch this icon during “making ice” mode will make the machine dispense ice continuously for 5 minutes; touch again will make the machine stop dispensing ahead of time.
- Ice full: As infrared Vevor SKF‑S25J countertop cube ice maker rays detect no ice falling over 2 min, the machine will stop, and the “ice full” indicator will be on.
- Fault: If no ice falls over 15 minutes for the first cycle, the machine will stop, and the FAULT indicator will be on. After that, if there is no ice falling for over 3 minutes, the machine will stop working, and the FAULT indicator will be on.
Cleaning and Care
For long-term storage
- Power off the machine and pull the plug.
- Turn off the faucet and remove the inlet pipe
- Take out all the ice, and drain the water inside
- Dry the ice bin and interior.
Daily cleaning
During working time, more and more scales will precipitate in the water tank. Take all nuggetice out, add 10%ediblecitricacidtothe the water during cleaning, touch the clean icon, it will take about 5 minutes to finish the clean procedure, and then repeatedly rinse with fresh water before observing water flow, and then turn
Pull the plug be cleaning or maintaining. To make the machine work normally, check and clean the condenser regularly. Don’t use alcohol to clean the in-wall of the machine, as it will break the plastic materials. Clean the exterior with detergent weekly

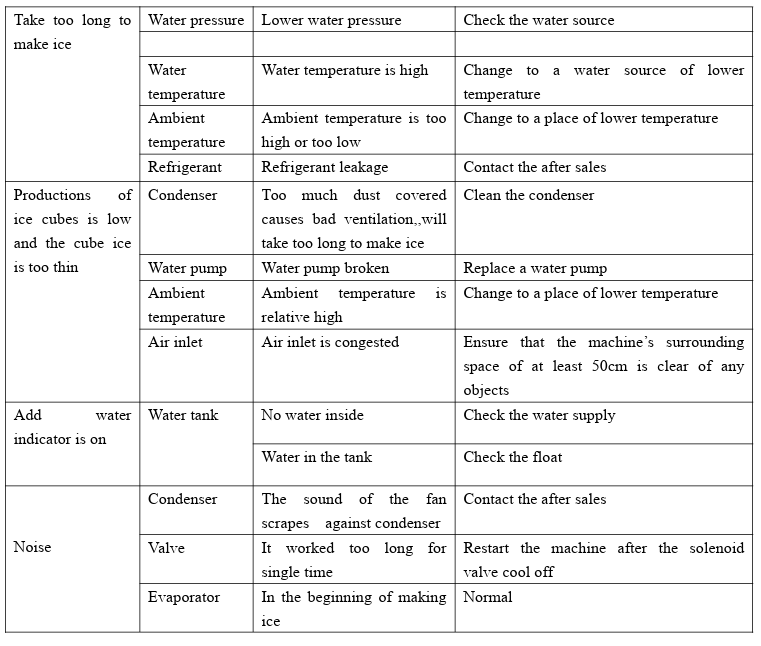

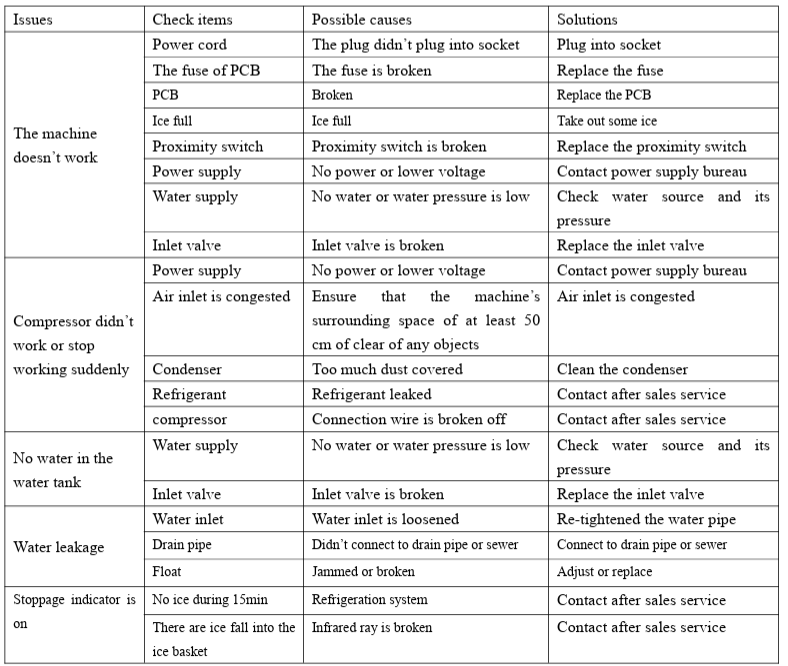

Troubleshooting

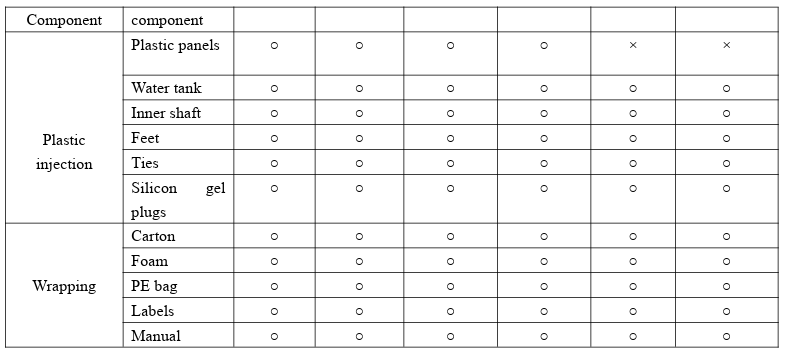

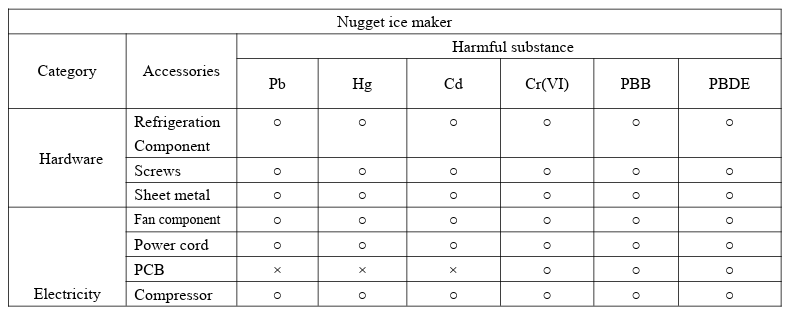

RoHS

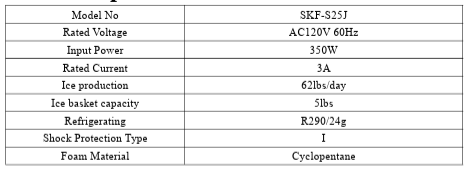

Specifications
Customer Service
- Email: @vevor.com
- Website: https://www.vevor.com/
- Manufacturer: Cixi Jirui Electric Appliance Co., Ltd
- Add: 118# Nanxin Road, Zonghan Street ,Cixi Cit y,Zhejiang Province
- E-mail: CustomerService@vevor.com
