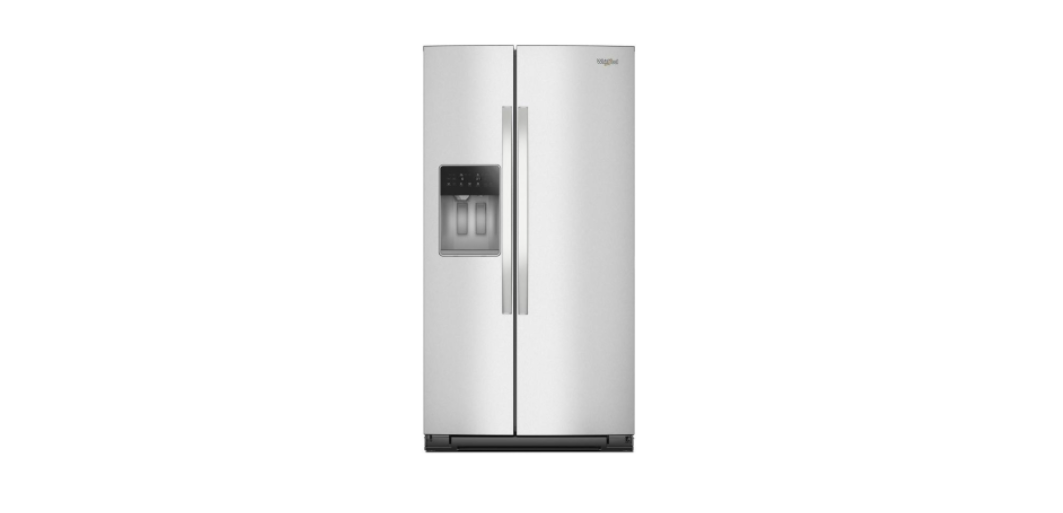

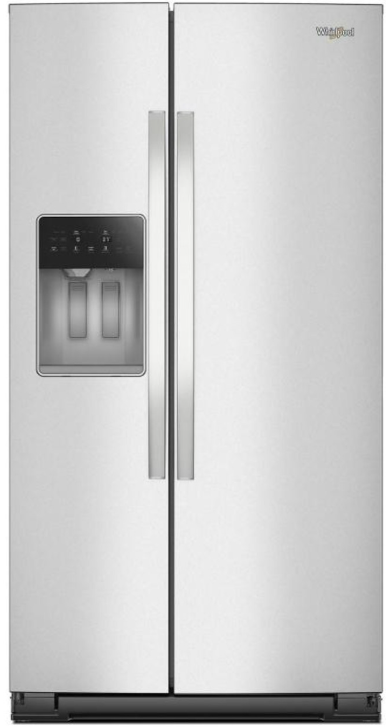

Whirlpool WRSC5536R 36 Inch Refrigerator
PRODUCT DIMENSIONS
| Model Number | WRSC5536R*, WRSC6536R* |
| Model Size | 20.85 cu ft (589.8 L) |
| Depth – Without Handles “A” | 271/2” (69.8 cm) |
| Depth – With Handles “B” | 291/4” (74.3 cm) |
| Height – Top of Cabinet “C” | 687/8” (174.9 cm) |
| Height – Overall “D” | 69″ (175.3 cm) |
| Width – Cabinet “E” | 36″ (91.4 cm) |
| Depth – Doors Open 90° “F” | 457/8” (116.4 cm) |
| Handle and door style will vary with model.
Dimensions “C” and “D” included rollers extended 3/4″ (1.9 cm). |
|
ELECTRICAL REQUIREMENTS
Recommended Grounding Method
A 115 V, 60 Hz AC only, 15 A or 20 A fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.
Water Pressure
A cold water supply with water pressure between 30 psi and 120 psi (207 kPa and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.
Reverse Osmosis Water Supply
If the water pressure to the reverse osmosis system is less than 40 psi to 60 psi (276 kPa to 414 kPa):
- Replace the filter if necessary.
- Allow the storage tank on the reverse osmosis system to refill after heavy usage.
- If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. See “Water Filtration System.”
LOCATION REQUIREMENTS
- Observe all governing codes and ordinances.
- Comply with installation specifications and dimensions.
- Remove any moldings or decorative panels from kitchen Whirlpool WRSC5536R 36 Inch Refrigerator cabinets that would not allow access to the refrigerator for service.
- Contact a qualified electrical installer.
