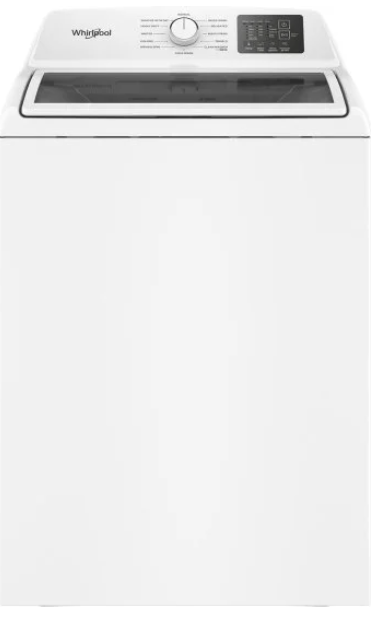

Whirlpool WTW4300SW Top Load Washer
Dimensions
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Electrical Requirements | |
| WTW4300SW – 4.3 cu ft DOE (US) & 5.0 cu ft IEC (CAN) | |
| WTW4307SW – 4.2-4.3 cu ft DOE (US) & 4.8-5.0 cu ft IEC (CAN) | |
| Minimum Circuit Amperage Rating | 15 A |
| Operating Voltage | 120 V AC only |
| Operating Frequency | 60 Hz |

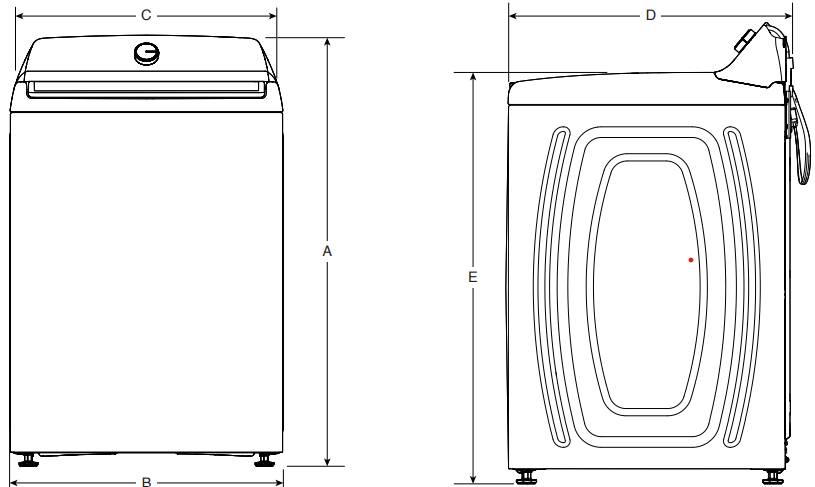

| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Product Dimensions | ||||
| WTW4300SW – 4.3 cu ft DOE (US) & 5.0 cu ft IEC (CAN) | ||||
| WTW4307SW – 4.2-4.3 cu ft DOE (US) & 4.8-5.0 cu ft IEC (CAN) | ||||
| in (minimum) | mm (minimum) | in (maximum) | mm (maximum) | |
| Height (with feet) | 425∕8 | 1083 | 431/2 | 1105 |
| Width | 271∕8 | 689 | – | – |
| Width of Lid | 233∕8 | 594 | – | – |
| Depth | 261/4 | 667 | 271∕8 | 689 |

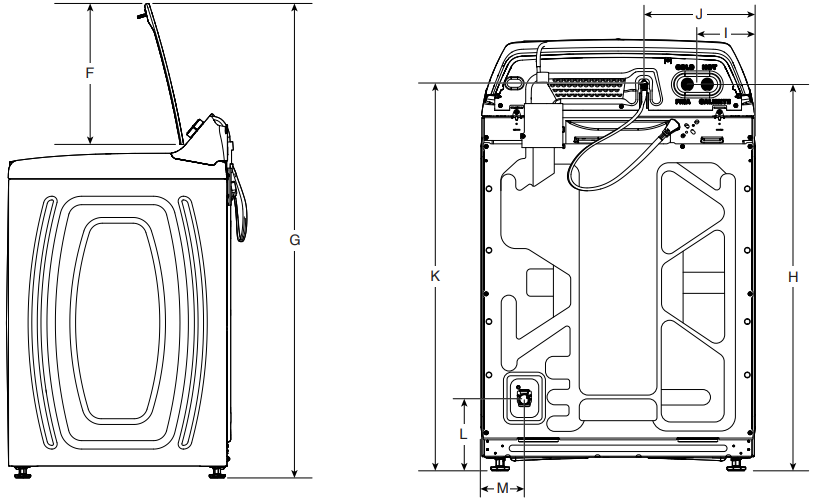

| in (minimum) | mm (minimum) | in (maximum) | mm (maximum) | |
| Height of Lid | 173∕8 | 441 | – | – |
| Height with Lid Open | 553∕8 | 1407 | 561∕4 | 1429 |
| Water Inlet Valves Height | 38 | 965 | 387∕8 | 987 |
| Water Inlet Valves from the Side | 43/4 | 121 | – | – |
| Power Cord from Side | 11 | 279 | – | – |
| Power Cord Height | 38 | 965 | 387∕8 | 987 |
| Power Cord Length | 611∕2 | 1562 | – | – |
| Drain Hose Outlet Height | 71∕8 | 181 | 8 | 203 |
| Drain Hose Outlet from Side | 41∕4 | 108 | – | – |
| Drain Hose Length | 555∕8 | 1413 | – | – |
| Diameter of Drain Hose | 1 | 25 | – | – |

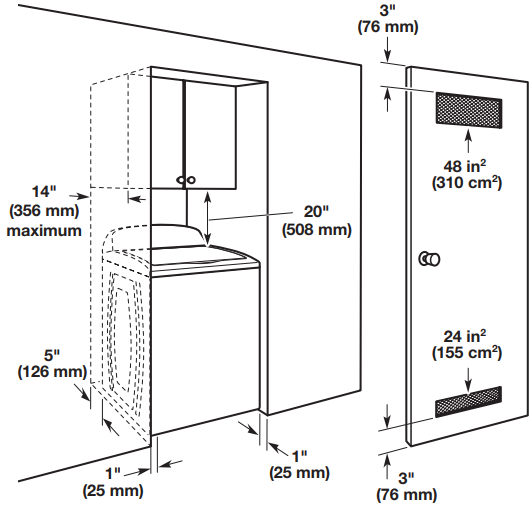

Recessed area or closet installation
This washer has been tested for installation with a spacing of 0″ (0 mm) clearance on the sides. Consider allowing more space for ease of installation and servicing, and spacing for companion appliances and clearances for walls, doors, and floor moldings. Add spacing of 1″ (25 mm) on all sides of the washer to reduce noise transfer. If a closet door or louvered door is installed, top and bottom air openings in the door are required.
Customer Service
- Website:Â https://www.whirlpool.com/
- Ph:Â 1-800-253-1301
FAQs
What type of washer is the Whirlpool WTW4300SW?
With its dual-action agitator, several wash cycles, and porcelain Whirlpool WTW4300SW Top Load Washer basket made for longevity and sensitive fabric treatment, the WTW4300SW is a top-loading, high-capacity automated washer.
Can I install the washer myself?
Indeed. To connect the water and drain hoses and level the machine, adhere to the manual’s recommendations. Use new intake hoses and make sure the connections are tight for optimal performance and to prevent leaks.
Does this washer require hot and cold water connections?
Indeed. Both hot and cold water inlets are necessary for the WTW4300SW to operate correctly. To control the water’s temperature, some cycles combine the two.
What’s the load capacity of this model?
With a capacity of up to 3.5 cubic feet, this washer is built to handle heavy loads. Avoid overloading, as this could impair wash performance.
Can I add clothes after the cycle has started?
Yes, but only in the early stages of agitation or wash fill. To resume, raise the lid, wait for the drum to stop, put on clothing, and then close the lid.
What type of detergent should I use?
For optimal results, use high-efficiency (HE) detergent. Measure in accordance with the load size and detergent label. To avoid residue buildup, don’t use too much.
Does this washer automatically adjust water levels?
No, you must select the Small, Medium, Large, or Super load size depending on the volume of washing because the WTW4300SW requires manual water level selection.
How do I prevent lint buildup?
This model could have a lint filter next to the drain pump or beneath the agitator. Avoid overtaxing the machine and clean it on a regular basis.
