Adler ad 1305 Electric Coloured Kettle Instruction Guide

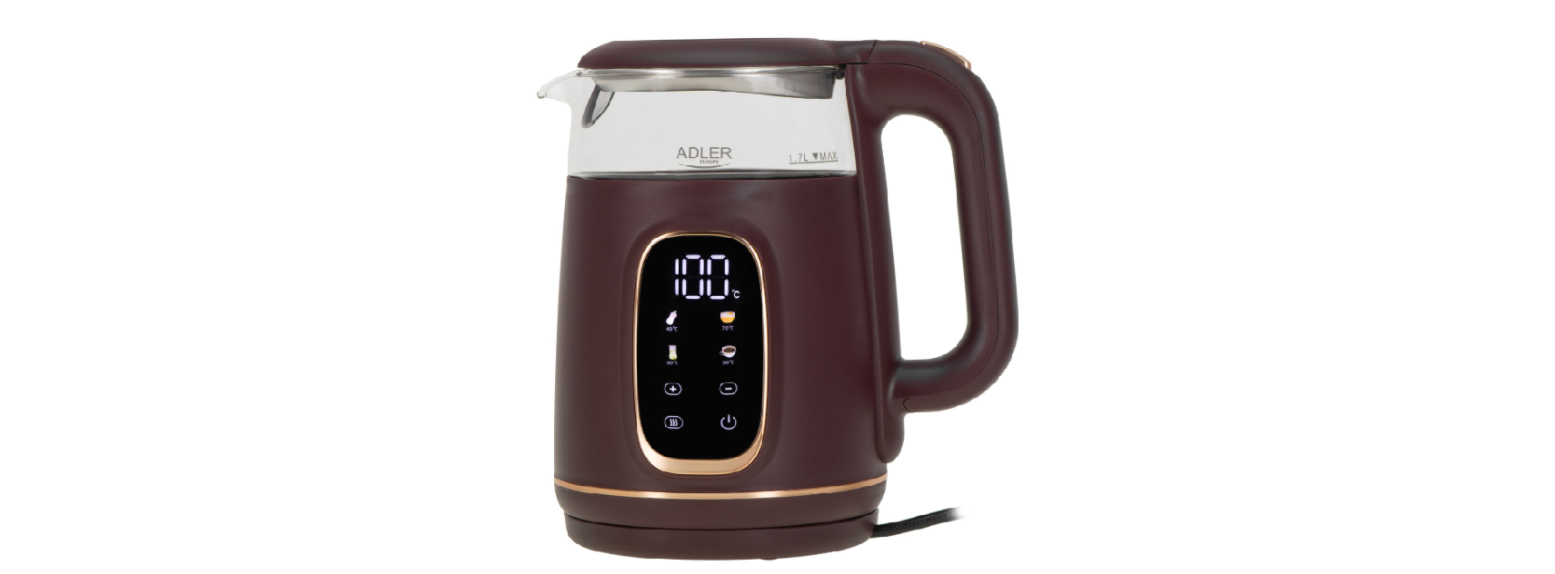

Adler ad 1305 Electric Coloured Kettle

Safety Instructions

1. Before using the device, read the instruction manual and follow the instructions contained therein.
2. The device is for domestic use only. Do not use for other purposes; incompatible with its purpose.
3. Take special care when using the device when children are around.
4. Do not allow children to play with the device.
5. Do not allow children or anyone unfamiliar with the device to use it.
6. Do not use the device if its housing is cracked.
7. Do not open the lid if the water is boiling.
8. Do not leave the appliance plugged into an outlet unattended.
9. Keep the device out of the reach of children.
10. Do not move the unit while it is in use.
11. Do not use the device near flammable materials.
12. The power cord must not hang over the edge of the table or touch hot surfaces.
13. If the kettle is overfilled, boiling water may gush out of it.
14. Carry the kettle only by holding the handle.
15. Do not turn on the kettle without water, as this may cause damage to the kettle.
16. Do not use the kettle without a filter or with the lid open, as the circuit breaker will not work then.

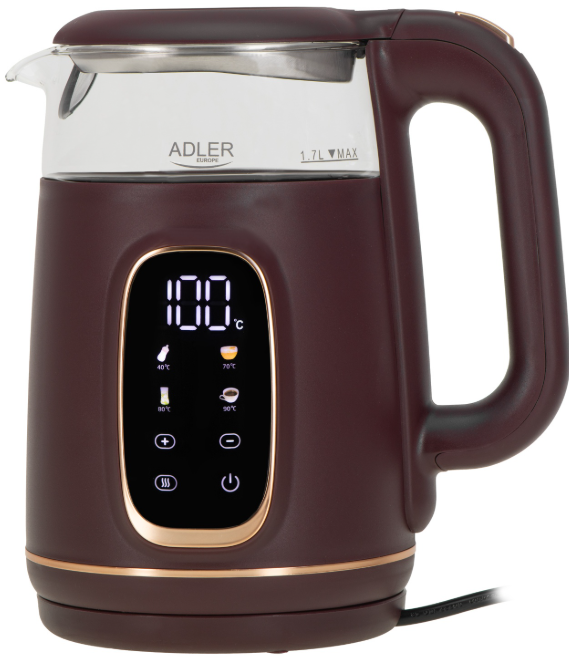

Description

1. LiLCDlay
2. Case
3. Holder
4. Base
5. Button to open the lid
6. MIN/MAX water level indicator
7. Touch panel
8. On/Off button – temperature setting 100℃
9. Temperature setting button 40℃
10. Temperature setting button 70℃
11. Temperature setting button 80℃
12. Temperature setting button 90℃
13. Temperature setting button + 5℃
14. Temperature setting button – 5℃
15. Temperature hold button

Before First Use

Fill the kettle with water three times to the maximum level, boil, and pour out. To remove any factory odor. Touch the buttons on the touch panel (8) only with your Adler ad 1305 Electric Coloured Kettle fingers;s, touching with your fingernails may damage the panel.

Basic Operation

1. Set the base (5) on a stable, flat, and heat-resistant surface.
2. Fill the kettle with water so that the water level is between the maximum and minimum levels on the water level indicator in the center of the kettle.
3. Remember to close the kettle’s lid (1) after filling, otherwise the kettle will not turn off automatically when the water boils.
4. Plug the power cord plug into a 220-240V ~50/60Hz grounded power outlet. Place the kettle on the base (5). You will hear a “di” sound, the touch panel (8) will light up, and the LCD (2) will indicate the current water temperature.
5. Press the (A) “On/Off” button, the (H) temperature hold indicator, and the “+”(F), “-” (G) indicator will light up, and the heater will start heating water. The LCD (2) will start to indicate the current water temperature. The water temperature will increase until boiling, that is, up to 100°C.
6. After the water boils, the kettle will automatically turn off, and you will hear a “di-di” sound twice. The LCD (2) will indicate 100°C, then after 25 seconds it will turn off, and the icon (A) On/off will
   flash.
7. Want to turn off the kettle before the water is finished boiling, lift it from the base (5) or press the On/Off button (A).
8. You can start turning the kettle on again about Adler ad 1305 Electric Coloured Kettle 2 minutes after the last use. For this purpose, press the (A) “On/Off” button.

Warm Function

Place the kettle on the base (5), you will hear a “di” sound. Press one of the temperature selector buttons on the panel (8), then press the temperature hold button (H). The indicator (H) will start flashiflashinch means that the temperature hold function is on.

After reaching the set temperature, the kettle will enter the temperature hold mode and will cycle the water when the water temperature drops by 5℃ from the selected temperature level.

If the water temperature in the kettle is higher than the desired temperature (more than 5℃), the temperature hold function indicator will flash until the water cools down to the pre-set temperature, being in temperature hold mode all the time.

To interrupt the temperature hold function, remove the kettle from the base (5) or press the button (A).

Cleaning & Maintainance

This activity is not subject to warranty service. Failure to decalcify regularly will lead to damage to the kettle and void the warranty. To decalcify, use specially designed preparations for this purpose in accordance with the instructions for use of the decalcifying agent. After decalcification, rinse the kettle very thoroughly three times.

Specifications

• Capacity max: 1.7L min: 0.5L
• Voltage: 220-240V ~50/60Hz
• Power: 1850-2200W

Customer Service

• Website:  service@adlerglobal.com.
• Ph: 0800 9753 003
• Timings:  Mo – Fr, 8:30 am – 5:00 pm

FAQs

What is the kettle’s water capacity?

With the AD 1305’s usual maximum capacity of 1.7 litres, you can boil enough water for multiple cups at once. Prior to usage, always verify the water level indicator’s MIN and MAX marks.

Can I boil water below the minimum level or above the maximum line?

No, boiling beyond the maximum line can result in hot water spilling or boiling over, while boiling below the minimum level can harm the heating element. Stay inside the designated range at all times.

Does the kettle automatically switch off?

Indeed! When the water hits the boiling point, the Adler AD 1305’s automatic shut-off feature switches the kettle off.

Is the kettle cordless?

Indeed. The kettle itself is cordless and has a base that rotates 360 degrees, making it simple to lift and pour from any position. Only the base has the power cord attached.

Can I heat other liquids besides water?

No. The kettle’s sole purpose is to heat water. It can leave residue, overheat, or harm the heating element, so avoid using it for milk, tea, coffee, or soups.

Can I pour water while the kettle is still hot?

Yes, but be careful handling it. To avoid burns or splashing, always pour slowly using the handle. To prevent steam burns, never open the lid right away after boiling.

What is boil-dry protection?

A safety feature called boil-dry prevention senses when there is not enough water in the kettle and instantly shuts it off. This prolongs the kettle’s life and guards against harm to the heating element.
