AURZEN EAZZE D1G 4K Google TV Smart Projector User Guide

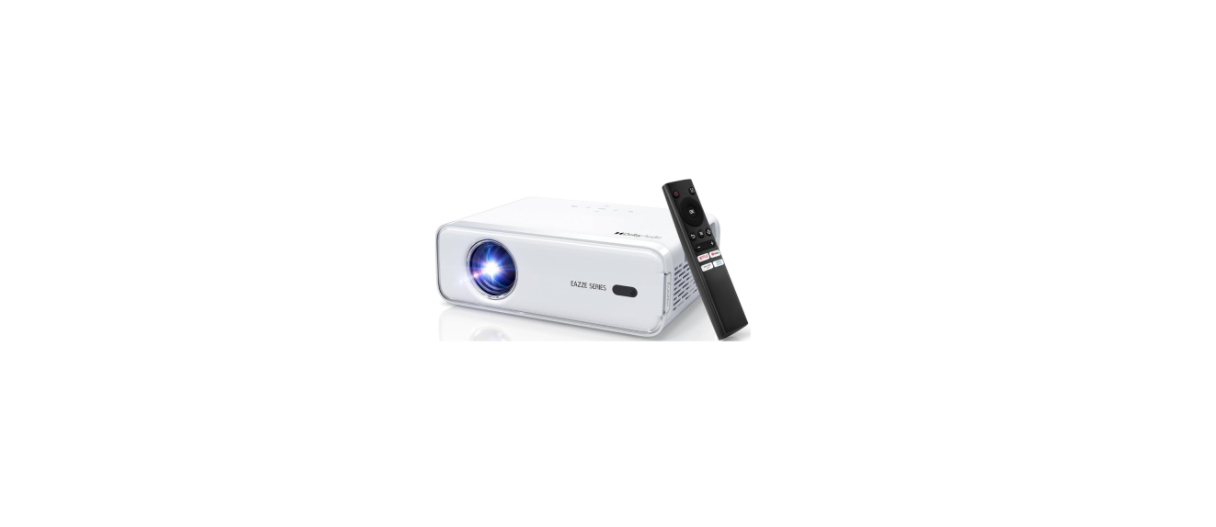

AURZEN EAZZE D1G 4K Google TV Smart Projector

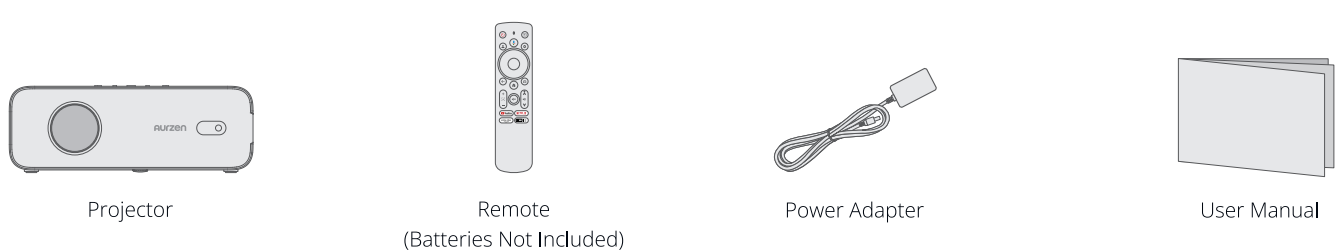

IN THE BOX

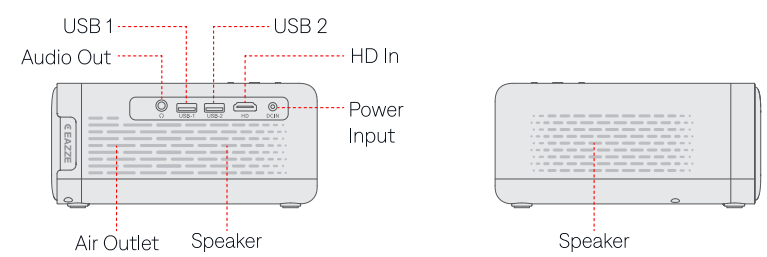

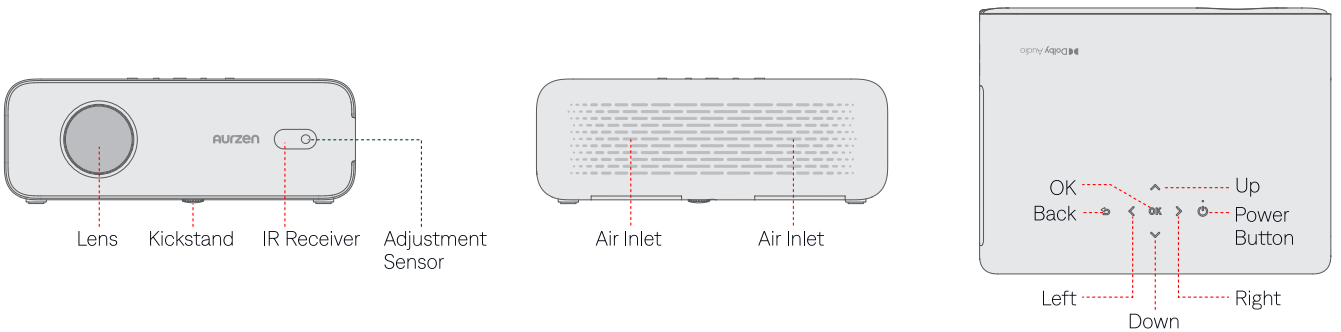

PROJECTOR OVERVIEW

Projector

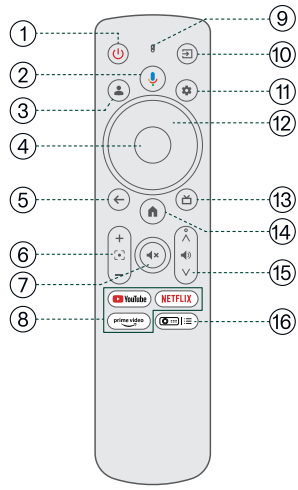

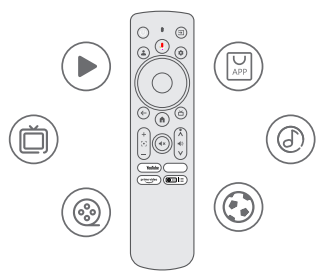

Remote Control

1. Power Press to power on/switch to standby mode/ wake up/press and hold for 3s to power off
2. Google Assistant: Press and hold, and talk
3. User Profile Press to see the profile page
4. ок Confirm a selection/pause/resume
5. Back Return to previous page
6. Focus Adjustment
7. Mute
8. Streaming Apps Jump to video streaming pages
9. Indicator Light
10. Press to choose from the input sources

QUICK START

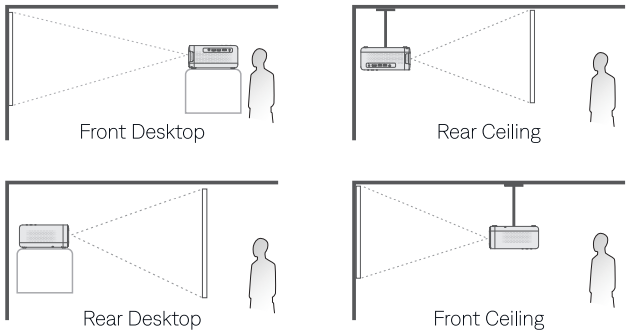

1. Projector Installation

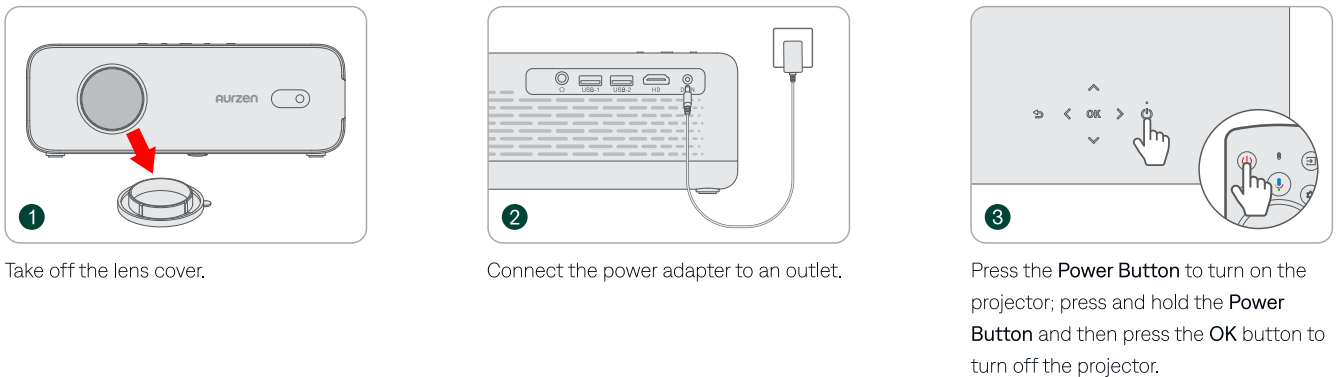

2. Power On/Off

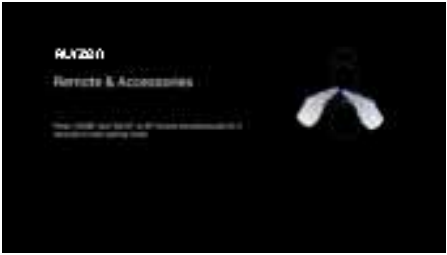

3. Remote Control Pairing: Turn on the projector and wait for the pairing prompt on the screen. Bring the remote control within 0.33 ft/10 cm of the projector, then simultaneously press and hold the A and A buttons. Wait for the pairing to complete.

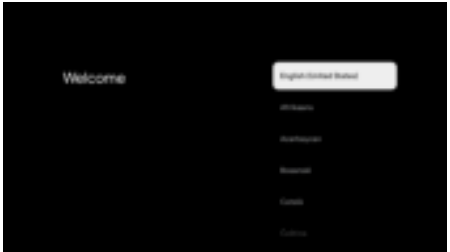

4. Set up Wizard: Follow the setup wizard to select the projection mode, choose your preferred language, select the correct region, and sign in with your Google Account or set up basic TV.
5. Image Adjustment

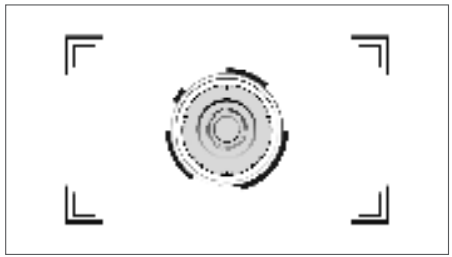

   1. Auto Focus image quality. When the projector detects shaking/rapid movement, it will automatically adjust the image quality.
   2. Electric/Manual Focus You can also press the Focus buttons on the remote or go to Homepage > Dashboard @ > All settings ® > Projector > Focus > Manual Focus to sharpen the image focus until the blurry image becomes clear.

Keystone Correction

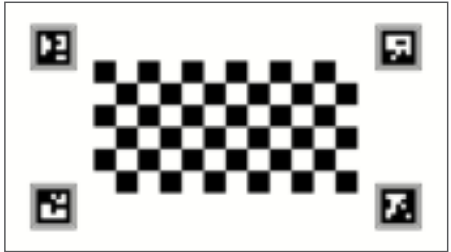

1. Auto Keystone Correction: When the projector detects shaking/rapid movement, it will automatically correct the keystone distortion.

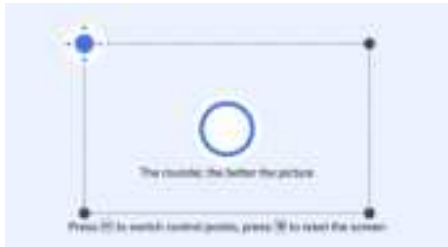

2. Manual Keystone Correction: Go to Homepage > Dashboard > All settings to manually correct the image shape by four points. > Projector > Keystone > Manual Keystone

Intelligent Screen Fit

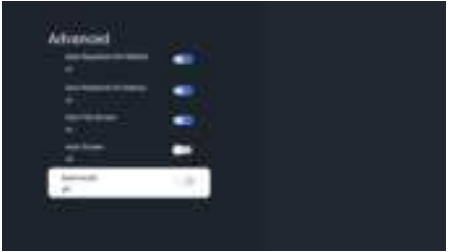

Go to Homepage > Dashboard E) > All settings ® > Projector > Keystone > Advanced > Auto Screen to enable the function. The projector will automatically adjust the projected image to fit the screen.

Intelligent Obstacle Avoidance

Go to Homepage > Dashboard ® > All settings®> Projector > Keystone > Advanced > Auto Avoid to enable the function. The projector will automatically adjust the projected image to avoid any objects on the projection surface.

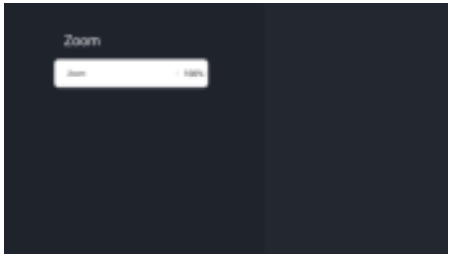

Image Scaling

Go to Homepage > Dashboard. > All settings ® > Projector > Zoom to reduce or enlarge the image size.

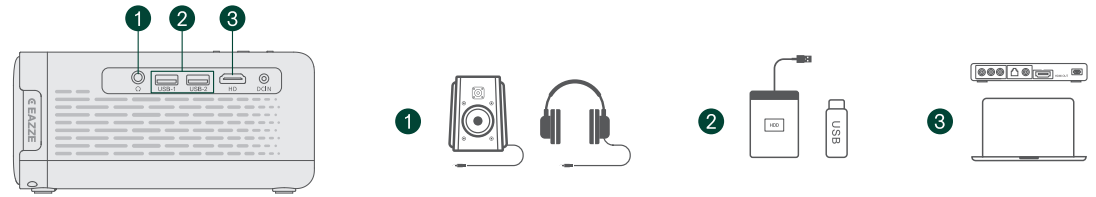

PROJECTOR CONNECTION AND INPUT SOURCE

Connect your device to the projector correctly, then select the right input source.

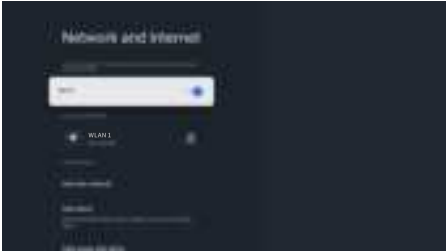

WIFI CONNECTION

You can connect your projector to your router’s WiFi by going to Homepage > Dashboard @ > All settings > Network & Internet.

GOOGLE ASSISTANT

Your TV is more helpful than ever. Use your voice to find movies, streaming apps, play music, and control the TV. Ask Google Assistant to find a specific title, search by genre, or get personalized recommendations. Get answers on screen, control smart home devices, and more. Press the Google Assistant button on the remote to get started.

GOOGLE CASTT™

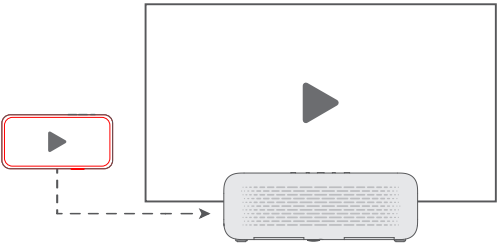

Google Cast is a platform that lets you stream your favorite entertainment from your phone, tablet, or laptop right to your projector. Easily control your TV with apps you already know and love from your iPhone®, iPad®, Android™ phone or tablet, Mac®, Windows® laptop, or Chromebook. To use Google Cast, please ensure you are using a Google Cast-enabled app and follow the instructions below.

1. Connect your device and the projector to the same wireless network.
2. Open the streaming app on your device.
3. Play a video and tap the casting icon J on the video screen. Select AURZEN DiG to connect. The projector will display the video from your device.

Screen Mirroring Using the Google Home App (For Android Devices)

You can mirror your entire Android device screen onto the projector screen.

1. Ensure that you have installed the Google Home app on your device.
2. Ensure that both your device and the projector are connected to the same wireless network.
3. Open the Google Home app and go to the Devices tab. Find and select AURZEN DiG (or the name of your projector if you have renamed it).
4. On the device page, tap Cast my screen and confirm when prompted. Your device’s screen will be mirrored on the projector screen.

Screen Mirroring Using the AirScreen App

You can mirror the entire screen from your iOS/Android device onto the projector screen.

1. Ensure that both your device and the projector are connected to the same wireless network.
2. Search and install AirScreen on the Apps tab – AirPlay is available on your projector.
3. Open the AirScreen app and follow the on-screen instructions to complete the process.

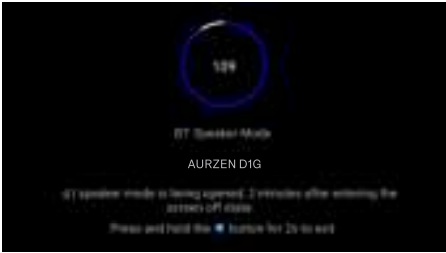

BT SPEAKER MODE

You can use this projector as a BT speaker by connecting your mobile device to it through a BT connection.

Step 1: Go to Homepage > Dashboard > All settings, make the projector ready for a BT connection. > Projector > BT Speaker Mode to

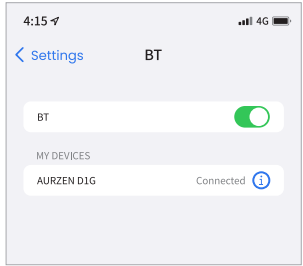

Step 2: Access your mobile device’s BT settings and activate BT. Search for AURZEN DiG in the available devices list to pair your mobile device with the projector.

MORE SETTINGS

1. Color Temperature Go to Homepage > Dashboard® > All settings) > Display & Sound > Picture > Advanced Settings > Color Temperature to select from User, Cool. Standard, and Warm.
2. Reset Go to Homepage > Dashboard@ > All settings ® > System > About > Reset to restore the projector to factory settings.
3. System & Product Info Go to Homepage > Dashboard > All settings ® > System > About to check system & product information.

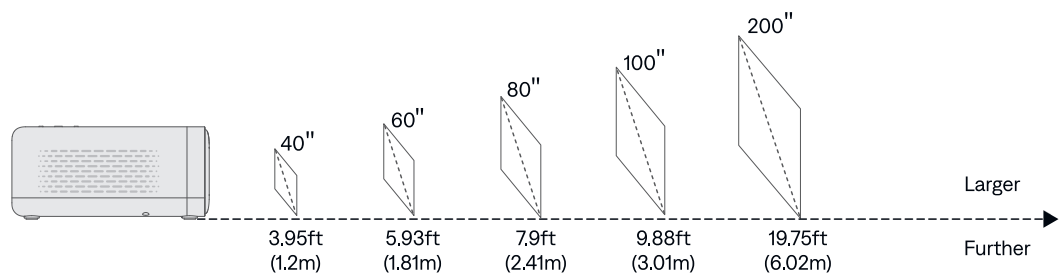

PROJECTION DISTANCE AND SIZE

• For optimal image quality, we recommend a projection size of 60′. Position the projector 5.93ft (1.81m) away from the wall or screen.
• The recommended projection distance varies with different projection contents. Please adjust the distance between the wall/screen and the projector as needed.
• Ambient darkness will improve the clarity of the projected images.

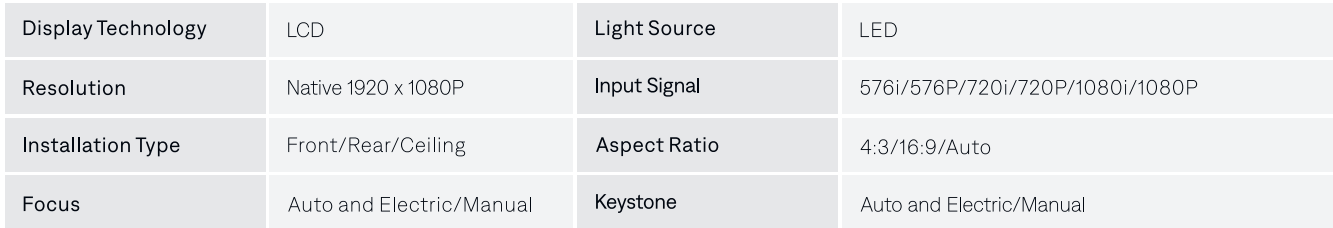

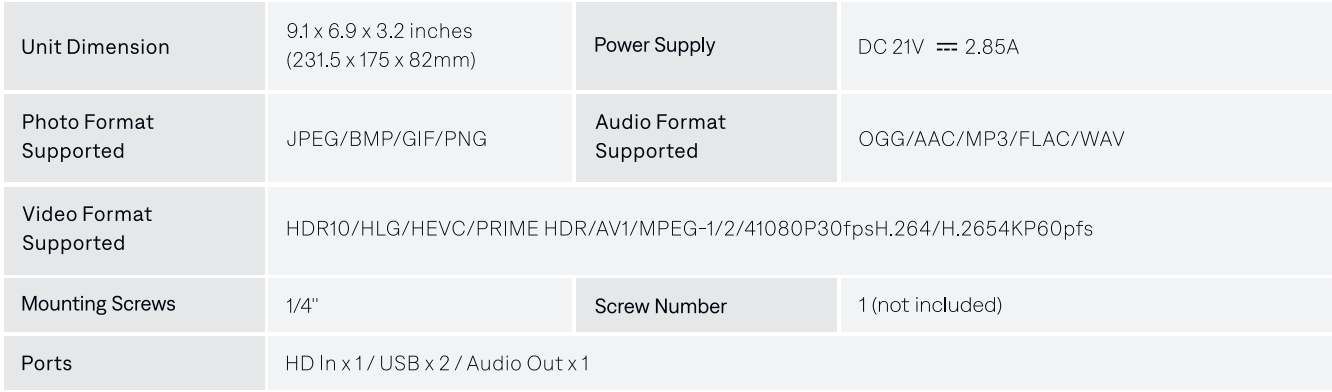

SPECIFICATION

Statement

Google TV is the name of this device’s software experience and a trademark of Google LLC. Google, YouTube, Google Home, Google Cast, and other marks are trademarks of Google LLC.

FC

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

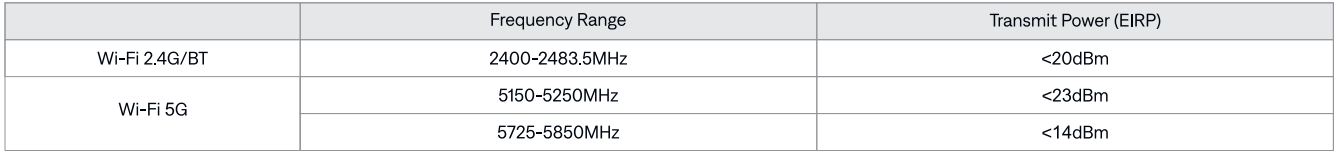

The radio frequency specification below only applies to the EU and UK regions:

TROUBLESHOOTING GUIDE

1. The copyrighted content from Hulu, Netflix, and similar services can not be mirrored or cast.
   • This projector offers a range of pre-installed streaming apps that are officially licensed. You can go to the homepage > Apps, search for the app, and log in to your account to play the content. For casting, refer to the “Google Cast” section.
2. Fuzzy Image
   • Adjust the focus or keystone correction of the projector.
   • Make sure the projection distance is in the effective focal range of the projector.
   • Remove the dust or dirt from the lens with a blower or soft-bristled brush.
3. Non-rectangular Image
   • Place the projector perpendicular to the screen/wall if the keystone correction function is not used.
   • Use the keystone correction function to adjust image shape.
4. Automatic keystone correction failure
   • Make sure the adjustment sensor on the front of the projector is not blocked or smudged.
   • Move the projector until it is perpendicular to the projection surface and try again.
5. Autofocus failure
   • Make sure the adjustment sensor on the front of the projector is not blocked or smudged.
6. Connect the BT devices.
   • Go to Homepage > Dashboard > All settings > Remotes & Accessories to check the BT device list, and connect the device.
7. The power adapter is getting warm.
   • It’s normal for the power adapter to generate heat during use. It’s been tested and meets safety standards. Rest assured.
8. Others
   • Please feel free to contact us at support@aurzen.com.
