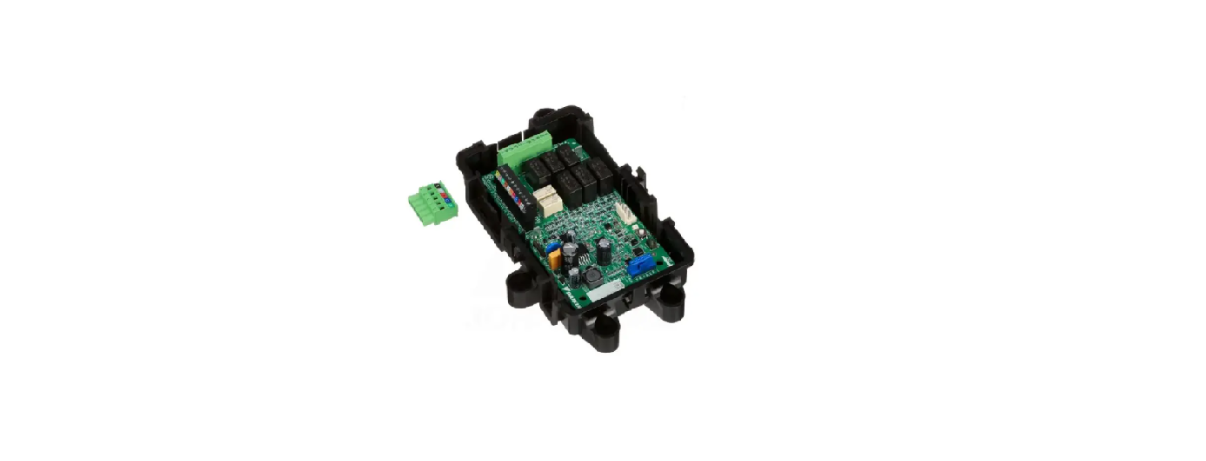

Goodman NON-A2L Furnace Integration Kit
Safety Instructions
It is the owner’s and installer’s responsibility to read and comply with all safety information and instructions accompanying these symbols.
The manufacturer will not be responsible for any injury or property damage arising from improper supervision, service or service procedures. If you service this unit, you assume responsibility for any injury or property damage which may result. In addition, in jurisdictions that require one or more licenses to service the equipment specified in this manual, only licensed personnel should service the equipment.
Improper supervision, installation, adjustment, servicing, maintenance or repair of the equipment specified in this manual, or attempting to install, adjust, service or repair the equipment specified in this manual without proper supervision or training, may result in product damage, property damage, personal injury or death.

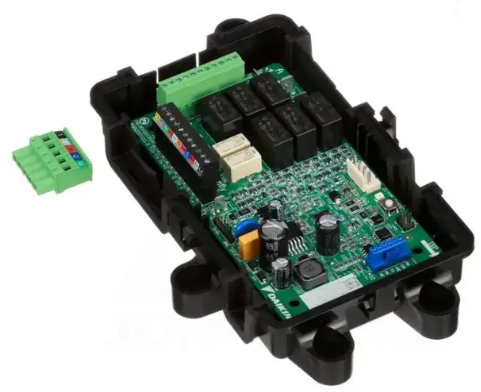

Package Content
| Items in the kit | Qty |
| IO Manual | 1 |
| PCB Case containing the PCB | 1 |
| Connector Pin 1 | 1 |
| Connector Pin 2 | 1 |
| Connector Pin 3 | 1 |
| Mounting hardware (screws) | 4 |
| Mounting hardware (wall anchors) | 4 |
Installation
If the installation check, as detailed in these installation instructions, does not pass successfully and cannot be resolved by calling 1-855 DAIKIN1, option 3 for further assistance, the installer must replace the furnace or modular blower with an R-32 compatible furnace or modular blower.
The Non-A2L Furnace Integration Kit was designed to support the HVAC replacement market for systems containing 1) a Furnace, Indoor Coil and Outdoor Air Conditioner or Heat Pump unit or 2) a Modular Blower, Indoor Coil and Outdoor Air Conditioner or Heat Pump unit. If either the indoor coil or outdoor unit needs to be replaced, both must be upgraded to R-32 models. If the furnace or modular Blower is still operational, it does not need to be replaced.

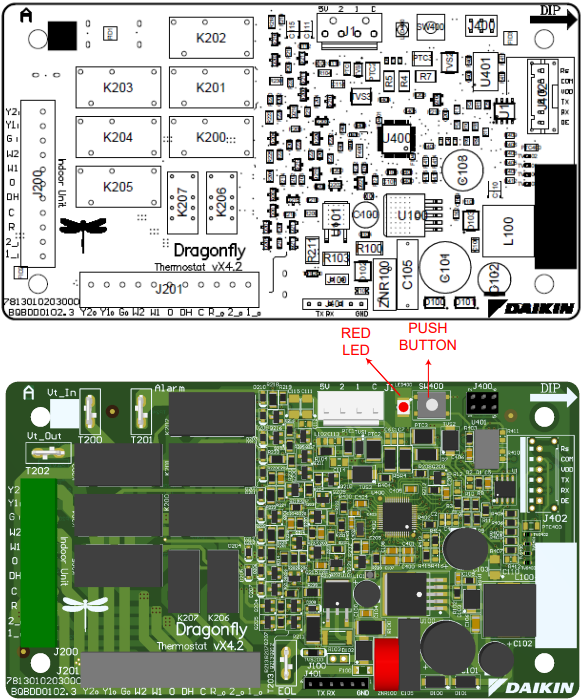

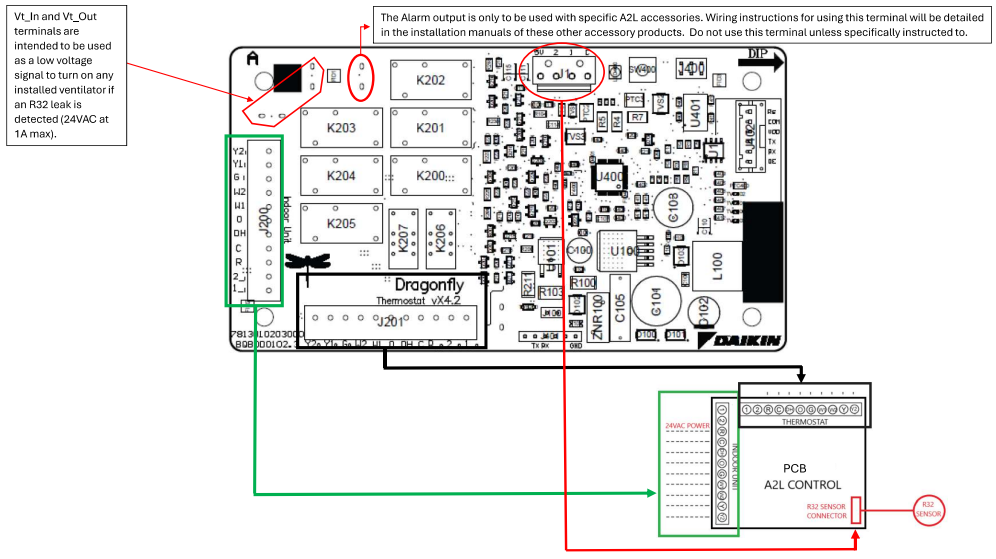

Images of PCB layout showing connector labelling below
Operation
NON-A2L FURNACE INTEGRATION KIT is designed to read R-32 sensor concentration and utilize existing function of indoor PCBs to mitigate R-32 leakage in the unlikely event of a leak in the system. The integration kit continuously monitors the system for R-32 leaks and does not impact the normal operation of the unit when no leak/sensor fault is detected.
A simplified version of the operating principle of the integration kit is described here. For a more in-depth understanding of the integration kit’s operating principle, please contact technical service. The integration kit has two screw terminal headers – Indoor Unit (Green) and Thermostat (Black). The integration kit is connected between the thermostat and indoor unit, and it controls the traffic of signals between the thermostat and indoor unit, based on the R-32 concentration.
- R-32 Concentration detection: The integration kit is connected to a refrigerant sensor, which detects R-32 concentration. The sensor transmits the concentration, and the integration kit acts based on the concentration.
- When R-32 concentration is at a safe level, the integration kit does not interfere between the thermostat and the indoor unit. All signals are passedthrough.
- When R-32 concentration is above a certain level, or the R-32 sensor or the integration kit encounters a fault, the integration kit energises the G (fan) terminal in the indoor unit by sending a 24VAC signal.
- It also disconnects the R signal to the thermostat and/or disconnects ClimateTalk® communication, as applicable. This action will terminate all HVAC operation (Cooling or Heating) while keeping the main blower on to dissipate any refrigerant gas.
NON-A2L FURNACE INTEGRATION KIT PRE-CHECKS
The NON-A2L FURNACE INTEGRATION KIT works successfully if the following are true for the thermostat and furnace or modular blower. While these conditions are true for most thermostats and furnaces or modular blower, please consult the user manual of the thermostat and furnace or modular blower to verify.
If the thermostat, furnace, or modular blower does not conform to these common operating principles, please contact technical service to identify a compatible thermostat and/or furnace or modular blower. Do not installthe R-32 coil and/or outdoor unit if the thermostat, furnace or modular blower is not compatible.
- Standard 24VAC Thermostat: R signal of the thermostat is the source of Y1/Y2, W1/W2, G and other signals. Please verify this by disconnecting the R signal in the thermostat. If the thermostat powers off, then the thermostat is compatible.
- Non-communicating Indoor Unit: Noncommunicating indoor units must activate the blower fan within 15 seconds when a G call is presented to activate the blower fan.
- Communicating Indoor Unit: Communicating indoor units must prioritise 24VAC calls over ClimateTalk® communication and activate the lower fan within 15 seconds when a G call is presented over a 24VAC signal. This is true for all ComfortNet systems.
- Recommended: A flexible light source so that indoor unit terminals can be illuminated hands-free. It is also recommended to have sufficient light near the indoor unit terminals.
| Indoor Unit Terminal | Colour of the Wire from the Thermostat | Colour of the Wire to the Outdoor Unit | Colour of the Wire to EEV Unit |
| R | – | – | – |
| C | – | – | – |
| G | – | – | – |
| Y1 | – | – | – |
| Y2 | – | – | – |
| W1 | – | – | – |
| W2 | – | – | – |
| DH | – | – | – |
| O | – | – | – |
| 1 | – | – | – |
| 2 | – | – | – |
Integration Kit Work Scope
During installation of the kit:
- Disconnect wires coming from the thermostat and outdoor unit to the indoor unit.
- Connect appropriate wires from the thermostat to the integration kit’s “Thermostat” terminals.
- Use new wires to connect the integration kit’s “Indoor Unit” terminals to the indoor.
- If applicable, disconnect 4 wires for EEV coil from Indoor unit, and connect them to PCB’s “Indoor Unit” terminal per the wiring diagram provided on page 10.
- Complete the verification step.
- Verify normal operation.
- Verify mitigation function.
- Verify system returns to normal operation.
- Install and mount the kit.
Non-Communicating Outdoor Air Conditioner or Heat Pump
Perform the control R-32 leakage test for all modes of operation one by one – Cooling, Heating, Emergency heating, Constant fan and Idle. Each test will take approximately 2 to 15 minutes.
- Set the thermostat to one of the operation modes and ensure the system is running properly in that mode. Note which mode is being tested. The test sequence will need to be run again under the other modes as well.
- Locate the push button on the Non-A2L Furnace Integration Kit control and press it two times.
- The HVAC operation that was chosen should turn off (compressor, electric heat, gas heat) after a short period of time (times will vary depending on the installed system, but Electric Heat or Gas Heat should turn off within 30 seconds,s and the outdoor unit should turn off within 2 minutes).
- The indoor blower will begin to operate within 30 seconds and remain running.
- Once steps c and d have been confirmed, the test is successful. It is recommended to wait for the full 5-minute test to expire.
- Wait for the system to return to the state it was in after the first step, to confirm the system will automatically recover, and then repeat the tests on the Goodman NON-A2L Furnace Integration Kit using the other HVAC modes not previously tested.
Communicating Outdoor Air Conditioner or Heat Pump
Perform the control R-32 leakage test for all modes of operation one by one – Cooling, Heating, Emergency heating, Constant fan and Idle. Each test will take approximately 2 to 15 minutes.
- Set the thermostat to one of the operation modes and ensure the system is running properly in that mode. Note which mode is being tested. The test sequence will need to be run again under the other modes as well.
- Disconnect the R32 sensor from the Non-A2L Furnace Integration Kit control board.
- Electric heat or gas heat will turn off after a short period of time (times will vary depending on the installed system, but Electric Heat or Gas Heat should turn off within 30 seconds).
- The indoor blower will begin to operate within 30 seconds and remain running.
- Once steps C and D have been confirmed, the test is successful. Reconnect the R32 sensor.
- Wait for the system to return to the state it was in after the first step, to confirm the system will automatically recover, and then repeat the tests on the Goodman NON-A2L Furnace Integration Kit using the other HVAC modes not previously tested.
Mitigation Performance
If an R-32 leak is detected, the Non-A2L Furnace Integration Kit control will automatically enter R-32 Mitigation mode. R-32 Mitigation mode provides the same performance as seen during the test mode. The NonA2L Furnace Integration Kit will ensure all HVAC system functionality (Heating and Cooling) is off, and the indoor blower is running.
After the R-32 sensor, the Goodman NON-A2L Furnace Integration Kit no longer detects refrigerant, the system will remain in mitigation mode for an additional 5 minutes. During these 5 minutes, the red LED will change from a rapid flashing pattern to being continuously on. After 5 minutes, the Non-A2L Furnace Integration Kit will allow the system to return to normal operation, and the red LED will start a slow flashing pattern again (2 seconds on and 2 seconds off).
Before Starting Installation
Check that all the cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of ageing or continual vibration from sources such as the furnace blower or the modular blower.

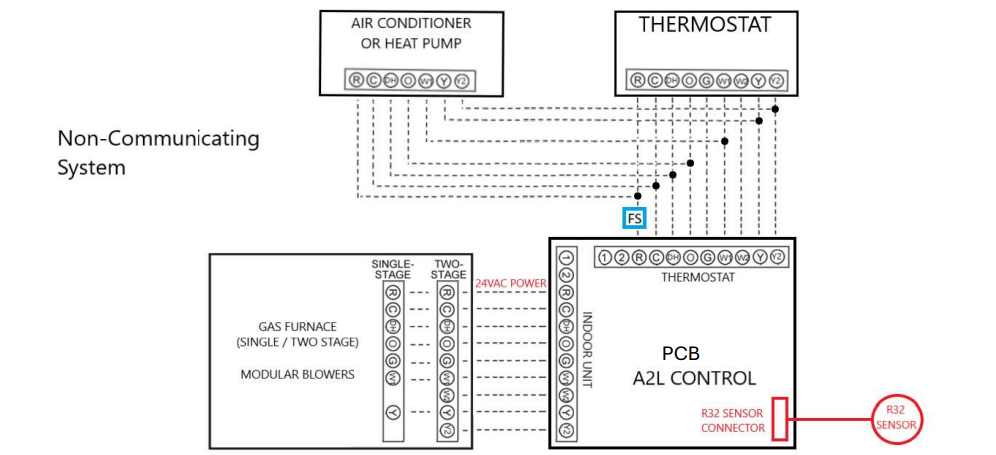

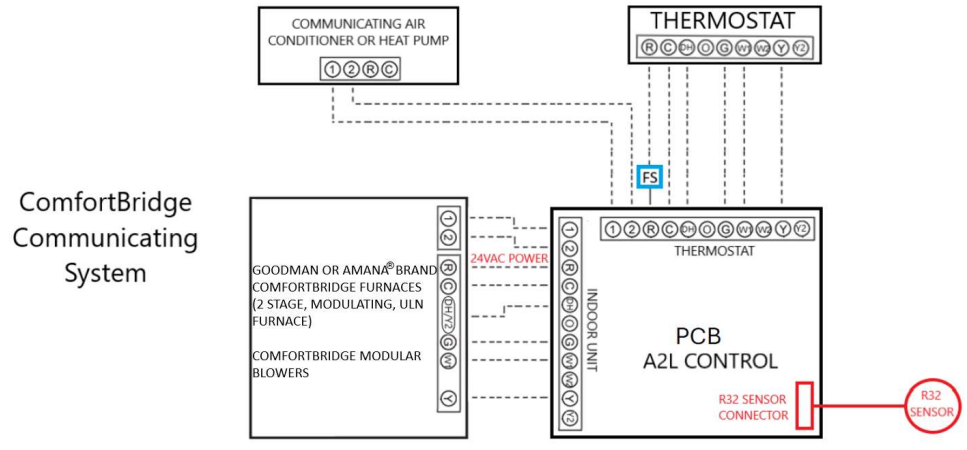

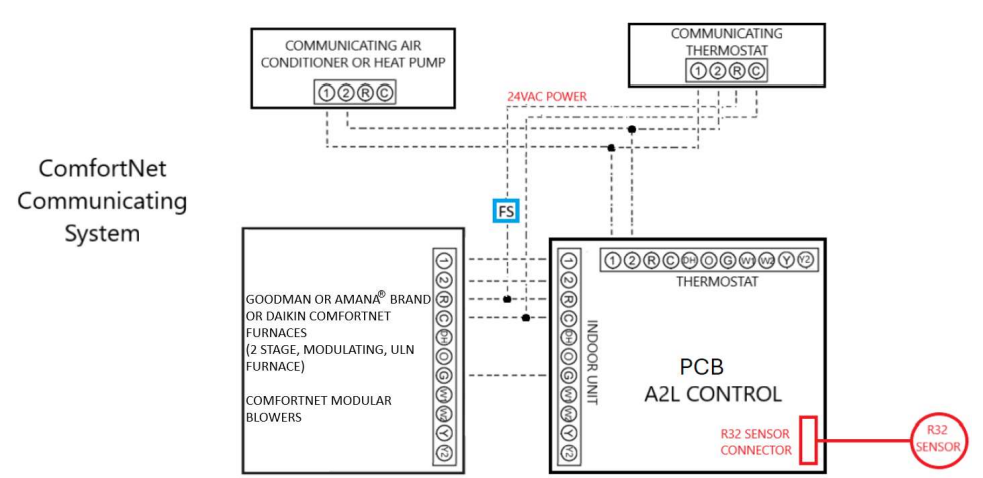

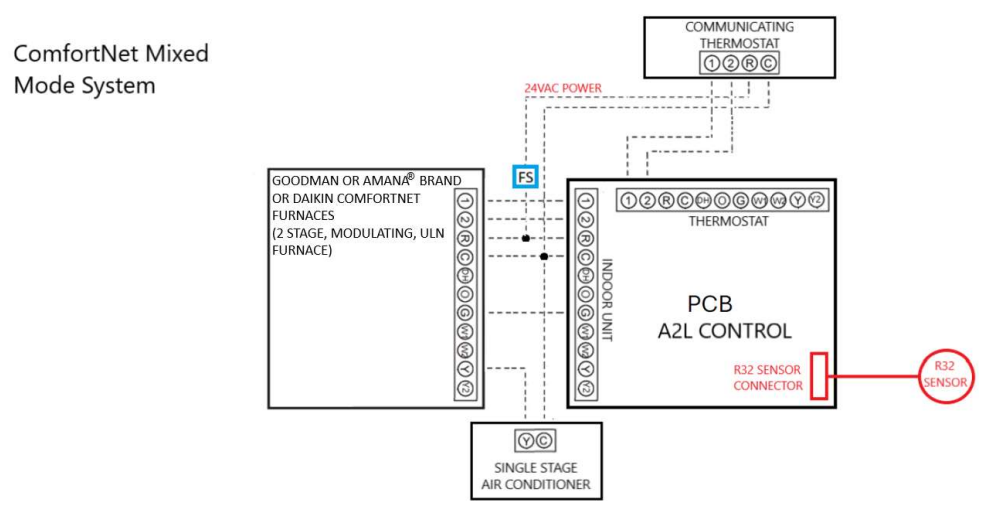

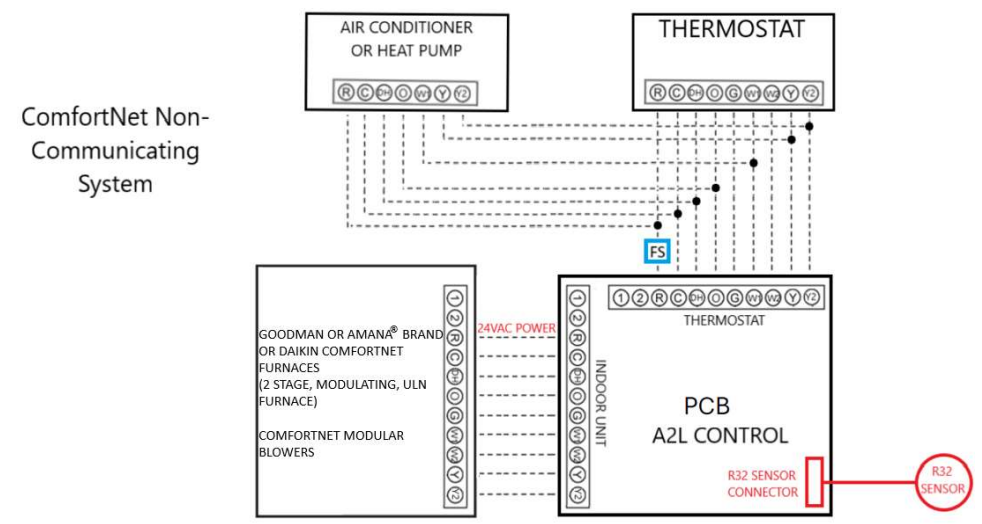

Wiring For Control System

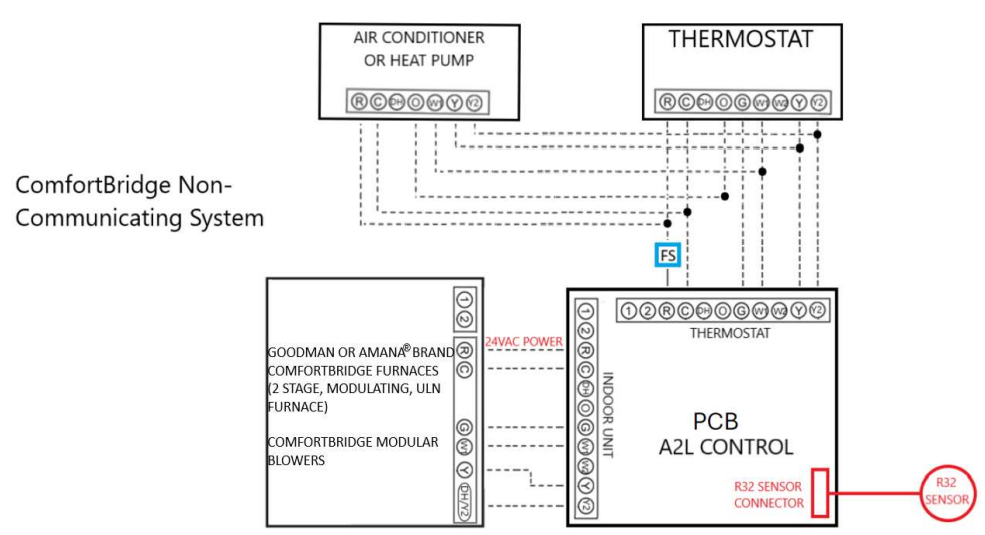

For installs using a Float Switch (FS), install Goodman NON-A2L Furnace Integration Kit Goodman NON-A2L Furnace Integration Kit in series with the R wire to the thermostat.
Installs using a Float Switch (FS), install in series with R wire to the thermostat.
Using a Float Switch (FS), install in series with R wire to the thermostat.
Control Systems

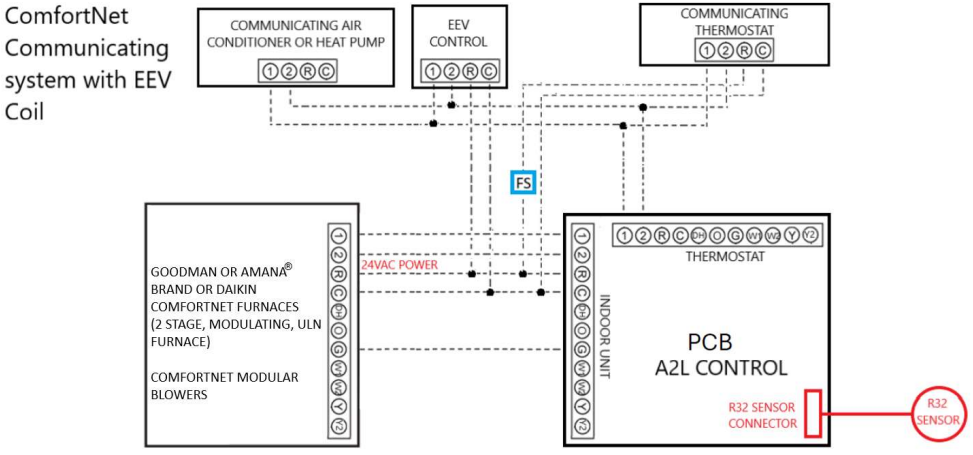

For installs using a Float Switch (FS), install in serieswith theh R wire to the thermostat.
For installs using a Float Switch (FS), install in series with the wire to the thermostat.
Limited Warranty
Who Is Providing The Warranty?
This warranty is provided to you by Daikin Comfort Technologies Manufacturing, L.P. (“Daikin”), which warrants all parts of this heating or air conditioning unit, as described below.
To What Type Of Installations Does This Warranty Apply?
This warranty applies to heating and air conditioning units installed in buildings other than residences. Different warranties apply to units installed in owner-occupied residences and in residences not occupied by the owner.
What Problems Does This Warranty Cover?
This warranty covers defects in materials and workmanship that appear under normal use and maintenance.
What Problems Does This Warranty Not Cover?
Daikin is not responsible for:
- Damage or repairs required as a consequence of faulty installation or application.
- Damage as a result of floods, fires, winds, lightning, natural disasters, accidents, corrosive atmosphere, or other conditions beyond Daikin’s control.
- Parts or accessories not supplied or designated by the manufacturer.
- Damage or the need for repairs resulting from any improper use, maintenance, operation, or servicing.
- Changes in the appearance of the unit that do not affect its performance.
- Replacement of fuses and replacement or resetting of circuit breakers.
- Damage or the need for repairs resulting from the use of unapproved refrigerant types or used or recycled refrigerant.
- Damage or the need for repairs arising from the use of components or accessories not compatible with this unit. Normal maintenance as described in the installation and operating manual, such as cleaning of the coils, filter cleaning and/or replacement, and lubrication.
When Does Warranty Coverage Begin?
Warranty coverage begins on the “installation date.” The installation date is one of two dates:
- The first four digits of the serial number (YYMM) on the unit indicate the manufacture date.
How Long Does Warranty Coverage Last?
The warranty on all parts lasts for a period of up to 5 YEARS after the installation date. The replacement of a part under this warranty does Goodman GLXT7C Air Conditioning & Heating not extend the warranty period. In other words, Daikin warrants a replacement part only for the period remaining under the applicable warranty on the original part.
What Will Daikin Do To Correct Problems?
Furnishing of the replacement part is Daikin’s only responsibility under this warranty.
What Won’t Daikin Do To Correct Problems?
Labor, freight, or any other cost associated Goodman GLXT7C Air Conditioning & Heating with the service, repair, or operation of the unit, the deinstallation of any defective part, or Goodman GLXT7C Air Conditioning & Heating the installation of any replacement part. Electricity or fuel costs, or increases in electricity Goodman GLXT7C Air Conditioning & Heating or fuel costs, for any reason, including additional or unusual use of supplemental electric heat. Lodging or transportation charges. Refrigerant
How Can The Owner Receive Warranty Service?
If there is a problem with the unit, contact a licensed contractor. To receive a replacement part, a licensed contractor must bring the defective part to a Daikin heating and air conditioning products distributor. For more information about the warranty, write to Homeowner Support, 19001 Kermier Road, Waller, Texas 77484.
Where Can Any Legal Remedies Be Pursued?
- ARBITRATION REQUIREMENT
It includes any dispute, claim, or controversy arising from or relating to your purchase of this heating or air conditioning unit, any warranty upon the unit, or the unit’s condition. - Discovery and Other Rights
Discovery and rights to appeal in arbitration are Goodman GLXT7C Air Conditioning & Heating generally more limited than in a lawsuit. This applies to both you and us. - Rules of the Arbitration
United States residents may choose JAMS (1920 Main Street, Ste. 300, Irvine, CA 92614 or, subject to our approval, any other arbitration organisation. - Costs of the Arbitration
Each party is responsible for its attorney, expert, and other costs and fees unless applicable law requires otherwise. - Survival and Enforceability of this Arbitration Clause
This Arbitration Clause shall survive the expiration or termination, or any transfer, of the warranty on your unit. Any remaining parts will proceed in arbitration.
Customer Support
- Website: https://www.goodmanmfg.com/
- Tel: 1-877-254-4729
FAQs
Q: What is the purpose of the NON-A2L Furnace Integration Kit?
With the help of the kit, non-A2L (non-flammable, low-GWP refrigerant) furnaces can be safely and legally integrated with Goodman HVAC systems, guaranteeing correct control, communication, and safety interlocks between the furnace and other system parts.
<strong> Q: Which Goodman furnaces are compatible with Thiels’ integration kit?
Goodman non-A2L gas furnaces with conventional control boards (such as GMVC and GMSS types) can use the kit. Before starting the installation, make sure the furnace model number matches the kit’s compatibility list in the installation guide.
Q: Is professional certification required to install this kit?
A certified HVAC specialist who is knowledgeable about local codes and gas furnace systems should carry out the installation.
Q: How does the kit affect system operation?</strong>
It keeps non-A2L systems compliant with safety regulations without altering heating capacity or efficiency.
Q: Can I install the kit on a furnace already in operation?
To guarantee technician safety, always adhere to lockout/tagout protocols.
Q: What if my furnace uses a different control board than shown in the guide?
In general, the kit works with regular Goodman control boards. Check the installation guide’s connector pinout and compatibility to see if your furnace has an older or newer board. If in doubt, get in touch with Goodman technical support.
