IGLOO IRF32BK Single Door Compact Refrigerator User Guide

IGLOO IRF32BK Single Door Compact Refrigerator

Safety Instructions

A person who has not read and understood all operating and safety instructions is not qualified to operate this appliance. All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance.

1. Read all instructions before operating this appliance.
2. DO NOT TOUCH the hot surfaces. Use handles or knobs. This appliance is NOT A TOY.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from the outlet when not in use, before removing parts, and before cleaning.
5. Allow to cool before putting on or taking off any parts, and before cleaning.
6. Return the appliance to the nearest repair shop for examination, repair, or adjustment.
7. DO NOT use the appliance for anything other than its intended use.
8. DO NOT use outdoors. FOR HOUSEHOLD USE ONLY.
9. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
10. DO NOT let the cord hang over the edge of the table or counter, or touch hot surfaces.
11. NEVER leave the unit unattended while in use or when plugged into an outlet.
12. Extreme caution must be used when moving an appliance containing hot food.
13. Always attach the plug to the appliance first, then plug the cord into the wall outlet.
14. To disconnect, turn any control to “off,” then remove the plug from the wall outlet.

Electrical Cord and Plug

This appliance has a polarised plug (one blade is wider than the other). To reduce the risk of electrical shock, this plug is intended to fit into a polarised outlet only one way.

1. This appliance has a polarised plug (one blade is wider than the other).
2. To reduce the risk of electrical shock, this plug is intended to fit into a polarised outlet only one way.
3. If the plug does not fit fully into the outlet, reverse the plug.
4. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.
5. If a long detachable power-supply cord or extension cord is used: Extension cords can be used if care is exercised in their use.
6. The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance.
7. When using a longer cord or extension cord, make sure that the cord does not drape over a countertop or tabletop where it can be pulled on or tripped over unintentionally.
8. The manufacturer does not recommend using this machine in countries that do not support 120V AC, even if a voltage adapter, transformer, or converter is in use.

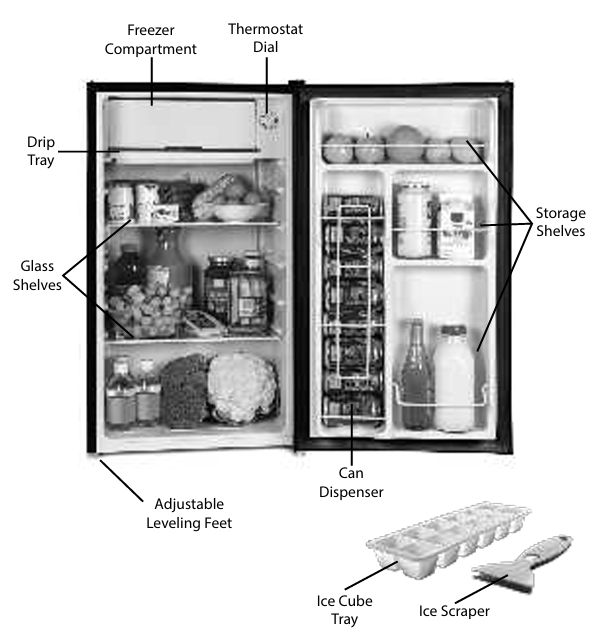

Features

• Separate freezer compartment & drip tray
• 2 adjustable glass shelves
• Full-range adjustable thermostat
• Interior door has an 8-can dispenser, 2-L bottle storage & condiment shelves.
• Adjustable levelling feet

Parts & Assembly

Your REFRIGERATOR requires very little assembly. Before using, remove all packing materials from the inside of the refrigerator, and peel off the protective film on the outside of the refrigerator. Check the refrigerator for any damage, such as misaligned or bent door, damaged door seals and sealing surfaces, broken or loose door hinges and latches and dents inside the refrigerator or on the door. If there is any damage, DO NOT use the refrigerator. Return damaged item to the store where it was purchased.

Installation

1. The refrigerator should be placed on a completely flat surface.
2. Allow 1 foot of space on each side of the refrigerator and between the refrigerator and the wall.
3. Al, so allow at least 8 inches of space between the top of the refrigerator and the ceiling.
4. Raise the refrigerator by rolling the two legs clockwise.
5. The surface of the location where the refrigerator is installed should be firm and flat.
6. If the refrigerator is not secured in a proper location, noise and vibration may occur.
7. The noise may be increased if the floor is not firm.
8. If you have to position the refrigerator on a carpeted floor, place a sheet underneath the refrigerator, such as plywood or a plastic mat, to prevent heat emissions from ruining the carpet.

Placement of Food

1. There should always be some space between items inside for air circulation.
2. Hot food should be cooled down before placing it into the appliance.
3. Otherwise, bacteria will grow in food.
4. Reducing the frequency of opening the doors can lower the electronic consumption.

Adjusting Temperature

The temperature of the refrigerator can be controlled manually by the knob. However, the number shown on the knob does not correlate to the degrees. The higher the number, the lower the interior temperature of the refrigerator will be.

Defrosting

Heavy frost will affect the efficiency and performance of the refrigerator and can create increased energy consumption. If the frost inside the freezer gets as thick as ¼ inch, you must defrost the refrigerator. Follow these steps to defrost the freezer:

1. Remove all food from the refrigerator and freezer.
2. Uninstall the drawers and shelves.
3. Unplug the power supply cord. ENGLISH
4. Clean up the water with dry towels.

Disconnecting

• After a power failure, the refrigerator can keep food cool for several hours if the doors are kept shut.
• If the power fails, do not put additional food into the refrigerator or open the doors.
• If you plan to have your power shut off for an extended period of time, make sure to remove all perishable food from the refrigerator or freezer first.
• If you stop using your refrigerator for an extended period of time, unplug the appliance from the outlet.
• Always wait at least five minutes after unplugging the power supply cord before plugging it back in.

Packing & Moving

• Save packing materials if possible, and remember how materials are packed in the box. Repack the refrigerator and accessories carefully.
• DO NOT lift or pull the doors or door handles during transportation.
• When moving, do not tilt the appliance more than 45 degrees. Be very careful not to bump the refrigerator into anything.
• Allow the appliance to stand upright for at least 24 hours before plugging it into the electrical outlet.

Reversing Swing Door

This fridge has the capability of the IGLOO IRF32BK Single Door Compact Refrigerator door opening from either the left or right side. It is assembled with the door opening from the left side.

To reverse the door swing, follow these directions:

1. Remove protective plastic cap from top.

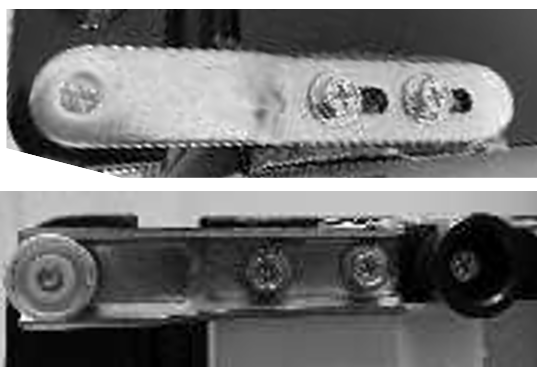

2. Using a Phillips screwdriver, remove the screws as seen below from both the top and bottom of the door.
3. Place on the other side and screw into the holes. Place a plastic cap on top.

Cleaning & Maintainance

To prolong the life of your REFRIGERATOR, please follow these simple instructions for maintenance. This appliance should be maintained and cleaned frequently. For your safety, pull the plug from the socket before cleaning.

Interior Maintenance

Clean the interior of the appliance with clean, soapy water. Wipe dry with a non-abrasive cloth or towel.

Outer Maintenance

Wipe outside of refrigerator with a dry, non-abrasive cloth or towel.

Door Gasket

It is easy to damage the door IGLOO IRF32BK Single Door Compact Refrigerator with oil, sauce, etc. Be very careful when cleaning.

Specifications

• Climate Class: SN-ST
• Refrigerator Capacity: 24.29 gallons
• Current: 1.0 A
• Rated Voltage: 115 V
• Rated Frequency: 60 Hz
• High Side: 115 psi
• Low Side: 58 psi
• Energy Consumption (kWh/24h): 0.564
• Refrigerant (oz): R600a/0.64 oz.
• Foaming Agent: Cyclopentane
• Interior Temperature: Freezer = 0˚ F | Refrigerator = 32˚ F – 46.4˚ F
• Dimensions: 18.5″ L x 19″ W x 32″ H
• Weight: 45 lbs.

Returns & Warranty

As the sole and exclusive remedy under this warranty, the Company will, at its discretion, either repair the IGLOO ICEB33SS Ice Maker Machine or replace the product found to be defective, or issue a refund on the product during the warranty period.  Unless otherwise specifically permitted by the operating instructions, this warranty applies to indoor household use only.

Warranty valid only in the USA and Canada. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces, or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you. This warranty does not apply to remanufactured merchandise. Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty.

Customer Service

• Phone: (833) 258-4210
• Website: www.nostalgiaproducts.com
• Central Standard Time: 8:00 AM and 5:00 PM, Monday through Friday.
• Distributed by: Nostalgia Products LLC 1471 Partnership Dr.
