JAMO MPA-101 Multi Purpose Amplifier Instruction Manual

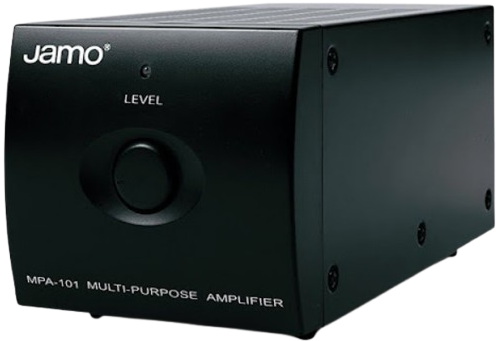

JAMO MPA-101 Multi-Purpose Amplifier

Introduction

Congratulations on your purchase of the JAMO MPA-101 Multi-Purpose Amplifier, backed by state-of-the-art engineering and manufacturing techniques to deliver the best craftsmanship and reliable performance.

The JAMO MPA-101 Multi-Purpose Amplifier is specifically designed for home theatre applications. With ample power and two-channel stereo capacity, it can fit into virtually any surround setup. A narrow-width chassis allows convenient shelf or rack mounting in the space of one stereo component.

It allows you to use one amplifier as left and right stereo front speakers, a second amplifier as left and right rear (surround) speakers, and a third amplifier for the centre channel.

Bridge mode capability allows the use of the two channels connected to form one high-power amplifier channel, providing 100 watts into 8 8-ohm.

The MPA-101 is also a subwoofer amplifier with an adjustable electronic crossover. With the switch in the OFF position, it becomes a full-range amplifier.

The power rating for the Jamo MPA-101 power amplifier is obtained using fixed value test load impedances and high-intensity sine wave test tones. However, the actual impedance of the loudspeaker will vary with frequency, deviating somewhat from the loudspeaker manufacturer’s nominal impedance rating.

This Jamo amplifier has been specially designed to drive any modern loudspeaker system with a rated impedance of 4 Ohms or higher.

Features

The JAMO MPA-101 Multi-Purpose Amplifier offers the following features for high-quality audio performance:

1. Power output, rated at 2×50 Watts (stereo) into 4 Ohms

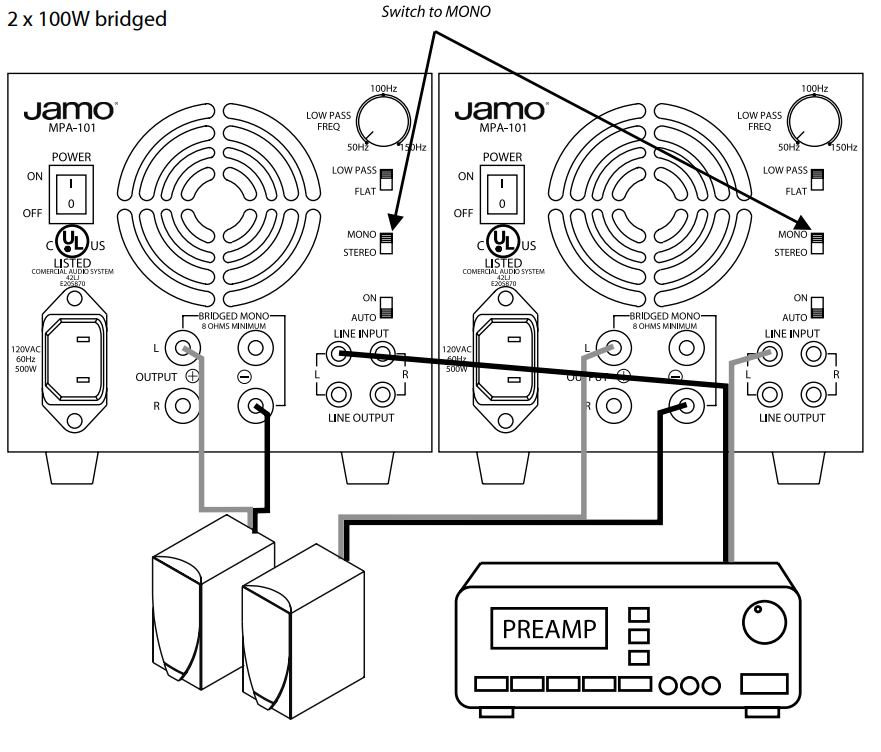

2. High power output (bridged mode), rated at 100 Watts into 8 Ohms
3. Subwoofer amplifier, adjustable crossover frequency 50 Hz – 150 Hz
4. Full-range amplifier
5. Extensive heat sinks for reliable operation and long life of the amplifier
6. High current discrete power transistors in the output stage for the best possible performance
7. Automatic power turns “ON”
8. Level control
9. Gold-plated RCA input and output jacks
10. Heavy-duty push-button binding posts
11. Overload protection

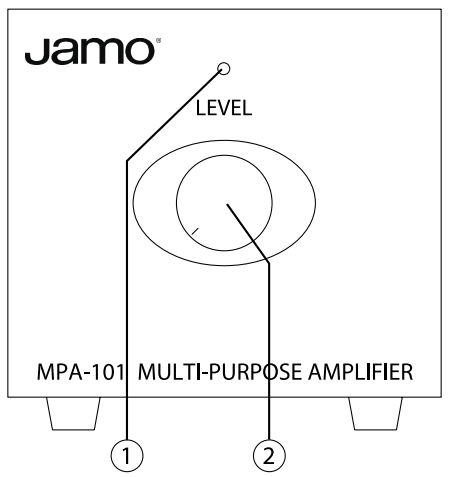

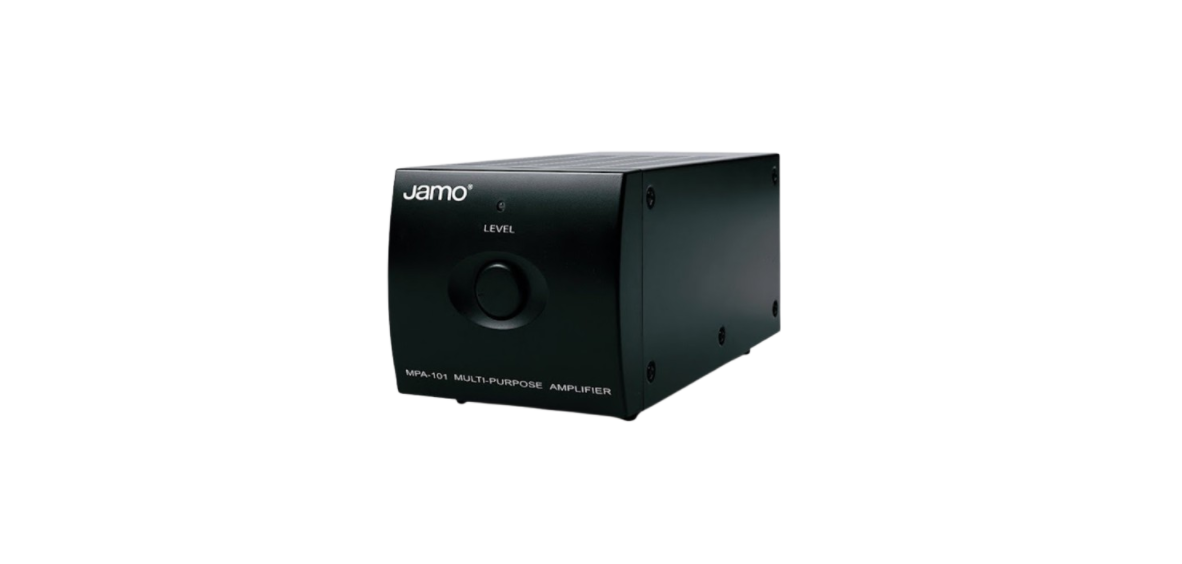

Jamo MPA-101 Front Panel

1. Power LED
2. Flashing blue – Standby mode
3. Blue – Amplifier On
4. Flashing red – Thermal protection
5. Red – Overload protection
6. Level adjustment

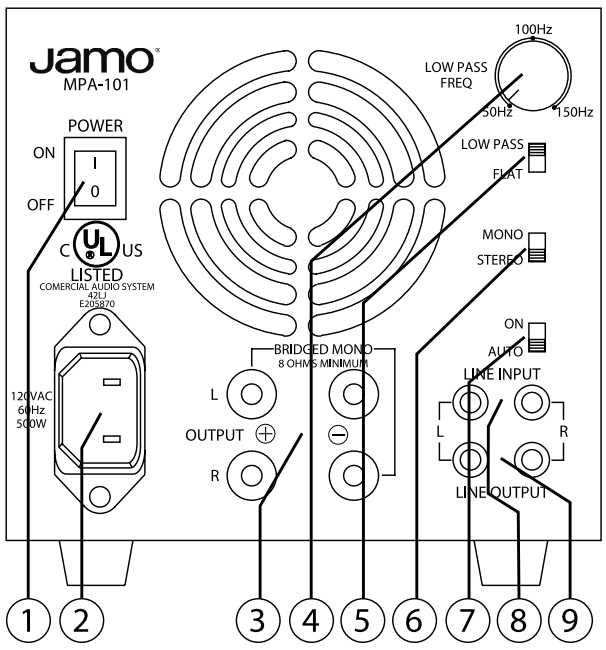

Jamo MPA-101 Rear Panel

1. Power switch
2. Socket for mains cable
3. Speaker output: Speaker terminals
4. Low-pass adjustment: Output frequency is adjustable between 50 – 150 Hz.
5. Only adjustable when „low pass“ is selected g
6. Low pass: f Flat: Fullrange
7. Stereo/mono: Stereo mode – 2 x 50 watt stereo output (4✡) Mono mode – 100 watt mono output (8✡)
8. On – Amplifier ON AUTO – auto turn on mode
9. Line in: Line level input from source
10. Line out: Line level output

Connection

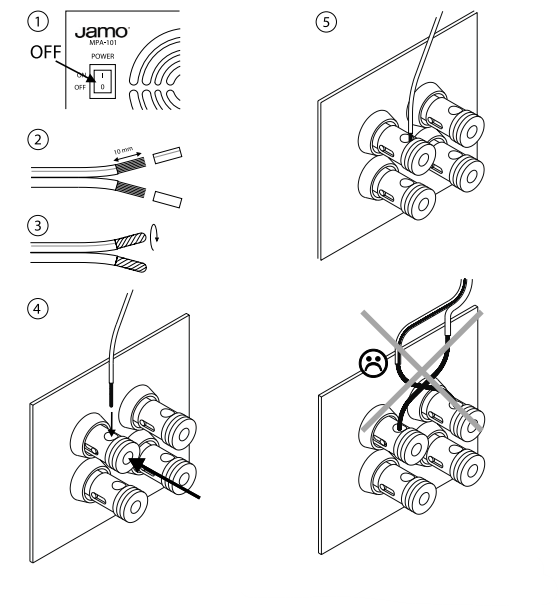

To set up your JAMO MPA-101 Multi-Purpose Amplifier, use the gold-plated push-button binding posts, which will accept very heavy stripped wire. For connecting external speakers, consider using the JAMO 3A2 All-Weather Satellite Speakers for clear and powerful surround sound. Ask your local Jamo dealer for advice on the choice of cable. Connect the loudspeakers to your JAMO MPA-101 Multi-Purpose Amplifier as follows:

1. Turnonf the MPA-101
2. Carefully remove approximately. 3/8“ (10 mm) of the insulating material, do not damage the conductors!
3. Twist the conductor ends
4. Push the binding posts so the conductors can easily fit into the holes

Always make sure that.

Your loudspeakers are in correct phase; The loudspeaker’s + terminal is connected to the Jamo MPA-101’s + terminal. The loudspeaker’s terminal is connected to the Jamo MPA-101’s terminal. Usually, the loudspeaker cable is marked on one wire, which is normally used to connect the + terminals to ensure correct phase.

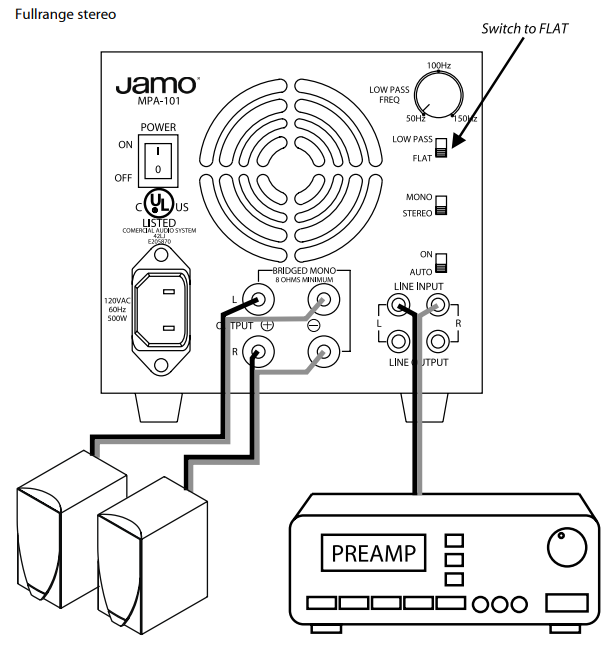

Connecting Examples

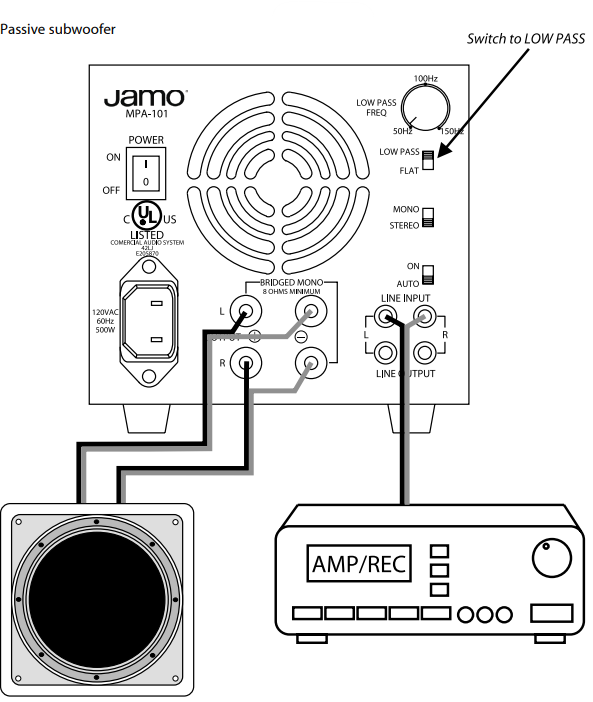

When „Low pass“ is selected, you can adjust the low pass frequency between 50 – 150 Hz. This makes it possible to make the subwoofer match your front speakers.

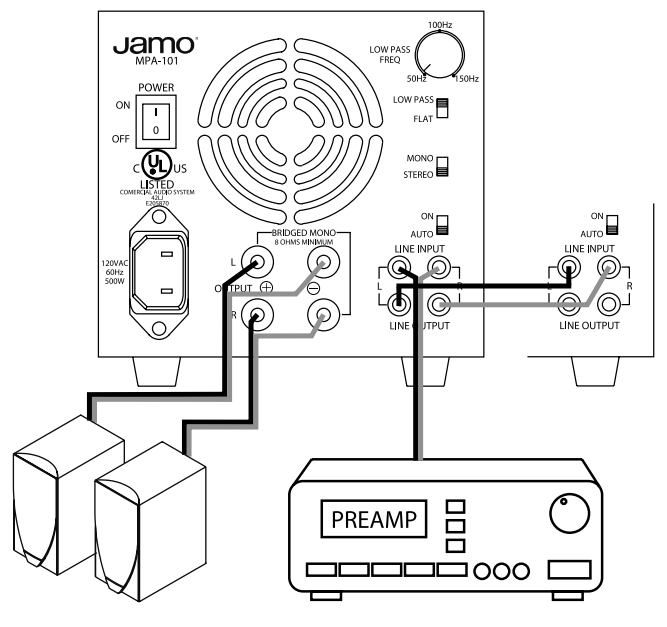

Daisy chain

When using this feature, you can connect all MPAs-101s01 in parallel, el you need.

Specifications

• Rated Power Output 50 Watts (Stereo) into 4✡ Load
• Total Harmonic Distortion (THD) 100 Watts (BTL) into 8✡ Load
• Signal-to-Noise Ratio <0.1%
• Crossover Freq. Response (-3dB): @ Min position 28-45Hz 40Hz/0dB ref @ Max position 32-60Hz 40Hz/odB ref
• Auto Turn On Sensitivity 11.0V +/-3 Full Range 1KHz 7.0V +/-2 Sub Input 50 Hz
• Delay „OFF“ Time 15 – 20 minutes.
• Input Sensitivity Line In Output 1 W/4✡ with: Full Range 44mV +/-10 1KHz Sub In 7mV +/-2 50Hz
• Line Out Freq. Response (-3dB) 20Hz +/-5K – 20 KHz +/-5K 1KHz/0dB ref
• Input Impedance Line In 47K✡ +/-5
• Max. noise+hum Vol Max <3.0mV, Input Shorted
• Clearance for ventilation – Back Minimum 2″ (50mm)
• Power Requirement 115V 60Hz
• Weight 7.8lbs (3.6 kgs)
• Shipping Weight 8.6lbs (3.9kgs)
• Dimensions:

• Width  6.000“ (152.00mm)

• Height 3.125“ (79.00mm)

• Depth 11.4375“ (290.00mm)
• Clearance for ventilation

• Top Minimum 3/8“ (10 mm)

• Back Minimum 2“ (50 mm)

The scope of the warranty

The warranty period will come into force as of the purchase date stated on the invoice. The warranty will apply for the following period of time:

• 2 years for electronics (power supply, amplifier, etc.)
• 7 years for other parts (cabinet, speaker units, etc.)

In case of warranty inquiries, please contact your dealer. In case of a request for service under warranty, please enclose your original receipt.

Defects covered by the warranty: Except for the defects stated below, the warranty covers any production and material defects of the product.

Defects not covered by the warranty:

• Defects arising from accidents, misuse, normal wear and tear, mis-maintenance, voltage variation, overloading, stroke of lightning, and other force majeure events
• Defects arising from incorrect installation or operation
• Defects arising from modification/repair/attempted repair by a non-authorised service centre
• Defects arising from the use of non-original spare parts
• Defects in products with an altered or lacking serial number
• Other defects due to conditions or circumstances beyond the supplier’s control

The supplier is liable only to repair or replace defective parts or products. A replacement cannot exceed the value of the product under warranty.y

Customer Support

• Ph: 1-800-554-7724
• Email: support@jamo.com
• Website: https://www.jamo.com/

FAQs

Q: Can I connect multiple microphones at the same time?

Indeed, numerous microphone inputs are supported by the MPA-101. To balance levels, change the volume of each channel separately.

Q: Can I connect headphones to the MPA-101?

Yes, if there is a dedicated headphone output, utilise it. To prevent hearing damage, change the volume.

Q: Can the amplifier be rack-mounted?

Verify the measurements and mounting specifications. If supported, use a rack-mount kit that is suitable.

Q: Why is there a humming sound coming from the amplifier?

Keep audio cables away from power cords. To reduce hum, use balanced XLR or TRS cables for microphones.

Q: How do I prevent overheating?

Make sure the area surrounding the amplifier has enough ventilation. Keep it away from sources of heat. Avoid obstructing the cooling vents. If operating at high levels for prolonged periods of time, lower the master volume.

Q: Can I connect multiple speakers to the amplifier?

Yes, but make sure to verify the linked speakers’ overall impedance. To avoid damage, stay above the suggested minimum impedance. In accordance with the manual’s instructions, use parallel or series wiring.

Q: Why is one channel quieter than the others?

Verify each channel’s balance and volume controls. Examine connections and cables for damage. To determine whether the problem is with the source or amplifier, switch up the input sources.
