JANDY H0666700 Pool & Spa LED Light User Instructions

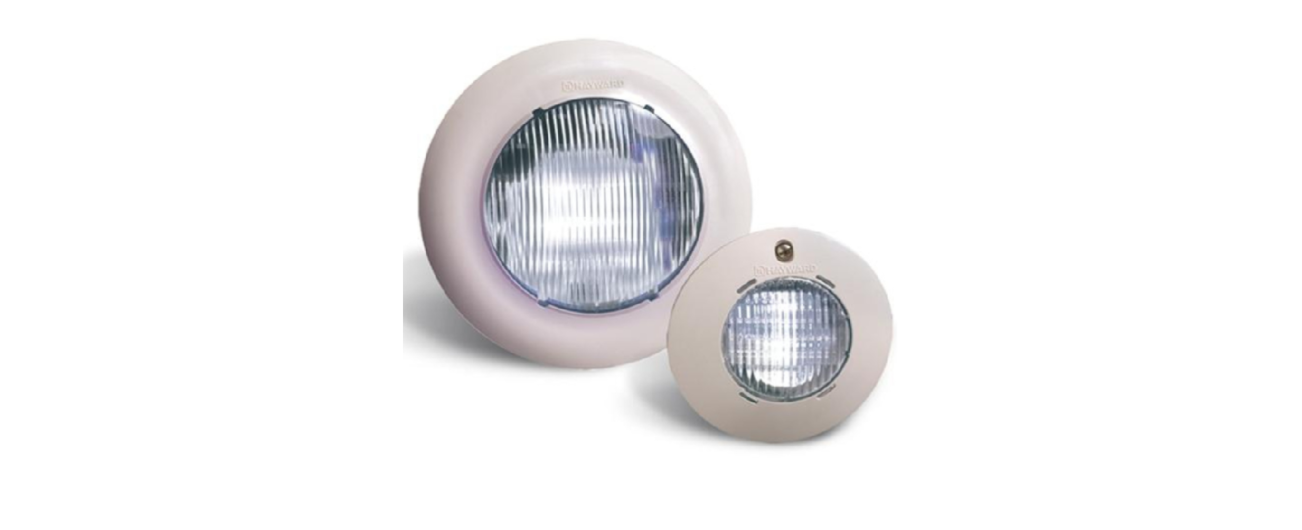

JANDY H0666700 Pool & Spa LED Light

Safety Instructions

Before installation and operation, carefully read the instructions for the JANDY H0666700 Pool & Spa LED Light. This LED light is designed to be powered and operated with the Jandy Infinite WaterColors LED Light Controller and will not function when connected to an alternate transformer. Follow all accompanying installation and operating instructions for safe use.

Improper installation will create an electrical hazard, which could result in death or serious injury to pool or spa users, installers, or others due to electrical shock, and may also cause property damage. Read and follow the specific instructions below.

Which could result in serious injury or death. The Jandy Nicheless LED Lights are only available for 12-volt AC power. For supply connection, use only an isolating low-voltage power supply with ungrounded output, evaluated and listed by a NRTL for swimming pool use.

Preparing the Light Fixture for Installation

Before starting, ensure your pool meets the requirements of the current National Electrical Code® (Canadian Electrical Code, in Canada) and all local codes and ordinances for the JANDY H0666700 Pool & Spa LED Light.

Use the chart below to determine the appropriate pipe length for your installation.

Installing the Light Fixture

1. When installing the JANDY H0666700 Pool & Spa LED Light, keep the protective cover on to protect the light during installation.
2. Snake the electric cord through the conduit outlet of the wall fitting, into the conduit, and up to the location of the pool transformer.
3. Cut the cord 18″-24″ beyond the length needed to reach the transformer to allow for a service loop.
4. Pull the fixture snug to the wall fitting.
5. Remove protective cover after construction (including plastering for gunite pools) is complete.
6. Do not plaster the pool with the construction cover removed.
7. Install cosmetic cover if desired.
8. Apply Tefl on™ silicone lube to threads to assist with threading.
9. Using the included installation tool, thread the light into the wall fitting until it is snug.
10. The light face must be completely flush with the return fitting.
11. Please provide the pool owner with a minimum of 1 key upon job completion.

Darksky Approved

The following Warm White (2700K) Models are Darksky approved when wall-mounted (horizontal) and installed with a Half-Moon lens cover (sold separately – W (White), G (Grey), B (Black)).

• JLUWW6W150+ LENSCVRW, G or B
• JLUWW12W150+ LENSCVRW, G or B
• JLUWW24W150+ LENSCVRW, G or B

Wet Area Installations

For wet area lighting within 10 feet (3M) of a pool or spa, use 6 Watt Models ONLY. Except when the luminaire is adequately guarded, the luminaire shall be installed in areas not subject to incidental contact from people, pets, vehicles, and foot traffic.

Wiring Options

Always consider the cable length when calculating the input voltage at the transformer. The maximum run of service between the transformer and the lights should not exceed 150ft in length, inclusive of the use of a J Box or not.

Wiring to an AquaLink® Controller

Connect the transformer powering the lights to one of the auxiliary relays in the AquaLink. For additional compatibility and setup options, see the Jandy IWCSS60W Smart Sync LED Adapter Instruction Manual to connect multiple LED lights with your JANDY H0666700 Pool & Spa LED Light.

Wire Gauge and Length

Voltages are determined by the measured voltage level at the Bus Bar, where the transformer and cords are connected.

Jandy LED Light Voltage Min/Max Levels

Which could result in serious injury or death. A Ground Fault Circuit Interrupter (GFCI) for 120 Volt transformers should be used if required by the transformer manufacturer or if required by the local applicable code and/or Authority Having Jurisdiction (AHJ). When a GFCI is used, the conductors on the load side of the GFCI circuit shall not occupy conduit, boxes, or enclosures containing other conductors unless the additional conductors are also protected by a GFCI. Refer to local codes for complete details.

Wiring to a Switch

The Jandy Nicheless LED Lights can be wired to a switch to manually operate the lights. Refer to Figure 4 to connect the lights to the switch.

Twelve (12) Volt Installation

To ensure maximum safety, use only a Class 2 magnetic transformer that can supply 12-14 Volts AC to power all 12-volt lights. The transformer must be listed or certified by a Nationally Recognized Testing Laboratory (NRTL) for swimming pool use.

Light Synchronization

1. Turn the light ON. If the light has been off for 7 seconds or longer, the light will turn on with the last color selected.

Operating the Light

Winterizing

When winterizing your JANDY H0666700 Pool & Spa LED Light, do not keep the winter water level at the level of the light. Consult a Local Swimming Pool Professional for proper winterization.

Additional Online Content

• Product Overview
• Product Contents
•  S-Series Nicheless Underwater LED Light
  Operating Instructions
• H-Series Nicheless Underwater LED Light
  Operating Instructions
• P-Series Nicheless Underwater LED Light
  Operating Instructions
• Troubleshooting
