JYX JYX-66BT Wireless Microphones Karaoke Machine User Guide

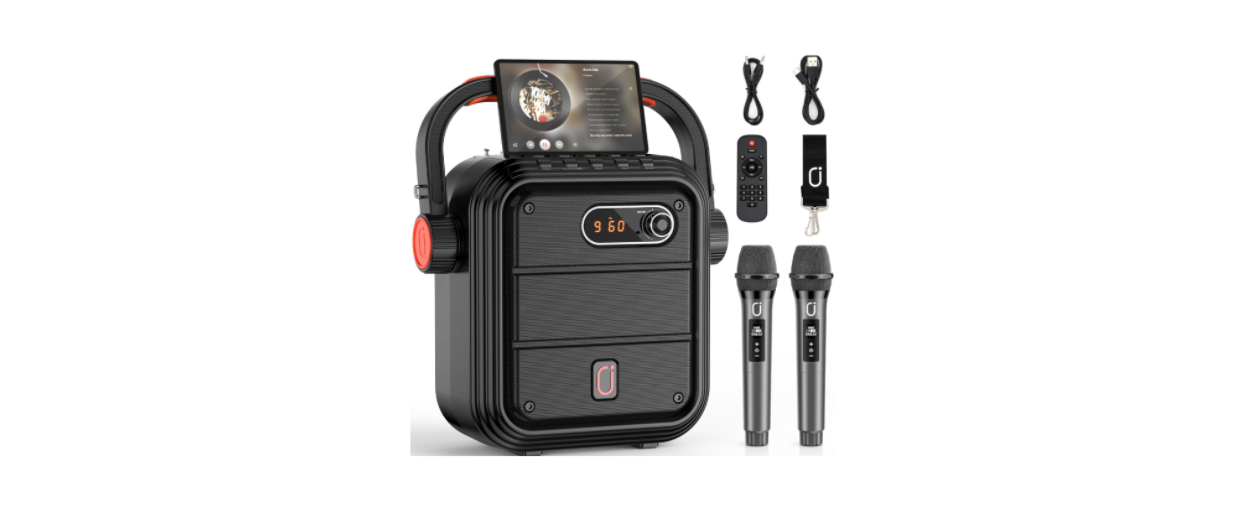

JYX JYX-66BT Wireless Microphones Karaoke Machine

• Overview

  Remote Control



  1. Silent
  2. Mode: Press to switch the system between USB, TF card, FM Radio, AUX, IN, and Bluetooth mode.
  3. Kara oke: Press to eliminate the original voice. Press again to restore the original voice.
  4. Play/Pause: Short press to play/pause(USB/TF card mode); Short press to silent ON, long press is for searching radio stations(FM radio mode).
  5. Next: Short press to switch to the next program; long press to fast forward.
  6. REC: short press for recording; Short press to stop and play the recording during the recording process. (The USB fldrivedish or TF card is needed during recording.)
  7. Number Key: Press to choose the song(Only works for USB/TF/FM mode)
  8. Loop: Press to switch between single cycle and all cycles
  9. Vol+
  10. PREV.
  11. Vol12.REC Play: Press to play the recording file

  Operation

  1. Number Key: Press to choose the song(Only works for USB/TF/FM mode)
  2. Master: Main volume control knob
  3. Play/Pause: Short press to play/pause; In radio mode, long press for automatic radio station search; Bluetooth mode, long press for TWS(only valid for the same model)
  4. Previous: Short press to switch to the last program; long press to fast-forward.
  5. REC: Long press to record audio, during this process, short press to stop recording. When there is a recording file in the storage device a e, a short-press plays the recording file. (The recording function is only available when a storage device is plugged in.)
  6. Mode: short-press to switch between Bluetooth, flash card, TF card, and FM radio.When Bluetooth has already connected,  long-press to eliminate the original voice.
  7. TWS: Short press for TWS connection, long press for disconnection(Under Bluetooth mode)
  8. Next: Short press to switch to the next program; JYX JYX-S55 Portable Karaoke Machine, long press to fast forward.
  9. MIC VOL: Adjust microphone volume
  10. Reverb: Adjust reverb.
  11. Bass: Adjust bass sound.
  12. Treble: Adjust treble sound.nd.
  13. LED: Press to turn on/off the LED light.
  14. Dynamic Microphone jack(6.35mm)
  15. Condenser Microphone jack(3.55mm)
  16. AUX IN Jack
  17. TF Card Port
  18. USB Port
  19. Sound Receiving Hole
  20. 5V Charging Port
  21. Power ON/OFF

  USB and TF Input

  When you insert a USB or TF card into the speaker, the speaker will play the audio from the USB/TF card automatically.

  REC

  1. Plug in a TF card or flash card.
  2. Long-press “REC to start recorshort-pressssress to end recording.
  3. Short-press “REC to play the recording audio.

  TWS Function


  • Two speakers of the same model are required for TWS mode.
  • Turn on the two karaoke machines and the(Blue) will start flashing.
  • Press the TWS button on one of the machines, then awilld will be heard to indicate the successful connection blue light on the screen of this one will stop flashing.
  • While the other one will continue to flash.
  • Then connect the flashing speaker to the Bluetooth device, and the music should be played normally.

  The way to reduce the noise of the microphone


  • Turn off the “ECHO”, “BASS”, and “TREBLE” buttons, then turn on the microphone.
  • Keep a distance of 2 meters from the speaker. Do not let the microphone face the speaker

  Customer Service

  • Website: @jyxspeaker.com.
  • Tel: 022 68795106

FAQs

Q: What is the JYX JYX-66BT Karaoke Machine?

The JYX-66BT is a portable, all-in-one karaoke system with several input possibilities, Bluetooth connectivity, and two wireless microphones. With its loud sound and clear vocals, it’s perfect for outdoor events, home karaoke sessions, and parties.

Q: How do I turn on the karaoke machine?

Holding down the Power button will cause the LED display to illuminate. When the device is ready, you will hear a startup sound. To choose Bluetooth, AUX, USB, TF card, or FM radio, press the Mode (M) button.

Q: Can I use wired microphones with the JYX-66BT?

Indeed. The microphone inputs are 1/4-inch (6.35 mm). Adjust the speaker’s MIC volume after plugging in a wired microphone.

Q: Can I connect a guitar or other instrument?

Indeed. To balance the sound, use the AUX/Instrument input and change the volume of the instrument or microphone.

Q: Can both microphones be used at the same time?

Indeed. The JYX-66BT is ideal for duets since it can accommodate two wireless mics at once.

Q: Does it work as a regular Bluetooth speaker?

Indeed. Any Bluetooth-capable device can stream audio or music.

Q: Does the karaoke machine have LED lights?

Indeed. As the music plays, the LED party lights pulse. To turn them on or off, press the Light button.

Q: What is the wireless microphone range?

The optimal range for microphones is 10 meters, or roughly 30 feet. The effective range could be decreased by obstacles.
