JYX JYX-S55 Portable Karaoke Machine Instructions Manual

JYX JYX-S55 Portable Karaoke Machine

Overview

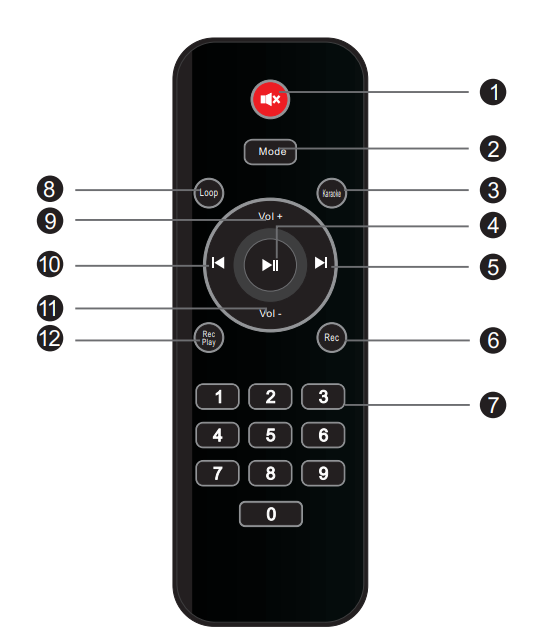

Remote Control

1. Silent
2. Mode: Press to switch the system between USB, TF card, FM Radio, AUX, IN, and Bluetooth mode.
3. Kara oke: Press to eliminate the original voice. Press again to restore the original voice.
4. Play/Pause: Short press to play/pause(USB/TF card mode); Short press to silent ON, long press is for searching radio stations(FM radio mode).
5. Next: Short press to switch to the next program; long press to fast forward.
6. REC: short press for recording; Short press to stop and play the recording during the recording process. (The USB fldrivedish or TF card is needed during recording.)
7. Number Key: Press to choose the song(Only works for USB/TF/FM mode)
8. Loop: Press to switch between single cycle and all cycles
9. Vol+
10. PREV.
11. Vol12.REC Play: Press to play the recording file

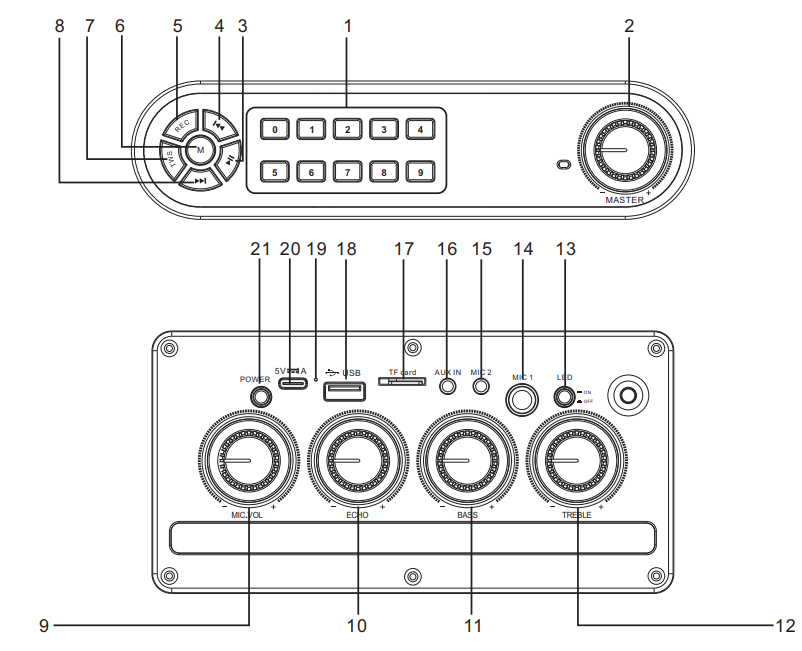

Operation

1. Number Key: Press to choose the song(Only works for USB/TF/FM mode)
2. Master: Main volume control knob
3. Play/Pause: Short press to play/pause; In radio mode, long press for automatic radio station search; Bluetooth mode, long press for TWS(only valid for the same model)
4. Previous: Short press to switch to the last program; long press to fast-forward.
5. REC: Long press to record audio, during this process, short press to stop recording. When there is a recording file in the storage device a e, a short-press plays the recording file. (The recording function is only available when a storage device is plugged in.)
6. Mode: short-press to switch between Bluetooth, flash card, TF card, and FM radio.When Bluetooth has already connected,  long-press to eliminate the original voice.
7. TWS: Short press for TWS connection, long press for disconnection(Under Bluetooth mode)
8. Next: Short press to switch to the next program; JYX JYX-S55 Portable Karaoke Machine, long press to fast forward.
9. MIC VOL: Adjust microphone volume
10. Reverb: Adjust reverb.
11. Bass: Adjust bass sound.
12. Treble: Adjust treble sound.nd.
13. LED: Press to turn on/off the LED light.
14. Dynamic Microphone jack(6.35mm)
15. Condenser Microphone jack(3.55mm)
16. AUX IN Jack
17. TF Card Port
18. USB Port
19. Sound Receiving Hole
20. 5V Charging Port
21. Power ON/OFF

USB and TF Input

When you insert a USB or TF card into the speaker, the speaker will play the audio from the USB/TF card automatically.

REC

1. Plug in a TF card or flash card.
2. Long-press “REC to start recorshort-pressssress to end recording.
3. Short-press “REC to play the recording audio.

TWS Function

• Two speakers of the same model are required for TWS mode.
• Turn on the two karaoke machines and the(Blue) will start flashing.
• Press the TWS button on one of the machines, then awilld will be heard to indicate the successful connection blue light on the screen of this one will stop flashing.
• While the other one will continue to flash.
• Then connect the flashing speaker to the Bluetooth device, and the music should be played normally.

The way to reduce the noise of the microphone

• Turn off the “ECHO”, “BASS”, and “TREBLE” buttons, then turn on the microphone.
• Keep a distance of 2 meters from the speaker. Do not let the microphone face the speaker

Customer Service

• Website: @jyxspeaker.com.
• Tel: 022 68795106
