K-Mate BT-032A Flight Adapter Transmitter User Manual

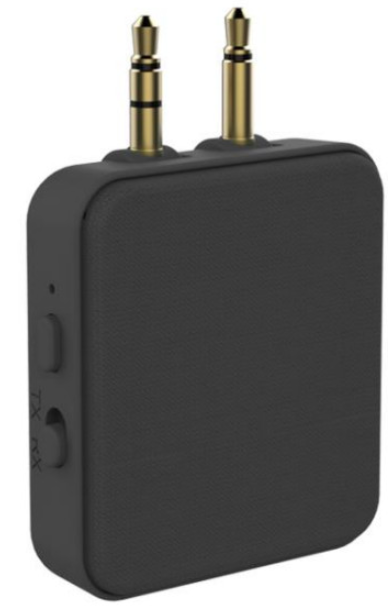

K-Mate BT-032A Flight Adapter Transmitter

Indtroduction

BT032A is a Bluetooth stereo transmitter and receiver device. When used as a transmitter, it can wirelessly transmit the music played on your Walkman player, TV, PC, and other devices to your Bluetooth stereo receiving device; when used as a receiver, you can use it to make your normal Audio equipment can also receive Bluetooth audio and listen to music wirelessly.

System Requirements

1. When used as a transmitter, the audio source device requires a 3.5mm audio output interface, and the audio receiving device requires a Bluetooth stereo receiver device that supports the Bluetooth A2DP protocol, such as Bluetooth headsets, Bluetooth speakers, etc.
2. When used as a receiver, the audio source device is a Bluetooth stereo transmitter device that supports the Bluetooth A2DP protocol, such as Bluetooth mobile phones, computers, etc. The audio output device requirements are speakers, headphones, etc. With a 3.5mm audio input interface.

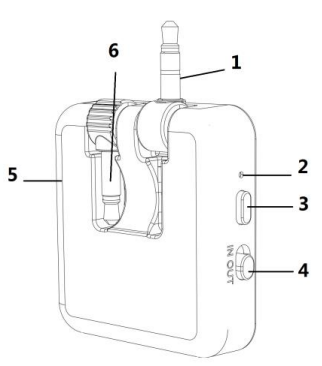

Overview

Getting started

This product uses a built-in rechargeable battery. If you see a steady red light during use, it means that the battery is low and you need to charge the product. If it is in RX  (receiving) mode, you can hear the ‘low battery’ prompt.

1. Connect the USB charging cable to the USB port of the computer or the USB port of the charger.
2. Connect the end of the USB charging cable to the charging port of the transmitter. White light flashing = charging.ng Steady white light = fully char.ged
3. It takes about 1 hour and 40 minutes to fully charge the battery

Take up

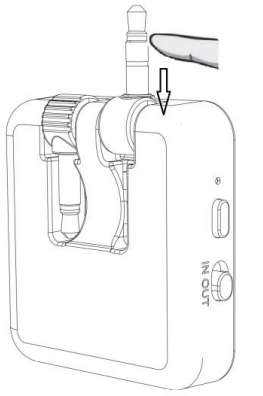

1. When the product is not in use, the 3.5mm plug can be pressed back into the slot on the back to facilitate carrying and storing. The operation method is shown in the figure below.

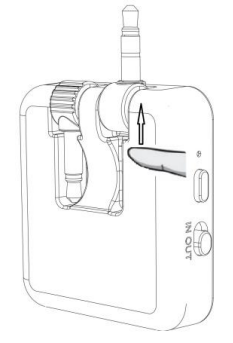

2. When you want to use the product, please refer to the following diagram to put the 3.5mm plug into the slot.

Mode switch

The product is divided into two working modes: transmitting and receiving. Before using, you need to select the corresponding mode.

TX(Transmit) Mode

power on/off

Pairing With Bluetooth

Pair and connect with a device

When using it for the first time, you must pair the transmitter with your Bluetooth receiving device. The general pairing steps are as follows:

1. Make sure you are currently in TX (transmit) mode; otherwise, please reset to TX (transmit) mode.
2. Keep BT032A and your receiving device within 1 meter, the closer the better.
3. Make the BT032A and the receiving device enter the pairing mode.
4. BT032A will automatically search for Bluetooth receiving devices and automatically complete pairing and connection with them. Connected with the receiving device, the white light is on.

Pair and connect with two devices at the same time

Method One

1. Make BT032A paired with the device.
2. Disconnect device one, make BT032A re-enter the pairing mode, and pair and connect with device two.
3. Restart the device one more time, and it will automatically connect to BT032A, and at this time, the two devices are connected at the same time.

Method two

1. Make BT032A paired with the device.
2. There is no need to disconnect the device;e, just double-click the BT032A power button to re-enter the pairing mode and pair with device two. At this time, two devices are connected at the same time.

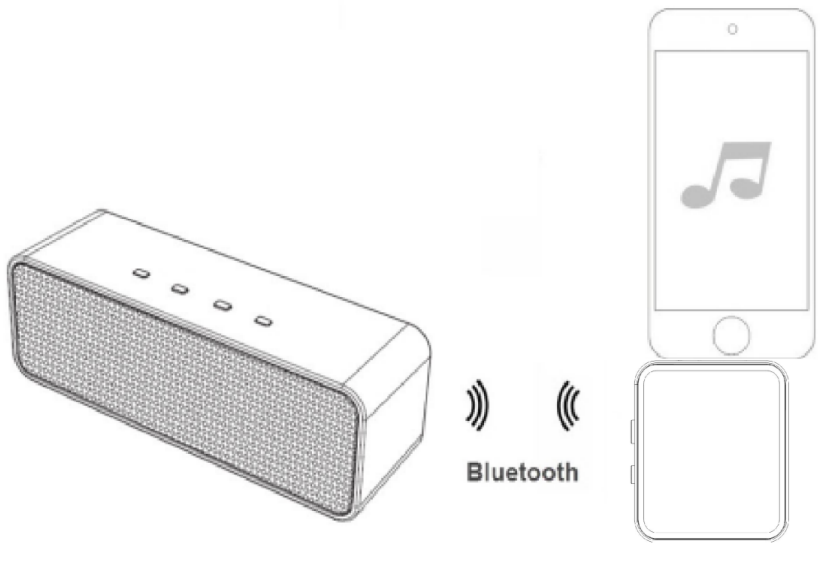

Play music

Connect the 3.5 mm audio plug of the transmitter to your audio playback device, such as an MP3, computer, TV, etc., and pair and connect with the Bluetooth receiving device; you can listen to the currently playing music wirelessly.

The meaning of the indicator light

Power on/off

Bluetooth pairing with a mobile phone

1. Make sure you are currently in RX (receive) mode; otherwise, please reset to RX (receive) mode.
2. Keep BT032A and your Bluetooth mobile phone within 1 meter, the closer the better.
3. Make BT032A enter pairing mode.
4. Turn on the Bluetooth function of the mobile phone and search for Bluetooth devices. Select ‘BT032A’, and the white light will be on after a successful connection.

Pair and connect with two devices at the same time

1. Make BT032A paired with the device.
2. There is no need to disconnect device one for BT032A. Device two can search for the ‘BT032A’ pairing connection. At this time, two devices are connected at the same time.

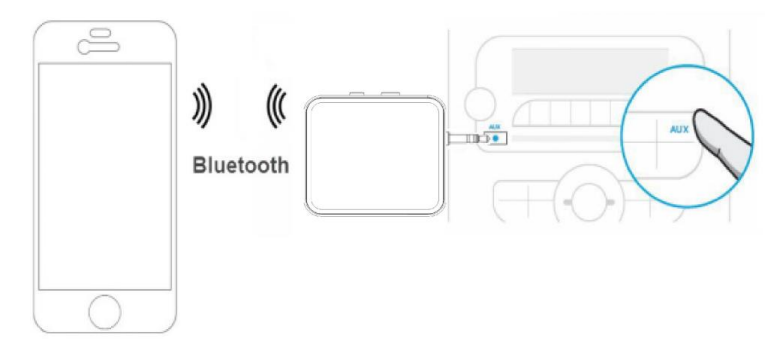

Play music

After the BT032A is paired and connected with the Bluetooth transmitter device, connect the 3.5mm audio plug of the BT032A to speakers and other audio devices. Youu can listen to music wirelessly and control the music to pause and resume.

The meaning of the indicator light

Reset

• Long-press the power button for 6 seconds in the power-on state and then let go.
• After restoring the factory settings, the pairing list will be cleared, and the pairing must be re-paired next time you connect. And clear in either mod.e In K-Mate BT-032A Flight Adapter Transmitter addition to the pairing operation, the pairing list of another mode will also be cleared.
• During the operation, there will be a power-on-pairing-off process, and you will see that the indicator light will also change accordingly.

Care and maintenance

When using, please read the following suggestions to help you comply with the warranty terms and extend the life of the product.

• Keep the product dry, do not place it in a humid place, so as not to affect the internal circuit of the product.
• Do not place the product in a place exposed to sunlight or high temperatures. High temperatures will shorten the service life of electronic components and deform certain plastic parts.
• Do not place the product in a cold place to avoid damage to the internal circuit board.
• Do not try to disassemble the product. If you are not a professional, the product may be damaged.
• Do not drop, vibrate strongly, or hit the product with hardware to avoid damage to the internal circuit.
• Do not use harsh chemicals or detergents to clean the product.
• Do not scratch the surface of the product with a sharp object, so as not to damage the shell and affect the appearance.
• Do not try to remove the battery from the product to avoid damage to the product. If the product does not work normally, please send it to your qualified maintenance organization, and the staff will be eager to help you solve the problem.

Specifications

FCC Statement

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that K-Mate BT-032A Flight Adapter Transmitter may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
3. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates and uses can radiate radio frequency energy and, if not installed and used per the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Customer Support

• Telephone: 86-0760-88320910
• Address: E Bldg., Fuwan Ind.Zone, Fuwan Nan Rd., Zhongsha, N China, Jining, Shandong, China
• Website: https://kmate8.goldsupplier.com/

FAQs

What is the primary function of the K-Mate BT-032A Flight Adapter Transmitter?

Wireless listening during flights is made possible by the BT-032A, which enables audio signals from in-flight entertainment systems to be transmitted wirelessly to your Bluetooth headphones or other devices.

How do I pair the BT-032A with my Bluetooth headphones?

Enable Bluetooth on your headphones, turn on the BT-032A, press and hold the pairing button until the LED flashes, and then choose “K-Mate BT-032A” from the device list.

Does the BT-032A support multiple devices simultaneously?

No, only one Bluetooth device can be paired with the transmitter at once for consistent audio streaming.

What type of audio connection does the transmitter use to connect to the aircraft system?

Most in-flight entertainment systems have a 3.5 mm dual audio jack, which is how it connects.

How long does the battery last on a full charge?

For the majority of long-haul flights, the BT-032A can typically operate continuously for up to 10 hours on a single charge.

How do I charge the BT-032A?

Connect it to any USB power source using the included USB charging cord. Typically, a full charge takes two to three hours.

Can the transmitter be used outside of airplanes?

Indeed, it may be used as a universal Bluetooth audio transmitter with any device that has a 3.5 mm audio output, including MP3 players, PCs, and TVs.

What Bluetooth versions does the BT-032A support?

The gadget is compatible with the majority of contemporary Bluetooth headphones and gadgets because it supports Bluetooth version 4.0 and above.
