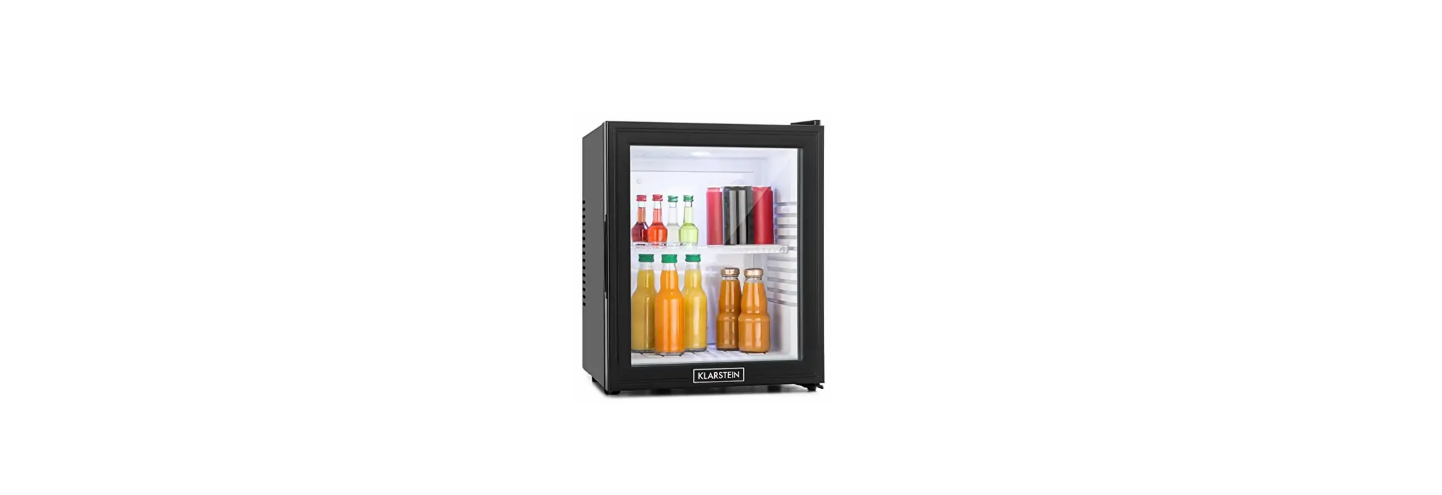

KLARSTEIN 10005399 BROOKLYN Fridge
Safety Instructions
- Children aged 3 to 8 years may fill refrigerators with food and remove food.
- Ensure that children do not play with the appliance.
- Keep all packaging away from children. There is a danger of suffocation.
- When you dispose of the appliance, unplug it from the wall outlet, cut the power cord, and remove the door.
- Keep ventilation openings in the unit housing or the built-in cabinet free of obstacles.
- Do not use mechanical devices or other means to speed up the defrosting process.
- Do not damage the refrigerant circuit.
- When setting up the machine, take care not to pinch or damage the power cord.
- Make sure that you can reach the power plug of the machine at any time.
- Do not pull on the power cord.
- If the power outlet is loose, do not plug in the power plug.
- There is a risk of electric shock or fire.
- This machine is heavy. Be careful when moving it.
- Do not place the unit in direct sunlight.
Overview
Glass Door
Operating Instructions
- Position your refrigerator so that the plug is accessible.
- Keep your refrigerator out of direct sunlight.
- Do not place next to heat heat-generating appliance.
- Do not place directly on the ground. Provide a suitable stand.
- The refrigerator will have better performance at an ambient temperature of 20-25 °C. We suggest the refrigerator be powered off if the ambient temperature is lower than 10 °C.
- After plugging the appliance, allow the unit to cool down for 2-3 hours before placing a beverage into the refrigerator compartment.
- Ventilation is very important for this kind of thermoelectric refrigerator. The inside PCB will break easily if the ventilation is bad. It will also reduce the life of the refrigerator.
- If leakage occurs (which can be easily detected due to the unpleasant smell), please
- Switch off the refrigerator immediately
- ventilate the room thoroughly
- Call the after-sales service department
Power supply
- The refrigerator must be connected to a properly earthed socket in line with relevant valid country regulations before operating.
- Check the data label (which is on the side of the refrigerator) for the voltage and frequency that correspond to your local one. If not, don’t plug your cable into the socket.
Installation
- There should be at least 200 cm³ left for ventilation
- The distance between the wall and the refrigerator side should be at least 20mm
- The bottom should be left at least 50mm for air flow
- Air passing through must not be preheated
- The entire cooling system should be considered in the ventilation.
- Use two self-screws to fix the sliding hinge.
- After checking the suitable distance, use two self-screws to KLARSTEIN 10005399 BROOKLYN Fridge fix the bottom feet respectively.
- If the refrigerator is closed, there should be a distance of 1-2 mm between the wooden cabinet door and the surrounding.
- There must be a distance of 6-8mm between the wooden cabinet and the refrigerator door.
- The maximum distance between the refrigerator’s and the cabinet’s hinge is about 40 mm.
Changing the Side of the Hinge
- Loosen the screws of the right hinge. Remove the upper KLARSTEIN 10005399 BROOKLYN Fridge and lower hinges.
- The following parts are in the box. 1x Left hinge cover, 2x hinges top and bottom, 3x screws
- Fasten the door to the appropriate position on the left KLARSTEIN 10005399 BROOKLYN Fridge side using the hinges and screws. At the end, place the cover on the hinge.
LOCK AND KEY
- The diameter of the hole is: 18 mm.
- The distance between the bottom edge and the middle of the lock hole is 62 mm.
Care & Maintainance
Defrosting
- Frost may accumulate on the inside of the unit and defrost automatically during the compressor cycle.
- The water is led through the drain opening into the collecting tray above the comprcompressorre it evaporates.
- Make sure that the drain hole is cleaned regularly so that the water can escape from the storage compartment.
Cleaning the Unit
- Remove all shelves and the vegetable compartment. First, remove the lower door compartment so that you can remove the vegetable compartment.
- Wipe the inside of the appliance with a damp cloth, KLARSTEIN 10005399 BROOKLYN Fridge, and a little detergent. Then wipe with clear, warm water.
- Wash the shelves and the vegetable compartment KLARSTEIN 10005399 BROOKLYN Fridge in water with detergent and dry them before putting them back into the appliance. Clean the outside of the appliance with a damp cloth.
Technical Data
- Item number 10005399, 10005400
- Power supply 220-240 V ~ 50/60 Hz
Troubleshooting
| Problem | Possible cause | Solution |
| The appliance does not work. | The mains plug is not plugged in or is loose | Insert mains plug. |
| Fuse has blown or is defective.e | Check the fuse, replace if necessary. | |
| The food is too warm. | The temperature is not properly adjusted. | Please look in the initial Temperature Setting section. |
| The door was open for an extended period. | Open the door only as long as necessary. | |
| A large quantity of warm food was placed in the appliance within the last 24 hours. | Turn the temperature regulation to a colder setting temporarily. | |
| The appliance is near a heat source. | Please look in the installation location section. | |
| The appliance cools too much. | The temperature is set too cold. | Turn the temperature regulation knob to a warmer setting temporarily. |
| Unusual noises. | The appliance is not level. | Re-adjust the feet. |
| The appliance is touching the wall or other objects. | Move the appliance slightly. | |
| A component, e.g., a pipe, on the rear of the appliance is touching another part of the appliance or the wall. | If necessary, carefully bend the component out of the way. |
Data Sheet
Information according to Regulation (EU) No. 2019/2016
| Supplier’s name or trademark: Klarstein | |||
| Supplier’s address: Wallstraße 16, 10179 Berlin, DE | |||
| Model identifier: 10005399A | |||
| Type of refrigerating appliance: | |||
| Low-noise appliance: | Yes | Design type: | |
| Wine storage appliance: | No | Other refrigerating appliance: | |
| General product parameters: | |||
| Parameter | Value | Parameter | |
| Overall dimensions (mm) | Height | 474 | Total volume (dm³ or L) |
| Width | 373 | ||
| Depth | 440 | ||
| EEI | 170 | Energy efficiency class | |
| Airborne acoustical noise emissions (dB(A) re 1 pW) | 23 | Airborne acoustical noise emission class | |
| Annual energy consumption (kWh/a) | 130 | Climate class: | |
| Minimum ambient temperature (°C) for which the refrigerating appliance is suitable | 16 | Maximum ambient
temperature (ºC), for which the refrigerating appliance is suitable |
|
| Winter setting | No | ||
Disposal
By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
Environmental Safety
- During cooking, make sure that there is sufficient air KLARSTEIN 10035380 ELEONORA Range Hood supply so that the cooker hood can operate efficiently and with low operating noise.
- Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary.
- Switch off the cooker hood when you no longer need it.
- Switch off the lighting when you no longer need it.
- Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
- Always put the lid on when cooking to reduce cooking steam and condensation.
Customer Service
Manufacturer & Importer (UK)
- Manufacturer:Â Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
- Importer for Great Britain:Â Berlin Brands Group UK Ltd PO Box 42 272 Kensington High Street, London, W8 6N, D United Kingdom
- Website: Â http://www.klarstein.com
- Scan the QR code to get access to the latest user manual for KLARSTEIN 10035380 ELEONORA Range Hood and more product information.
Dear Customer
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use.
FAQs
Q: What type of appliance is the KLARSTEIN BROOKLYN (10005399)?
Ans: The KLARSTEIN BROOKLYN is a small, freestanding mini refrigerator that can be used in offices, dorm rooms, hotels, residences, or bedrooms. It is renowned for its energy-efficient design and silent operation.
Q: What is the total storage capacity of the fridge?
Ans: Depending on the model, the BROOKLYN refrigerator has a net capacity of roughly 35 to 40 litres. Small food items, snacks, and drinks can all be stored in it.
Q: Does this fridge include a freezer compartment?
Ans: No. The Brooklyn only has a refrigerator; it doesn’t have a freezer. It is not intended for freezing, but rather for refrigeration.
Q: Is the temperature adjustable?
Ans: Indeed. The manual thermostat dial, which is usually found inside the unit, can be used to change the internal temperature. Depending on the ambient room temperature and your storage requirements, the settings range from cool to extremely cold.
Q: What is the operating temperature range of the fridge?
Ans: The refrigerator normally keeps its internal temperature between 4°C and 15°C (39°F and 59°F), depending on the setting and ambient conditions.
Q: How loud is the fridge when running?
Ans: The BROOKLYN is ideal for usage in calm areas because it produces noise at a very low level, usually less than 26 dB.
Q: Can the door be reversed?
Ans: Indeed. Because the BROOKLYN refrigerator’s door is reversible, you can select a left- or right-hand opening based on your available space. For further information on how to reverse the door, consult the handbook.
