KLARSTEIN 10029345 FIGO Ceiling Fan Instruction Manual

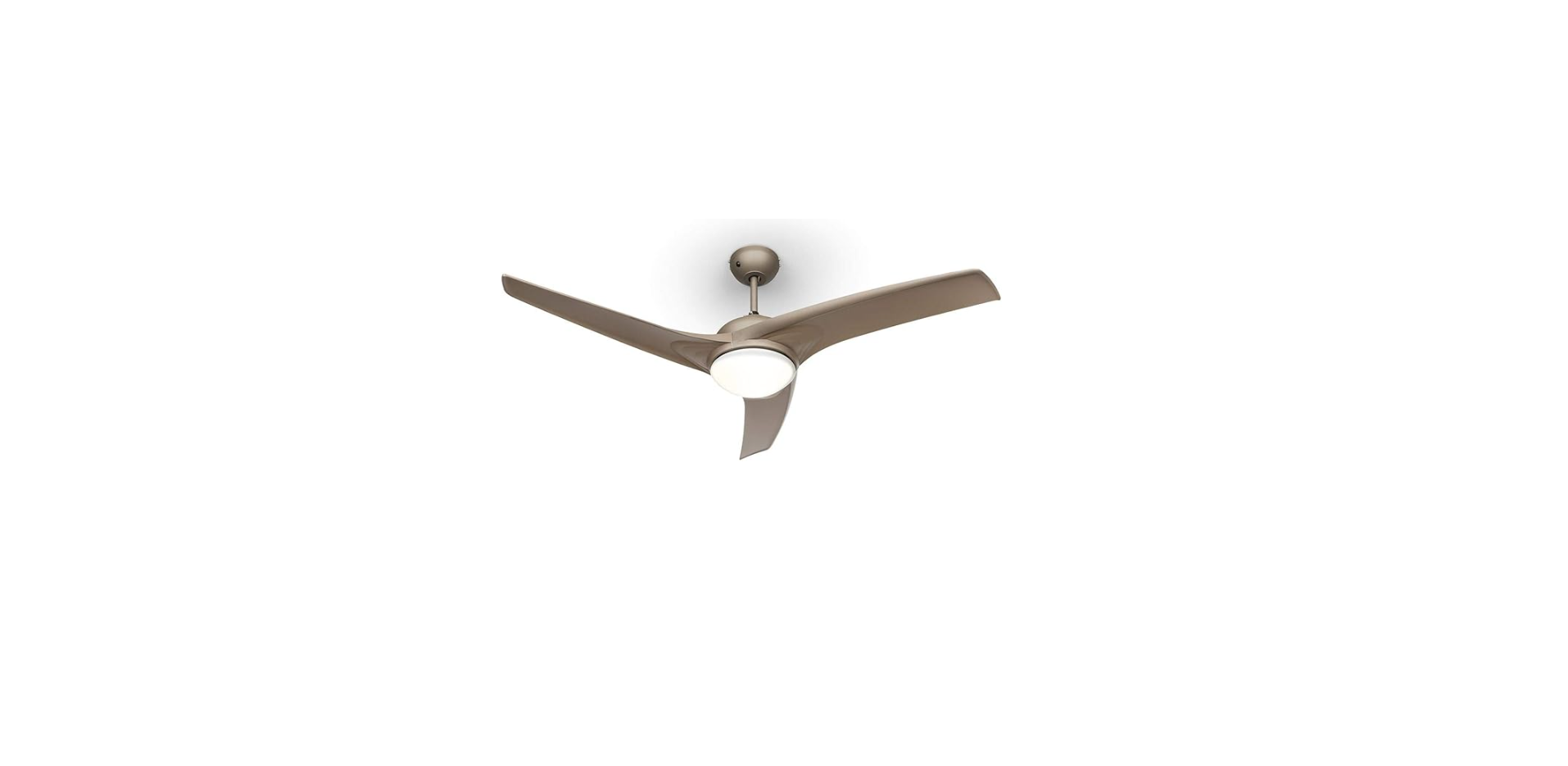

KLARSTEIN 10029345 FIGO Ceiling Fan

Safety Instructions

• Never attach the fan to a power point, but to the ceiling itself.
• The minimum distance between the blades of the fan and the floor must be more than 2.3 m.
• The minimum carrying capacity of the hook from which the fan is hung must be 100 kg.
• Make sure to install all poles with disconnection switches having a contact separation of at least 3 mm between poles in the supply wiring to the ceiling fan.
• The model or type reference of luminaries that may be installed in fans that are constructed for his purpose.
• Switch off the power before connecting.
• The electrical wiring must be in accordance with the local regulations.
• The fan must be properly earthed to avoid the risk of electric shocks.
• Never mount the fan in a moist or wet room.
• Be careful when working near the rotating blades.

Installation

• Fasten the mounting plate to a ceiling joist with two screws, lock washers, and washers. The ceiling joist must be strong enough to support the weight of the moving fan.
• Attach the fan components to the mounting plate. Align the ball joint of the fan with the suspension lug of the mounting plate.
• Insert the remote control receiver between the clamp and the ball joint.
• Connect the internal cables by plugging the two plastic connectors together until they snap into place.
• Connect the cables of the grounded power source to the terminal block.
• Slide the cover over the mounting plate. Make sure that you do not disconnect any cables in the process.
• Attach the rotor blades with the spring KLARSTEIN 10029345 FIGO Ceiling Fan washers and screws that are already on the motor.
• Connect the lamp cables by plugging the two plastic connectors together until they snap into place.
• Attach the lamp socket to the mounting brackets and fix it with three fixing screws and star washers. Make sure that you do not disconnect any cables in the process.
• Attach the bulbs (max. 42 W E14, not included) to the lamp holder.
• Attach the lampshade to the socket by turning it clockwise.

Operation

• Press the Speed button on the remote control to select a speed: HI: High • MED: Medium • LOW: Low • OFF: Off.
• The switch on the motor housing can be used to influence the direction of the airflow generated by the rotor blades.
• Cold Weather: Set the switch to RIGHT to allow the blades to distribute the warm air under the ceiling to the room below.
• Warm weather: set the switch to LEFT so the blades create a cooling airflow and distribute it into the room.
• Press the ON/OFF light button on the KLARSTEIN 10029345 FIGO Ceiling Fan remote control to turn the light on the fan on and off.

Remote Control

• Use the remote control to change the wind speed and turn the light or fan on/ off. Slide back the battery compartment door and insert two AAA batteries (not included).
• Make sure that you insert the batteries the right way round. Then close the battery compartment again. Make sure that the battery compartment is always firmly closed.
• Do not place the remote control in direct sunlight. Do not attempt to recharge dead batteries. Only charge batteries that are expressly intended for this purpose. Do not dispose of batteries in fire to prevent explosions.

Technical Data

• Item number 10029345, 10029346, 10033505
• Power supply 220-240 V~ 50-60 Hz

Disposal

By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

Environmental Safety

• During cooking, make sure that there is sufficient air KLARSTEIN 10035380 ELEONORA Range Hood supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.
