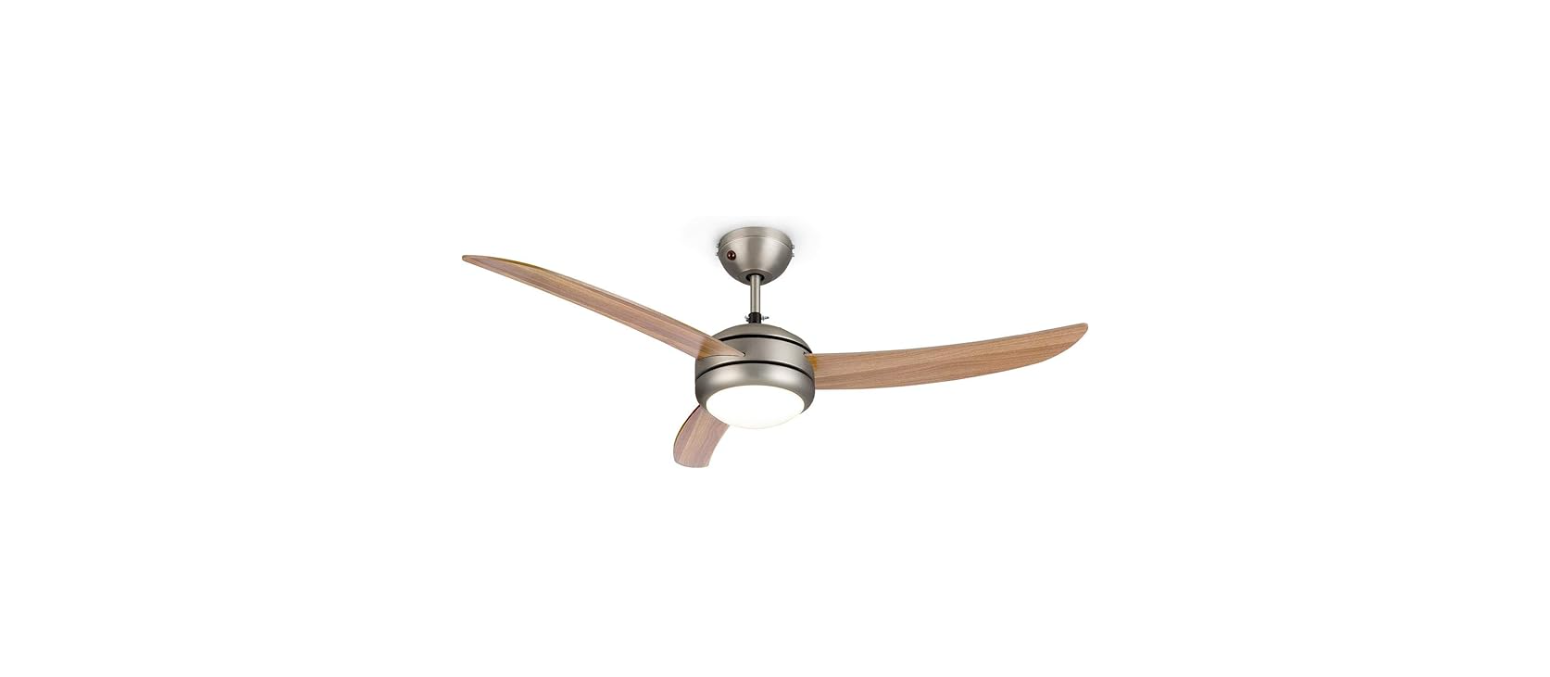

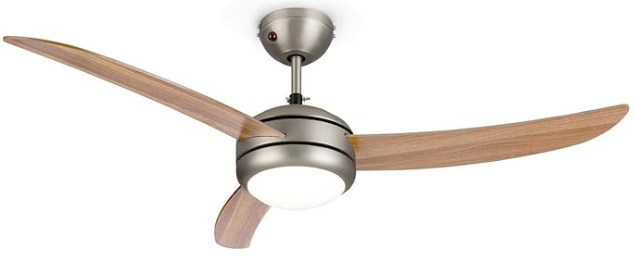

KLARSTEIN 10029347 VALDERAMA Ceiling Fan
Safety Instructions
- Never attach the fan to a power point, but to the ceiling itself.
- The minimum distance between the blades of the fan and the floor must be more than 2.3 m.
- The minimum carrying capacity of the hook from which the fan is hung must be 100 kg.
- Make sure to install all poles with disconnection switches having a contact separation of at least 3 mm between poles in the supply wiring to the ceiling fan.
- The model or type reference of luminaries that may be installed in fans that are constructed for his purpose.
- Switch off the power before connecting.
- The electrical wiring must be in accordance with the local regulations.
- The fan must be properly earthed to avoid the risk of electric shocks.
- Never mount the fan in a moist or wet room.
- Be careful when working near the rotating blades.
Installation
- Fasten the mounting plate to a ceiling joist with two screws, lock washers, and washers. The ceiling joist must be strong enough to support the weight of the moving fan.
- Attach the fan components to the mounting plate. Align the ball joint of the fan with the suspension lug of the mounting plate.
- Insert the remote control receiver between the clamp and the ball joint.
- Connect the internal cables by plugging the two plastic connectors together until they snap into place.
- Connect the cables of the grounded power source to the terminal block.
- Slide the cover over the mounting plate. Make sure that you do not disconnect any cables in the process.
- Attach the rotor blades with the spring KLARSTEIN 10029345 FIGO Ceiling Fan washers and screws that are already on the motor.
- Connect the lamp cables by plugging the two plastic connectors together until they snap into place.
- Attach the lamp socket to the mounting brackets and fix it with three fixing screws and star washers. Make sure that you do not disconnect any cables in the process.
- Attach the bulbs (max. 42 W E14, not included) to the lamp holder.
- Attach the lampshade to the socket by turning it clockwise.
Operation
- Press the Speed button on the remote control to select a speed: HI: High • MED: Medium • LOW: Low • OFF: Off.
- The switch on the motor housing can be used to influence the direction of the airflow generated by the rotor blades.
- Cold Weather: Set the switch to RIGHT to allow the blades to distribute the warm air under the ceiling to the room below.
- Warm weather: set the switch to LEFT so the blades create a cooling airflow and distribute it into the room.
- Press the ON/OFF light button on the KLARSTEIN 10029345 FIGO Ceiling Fan remote control to turn the light on the fan on and off.
Remote Control
- Use the remote control to change the wind speed and turn the light or fan on/ off. Slide back the battery compartment door and insert two AAA batteries (not included).
- Make sure that you insert the batteries the right way round. Then close the battery compartment again. Make sure that the battery compartment is always firmly closed.
- Do not place the remote control in direct sunlight. Do not attempt to recharge dead batteries. Only charge batteries that are expressly intended for this purpose. Do not dispose of batteries in fire to prevent explosions.
Technical Data
- Item number 10029345, 10029346, 10033505
- Power supply 220-240 V~ 50-60 Hz
Disposal
By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
Environmental Safety
- During cooking, make sure that there is sufficient air KLARSTEIN 10035380 ELEONORA Range Hood supply so that the cooker hood can operate efficiently and with low operating noise.
- Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary.
- Switch off the cooker hood when you no longer need it.
- Switch off the lighting when you no longer need it.
- Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
- Always put the lid on when cooking to reduce cooking steam and condensation.
Customer Service
Manufacturer & Importer (UK)
- Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
- Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 42 272 Kensington High Street, London, W8 6N, D United Kingdom
- Website: http://www.klarstein.com
- Scan the QR code to get access to the latest user manual KLARSTEIN 10035380 ELEONORA Range Hood and more product information.
Dear Customer
Congratulations on purchasing this device. Please read the following KLARSTEIN 10038383 FIRE SMART Fireplace Heater instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
FAQs
Q: What is the maximum ceiling height for safe installation?
Ans: At least 2.3 meters (7.5 feet) should separate the fan blades from the floor during installation. To ensure clearance and effective airflow, choose the downrod length that corresponds to the height of your ceiling.
Q: Can the LED light be dimmed?
Ans: Yes, you may use the remote control to dim the built-in LED light. Depending on your preferred lighting, you can also change the colour temperature between warm white, neutral white, and cool white.
Q: Is this fan compatible with wall switches or smart home systems?
Ans: Non-standard wall controllers or external dimmer switches are not compatible with the fan’s design. A compatible smart infrared controller that can pick up commands from the remote is required for smart home integration.
Q: What is the warranty period for this model?
Ans: Most of Klarstein’s appliances, including the Valderama fan, come with a two-year warranty. For warranty claims or service requests, consult your proof of purchase and get in touch with Klarstein customer service.
Q: What is the recommended room size for the Valderama fan?
Ans: For the best airflow and cooling, the fan works well in medium-to-large spaces up to about 20–25 square meters (215–270 square feet).
Q: How do I change the LED light bulb if it stops working?
Ans: Bulb replacement is not intended for the integrated LED panel. For information on repair or replacement alternatives, get in touch with Klarstein customer service if the light stops functioning during the warranty term.
Q: Can I install the fan myself, or should I hire a professional?
Ans: If you have electrical installation experience, you can install it yourself by carefully following the instructions.
