KLARSTEIN 10029393 MAXFRESH Air Cooler Instruction Manual

KLARSTEIN 10029393 MAXFRESH Air Cooler

SAFETY INSTRUCTIONS

1. Check the voltage on the rating plate before use.
2. Only connect the appliance to sockets that correspond to the voltage of the appliance.
3. Do not operate the appliance if the cable or plug is damaged.
4. Indoor use only.
5. Do not cover the machine while in use.
6. Place the appliance on a stable, flat, horizontal surface.
7. Make sure the appliance is in an upright position during use.
8. Ensure the appliance is switched off before connecting to the mains power supply.
9. Keep new and used batteries away from children.
10. If the battery compartment does not close securely, stop using the product.

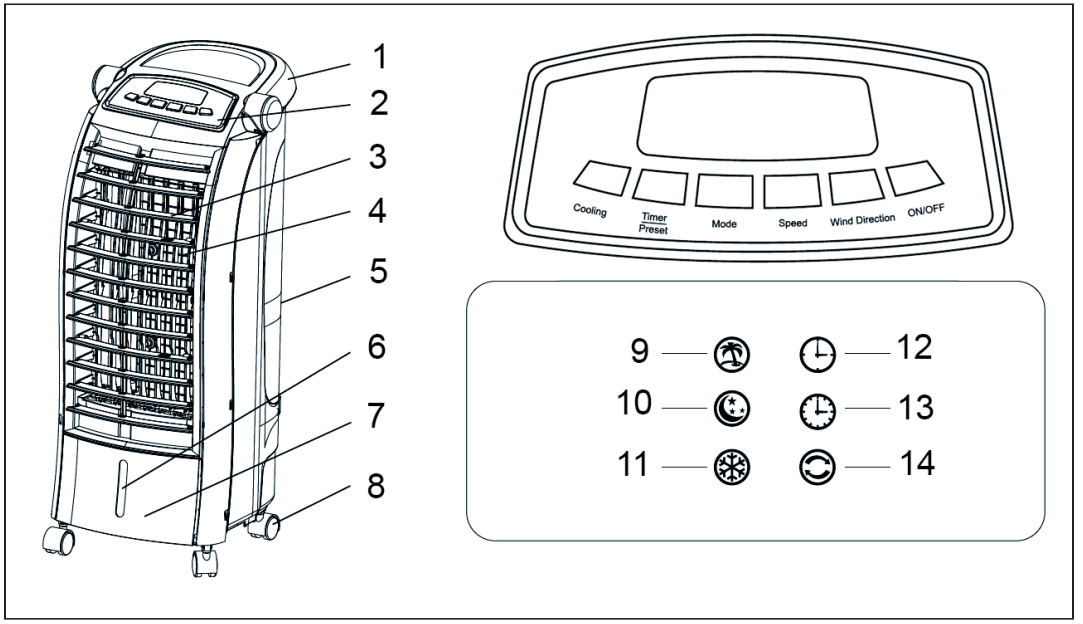

Control Panel

Functions

Standby mode

• After the device has been switched on, all lamps light up briefly. As soon as the lamps are off again, the device is in standby mode.

ON/OFF key

• When you press the key in standby mode, the fan runs at level 1. As soon as you press the key again, the fan stops. The unit stops, all lights go off, and the unit switches to standby mode.

SPEED button

• When the fan is running, you can adjust the speed with the SPEED key. Press the key several times in succession to adjust the speed. The display shows the corresponding speed level.

Mode key

• Press this key while the fan is running to select the desired mode. Press the key several times in succession to select the modes in the following order: Natural > Night Mode > Normal Mode. The corresponding icon will light up.

Wind Direction Button

• Press this button while the fan is running to change the wind direction. Press the
  key several times in succession to change the wind direction as follows: Swing right/left > Swing off.

Cooling key

• If you press the key during operation, the cooling function is started. The water pump starts, and the cooling LED turns on. If you press the key again, the cooling function is deactivated. The pump stops, and the cooling LED goes out.

Timer/preset key

• Press the key several times in succession during operation to set the off timer in the following sequence: 1 h > 2 h > 3 h > … > 15 h. Press the key in standby mode to set the switch-on timer in the following sequence: 1 h > 2 h > 3 h > … > 15 h. When the preset time is reached, the fan will start automatically. The preset running time is 2 hours in oscillating mode. After this time, the device goes off. Other functions are not available during this time.

Water leakage protection

• If the water tank leaks, the pump stops, and the unit emits 3 warning sounds. If the unit is in cooling mode, the fan is not affected. If the unit is in humidification mode, the motor will stop if the unit has the corresponding protection function. The protection is active only in cooling or humidification mode.

Operation

Installation

• Remove the unit from the packaging and check that the unit, the remote control, 2 ice boxes, and the 4 wheels are included.

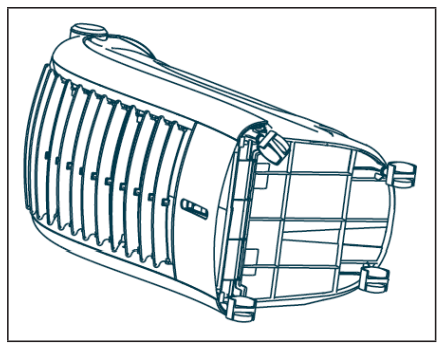

• Install the wheels before operating the unit. To do this, press the shaft at the end of the wheels into the recesses at the bottom of the unit (see picture). Push the shaft in firmly until the roller is properly seated.
• Place the device on a level surface. Make sure that the socket corresponds to the voltage indicated on the device plate.

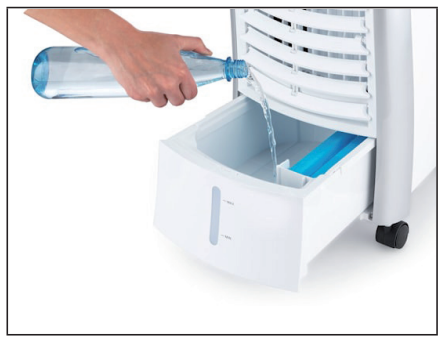

Fill with water

• Unplug the power cord from the wall outlet.
• Pull the water tank out of the unit.
• Empty the old water if you have not used the unit KLARSTEIN 10029393 MAXFRESH Air Cooler for a long time.
• Fill the tank to the Max mark at the maximum so that the tank does not overflow.

Storage

If you are not going to use the unit for a long time, drain KLARSTEIN 10029393 MAXFRESH Air Cooler the water and let the fan run at normal temperature for a while. After the unit is completely dry, put a plastic bag over it and store it in the original box.

Cleaning

If you use the device for a longer period of time, dirt can KLARSTEIN 10029393 MAXFRESH Air Cooler accumulate in the tank and on the nebulizer and influence the cooling effect. We therefore recommend that you clean both parts every 2 weeks.

Always disconnect the plug from the socket before cleaning. Before putting the unit back into operation, make sure that the nebulizer is correctly seated; otherwise, the unit will not run properly, and the motor could be damaged. If you have to remove the nebulizer, make sure that the unit is switched off. Otherwise, water may spray out or the unit may leak.

How To Use

• Do not open the ice box during operation, and do not consume the ice crystals inside.
• Place the ice box in the freezer for 4 hours and then place it in the water tank. The water tank should be filled before you put the ice boxes in it.
• The ice box will cool down the water, creating a cooler air flow.
• You can use the ice box permanently.
• Insert the ice box as shown in the picture on the right so that you do not damage the water pump.

Technical Data

Troubleshooting

Disposal

By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

Environmental Safety

• During cooking, make sure that there is sufficient air KLARSTEIN 10035380 ELEONORA Range Hood supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.

Customer Service

Manufacturer & Importer (UK)

• Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
• Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 42 272 Kensington High Street, London, W8 6N, D United Kingdom
• Website:  http://www.klarstein.com
• Scan the QR code to get access to the latest user manual  KLARSTEIN 10035380 ELEONORA Range Hood and more product information.

Dear Customer

Congratulations on purchasing this device. Please read the following KLARSTEIN 10038383 FIRE SMART Fireplace Heater instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

FAQs

Q: What is the KLARSTEIN MAXFRESH Air Cooler, and how does it differ from an air conditioner?

Ans: The KLARSTEIN MAXFRESH is an evaporative air cooler, not a compressor-based air conditioner. It cools the air using water evaporation, which adds slight humidity to the air. It’s ideal for dry climates and more energy-efficient than traditional AC units.

Q: How do I fill the water tank, and how much water does it hold?

Ans: Slide out the rear water tank and fill it using a jug or under a tap. The tank capacity is approximately 6 liters. Use cold water for better cooling, or add ice packs for enhanced performance.

Q: Can I use the MAXFRESH without water?

Ans: Yes, you can use it as a regular fan without water. However, to enjoy the cooling effect, the Cool mode requires a filled water tank.

Q: How noisy is the MAXFRESH during operation?

Ans: The MAXFRESH operates relatively quietly, especially in Sleep Mode, making it suitable for bedrooms and offices. Noise levels may increase at higher fan speeds but remain within an acceptable range.

Q: Can I use the MAXFRESH overnight or unattended?

Ans: Yes, it has a timer function (up to 7.5 hours) that lets you schedule a shutdown. However, it’s best to avoid long unattended use for safety and to prevent water stagnation.

Q: Can I use essential oils or fragrances in the water tank?

Ans: No. Adding oils, fragrances, or additives can damage internal components and void the warranty. Stick to clean water and supplied ice packs.
