KLARSTEIN 10029702 NEW BREEZE Air Conditioner User Manual

KLARSTEIN 10029702 NEW BREEZE Air Conditioner

Safety Instructions

TECHNICAL DATA

Item number	10029702, 10029703, 10040152, 10040153	10029704, 10029705, 10040154, 10040155
Power supply	220-240 V ~ 50/60 Hz
Cooling capacity	7000 BTU	9000 BTU
Room size	21-34 m²	26-44 m²

Special notes

• Only use agents recommended by the manufacturer for defrosting or cleaning.
• Never store the appliance in a room in which there are permanent sources of ignition (e.g., open flames, switched-on gas appliance, or a switched-on electric heater).
• Do not puncture or burn the appliance.
• Note that coolant may be odourless.

Note: Only use the unit in rooms larger than X m² (see table):

Model	X (m²)
5000 BTU/h, 7000 BTU/h, 8000 BTU/h	4 m²
9000 BTU/h, 10000 BTU/h, 10500 BTU/h	12 m²
12000 BTU/h, 14000 BTU/h, 16000 BTU/h,18000 BTU/h	15 m²

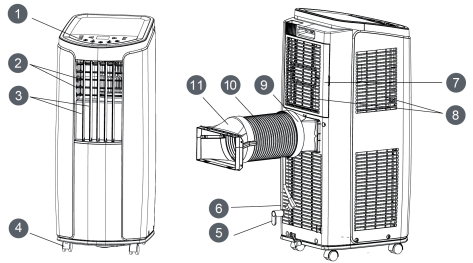

Device Overview

1. Control panel
2. Ventilation slats
3. Vibrating fins
4. Rollers
5. Cable holders
6. Plugs and power cord
7. Ventilation slots
8. Air intake
9. Connection A
10. Exhaust air hose
11. Connections B and C

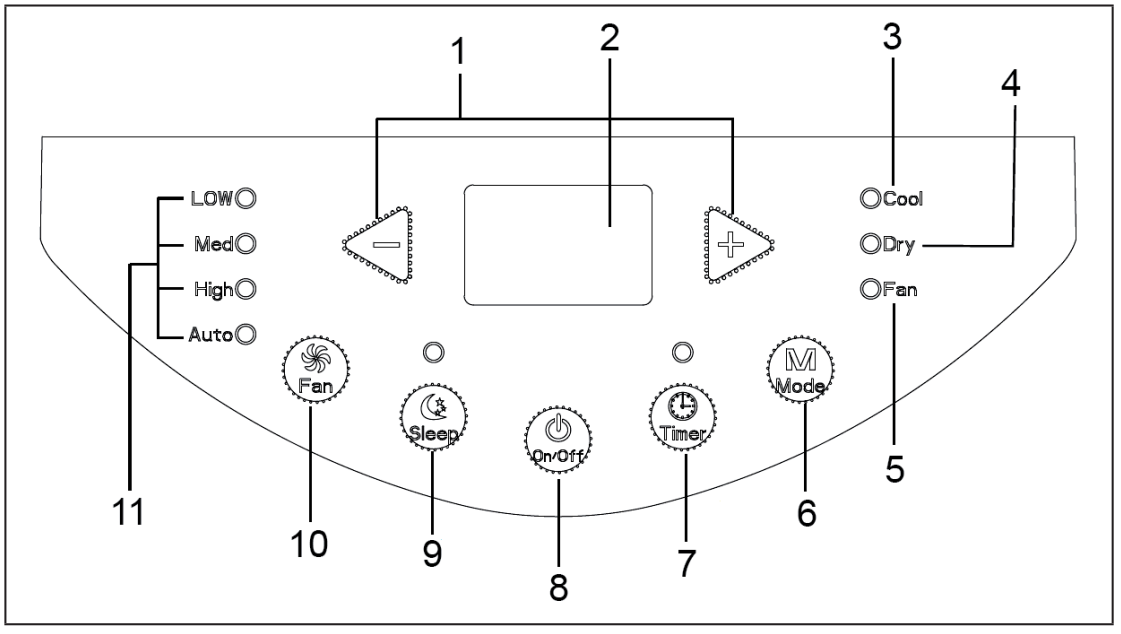

Control Panel And Key Functions

1. +/- Key
2. Temperature display
3. Cooling display
4. Drying indicator
5. Fan display
6. Mode
7. Timer
8. On / off button
9. Sleep mode
10. Fan
11. Fan speed

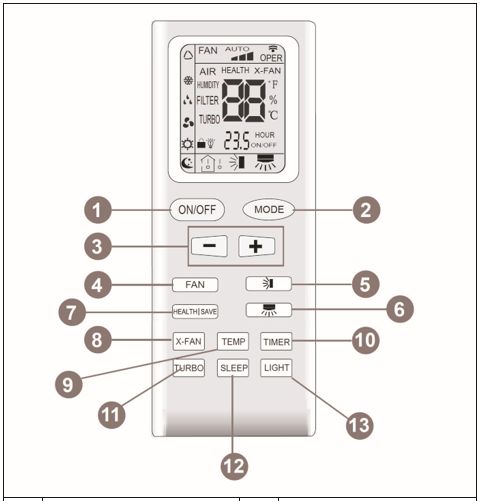

Remote Control And Indicators

1. On / off switch
2. Mode
3. +/-
4. Fan
5. Panning movement (up / down)
6. Swiveling movement (left / right)
7. Health mode / Save
8. Fan mode
9. Temperature
10. Timer (automatic switch-on or switch-off)
11. Turbo
12. Sleep mode
13. Light

Remote control indicators

Notes:

• This is a universal remote control for air conditioning systems with multiple functions. If you press a button with functions that the device does not have, the device will remain in its current state.
• When switched on, the remote control display will show the symbol for starting up.

On / off switch (ON / OFF)

Press to turn the device on or off. After startup, it will light up green. (The colour of the display differs from model to model.)

Mode

Press to go through and select the modes.

AUTO	In automatic mode, the air conditioner will run automatically depending on the ambient temperature. The set temperature cannot be changed and is also not displayed. Press the FAN button to set the fan level. And press to adjust the pan movement. Press and adjust the swivel movement.
COOL	When you select cooling mode, the air conditioner will run in cooling mode. The symbol will appear on the display. You can press the [+] and [-] buttons to set the temperature. Press the FAN button to set the fan level. Press and adjust the swivel movement.
DRY	The fan will run at low speed in dehumidification mode. You cannot change the fan level in dehumidification mode. The symbol appears on the display. Press and adjust the swivel movement.
FAN	The device will only run in ventilation mode. All function symbols in the display have gone out. The operating indicator will light up. With the FAN button, you can set the fan speed. Press and adjust the swivel movement.
HEAT	The device will heat in this mode. The symbol appears on the display. Use the [+] and [-] buttons to set the temperature. Press and adjust the swivel movement.

+/- Keys

Temperature setting: If you press [+] or [-], the set temperature will be increased or decreased by 1 °C(or 1 °F. Hold the button down. After 2 seconds, the set time on the remote control will change. Release the button after the desired time value has been reached. The display will change accordingly. The temperature cannot be set in auto mode.

FAN

Press to set the fan speed in these steps: automatic, low, medium, high.

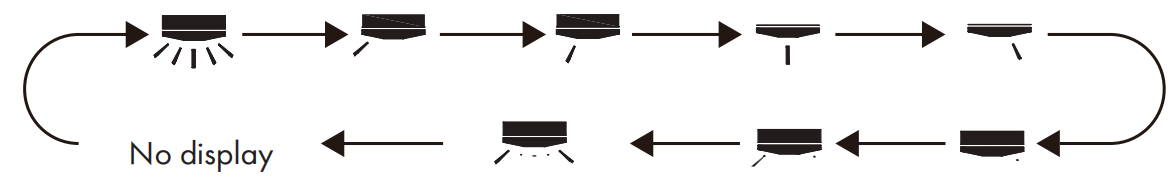

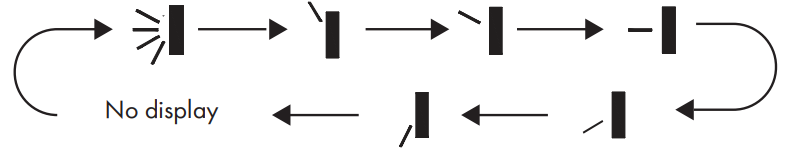

Swivel movement up / down

Swiveling movement up / down. The settings appear in the following order: if you press the remote control, the pan movement is automatically set. The horizontal slats in the air conditioning system automatically move up and down at the greatest possible angle.

When you select on the remote control, you set a fixed pan position. The horizontal slats will stop in the position as indicated in the symbol.

Swivel Movement Left And Right

Swiveling movement left / right. The settings appear in the following order: if you press the remote control, the pan movement is automatically set. The vertical slats in the air conditioning system automatically move up and down at the greatest possible angle.

When you press the remote control, the pan movement is automatically set. The horizontal slats in the air conditioning system automatically move up and down at the greatest possible angle.

When you select on the remote control, you set a fixed pan position. The horizontal slats stop in the position as indicated in the symbol.

Fan operation / X fan

After pressing this button in cooling mode and dehumidification mode, the display will show, and the fan will continue to run for 2 minutes to dry the device. After switching on the device, the ventilation mode will be automatically activated. This function is not available in automatic mode, ventilation mode, and heating mode. If you switch off the device again after activating this function, the fan will run at a low level to dry condensation in the device.

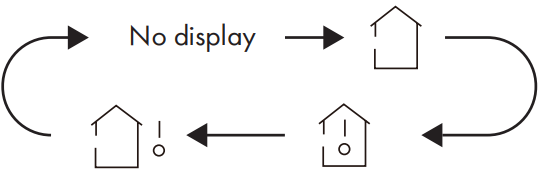

TEMP / Temperature setting

Press this button to show the set temperature, indoor temperature or outdoor temperature on the display.

• Selection of no display on the remote control: display of the set temperature.
• Selection of no display on the remote control: display of the internal temperature.
• Selection of no display on the remote control: display of the outside temperature.

TIMER / automatic timer

• Automatic switch-off: when the device is switched on, press this button to set the automatic switch-off. ‘HOUR’ and ‘OFF’ will flash on the display.
• Press the [+] and [-] buttons within 5 seconds to set the time for the shutdown.
• Pressing [+] and [-] increases or decreases the time by 1/2 hour. If you hold down [+] and [-] for 2 seconds, the time value changes quickly.
• Then press TIMER to confirm. ‘T-OFF’ and ‘H’ will no longer flash.
• Automatic switch-on: when the device is switched off, press this button to set the automatic switch-on. ‘T-OFF’ and ‘H’ will flash on the display.
• Press the [+] and [-] buttons within 5 seconds to set the time for switching on.
• Pressing [+] and [-] increases or decreases the time by 1/2 hour. If you hold down [+] or [-] for 2 seconds, the time value changes quickly. Then press TIMER to confirm.

TURBO

When this button is pressed in cooling or heating mode, the air conditioner will go into quick cooling mode or quick heating mode. ‘TURBO’ will appear on the remote control display. Press the button again to exit turbo mode. The ‘TURBO’ display will go out.

SLEEP

When this button is pressed in cooling or heating mode, the air conditioner will go into sleep mode. T   symbol will appear on the remote control display. Press the button again to exit sleep mode. The sleep symbol will disappear.

Light

This button turns off the remote control indicator light. The symbol is hidden. Press the button again to turn the light back on. The symbol will reappear.

Child safety

Press [+] and [-] at the same time to switch on the childproof lock. When the child lock is activated, the display appears on the remote control. If you now press any buttons, the remote control will flash three times and will not send any signal.

General Operation

• After connecting to the power supply, press the ON / OFF button on the remote control to switch on the device.
• Press MODE to select the desired operating mode: AUTO, COOL, DRY, FAN, HEAT.
• Press [+] and [-] to set the desired temperature. The temperature cannot be set in..

AUTO mode.

• Press FAN to set the desired fan level: AUTO, LOW (low), MEDIUM (medium,m), and HIGH (high).
• Press and select the pan movement.

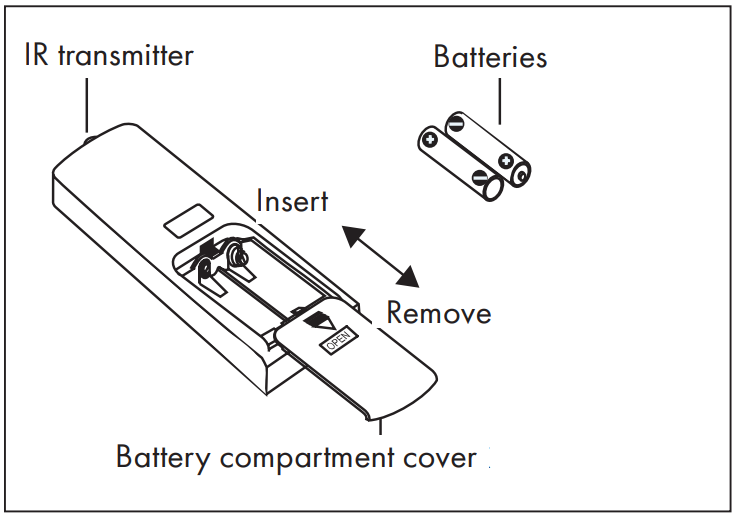

Replacement of the remote control batteries

• Press the retaining clip on the battery compartment of the remote control and slide off the cover in the direction of the arrow.
• Replace the old batteries with two LR03 batteries. Make sure that the polarity is correct.
• Put the battery cover back on.

Note: The distance between the signal generator and the signal receiver must not be more than 8 metres.

• Replace the batteries with the same type.
• Remove the batteries if you will not be using the remote control for a long time.
• If the display on the remote control becomes blurred or shows nothing, replace the batteries.

INSTALLATION

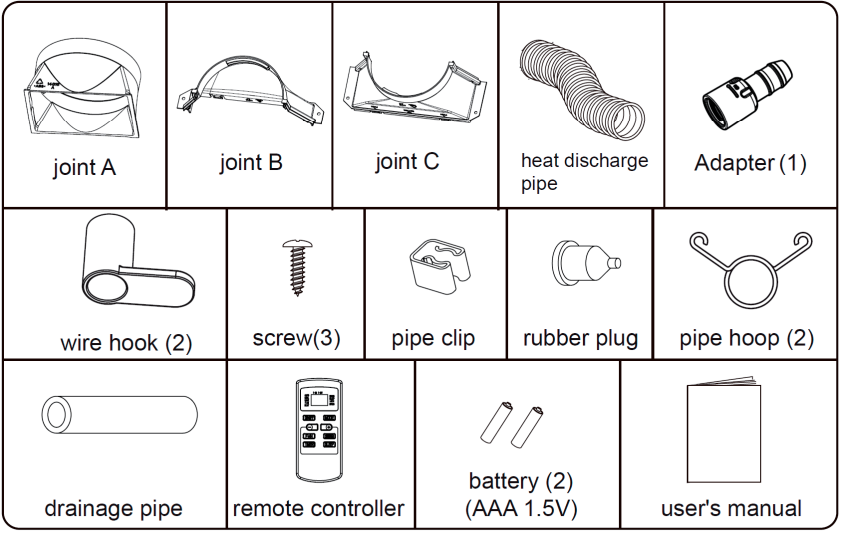

Accessory

Additionally, you need: a cross screwdriver, a straight screwdriver, a saw, a gauge, scissors, and a pencil.

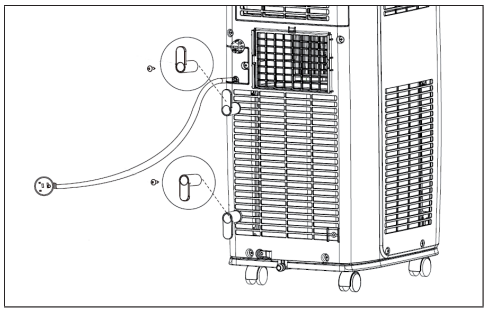

Installing the Wire Hook

• Assemble the wire hook at the back of the unit with screws (the direction of the wire hook is as shown in the following figure.
• Wind the power cord around the wire hook.

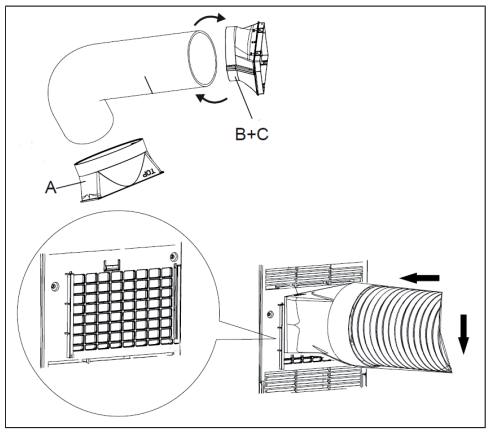

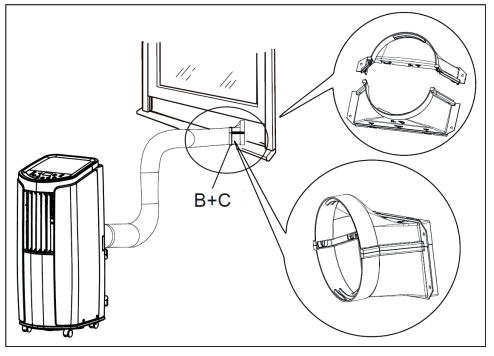

Installing the Heat Discharge Pipe

1. Rotate joint A and joint B clockwise into the two ends of the heat discharge pipe.
2. Insert joint A of the heat discharge pipe (the side with „TOP“ is upwards) into the groove until you hear a sound.
3. Aim the locating pole of joint B of the heat discharge pipe at the opening of joint C; rotate it slightly to make joint B and joint C connect tightly.

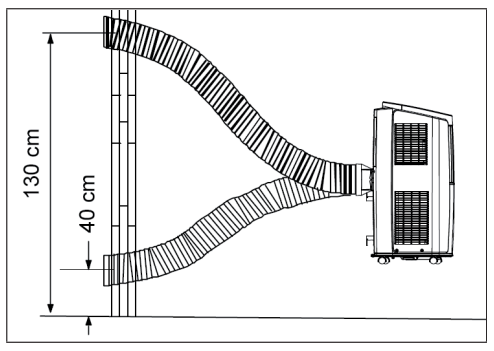

4.  In order to improve cooling efficiency, the heat discharge pipe should be as short as possible and flat without a curve to ensure smooth heat discharge.
5. Correct installation is as shown in the figure. When installing it on a wall, the height of the hall should be about 40 cm – 130 cm from the floor.
6. If the pipe is bent too much, it would easily cause malfunctions.

Manual Removal of Collected Water

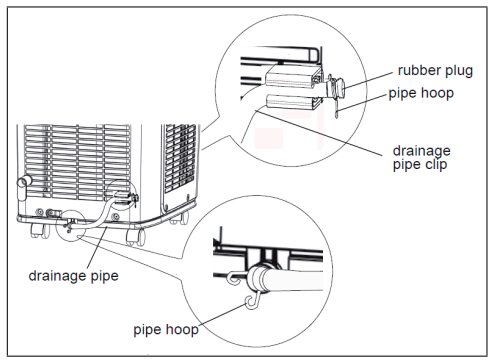

When using the continuous drainage option from the bottom hole, install the drainage pipe before using, other- wise poor drainage will affect the normal operation of the unit.

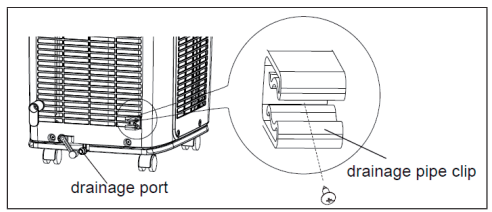

Remove the rubber plug at the drainage port. Fix the drainage pipe clip on the right of the rear side plate near the drainage port with a screw.

Put the drainage pipe into the drainage port and screw it up, and then bind it with the pipe hoop.

Put the rubber plug into the other side of the drain- age pipe, fix it with a pipe hook, and then fix it in the drainage pipe clip.

Drainage way is as follows

• Move the unit to a suitable place for discharging water; do not tilt the unit and keep it horizontal during moving.
• Take the drainage pipe from the clip and pull out the rubber plug on the drainage pipe to discharge water.
• After full water protection is eliminated and the compressor has been stopped for 3 minutes, the unit will resume operation.

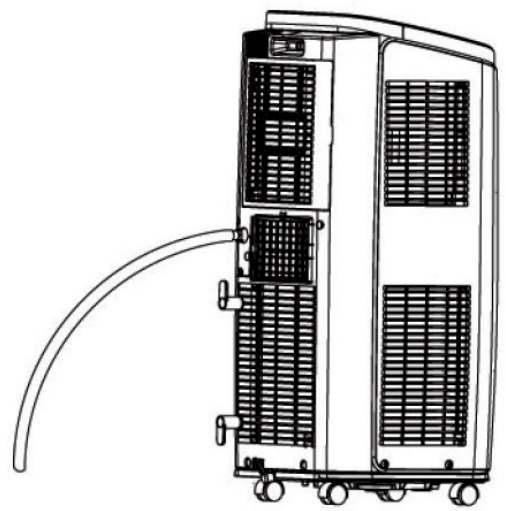

Using a continuous Drainage

The water can be discharged automatically via the central outlet. You will need the supplied rubber hose, hose adapter, and hose clamp. This is how you set up the drain:

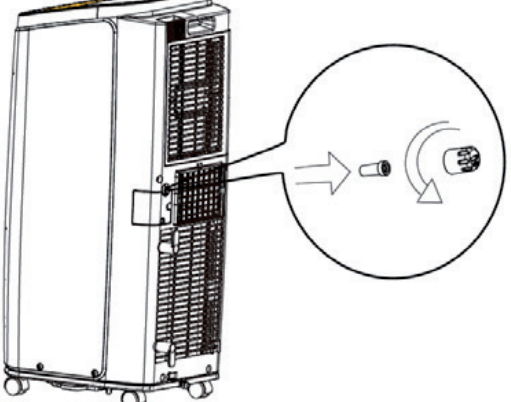

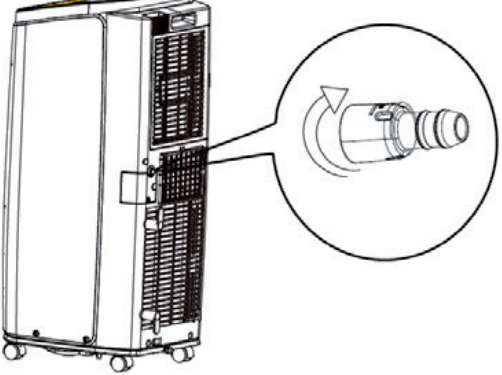

Remove the continuous drain cap 1 by turning it counterclockwise, then remove the rubber stopper 2 from the spout.

Screw the drain connector (included in the package) to the spout by turning clockwise.

Put the hose on the adapter and fasten it with the KLARSTEIN 10029702 NEW BREEZE Air Conditioner hose KLARSTEIN 10029702 NEW BREEZE Air Conditioner clamp. Guide the free end of the hose into a suitable drain.

CLEANING AND CARE

Before cleaning the air conditioner, please turn off the unit and disconnect the power. Otherwise, it may cause an electric shock. Do not wash the air conditioner with water. Otherwise, it may cause an electric shock. Do not use volatile liquids (such as thinner or gas) to clean the air conditioner. Otherwise, it may damage the appearance of otheair conditioner.

Clean the outer Case and Grille

Clean outer case: If there‘s dust on the surface of the outer case, please use a soft towel to wipe it. If the outer case is very dirty (such as with grease), please KLARSTEIN 10029702 NEW BREEZE Air Conditioner use neutral detergent to wipe it. Clean grille: Use a cleaner or a soft brush to clean it.

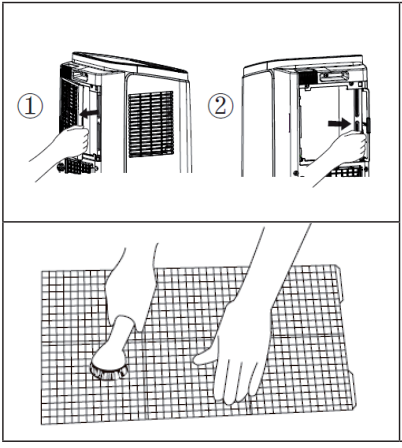

Clean Filter

• Remove filter.
• Use clean water to clean the filter. If the filter is very dirty (such as grease), use warm water 40 °C (104 °F) mixed with neutral abluent to clean it and then put ataady place to dry it..
• After the filter is cleaned and completely dried, reinstall it well.

Cleaning the Heat Discharge Pipe

Remove the heat discharge pipe from the air conditioner, clean and dry it, and then reinstall it. (For the method of installation and removal, please refer to the instructions for „Installation and disassembly of heat discharge pipe“).

Checking before Use-Season

• Check whether the air inlets and air outlets are blocked.
• Check whether the plug and socket are in good condition.
• Check whether the filter is clean.

Checking after Use Season

• Disconnect the power supply. Clean the filter and outer case.
• Remove dust and sundries from the air conditioner.
• Eliminate accumulated water in the chassis (refer to the section on „Drainage way“ for details).
• Check whether the window bracket is damaged or not. If yes, please contact the dealer. Long-time Storage

Troubleshooting

Problem	Possible Cause	Solution
The air conditioner can‘t operate.	Is the plug loose?	Reinsert the plug.
	Whether the unit is restarted immediately after stopping.	Wait for 3min, and then turn it on again.
Poor cooling.	The air filter is too dirty.	Clean the air filter.
	The set temperature is proper.	Adjust the temperature.
	The door and window are not closed.	Close doors and windows.
The air conditioner can‘t receive a signal from the remote controller, or the remote controller is sensitive.	The remote controller is not within the receiving range.	The receiving range of the remote controller is 8 m. Do not exceed this range.
	Whether it‘s blocked by obstacles.	Remove the obstacles.
	Is the sensitivity of the remote controller low?	Check the batteries of the remote controller. If the power is low, please replace the batteries.
	There’s a fluorescent lamp in the room.	Move the remote controller close to the air conditioner,, or turn off the fluorescence lamp and try it again.
No fan blew out from the air conditioner.	The air outlet or air inlet is blocked.	Eliminate the obstacles.
The set temperature can‘t be adjusted.	The unit operates under auto mode.	The temperature can‘t be adjusted under auto mode.
	The required temperature exceeds the temperature setting range.	Temperature setting range: 16°C-30°C
There‘s an abnormal sound during operation.	The unit is interfered with by thunder, radio, etc.	Disconnect the power, plug the power in, and then turn the unit on again.

Error Codes

H8	The chassis is full of water.	Pour out the water inside the chassis. If „H8“ still exists, please contact a professional person to maintain the unit.
F1	Malfunction of the ambient temperature sensor.	Please contact a professional person to deal with it.
F2	Malfunction of the evaporator temperature sensor.	Please contact a professional person to deal with it.
F0	Refrigerant is low, or the system is blocked.	Re-energize the unit after turning off and pulling out the plug for 30 min; If there‘s still a malfunction, please contact after-sales service.
H3	Overload protection for the compressor.	Check if the unit is under a high-temperature and high-humidity environment; if the ambient temperature is too high, power off the unit and then energize it for operation after the ambient temperature drops to 35 °C below..
E8	Overload malfunction.	If the malfunction still occurs, please contact our after-sales service center.
F4	The outdoor tube temperature sensor is open/short-circuited.	Please contact a professional person to deal with it.

Product Data Sheet

	10029702, 10029703, 10040152, 10040153
Description	Symbol	Value	Unit
Rated capacity for cooling	Prated for cooling	2,1	kW
Rated capacity for heating	Prated for heating	–	kW
Rated power input for cooling	PEER	0,8	kW
Rated power input for heating	PCOP	–	kW
Rated EnergEfficiency Ratioio	EERd	2,6	–
Rated Coefficient of Performance	COPd	–	–
Power consumption in thermostat-off mode	PTO	109	W
Power consumption in standby mode	PSB	0,3	W
Electricity consumption of single/double duct appliances (indicate for cooling and heating separately)	DD: QDD SD: QSD	0,8	DD: kWh/a SD: kWh/h
Sound power level	L WA	63	dB(A)
Global warming potential	GWP	3	kgCO2 eq.
Contact details for obtaining more information	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

Disposal Consideration

By disposing of iit according tobtoe rules, you are protecting KLARSTEIN 10029702 NEW BREEZE Air Conditioner the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your KLARSTEIN 10029702 NEW BREEZE Air Conditioner household waste disposal service.

This product contains batteries. If there is a legal regulation KLARSTEIN 10029702 NEW BREEZE Air Conditioner for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of theaccordingby the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

Cutomer Service

Manufacturer
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain
Chal-Tec UK Limited, Unit,6 R,,iverside Business CeCenterre Brighton Road, Shoreham-by-Sea,, B43 6RE,, Uited Kingdom

FAQs

What type of air conditioner is the New Breeze?

A portable air conditioner made to chill individual rooms is the KLARSTEIN New Breeze. For adaptable climate control, it has fan, dehumidifying, and cooling modes.

What size room can the New Breeze effectively cool?

Small to medium-sized spaces, like living rooms, workplaces, and bedrooms, can use this device. Sunlight, insulation, and space design all affect cooling efficiency.

Does this air conditioner require installation?

Yes, very little installation is required. For warm air to be released outdoors, the unit needs to be attached to a window exhaust kit. Usually, all components needed for a simple installation are supplied.

Can I use the air conditioner without the exhaust hose?

No, the exhaust hose is necessary for cooling mode. The unit cannot release hot air and will not cool efficiently without adequate venting.

How do I drain water from the unit?

The majority of moisture automatically evaporates through the exhaust when in cooling mode. The internal tank may fill in dehumidifying mode or in extremely humid conditions, necessitating manual emptying via the drain outlet.

How often should I clean the air filters?

Depending on usage and air quality, clean the filters every two to four weeks. Unclean filters use more energy and function worse.

Can I operate the unit at night without bright lights?

Indeed. To lower noise and brightness while preserving comfortable temperatures, the majority of models have a sleep mode or display lowering feature.

Can I move the unit between rooms?

Indeed. Although the New Breeze is completely portable, keep in mind that cooling mode requires the exhaust hose to be correctly attached in the new location.
