KLARSTEIN 10030272 LIMELIGHT Range Hood
Safety Instructions
- Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
- Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are the same as the voltage and the frequency in your home.
- The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
- Children under the age of 8 must not use the cooker hood.
- Before cleaning, switch the power off at the main supply.
- Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
- Prohibit putting the cooker hood near the fire.
- If the appliance does not function normally, contact the manufacturer or a specialist company.
- Do not flambé under the range hood.
- Accessible parts may become hot when used with cooking appliances.
- Disassembly is similar to installation/assembly in reverse order.
- Take a second person to help you during disassembly to avoid injuries.
For the Installer
- Electrical connections may only be made according to local standards and laws.
- Make sure that the supply voltage matches the nominal voltage on the nameplate of the device. If this is not the case, do not connect the device.
- Make sure that cables do not come into contact with the moving parts and are not crushed.
Installation

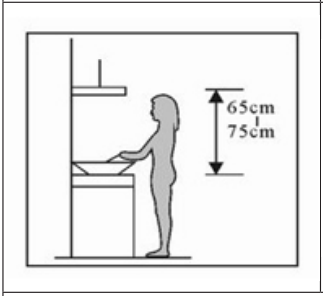

- The cooker hood should be placed at a distance of 65-75 cm (26-30 inches) from the cooking surface for the best effect.

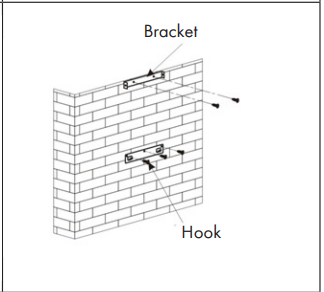

- Install the hook in a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of the chimney.

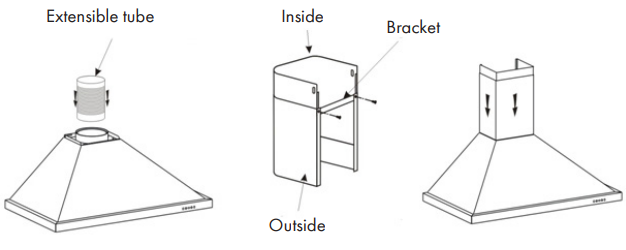

- Fix the outside chimney bracket on the outside KLARSTEIN 10030272 LIMELIGHT Range Hood chimney, and be sure that the inside chimney can be adjusted in height freely, as well as fixing the extensible pipe. Afterwards, install the extensible pipe and chimney on the cooker hood.

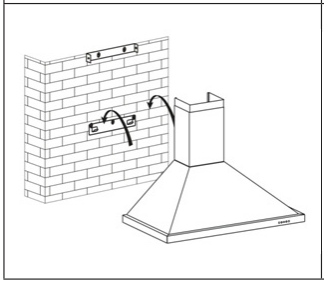

- Put the cooker hood on the hook.

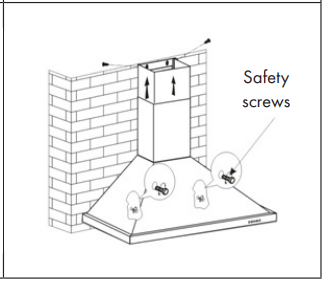

- Adjust the height of the inside chimney to the KLARSTEIN 10030272 LIMELIGHT Range Hood position of the inside chimney bracket, and fix it with a screw. After adjusting the position, secure the body with a safety screw.

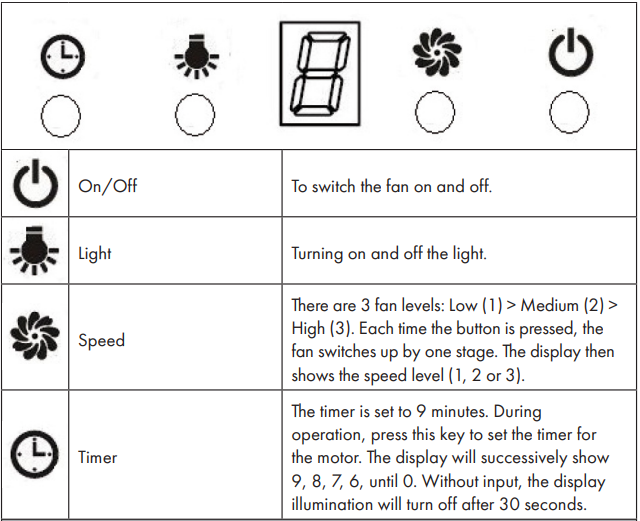

Control Panel & Function
- After connecting to power, the control panel will KLARSTEIN 10030272 LIMELIGHT Range Hood be lit. The light will shut off automatically after 30 seconds if without no operation.
Cleaning & Care
- Turn off the cooker hood before cleaning and KLARSTEIN 10030272 LIMELIGHT Range Hood maintenance, and unplug the appliance from the wall outlet.
- The exterior surfaces are susceptible to scratches and stains. Therefore, do not use abrasive cleaners and wipe away any alkaline or acidic residue (lemon juice, vinegar) immediately after cleaning.
Stainless Steel Surfaces
- The stainless steel must be cleaned regularly to ensure a long service life. Use stainless steel cleaner. Always wipe along the grain of the stainless steel to prevent scratching.
Control Panel
- The control panel can be cleaned with a damp cloth and a mild dishwashing detergent. Before cleaning, make sure the cloth is clean and well wrung. Use a dry, soft cloth to remove excess moisture after cleaning.
Monthly Cleaning for Grease Filter
- Cleaning the filter every month can prevent any risk of fire. The filter collects grease, smoke, and dust, so the filter directly affects the efficiency of the cooker hood. If not cleaned, the grease residue (potentially flammable) will saturate the filter. Clean it with household cleaning detergent.

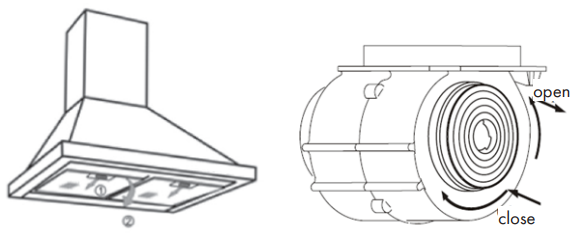

Installation of the carbon filter

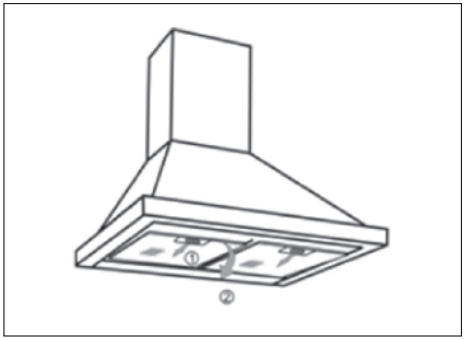

- Remove the grease filters
- The charcoal filters are located at KLARSTEIN 10030272 LIMELIGHT Range Hood both ends of the motor. Turn the charcoal filters
until they are unscrewed.
Technical Data
- Item number: 10030272, 10034975, 10034976, 10034977, 10034978, 10041132, 10041133
- Power supply: 220-240 V ~ 50/60 Hz
Troubleshooting
| Problem | Possible Cause | Solution |
| Light on, but the motor does not work | The leaf blocked | Get rid of the blocking |
| The capacitor damaged | Replace capacitor | |
| The motor’s jammed bearing was damaged | Replace motor | |
| The internal width of the motor
off or a bad smell from the motor |
Replace motor | |
| Insufficient suction. | The distance between the body and the gas top is too long. | Readjust the distance. |
| Too much ventilation from open doors or windows. | Choose a new place and resemble the machine. | |
| Shake of the body | The leaf is damaged, causing shaking | Replace the leaf |
| The motor is not tightly
hanged |
Lock the motor tightly | |
| The body is not tightly
hanged |
Fixed the body tightly |
Data Sheet
Information according to Regulation (EU) No. 65/2014
- Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015
| Item number | 10030272, 10034975, 10034976, 10034977, 10034978, 10041132, 10041133 | ||
| Description | Symbol | Value | Unit |
| Annual Energy Consumption | AEChood | 15.7 | kWh/Year |
| Energy Efficiency class | A++ | ||
| Fluid Dynamic Efficiency | FDEhood | 35.9 | |
| Fluid Dynamic Efficiency class | A | ||
| Lighting Efficiency | LEhood | 30.3 | Lux/W |
| Lighting Efficiency class | A | ||
| Grease Filtering Efficiency | GFEhood | 80.2 | % |
| Grease Filtering Efficiency class | C | ||
| Air flow at minimum and maximum speed in normal use, intensive, or boost excluded | 203.7 / 600.4 | m³/h | |
| air flow at the intensive or boost setting | – | m³/h | |
| airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use | 43 / 64 | dB | |
| airborne acoustical A-weighted sound power emissions at the intensive or boost setting | – | dB | |
| power consumption in off mode | Po | – | W |
| power consumption in standby mode | Ps | 0,31 | W |
| Contact details | Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany | ||
Information according to Regulation (EU) No. 66/2014
- Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015
| Item number | 10030272, 10034975, 10034976, 10034977, 10034978, 10041132, 10041133 | ||
| Description | Symbol | Value | Unit |
| Annual Energy Consumption | AEChood | 15.5 | kWh/Year |
| Time increase factor | f | 0,7 | |
| Fluid Dynamic Efficiency | FDEhood | 35.9 | |
| Energy Efficiency Index | EEIhood | 34.6 | |
| Measured air flow rate at the best efficiency point | QBEP | 252.9 | m³/h |
| Measured air pressure at the best efficiency point | PBEP | 255 | Pa |
| Maximum air flow | Qmax | 565.7 | m³/h |
| Measured electric power input at the best efficiency point | WBEP | 49.9 | W |
| Nominal power of the lighting system | WL | 3 | W |
| Average illumination of the lighting system on the cooking surface | Emiddle | 112 | Lux |
| Measured power consumption in standby mode | Po | 0,31 | W |
| Measured power consumption off mode | Ps | 0 | W |
| Sound power level | LWA | 64 | dB |
| Contact details | Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany | ||
Disposal
By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
Environmental Safety
- During cooking, make sure that there is sufficient air KLARSTEIN 10035380 ELEONORA Range Hood supply so that the cooker hood can operate efficiently and with low operating noise.
- Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary.
- Switch off the cooker hood when you no longer need it.
- Switch off the lighting when you no longer need it.
- Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
- Always put the lid on when cooking to reduce cooking steam and condensation.
Customer Service
Manufacturer & Importer (UK)
- Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
- Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 42 272 Kensington High Street, London, W8 6N, D United Kingdom
- Website: http://www.klarstein.com
- Scan the QR code to get access to the latest user manual for KLARSTEIN 10035380 ELEONORA Range Hood and more product information.
Dear Customer
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use.
FAQs
Q: What type of range hood is the KLARSTEIN LIMELIGHT (10030272)?
Ans: It gives your kitchen a fashionable touch while offering strong ventilation.
Q: What is the maximum airflow capacity of this model?
Ans: Medium to large kitchens with a lot of cooking activity would benefit greatly from the LIMELIGHT range hood’s maximum extraction rate of 600 m³/h.
Q: What size cooktop is compatible with the LIMELIGHT range hood?
Ans: For best results, always make sure the hood covers the hob area.
Q: How many fan speeds does the LIMELIGHT offer?
Ans: To manage gentle simmering to heavy frying, it has three fan speeds (Low, Medium, and High), which are easily accessible by push-button controls on the front.
Q: What kind of lighting is included in the LIMELIGHT range hood?
Ans: With its two built-in LED spotlights, this model illuminates your cooking surface brightly and efficiently.
Q: How loud is the LIMELIGHT during operation?
Ans: The noise level is about 65 dB at full power, which is comparable to a typical conversation. At lower speeds, the noise level is considerably lower.
Q: Does the unit come with a remote control or app connectivity?
Ans: No, the LIMELIGHT model lacks smart or remote operation and simply has manual push-button controls.
