KLARSTEIN 10031190 TRAMONTANA Air Purifier
Safety Instructions
- Read all instructions and keep the manual in a safe place for future reference.
- Do not immerse the device, the plug, or the power cord in water or other liquids.
- Please ensure that you supervise children when using this appliance.
- Do not push any objects through the ventilation slots.
- Do not run the power cord under a carpet.
- Do not cover the power cord with blankets, rugs, or the like.
- Have repairs carried out by qualified specialists only. Have the device checked to see if it has been damaged in any way or if the power cord or plug is damaged.
- The same applies if liquids or objects have landed on the device, the device has been exposed to rain or moisture, does not function properly, or has been dropped.
- We accept no liability for damage caused by disregarding the instructions or improper use.
- Do not use the device outdoors.
- Do not place any objects on the device.
- Do not try to repair the device yourself.
- Repairs may only be carried out by trained specialists.
- Do not use the device with remote-controlled sockets or external timers.

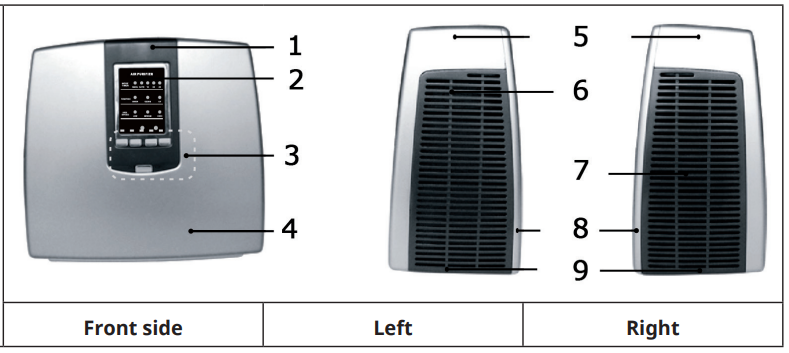

Overview
- Deck
- LED display
- Keys
- Front cover

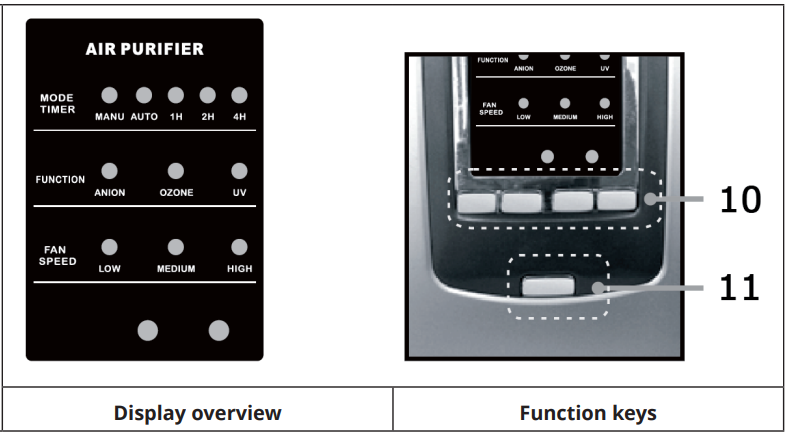

Display and function keys
- Function keys
- On/off key

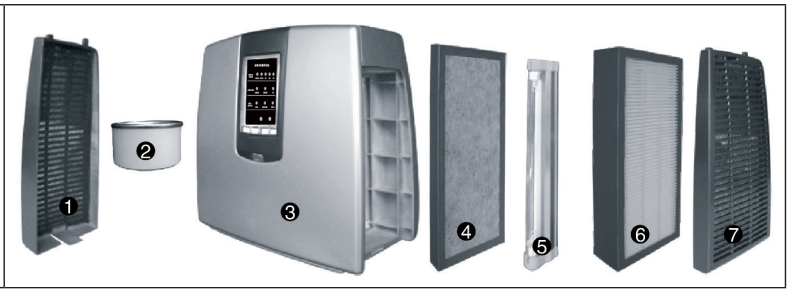

Built-in parts
- Left cover
- Fragrance depot
- Housing
- Activated carbon filter and photocatalyst
- UV lamp
- HEPA filter
- Right cover

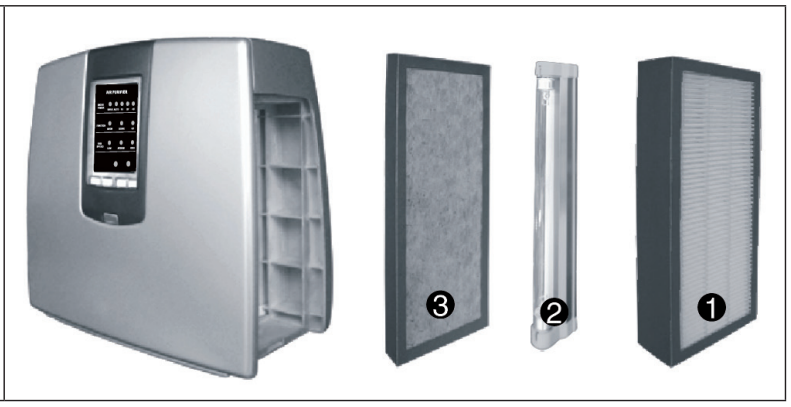

Air purifying system
- HEPA filter
- UV lamp
- Activated carbon filter and photocatalyst
Operation
| Part | Function |
| HEPA filter | Filters pollen, smoke, and particles from the air that can cause allergies or respiratory diseases. The HEPA filter has an efficiency of more than 99.9%. |
| Activated carbon filter | Formaldehyde and benzene are colourless gases with a pungent odour. They occur in many buildings and rooms. The activated carbon filter filters these substances out of the air. |
| Photocatalyst | Breaks down harmful and toxic gases in the air and kills viruses that are in the air. |
| UV lamp (optional) | Air is the main vector of flu. Air purification is an effective way to prevent the flu. With UV sterilisation technology, the germs can be reduced by up to 97.6%. |
| Ion function | Negative ions can support the human metabolism and the immune system. |
| Ozone function (optional) | Ozone can break down organic odours and biological contamination in the air. To do this, it isolates oxygen from the air in order to increase the concentration of ozone in the air. The device generates 50 mg of ozone per hour. |
| Fragrance (optional) | Has a calming effect and can increase concentration. |
Installation

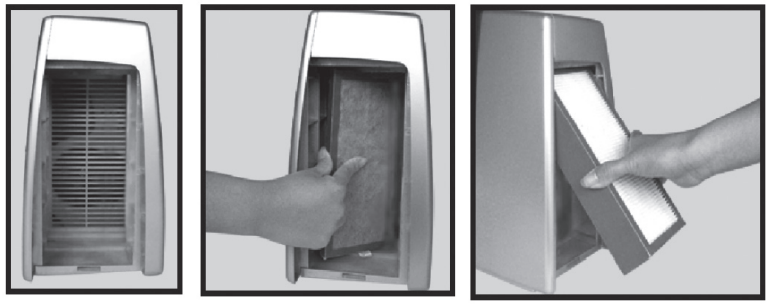

Remove the protective covers from the HEPA and activated carbon filters and reinsert the filters into the device.
- Remove the right cover.
- Put the activated charcoal filter.
Fragrance depot
- Remove the left cover.
- Remove the cover from the fragrance depot.
Connect power
- To reduce the risk of electric shock in KLARSTEIN 10031190 TRAMONTANA Air Purifier in the event of a fault or malfunction, the unit must be connected to a grounded outlet.
- Plug the power plug securely into the wall socket.

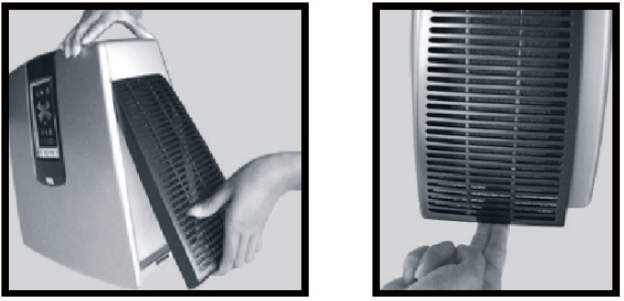

Remove and attach the cover.
- Removing the cover: Lift the device slightly with one hand and open the cover from below with the other hand.
- Attaching the cover: Slide the top of the cover into the holder on the device. Then press the button into the housing.

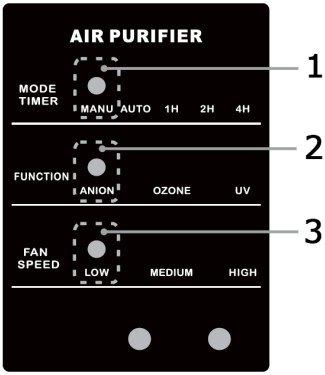

Switching on the device
- Press the on / off button on the device. The device will turn on, and the display will light up.
- Manual mode
- Anions
- Fan speed

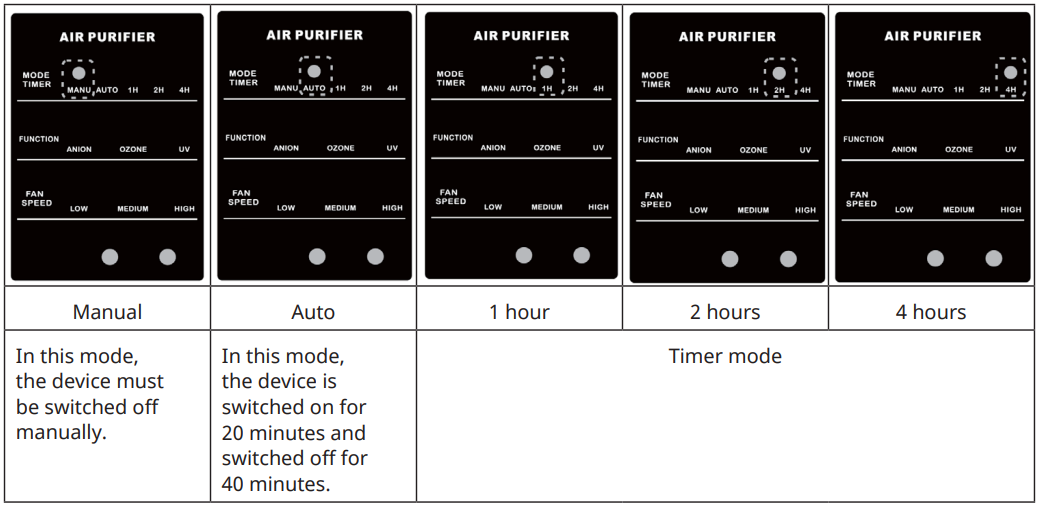

Modes and Timer Settings
- Press the MODE button several times to select KLARSTEIN 10031190 TRAMONTANA Air Purifier, the individual modes in the following order: Manual> Auto> 1 hour> 2 hours> 4 hours.

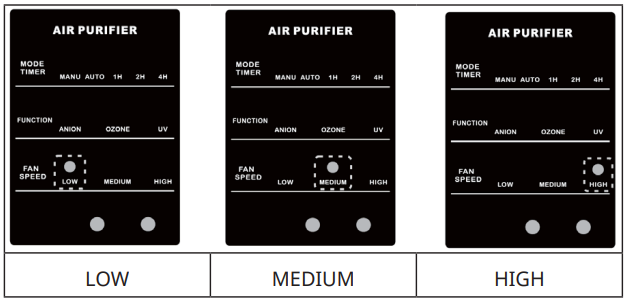

Fan speed
- Press the SPEED button several times to select one of the following speeds: LOW (low)> MEDIUM (medium)> HIGH (high):

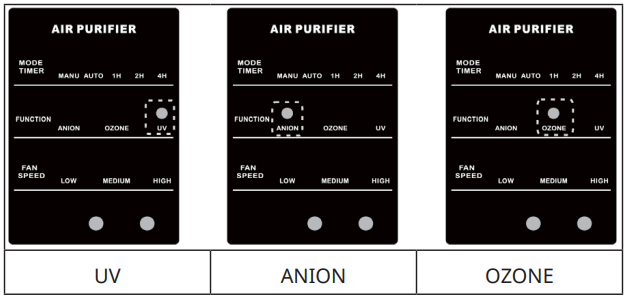

Functions
- Press the FUNCTION button repeatedly to select KLARSTEIN 10031190 TRAMONTANA Air Purifier, the functions in the following order.
- ION> OZONE> ION & OZONE> NO FUNCTION. The display will light up as follows:
- The ozone function can be optionally selected.
- People should stay away from the device while the ozone function is in operation. The device automatically switches to the ion function after 1 hour.
- HEPA filter, activated carbon filter, and photocatalyst are basic functions and are in operation as soon as you switch on the device.
CLEANING AND CARE
- Do not clean the device with water.
- Do not use abrasive cleaners for cleaning.
- Do not clean the device with solvents, as these agents can cause deformation or discolouration.
- Do not use chemical cleaners for cleaning.

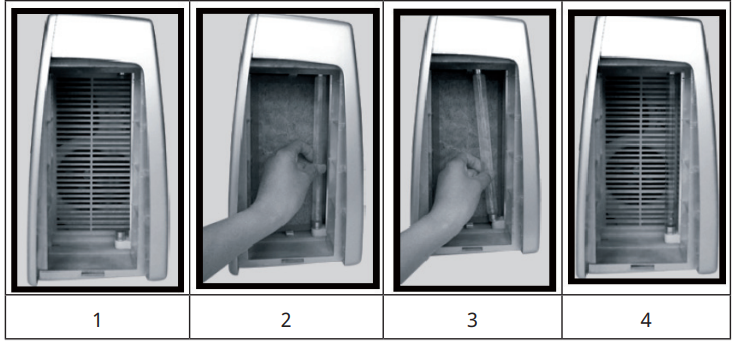

Replacing the UV lamp
- When the UV symbol flashes, the UV lamp needs to be replaced
- Remove the right cover and take out the HEPA filter.
- Hold the UV lamp, turn it 90 °, and remove it.
- Hold the new UV lamp securely and attach it to the holder. Then turn it 90 °.
- Reinstall the HEPA filter and replace the cover.
TROUBLESHOOTING
| Problem | Possible cause and solution |
| The device does not work. | Check whether the plug is firmly plugged into the socket. Plug it in again to be on the safe side. |
| Check that the left and right covers are attached. If not, turn off the device, install the covers, and turn the device on again after 15 minutes. | |
| The device runs through and does not turn off anymore; the display lights up red continuously. | Interferences are disturbing the device. Unplug the device and turn it on again 15 minutes later. |
| The device does not remove any odours. | The activated charcoal filter or the device is dirty. Clean the activated carbon filter or replace it with a new filter. |
| The dirt is not removed from the air, and the device runs very loudly. | The HEPA filter is dirty. Clean the HEPA filter or replace it with a new filter. |
| The dirt is not being caught by the filters. Move the device to another room and let the fan run at high speed to test whether there is a malfunction. | |
| The room might be too big to purify the air effectively. |
Disposal
By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
Environmental Safety
- During cooking, make sure that there is sufficient air KLARSTEIN 10035380 ELEONORA Range Hood supply so that the cooker hood can operate efficiently and with low operating noise.
- Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary.
- Switch off the cooker hood when you no longer need it.
- Switch off the lighting when you no longer need it.
- Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
- Always put the lid on when cooking to reduce cooking steam and condensation.
Customer Service
Manufacturer & Importer (UK)
- Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
- Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 42 272 Kensington High Street, London, W8 6N, D United Kingdom
- Website: http://www.klarstein.com
- Scan the QR code to get access to the latest user manual KLARSTEIN 10035380 ELEONORA Range Hood and more product information.
Dear Customer
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use.
FAQs
Q: What is the maximum room size the TRAMONTANA can effectively purify?
Ans: The gadget is perfect for offices, bedrooms, and tiny living spaces because it can fit in spaces up to 20–25 m² (215–270 ft²).
Q: Can I run the air purifier continuously?
Ans: Indeed, the TRAMONTANA is built to run continuously. It can be operated around-the-clock; however, for energy efficiency, it’s best to utilise Auto or Timer mode.
Q: Does the air purifier make a lot of noise?
Ans: No, the machine produces between 30 and 50 dB, depending on the fan speed, and operates silently, especially when in the low or sleep mode. Perfect for use at night.
Q: Is the air purifier effective against odours and cigarette smoke?
Ans: Indeed. Tobacco smoke, culinary odours, and pet odours are among the prevalent household odours that the activated carbon filter eliminates.
Q: Does it produce ozone or harmful byproducts?
Ans: No, the TRAMONTANA is safe to use around children, pets, and persons with respiratory conditions because it solely employs mechanical filtration and doesn’t create ozone.
Q: How do I know when to replace the filters?
Ans: When the filters are blocked or have expired, an indication light on the control panel will turn on. Reduced performance could indicate that a replacement is necessary, so you should also keep an eye on airflow and odour reduction.
Q: Can I use the air purifier with essential oils or fragrances?
Ans: No, aromatherapy and oil diffusion are not intended uses for the TRAMONTANA. Adding oils could violate your warranty and harm the internal filters.
