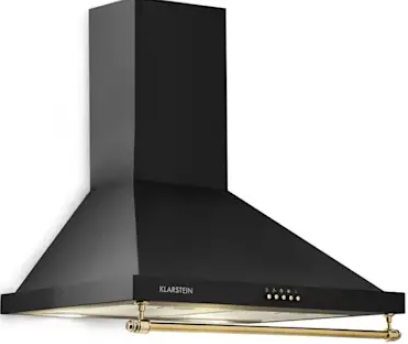

KLARSTEIN 10031992 MONTBLANC Range Hood
Safety Instructions
- Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
- Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are the same as the voltage and the frequency in your home.
- The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
- Children under the age of 8 must not use the cooker hood.
- Before cleaning, switch the power off at the main supply.
- Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
- Prohibit putting the cooker hood near the fire.
- If the appliance does not function normally, contact the manufacturer or a specialist company.
- Do not flambé under the range hood.
- Accessible parts may become hot when used with cooking appliances.
Installation
Assembly of the V-flap

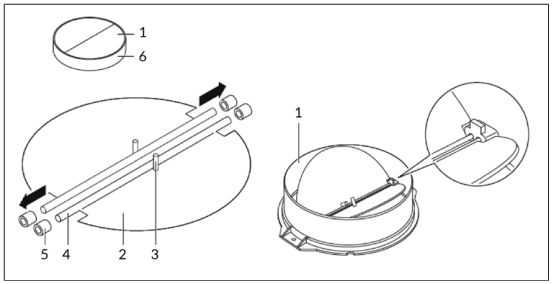

- Install the first half (2) in the housing (6).
- The pin (3) should be facing upwards.
- Insert the axle (4) into the holes (5) on the housing.
- Repeat all steps for the second half of the flap.
Preparation
- Before installation, turn the unit off and unplug it from the outlet.
- The cooker hood should be placed at a distance of 65~75 cm above the cooking plane for the best effect.
- When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 Bar).
- If you do not have an outlet to the outside, an exhaust pipe is not required, and the installation is similar to the one shown in section “Installation (Vent outside)”.
- Lay the exhaust pipe as short and straight as possible.
- Do not use a smaller exhaust duct, and do not confine it.
- If flexible ducts are used, the duct must always be mounted tightly in order to minimise pressure loss.
- All installation work may only be carried out by a qualified electrician or a qualified person.
- Do not connect the exhaust duct of the cooker hood to an existing ventilation system used for another appliance, such as a chimney.
- The angle of the exhaust pipe bend should not be less than 120°. Align the pipe horizontally. Alternatively, the duct should go up from the starting point and be led to an outer wall.
- After installation, make sure that the cooker hood is level to prevent grease from accumulating on one side.
- Make sure that the exhaust duct selected for the installation complies with the relevant standards and is fire-resistant.

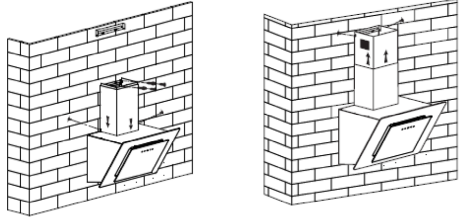

Mounting on the wall

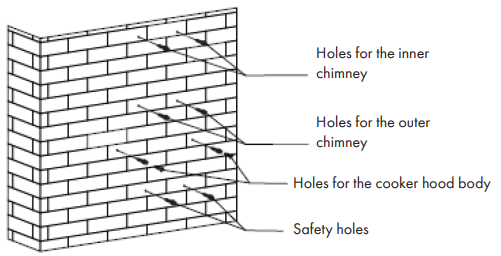

- Drill 8 holes in the wall at the fixing point using an 8 mm diameter drill bit.
- Insert dowels in the holes you have drilled for the cooker hood body. Fix 2 ST4*40 mm support screws in the middle and leave them protruding 2 mm from the wall.
- Place the cooker hood on the screws.
- Insert 2 ST4*30 mm screws into the safety holes from the inside and tighten the screws completely to ensure that the cooker hood is securely fixed.

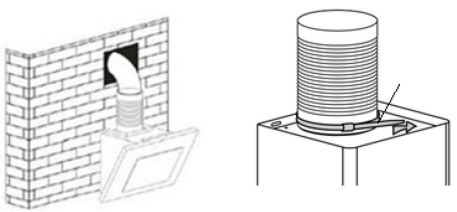

- Fasten the exhaust hose to the air outlet with a cable tie. Pull the exhaust hose upwards until it protrudes through the hole in the wall.

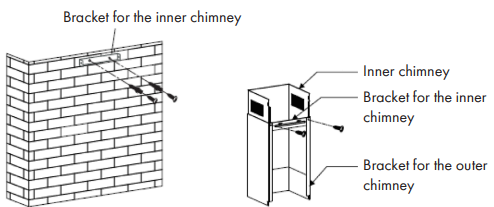

- Fasten the bracket for the inner chimney to the wall with ST4*40 screws.
- Then, fix the bracket for the outer chimney to the outer chimney with 2 ST4*8 mm screws. Make sure that the inner chimney can be moved freely.
- Fasten the outer chimney to the cooker hood with 2 ST4*8 mm screws. Fasten the bracket for the outer chimney to the wall with ST4*40 mm screws.
- Adjust the height of the inner chimney correctly and fix the inner chimney to the wall with 2 ST4*8 mm screws.
Care & Cleaning
Grease Filters Cleaning
Please do not use the corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly.
- Method 1: Put the mesh into 40-50 ºC clean water, pour on detergent, and soak for 2-3 min. Wear gloves and clean with a soft brush. Please do not apply too much pressure, as the mesh is delicate and will be damaged easily.
- Method 2: If instructed to do so, it can be put into a dishwasher, and set the temperature to around 60 degrees.
To remove aluminum filters, press the metal tab back, remove the filter (one at a time), and gently pull down. After washing and drying them, place the filters following the passages of the assembly in inverse order.
Lamp Change
- Before changing the bulbs, make sure that the hood is not connected.

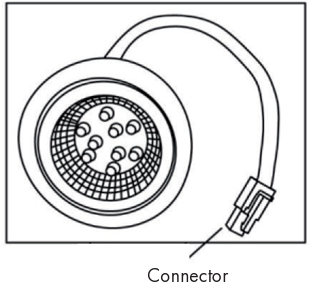

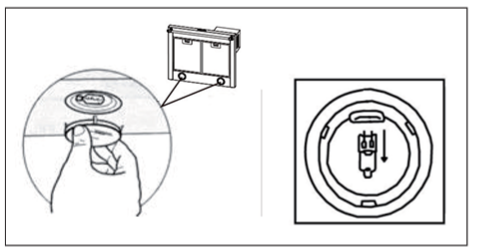

- Grasp the metal ring of the bulb, pull down, and remove the halogen cavity. Pic.12
- Replace the bulb with a new one with the same characteristics.
Technical Data
- Item number 10031992, 10031993, 10031994, 10040264, 10040265, 10040266, 10040267, 10040268
- Power supply 220-240 V ~ 50/60 Hz

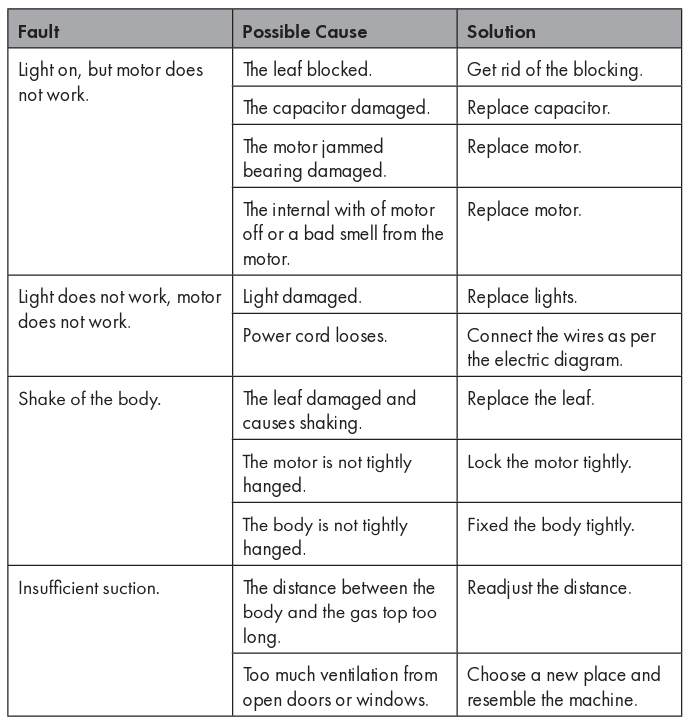

Troubleshooting
Data Sheet

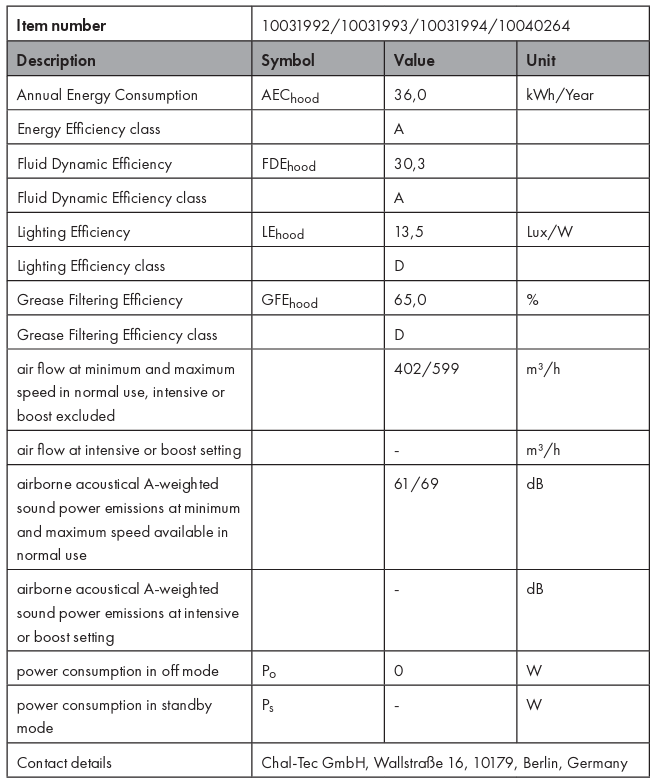

Information according to Regulation (EU) No. 65/2014
- Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

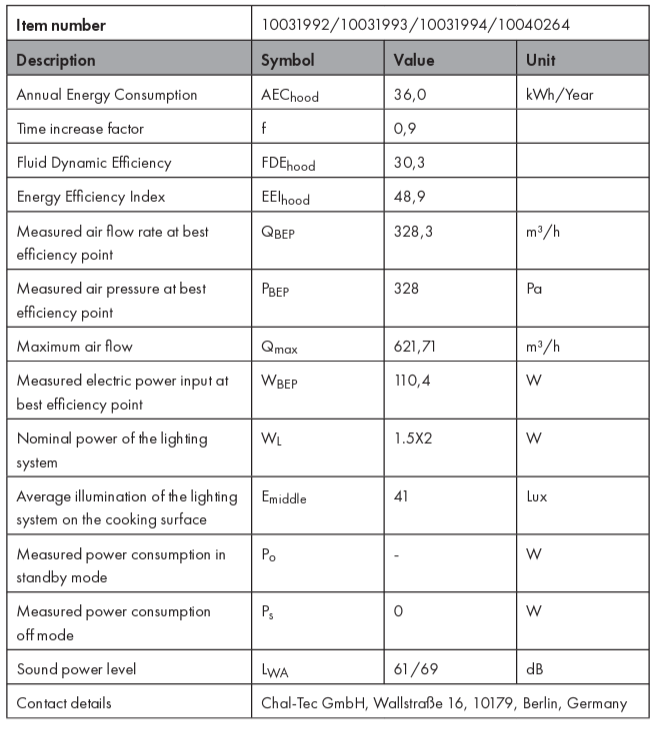

Information according to Regulation (EU) No. 66/2014
- Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015
Disposal
By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
Environmental Safety
- During cooking, make sure that there is sufficient air KLARSTEIN 10035380 ELEONORA Range Hood supply so that the cooker hood can operate efficiently and with low operating noise.
- Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary.
- Switch off the cooker hood when you no longer need it.
- Switch off the lighting when you no longer need it.
- Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
- Always put the lid on when cooking to reduce cooking steam and condensation.
Customer Service
Manufacturer & Importer (UK)
- Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
- Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 42 272 Kensington High Street, London, W8 6N, D United Kingdom
- Website: http://www.klarstein.com
- Scan the QR code to get access to the latest user manual for KLARSTEIN 10035380 ELEONORA Range Hood and more product information.
Dear Customer
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use.
FAQs
Q: What is the maximum airflow rate of the MONTBLANC range hood?
Ans: With a maximum air extraction rate of 610 m³/h, the MONTBLANC is perfect for small to medium-sized kitchens.
Q: Can this hood be used in recirculating mode?
Ans: Indeed. The range hood has two modes of operation: recirculating (with optional carbon filters) and extraction (vented outside).
Q: What size cooktop is the MONTBLANC suitable for?
Ans: This variant is appropriate for normal 60 cm cooktops or smaller because it comes in a 60 cm width. For best results, make sure the range hood’s breadth covers the hob.
Q: How many speed settings does the MONTBLANC offer?
Ans: You may modify the airflow according to the degree of cooking activity, thanks to the hood’s three fan speeds (Low, Medium, and High).
Q: Does the MONTBLANC have LED lighting?
Ans: Indeed, it has built-in LED lights to illuminate your cooking area in a brilliant and energy-efficient manner.
Q: What kind of control system does it use?
Ans: You can manage the fan, lights, and settings on the MONTBLANC range hood thanks to its user-friendly touch control panel on the front glass surface.
