KLARSTEIN 10032595 LIENZ Fireplace Heater User Manual

KLARSTEIN 10032595 LIENZ Fireplace Heater

Safety Instructions

1. Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
2. If the supply cord is damaged, it must be replaced by a qualified engineer in order to avoid a hazard.
3. The fireplace heater must not be positioned directly under the power socket.
4. Keep furniture, curtains, and other flammable material at least 1 meter away from the appliance.
5. Keep out of reach of children and do not allow them to operate this appliance.
6. This appliance is intended for household use only and should not be used for industrial purposes.
7. Do not operate this appliance after a malfunction or after being damaged in any way.
8. Repairs to electrical appliances should only be performed by a qualified electrician.
9. Improper repairs may place the user at serious risk.
10. Do not run the mains cable under carpets, rugs, etc.
11. Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
12. In order to avoid overheating, do not cover the heater.
13. Never immerse the product in water or any other liquid for any reason.
14. Do not use this heater in the immediate surroundings of a bath, a shower, or a swimming pool.
15. Do not use the appliance outdoors.

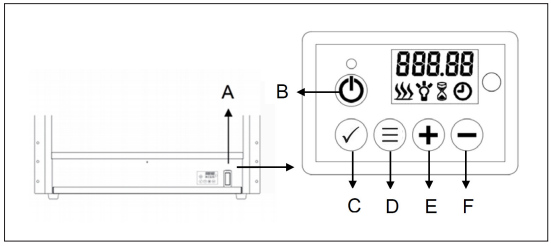

Control panel

• (A) Main switch
• (B) On / Off button
• (C) Key lock / confirm entry
• (D) MENU
• (E) Increase value
• (F) Decrease value

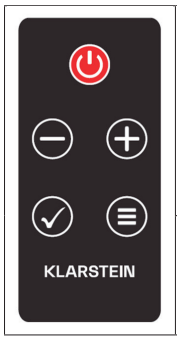

Remote Control

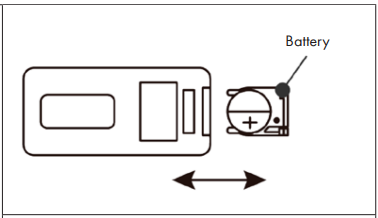

• When using the remote control for the first time, remove the plastic strap from the battery.
• This heater comes with a remote control.
• To operate the device with the remote control, the main switch (A) must be in the ON position.
• All buttons on the remote control have the same functions as the buttons on the control panel.

Functions & Settings

• Main switch (A)
  Open the cover on the bottom of the unit and press button A down to the ON position.
• On / Off button (B)
  Press the on / off button to start the flame effect. The following will appear on the display
• The heating symbol will be displayed and the appliance will start to heat if the room temperature is below the standard setting (10 ° C).
• If the temperature is higher than 10 ° C, the icon will not be displayed and the unit will not heat up.
• The clock symbol will flash to indicate that no timer has yet been set.
• When the unit is switched on, two short beeps will sound, increasing in tone.
• When it is switched off, three beeps will sound, which will decrease in tone.
• When switching on, the heating level, the setpoint temperature, and the clock symbol will be displayed.
• The display disappears after 60 seconds unless you press a key. Press any key to return to the display.

Key lock (C)

Press and hold the OK button for more than 6 seconds to lock or unlock the keys. As soon as the keys are locked, [LOC] flashes on the display for 6 seconds and then disappears. Press any key,,y and [LOC] will flash again. Press the OK button for 6 seconds to unlock the keys.

Switch heating on/off/quick sta.rt

• Press the (+) or (-) button to start the heat setting directly (even if a weekly program is set).
• Press either the (+) or (-) button to see the current temperature on the screen.
• Press the (+) or (-) button to set the desired temperature.
• Press the OK button to confirm the setting.
• If the set temperature is higher than the room temperature detected by the device, the heating will start.
• The heater will not start if the set temperature is lower than the room temperature.
• The temperature can be set between 10 °C and 30 °C. Select OFF to turn the heater off.

Set the high heat out.put

• Press the D (MENU) button on the control panel, and the display will show H and the flashing heating symbol.
• Press the OK button to set the temperature. The default temperature is 10 ° C (50 ° F). The image at left will appear on the display.
• Press the (+) or (-) button to set the temperature. If the set temperature is higher than the room temperature detected by the device, the heating will start. If the set temperature is lower than the room temperature, the heating will not start.

Set low heat output

• Press the MENU button twice, and the display will show L and the flashing heating symbol.
• Press the OK button to set the temperature. The default temperature is 10 ° C (50 ° F). The image at left will appear on the display.
• Press the (+) or (-) button to set the temperature. If the set temperature is higher than the room temperature detected by the device, the heating will start. If the set temperature is lower than the room temperature, the heating will not start.

Switch between Celsius and Fahrenheit

• The default temperature display is Celsius. Press the D (MENU) button for 3 seconds, then press the (+) or (-) button to change the temperature display from Celsius to Fahrenheit.

Adjust brightness

• The brightness control is used to select the desired flame brightness.
• Press the MENU button repeatedly to enter the brightness setting. The display will show [bri] and the flashing light bulb icon.
• Press the OK button to start the brightness adjustment. Press the (+) or (-) button to select the desired brightness level.

Set runtime

• Press the MENU button repeatedly to enter the timer setting. The display will show [Hour] and the flashing timer icon.
• Press the OK button to start the timer setting. Press the (+) or (-) button to set the desired time between 0-9 hours. The display will show the set time.

Adjust dimmer (specific models only)

• Press the MENU button repeatedly to enter the dimmer setting. The display will show [doLi].
• Press the OK button to start the dimmer adjustment. Press the (+) or (-) button to select the desired dimming levels (D1 / D2 / D3 / D4 / OFF). Level D1 is the brightest setting, with OFF, the dimmer is off.
• If you do not adjust for more than 15 seconds, the display will return to the standard view.

Operating

Select mode

• Press the MENU button repeatedly to enter the operating KLARSTEIN 10032595 LIENZ Fireplace Heater modes. The display will show [ModE]. Press OK to enter the mode setting and use the (+) or (-) button to select the desired mode.

Open window mode

• Press the MENU button several times to enter the [ModE] operating modes. Press OK to enter the mode setting and use the (+) or (-) button to select the open window mode. The display will show [OPEN].
• Press OK to confirm and use the (+) or (-) button to select ON or OFF:
• After activating the open window detection, the unit automatically turns off the heater when it detects that the room temperature has dropped more than 4 ° C within 10 minutes. The heater will turn off for 20 minutes.
• To restart the heater, reset the desired temperature and press the OK button to confirm the setting. After resetting the temperature, open window detection is set to OFF.

Setting the Current Weekday and Time

• Press the MENU button several times to enter the [ModE] operating modes. Press OK to enter the timer setting and use the (+) or (-) button to select the timer mode. The display will show [TIME].
• Press OK to enter the timer setting and use the (+) or (-) button to select the desired day for which you want to set a timer.
• D1 = Monday, D2 = Tuesday, D3 = Wednesday, D4 = Thursday, D5 = Friday, D6 = Saturday, D7 = Sunday.
• Press OK and use the (+) or (-) button to set the hour.
• Press OK and use the (+) or (-) button to set the minute. Then press OK again to save the setting.
• You can exit the timer setting at any time by pressing MENU. In the event of a power failure, the timer icon (clock) will blink continuously, signaling that no timer has been set. In this case, you must reprogram the timer.

Weekly Timer

• Before you can program the week timer, you must first set the current weekday and time. There are 3 preset programs available.
• Each program includes one period or several periods of time during which the fireplace will heat.
• Outside of these periods of time, the fireplace will not heat. The period of one program may overlap with the period of another program.

Preset programs

• P1 (program 1)
  Monday to Friday from 05:15 for 4 hours of high heating.
• P2 (program 2)
  Saturday to Sunday from 06:20 for 4 hours, low heating.
• P3 (program 3)
  Monday to Friday from 17:45 for 4 hours of high heating.
• P4 (Programm 4)
  Saturday to Sunday from 16:30 for 4 hours with low heating.
• Press the MENU button several times to enter the [ModE] operating modes. Press OK to enter the mode setting and use the (+) or (-) button to select the program mode. The display will show [ProG].
• Press button + or – to select “ON” or “OFF” to turn on or turn off the weekly program. Press OK to validate. To exit the setting during operation, press the button MENU.

Weekly Programming

• Press the button MENU to select the “ModE“ menu. Press OK to validate, then button + or – to access Manual Setting MANU. Press OK to validate.
• Press button [+] or [-] to select the first activation day. Press OK to validate.
• Press [+] or [–] to select the last activation day. Press OK to validate.

Manual Setting

• For selecting “d1” (Monday) as the first activation day, and “d7” (Sunday) as the last activation day.
• Press the (+) or (-) button to select the heating level
  • H = high heat output,
  • L = low heat output.
• Press OK to confirm the selection
• Press the (+) or (-) button to set the desired temperature. Press OK to confirm the selection.
• Press the (+) or (-) button to select the hour at which to start the heating. Press OK to confirm the selection.
• Press the (+) or (-) button to select the minute at which to start the heating. Each press of the button increases the minute display by 5 minutes.

• Press the (+) or (-) button to set how long the heater will run. Each press of the button increases the display by 30 minutes. Press OK to confirm the selection.
• Now the setting of the first heating period of the program is completed. The display will show [CON] (confirmed). To set a second heating period, press OK.
• If you have set the second heating period, press OK again, and the display will return to the day selection for the second heating period.
• To complete the setting, press the (+) or (-) button until KLARSTEIN 10032595 LIENZ Fireplace Heater [FINSH] appears in the display. Then press OK to complete the programming.
• To save the settings made, always press the OK button. A maximum of 8 heating periods can be programmed for one program.
• After the manual setting for the weekly timer is completed, the selected program will overwrite the default preset values.

Cleaning & Care

• Always switch off the appliance before cleaning and caring for the device.
• Over time, the glass pane can become dirty or dusty.
• Dust can be removed by gently rubbing the glass surface with a clean, lint-free cloth or paper towel.
• To remove fingerprints or other marks, use a soft, damp, lint-free cloth with a high-quality household glass cleaner.
• The glass should always be completely dried after cleaning with a lint-free cloth or paper towel.
• Storage
• Disconnect the device from the power socket when not in use and store it in a dry, dust-free location.

Technical Data

• Item number: 10032595, 10032596, 10034122, 10034123, 10034124, 10035041, 10035042, 10035043, 10035316, 10035317
• Power supply: 220-240 V ~ 50 Hz
• Power: 1800 W

Data Sheet

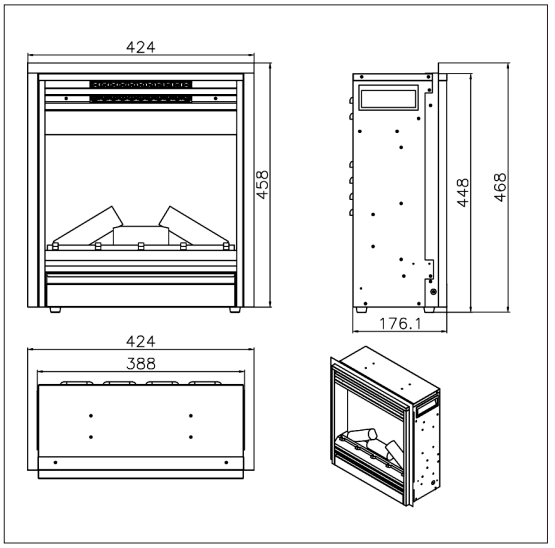

Dimensions

Disposal

By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

Environmental Safety

• During cooking, make sure that there is sufficient air KLARSTEIN 10035380 ELEONORA Range Hood supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.

Customer Service

Manufacturer & Importer (UK)

• Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
• Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 42 272 Kensington High Street, London, W8 6N, D United Kingdom
• Website:  http://www.klarstein.com
• Scan the QR code to get access to the latest user manual  KLARSTEIN 10035380 ELEONORA Range Hood and more product information.

Dear Customer

Congratulations on purchasing this device. Please read the following KLARSTEIN 10038383 FIRE SMART Fireplace Heater instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

FAQs

Q: What type of heater is the KLARSTEIN LIENZ model?

Ans: The KLARSTEIN LIENZ (model 10032595) is an electric fireplace heater that adds extra warmth and ambience by combining visual flame effects with an integrated fan heater.

Q: Does the LIENZ fireplace produce real flames or heat?

Ans: The LIENZ replicates lifelike flame effects with LED technology. Additionally, it has an electric heater with a fan to produce real heat.

Q: Can I use the flame effect without turning on the heat?

Ans: Indeed, the heating function is not necessary for the flame effect to function. This enables you to make use of the warm fireplace appearance even in the warmer months.

Q: Does the heater come with a remote control?

Ans: Indeed, the LIENZ fireplace has a remote control that allows you to regulate the heat settings, flame brightness, and timed features from a distance.

Q: Can I use this heater as the primary heating source for a room?

Ans: For extra warmth, it functions well in enclosed, small to medium-sized areas.

Q: How loud is the unit during operation?

Ans: The fan noise produced by the LIENZ heater is usually modest. In the event that you hear odd noises, make sure the device is level and unobstructed.

Q: Is the brightness of the flame adjustable?

Ans: Yes, you can use the unit’s panel or the remote control to change the flame’s brightness. This enables you to alter the atmosphere to fit your lighting or mood.
