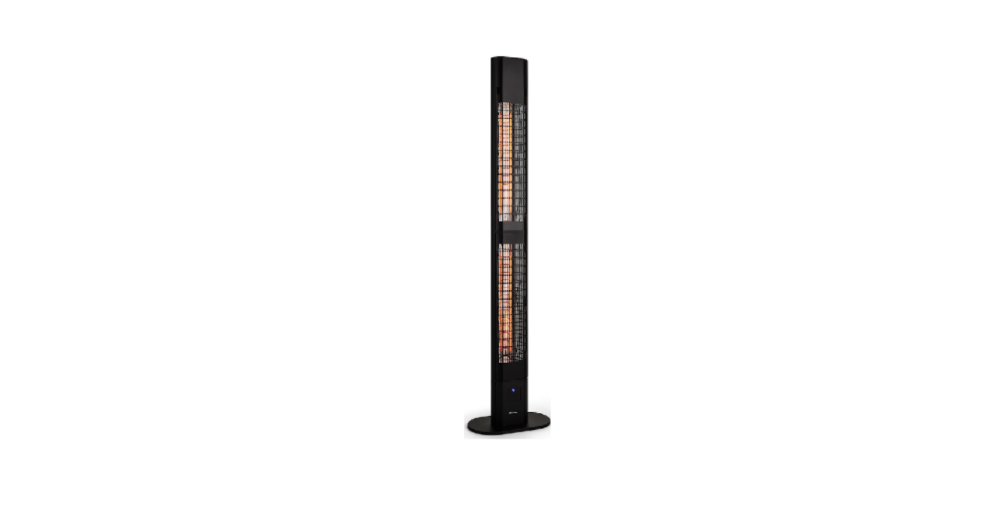

KLARSTEIN 10032777 HEAT DELUXE Tower Heater
Safety Instructions
Read the safety instructions carefully and keep them for future reference. To prevent the risk of fire, electric shock, burns, and other injuries, it is important to take basic measures when using equipment.
- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- The heater must not be located immediately below a socket-outlet.
- Do not use this heater in the immediate surroundings of a bath, a shower, or a swimming pool.
- Children of less than 3 years old should be kept away unless continuously supervised.
- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position, and they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
- Children aged from 3 years and less than 8 years shall not plug in, regulate, or clean the appliance or perform user maintenance.
Product Overview
Display
| Key | Function Description | |
| On/off | In the idle mode, press the on-off key to enter the power-on mode. The warmer starts working, and the whole machine runs under the previously remembered mode and temperature. | |
| Heating level
|
After power-on, the warmer is in the intelligent mode by default. Repeatedly press the “mode key”, the warmer shifts in circular order among “intelligent mode, low warm wind, high warm wind, strong warm wind, breeze, and gentle breeze. | |
| + and – | In the working state, press the “+” or “-” keys to set the working temperature. The temperature setting range is 5 °C – 35 °C and every temperature value is of 1 °C difference. | |
| Timer | In the power-on mode, press this key to select the timed shutdown setting. The timing indicator lights up, the temperature display icon lights off, and the display screen blinks and shows the rest time of the last setting.
|
|
| Sway key | In the power-on mode, press this key to start swaying, and press again to stop swaying. | |
Light Screen off function
- When the machine is working, the screen automatically lights off, and the operating mode icon remains on without operation for 1 minute.
- Press at the same time the key and the “-” key for 2 seconds to close the light screen off function.
- Press again at the same time the key and the “-” key for 2 seconds to turn off the light screen function.
Temperature sensor short circuit and open circuit protection
- In whatever mode, when short circuit or open circuit protection occurs to the temperature sensor, the digital screen displays E1 or E2 and blinks unceasingly, any key does not work, and the buzzer rings for 10 times.
Safety protection
- In the power-on mode, when the room temperature Th exceeds 50 °C, the system closes all outputs, the digital screen displays “FF” and blinks at the frequency of 1 time per second, any key does not work, and only powering off can quit protection.
- Toppling over protection function] No matter in power-on or power-off mode, when the machine topples over, the system immediately shuts down all heating components and displays “E3”; any key does not work.
Close the light & the buzzer
- In the power-on mode, press at the same time the “timing key” and “shift key” for 2 seconds to turn off the key fancy light and buzzer output. Repeat this action to open them.
Children’s lock function
- No matter in power-on or power-off mode, press the “+” and “-” keys simultaneously for the first time for 2 seconds to open the children’s lock function. Repeat this action to close it.
Automatic power-off function
- The screen displays “–” if the heater is not under Temperature Control mode. When the timer function is off, the heater will automatically shut off with no operation for 12 hours.
- Remote-control unit: The use of the remote-control unit: The Key function is consistent with the machine body control panel.
Intelligent mode
In the Intelligent mode, press the “+” and “-” keys to set the desired temperature. When the environmental temperature is lower than the set temperature (by more than 2 °C), the product heats in high warm wind mode.
when the environmental temperature is close to the set temperature (by less than 2 °C or more), the product heats in low warm wind mode; when the environment temperature is higher than the set temperature, the product stops heating.
Cleaning & Maintainance
- Light accumulated dust may be removed from the KLARSTEIN 10032777 HEAT DELUXE Tower Heater heater with a soft cloth. Wipe the exterior surfaces of the heater occasionally with a cloth moistened (not dripping wet) with a solution of mild detergent and water. Dry the case thoroughly with a soft dry cloth before operating the heater.
- The fan motor is lubricated by the factory and will require no further lubrication.
- No other user maintenance is required or recommended. If service is required, send your heater to the nearest authorized service depot.
- Store the heater in a clean and dry place when not in use.
Technical Parameters
| Model identifier(s): | 10032777 | |||||
| Item | Symbol | Value | Unit | Item | Unit | |
| Heat output | Type of heat input, for electric storage local space heaters only | |||||
| Nominal heat output | Pnom | 2.2 | kW | manual heat charge control, with integrated thermostat | no | |
| Minimum heat output (indicative) | Pmin | 1.2 | kW | manual heat charge control with room and/or outdoor temperature feedback | no | |
| Maximum continuous heat output | Pmax,c | 2.25 | kW | electronic heat charge control with room and/or outdoor temperature feedback | no | |
| Auxiliary electricity consumption | fan-assisted heat output | no | ||||
| At nominal heat output (fan motor) | elmax | 2.2 | kW | Type of heat output/room temperature control | ||
| At minimum heat output (fan motor) | elmin | 1.2 | kW | single-stage heat output and no room temperature control | no | |
| In standby mode | elSB | 0.00042 | kW | Two or more manual stages, no room temperature control | no | |
| With a mechanic thermostat, room temperature control | no | |||||
| with electronic room temperature control | no | |||||
| electronic room temperature control plus day timer | yes | |||||
| electronic room temperature control plus week timer | no | |||||
| Other control options (multiple selections possible) | ||||||
| room temperature control, with presence detection | no | |||||
| room temperature control, with open window detection | no | |||||
| with distance control option | no | |||||
| with adaptive start control | no | |||||
| with working time limitation | no | |||||
| witha black bulb sensor | no | |||||
| Contact details | Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany | |||||
Disposal Consideration
- By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
- For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
- This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste.
- Find out about local regulations for disposing of batteries.
- By disposing of the rules, you are protecting the KLARSTEIN 10032777 HEAT DELUXE Tower Heater environment and the health of your fellow human beings from negative consequences.
Customer Service
- Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
- Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom
Dear Customer
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
FAQs
What type of heater is the HEAT DELUXE?
The KLARSTEIN HEAT DELUXE is a tower-style electric heater with oscillation for better heat dispersion and numerous temperature settings for quick, even room heating.
How large of a room can the heater warm effectively?
It is perfect for small to medium-sized settings like living rooms, offices, and bedrooms. Temperature, ceiling height, and insulation can all affect performance.
Does the heater have adjustable heat settings?
Indeed. The unit may have an energy-saving ECO mode that modifies heat output according to room temperature, and it usually offers several heat levels (such as low, medium, and high).
What is the purpose of the oscillation feature?
Warm air is more uniformly distributed throughout the space thanks to oscillation, which turns the heater from side to side. This functionality can be turned on or off as you see fit.
Is there a built-in timer?
For evening or energy-conscious use, several models come with a programmable timer that lets you set an automatic shut-off time after a predetermined number of hours.
Does the heater come with a remote control?
Indeed. Usually, the HEAT DELUXE has a remote control that allows you to change the oscillation, timing, mode, and temperature from across the room.
Can I leave the heater running overnight?
It is not advisable to leave the heater unattended. It is advised to switch it off before going to bed or leaving the house, even though it has built-in safety precautions.
Can I use the heater on carpeted floors?
Yes, but make sure the heater is positioned on a level, sturdy surface with enough space around the vents. Steer clear of heavy carpets that could obstruct the air intake.
