KLARSTEIN 10032798 HANOI Watch Winder
SAFETY INSTRUCTIONS
- Please read all the safety and operating instructions carefully and retain them for future reference.
- Please use the AC adaptor supplied with the unit.
- Remove the adaptor when the winder is not in use.
- Always turn off the power when inserting or removing watches.
- Don´t shake or rotate when the winder is stationary.
- If you do not use this product for a long time, please take off the adaptor.
- Always turn off the power when inserting or removing watches.

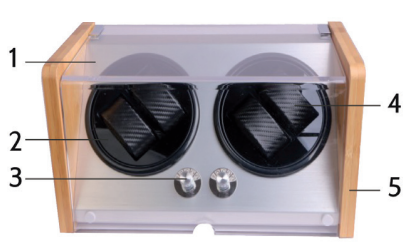

PRODUCT OVERVIEW
Note: The power supply connector is located on the back of the unit.
- Acrylic cover
- Watch winder
- Programm button
- Pillow
- Bamboo frame

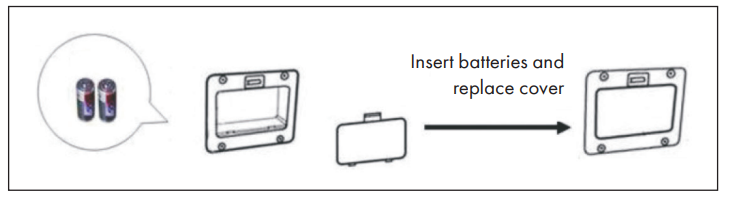

To insert the battery (optional)
Remove the battery compartment cover and insert two AA batteries.

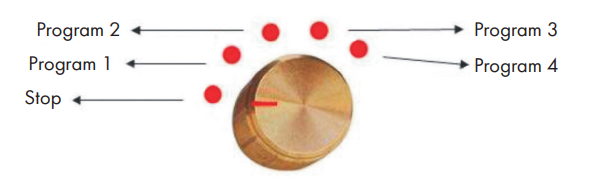

PROGRAMS
| Stop | The device is off. | |
| Program 1 | 1920 turns per day | In this program, the clock rotates clockwise for 6 minutes and then pauses for 30 minutes.
Afterwards, the cycle starts again. |
| Program 2 | 1920
turns per day |
In this program, the clock rotates counterclockwise for 6 minutes and then pauses for 30 minutes. Afterwards, the cycle starts again. |
| Program 3 | 7680
turns per day (3840 in both directions) |
In this program, the clock rotates counterclockwise for 20 minutes and then pauses for 10 minutes. The watch rotates clockwise for 20 minutes and then pauses for 10 minutes. Afterwards, the cycle starts again. |
| Program 4 | 2304
turns per day (1152 in both directions) |
In this program, the clock rotates clockwise for 10 minutes and then clockwise for 10 minutes. This change is carried out for 3 hours. The unit then pauses for 9 hours. Then the cycle starts again. |

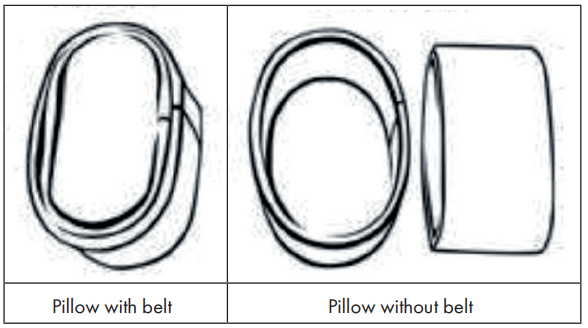

PILLOW AND BELT
The watch turner is supplied with 4 watch cushions. The strap around the watch cushions is intended for watches with longer bracelets and can be removed.
TECHNICAL DATA
- Item number 10032798, 10032800
- Power supply 100-240 V ~ 50/60 Hz
- Battery type 2 x AA 1,5V
- Dimensions (W x D x H) 32.5 x 19 x 18.4 cm
HINTS ON DISPOSAL
If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
Dear Customer,
Congratulations on purchasing this equipment. Please KLARSTEIN 10032798 HANOI Watch Winder read this manual carefully and take care of the following hints to avoid damage. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual is not covered by our warranty or liability. Scan the QR code to get access to the latest user manual and other information about the product.
MANUFACTURER & IMPORTER (UK)
Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom
FAQs
What is the KLARSTEIN HANOI Watch Winder designed for?
When not in use, the HANOI Watch Winder keeps automatic (self-winding) timepieces in steady, controlled motion to preserve their accuracy and performance.
Which types of watches are compatible with this watch winder?
It works with the majority of automatic timepieces. For optimal performance, the cushion or placement angle may need to be adjusted for watches with exceptionally large cases or especially thick bracelets.
How many watches can the HANOI unit hold?
The HANOI type is perfect for a single automatic watch because it usually has a single spinning section. To ensure capacity, always refer to the model specifications.
Will the winder overwind my watch?
No. To avoid excessive winding, the unit is built with pre-programmed intervals that include rest times. It merely provides the daily torque and rotations that an automatic movement usually needs.
How do I set the rotation mode?
To select your desired program, use the rear mode selector switch or control panel. When at all possible, choose the mode that your watch manufacturer recommends.
Can the watch winder operate silently?
Because of its low-noise motor technology, the HANOI Watch Winder is sufficiently quiet for use in living areas, offices, and bedrooms. It’s usual to hear a little hum while rotating.
How do I power the unit?
An AC adaptor that comes with the device powers the watch winder. It’s possible that some models can run on batteries, but be sure by consulting your handbook.
How should I position my watch on the holder?
Make sure the watch fits snugly by firmly fastening it around the movable watch cushion. After that, slide the cushion into the rotating compartment until it clicks or settles securely.
